WIP 4 Link rear suspension for D-series

Discussion in 'Mods and Skins' started by ROCKGODBOSS, Dec 17, 2018.

  1. ROCKGODBOSS

    ROCKGODBOSS
    Expand Collapse

    Joined:
    Jan 28, 2015
    Messages:
    133
    Started this last night, was tired of the bad 3 link, so made a Triangulated four link, with swaybars. Oh and made longer travel shocks/springs

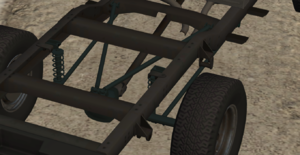

    Pre swaybar,

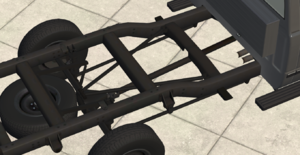

    As of RN



    Gunna try to adapt to the other frames

    • Like Like x 9
  2. Straubz

    Straubz
    Expand Collapse

    Joined:
    Aug 5, 2012
    Messages:
    325
    Looks good, but i would ditch the original strut/coilover setup, i have never seen anything like that irl, the coilovers are way too short to be any good offroad, to be long enough to achieve acceptable travel they would need to extend up past the chassis like this

    The other option is to use a proper coil and shock setup like

    • Like Like x 1
    • Informative Informative x 1
  3. burilkovdeni

    burilkovdeni
    Expand Collapse

    Joined:
    Aug 21, 2014
    Messages:
    1,103
    @ROCKGODBOSS

    I like how the rear suspension currently looks.

  4. adrian2013

    adrian2013
    Expand Collapse

    Joined:
    Oct 12, 2014
    Messages:
    641
    That looks a whole lot like @ADAM001 4 link setup

  5. ROCKGODBOSS

    ROCKGODBOSS
    Expand Collapse

    Joined:
    Jan 28, 2015
    Messages:
    133
    Didn't even know that was a thing, guess i did this for nothing :confused::confused:

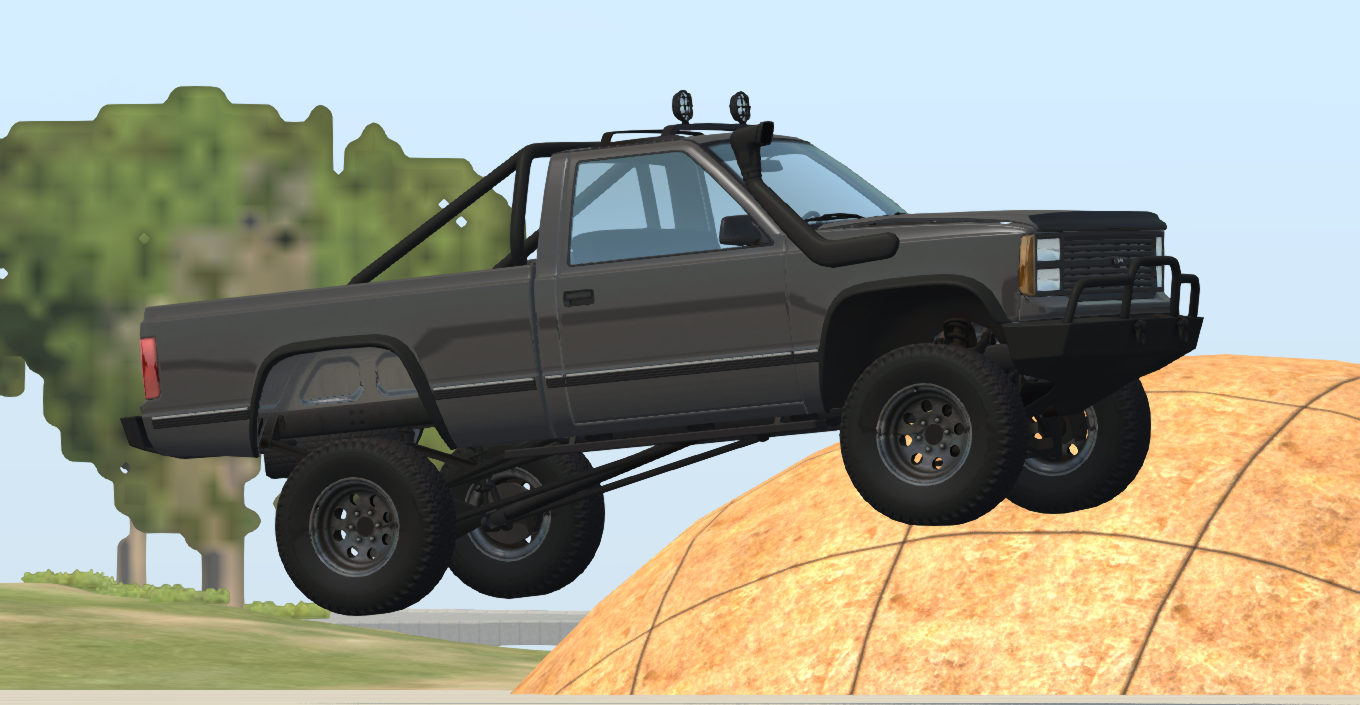

    Got the Ext. cab and Crew cab done, and redid the sway-bar next up longer shocks


    • Like Like x 1
