Experimental Adjustable Thermostat Radiator

Discussion in 'Content Creation' started by default0.0player, Nov 23, 2019.

Tags:
  1. default0.0player

    default0.0player
    Expand Collapse

    Joined:
    Nov 30, 2018
    Messages:
    660
    Create folders in your user folder so it looks like this
    C:\Users\yourusername\Documents\BeamNG.drive\lua\vehicle\powertrain\
    and move the
    \Steam\steamapps\common\BeamNG.drive\lua\vehicle\powertrain\combustionEngineThermals.lua
    to the above folder to avoid overwrite official content
    Open the lua file via notepad (notepad++ is recommended) and scroll to line 517
    Code:
    local radiatorActive = min((hasCoolantRadiator and M.coolantTemperature > thermostatTemperature and not parentEngine.isDisabled) and M.coolantTemperature - thermostatTemperature or 0, 1)
    change it to
    Code:
    local radiatorActive = min((hasCoolantRadiator and M.coolantTemperature > thermostatTemperature and not parentEngine.isDisabled) and (M.coolantTemperature - thermostatTemperature)/thermostatRange or 0, 1)
    Scroll to line 1167 and add the following text between line 1167 and line 1168
    Code:
      thermostatRange = jbeamData.thermostatRange or 1
    Save it.

    Then mod your vehicle, in this example the ETKI.
    Create the vehicle folder in your user folder C:\Users\yourusername\Documents\BeamNG.drive\vehicles\etki\
    Copy the radiator jbeam flie, in this example, the \Steam\steamapps\common\BeamNG.drive\content\vehicles\etki.zip\vehicles\etki\etki_radiator.jbeam
    into the C:\Users\yourusername\Documents\BeamNG.drive\vehicles\etki\ AND RENAME IT
    open the jbeam file and rename the "etki_radiator" and "name":"Radiator",
    Add the "thermostatRange" below the "thermostatTemperature"
    Code:
    {
    "etki_radiator_thermod": {
        "information":{
            "authors":"BeamNG",
            "name":"Radiator(thermostat mod)",
            "value":130,
        }
        "slotType" : "etki_radiator",
        "flexbodies": [
             ["mesh", "[group]:", "nonFlexMaterials"],
             ["etki_radtube", ["etki_engine","etki_radiator"]],
             ["etki_radiator", ["etki_radiator"]],
        ],
        "mainEngine":{
            "radiatorArea":0.34,
            "radiatorEffectiveness":7500,
            "coolantVolume":8,
            "radiatorFanType":"electric",
            "radiatorFanTemperature":100,
            "radiatorFanMaxAirSpeed":2,
            "thermostatTemperature":80,
            "thermostatRange":20,
            },
        "nodes": [
             ["id", "posX", "posY", "posZ"],
             //radiator
             {"frictionCoef":0.5},
             {"nodeMaterial":"|NM_METAL"},
             {"selfCollision":false},
             {"collision":true}
             {"group":"etki_radiator"},
             {"nodeWeight":2.7},
             {"engineGroup":"radiator"}
             {"chemEnergy":200,"burnRate":0.4"flashPoint":250,"specHeat":0.8,"smokePoint":150,"selfIgnitionCoef":false},
             ["rad1", 0.0, -1.8, 0.7],
             {"chemEnergy":false,"burnRate":false,"flashPoint":false,"specHeat":false,"smokePoint":false,"selfIgnitionCoef":false},
             ["rad2", 0.0, -1.8, 0.3],
             {"engineGroup":""}
             {"group":""},
        ],
        "beams": [
              ["id1:", "id2:"],
              {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0},
              {"beamSpring":1000000,"beamDamp":150},
              {"beamDeform":7500,"beamStrength":"FLT_MAX"},
              {"deformGroup":"radiator_damage","deformationTriggerRatio":0.05}
              //radiator
              {"deformLimitExpansion":""},
              ["rad2", "rad1"],
              ["rad1", "f15"],
              ["rad1", "f15r"],
              ["rad1", "f13rr"],
              ["rad1", "f11rr"],
              ["rad1", "f15l"],
              ["rad1", "f13ll"],
              ["rad1", "f11ll"],
              ["rad2", "f11"],
              ["rad2", "f11ll"],
              ["rad2", "f11rr"],
              ["rad2", "f13ll"],
              ["rad2", "f13rr"],
              //to engine
              {"beamSpring":14000,"beamDamp":300},
              {"beamDeform":1450,"beamStrength":3600},
              {"optional":true}
              //duplicate beams for better flexbody breaking
              ["rad1","e4r"],
              ["rad1","e4l"],
              ["rad1","e4r"],
              ["rad1","e4l"],
              //tube
              ["rad2","e4l"],
              {"optional":false}
              {"deformGroup":""}
              {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0},
        ],
    }
    "etki_radiator_race_thermod": {
        "information":{
            "authors":"BeamNG",
            "name":"High Performance Radiator(thermostat mod)",
            "value":270,
        }
        "slotType" : "etki_radiator",
        "flexbodies": [
             ["mesh", "[group]:", "nonFlexMaterials"],
             ["etki_radtube", ["etki_engine","etki_radiator"]],
             ["etki_radiator", ["etki_radiator"]],
        ],
        "mainEngine":{
            "radiatorArea":0.34,
            "radiatorEffectiveness":13000,
            "coolantVolume":9,
            "radiatorFanType":"electric",
            "radiatorFanTemperature":100,
            "radiatorFanMaxAirSpeed":3,
            "thermostatTemperature":80,
            "thermostatRange":20,
            },
        "nodes": [
             ["id", "posX", "posY", "posZ"],
             //radiator
             {"frictionCoef":0.5},
             {"nodeMaterial":"|NM_METAL"},
             {"selfCollision":false},
             {"collision":true}
             {"group":"etki_radiator"},
             {"nodeWeight":2.7},
             {"engineGroup":"radiator"}
             {"chemEnergy":200,"burnRate":0.4"flashPoint":250,"specHeat":0.8,"smokePoint":150,"selfIgnitionCoef":false},
             ["rad1", 0.0, -1.8, 0.7],
             {"chemEnergy":false,"burnRate":false,"flashPoint":false,"specHeat":false,"smokePoint":false,"selfIgnitionCoef":false},
             ["rad2", 0.0, -1.8, 0.3],
             {"engineGroup":""}
             {"group":""},
        ],
        "beams": [
              ["id1:", "id2:"],
              {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0},
              {"beamSpring":1000000,"beamDamp":150},
              {"beamDeform":7500,"beamStrength":"FLT_MAX"},
              {"deformGroup":"radiator_damage","deformationTriggerRatio":0.05}
              //radiator
              {"deformLimitExpansion":""},
              ["rad2", "rad1"],
              ["rad1", "f15"],
              ["rad1", "f15r"],
              ["rad1", "f13rr"],
              ["rad1", "f11rr"],
              ["rad1", "f15l"],
              ["rad1", "f13ll"],
              ["rad1", "f11ll"],
              ["rad2", "f11"],
              ["rad2", "f11ll"],
              ["rad2", "f11rr"],
              ["rad2", "f13ll"],
              ["rad2", "f13rr"],
              //to engine
              {"beamSpring":14000,"beamDamp":300},
              {"beamDeform":1450,"beamStrength":3600},
              {"optional":true}
              //duplicate beams for better flexbody breaking
              ["rad1","e4r"],
              ["rad1","e4l"],
              ["rad1","e4r"],
              ["rad1","e4l"],
              //tube
              ["rad2","e4l"],
              {"optional":false}
              {"deformGroup":""}
              {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0},
        ],
    }
    }

    Then select the mod radiator

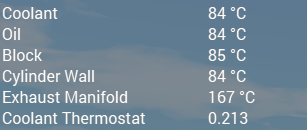

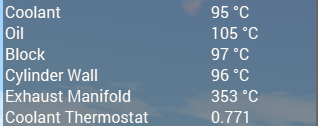

    And it works as shown

    BeamNGdrive-017129059-RELEASE-x642019_11_2312_06_22.png BeamNGdrive-017129059-RELEASE-x642019_11_2312_04_07.png
