Unsolved Air Suspension Mod - needs Help

Discussion in 'Mod Support' started by Fruit91, Apr 25, 2021.

  1. Fruit91

    Fruit91
    Expand Collapse

    Joined:
    Dec 18, 2014
    Messages:
    9
    (REPOST BECAUSE WRONG FORUM SECTION)

    Hello community


    I have started to modify an Air Suspension mod.

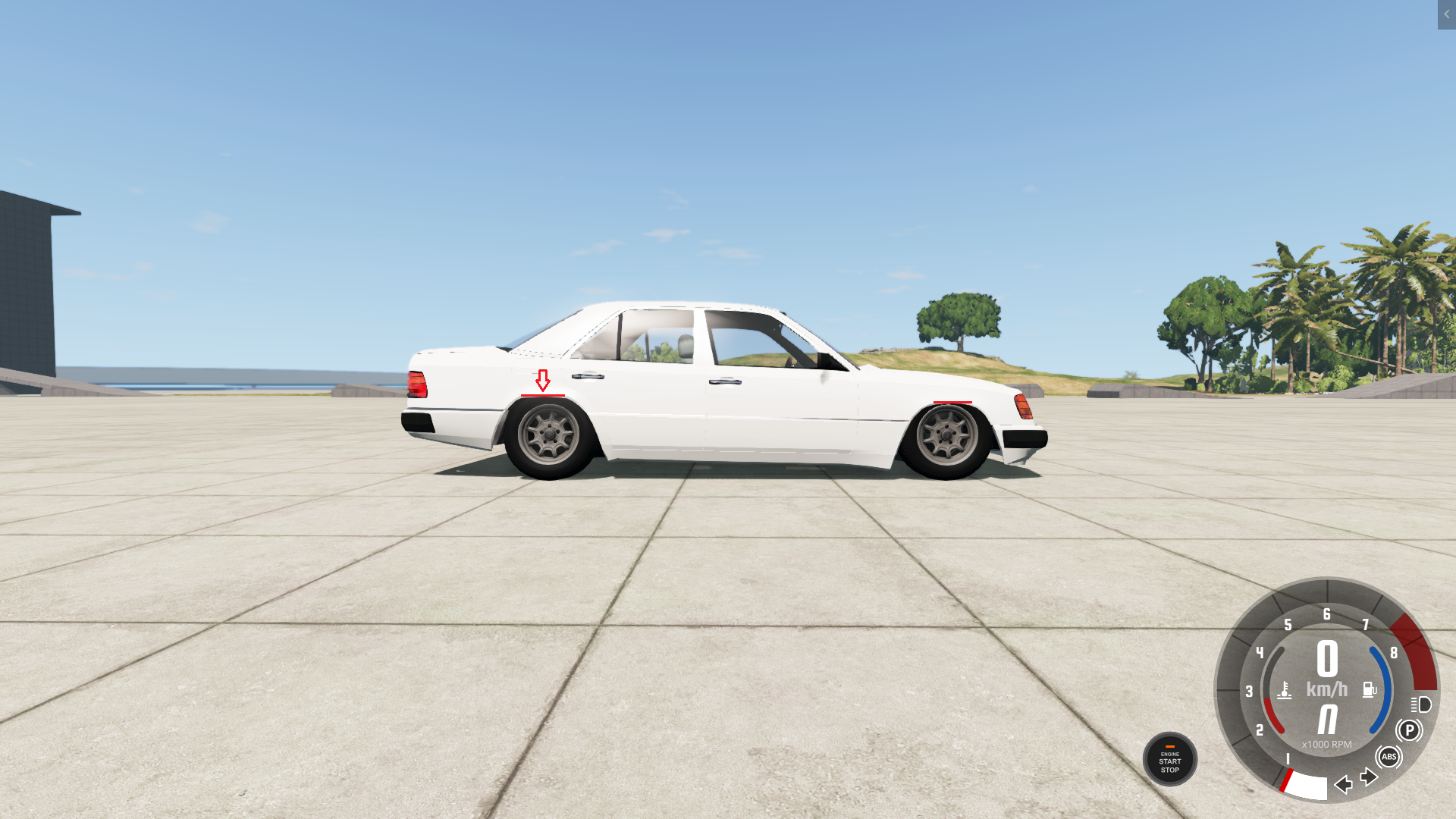

    However, I now have the problem what you see in the picture that the rear axle is too high with air out.
    Can someone help me there which numbers I have to change so that I come further down on the rear axle?

    Just in case, if i but no struts in the car is at its lowest level (see screenshot) how can i adjust this setting so the car can go lower as it is right now? (so i may need to change something elsewhere?)


    I also add the codes here so u can maybe go through and tell me what i have to change so i can go lower with the air susp.



    Code:
    {
    "W124_coilover_R_air": {
        "information":{
            "authors":"BeamNG",
            "name":"Air Rear Coilovers",
            "value":2350,
        },
        "slotType" : "W124_coilover_R",

        "flexbodies": [
            ["mesh", "[group]:", "nonFlexMaterials"],
            ["W124_coilover_rear", ["W124_shockbottom_R","W124_shocktop_R"]],
        ],
        "variables": [
            ["name", "type", "unit", "category", "default", "min", "max", "title", "description"],
            ["$airbag_R_pressure", "range", "psi", "Suspension", 65, 10, 100, "Airbag Pressure Default", "Starting Pressure of the Airbag", {"stepDis":0.5, "subCategory":"Rear"}],
        ["$airbag_R_pressure_low", "range", "psi", "Suspension", 0, 0, 75, "Airbag Pressure Low", "Starting Pressure of the Airbag", {"stepDis":0.5, "subCategory":"Rear"}],
        ["$airbag_R_pressure_high", "range", "psi", "Suspension", 100, 25, 350, "Airbag Pressure High", "Starting Pressure of the Airbag", {"stepDis":0.5, "subCategory":"Rear"}],

        ],
        "airbagBeamData": [
            ["beamName", "groupName"],
            ["airbag_RL", "rearAxle"],
            ["airbag_RR", "rearAxle"],
        ],
        "controller": [
            ["fileName"],
            ["vehicleController", {}],
        ["pneumatics", {"name":"airbags"}],
        ],
            "airbags": {
                "pressureLevels":[
                ["name", "pressure"],
                ["default", "$airbag_R_pressure"],
                ["minPressure", "$airbag_R_pressure_low"],
                ["maxPressure", "$airbag_R_pressure_high"],
            ],
            "increaseRate": 25,
            "decreaseRate": 37,
            "pressuredBeams":"airbagBeamData",
            "groupSounds": "airbagBeamSoundData",
        },
        "airbagBeamSoundData":[
            ["groupName", "soundUp", "soundDown", "volumeUp", "volumeDown"],
            ["rearAxle", "event:>Vehicle>Pneumatics>Suspension_Up", "event:>Vehicle>Pneumatics>Suspension_Down", 0.06, 0.01],

        ],
        "nodes": [
             ["id", "posX", "posY", "posZ"],
             //--REAR RUNNING GEAR--
             {"collision":true},
             {"selfCollision":false}
             {"nodeMaterial":"|NM_METAL"},
             {"frictionCoef":0.5},
             //multilink suspension
             {"nodeWeight":8.0},
             {"group":"W124_lowermounts_a_R"},
             //trailing arm
             ["rx1rr", -0.57, 0.98, 0.265{"group":["W124_lowerarm_R","W124_subframe_R"]}],
             ["rx1r", -0.12, 1.11, 0.26{"group":["W124_lowerarm_R","W124_subframe_R","W124_diff_R"],"selfCollision":false}],
             ["rx1l", 0.12, 1.11, 0.26{"group":["W124_lowerarm_R","W124_subframe_R","W124_diff_R"],"selfCollision":false}],
             ["rx1ll", 0.57, 0.98, 0.265{"group":["W124_lowerarm_R","W124_subframe_R"]}],

             //--REAR INDEPENDENT SUSPENSION--
             {"collision":true},
             {"selfCollision":false}
             //rear hub
             {"nodeWeight":4.1},
             {"group":"W124_lowerarm_a_RR"},
             {"selfCollision":true},
             ["rh1r",-0.70, 1.39, 0.25{"group":["W124_lowerarm_R","W124_hub_R"]}],
             {"group":"W124_lowerarm_a_RL"},
             ["rh1l", 0.70, 1.39, 0.25{"group":["W124_lowerarm_R","W124_hub_R"]}],
             {"group":"W124_upperarm_RR"},
             ["rh2r",-0.70, 1.39, 0.35{"group":["W124_lowerarm_R","W124_hub_R"]}],
             {"group":"W124_upperarm_RL"},
             ["rh2l", 0.70, 1.39, 0.35{"group":["W124_lowerarm_R","W124_hub_R"]}],
             //nodeCoupling
             {"nodeWeight":2.1},
             //["rh3r",-0.71, 1.37, 0.25{"group":["W124_hub_R"]}],
             //["rh3l", 0.71, 1.37, 0.25{"group":["W124_hub_R"]}],
             //
             {"nodeWeight":4.75},
             {"group":"W124_shockbottom_R"},
             //rally coilover adds weight to rh4
             ["rh4r",-0.565, 1.38, 0.15{"group":["W124_shockbottom_R","W124_hub_R"]}],
             ["rh4l", 0.565, 1.38, 0.15{"group":["W124_shockbottom_R","W124_hub_R"]}],
             {"group":"W124_hub_R"},
             {"nodeWeight":3.1},
             ["rh5r",-0.73, 1.51, 0.20{"group":["W124_hub_R","W124_lowerarm_R"]}],
             ["rh5l", 0.73, 1.51, 0.20{"group":["W124_hub_R","W124_lowerarm_R"]}],
             {"selfCollision":false},
             {"group":""},
        ],
        "beams": [
            ["id1:", "id2:"],
        //AIRBAGS
        {"beamPrecompression":0.7, "beamType":"|PRESSURED"},
        {"beamSpring":0,"beamDamp":0,"beamDeform":200000,"beamStrength":350000},
            {"beamLimitSpring":0,"beamLimitDamp":0},
        {"breakGroup":"airbag_R_break"},
            {"breakGroupType":0},
            ["rh4r","r1rr", {"pressurePSI":"$airbag_R_pressure","surface":0.027,"volumeCoef":3.5,
            "name":"airbag_RL","soundFile":"event:>Vehicle>Suspension>semi_01>spring_compress_01","colorFactor":0.8,"attackFactor":10,"volumeFactor":0.3,"decayMode":0,"decayFactor":3.5,"pitchFactor":1,"maxStress":20}],
            ["rh4l","r1ll", {"pressurePSI":"$airbag_R_pressure","surface":0.027,"volumeCoef":3.5,
            "name":"airbag_RR","soundFile":"event:>Vehicle>Suspension>semi_01>spring_compress_01","colorFactor":0.8,"attackFactor":10,"volumeFactor":0.3,"decayMode":0,"decayFactor":3.5,"pitchFactor":1,"maxStress":20}],
            {"breakGroupType":0},
            {"breakGroup":""},
            {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1, "beamShortBound":1},
            //dampers
            {"beamPrecompression":1, "beamType":"|BOUNDED", "beamLongBound":1.0, "beamShortBound":1.0},
            {"beamSpring":0,"beamDamp":"$damp_bump_R"},
            {"beamLimitSpring":0,"beamLimitDamp":0},
            ["rh4r","r1rr"{"beamDampRebound":"$damp_rebound_R","beamDampVelocitySplit":0.2,"beamDampFast":"$=$damp_bump_R/3","beamDampReboundFast":"$=$damp_rebound_R/3","dampCutoffHz":500}],
            ["rh4l","r1ll"{"beamDampRebound":"$damp_rebound_R","beamDampVelocitySplit":0.2,"beamDampFast":"$=$damp_bump_R/3","beamDampReboundFast":"$=$damp_rebound_R/3","dampCutoffHz":500}],
            //harder bump stop
            {"beamPrecompression":1, "beamType":"|BOUNDED"},
            {"beamSpring":0,"beamDamp":2200},
            {"beamLimitSpring":0,"beamLimitDamp":0},
            ["rh4r","r1rr"{"longBoundRange":0.03,"shortBoundRange":0.07,"boundZone":0.02,"beamLimitDampRebound":0,"dampCutoffHz":500}],
            ["rh4l","r1ll"{"longBoundRange":0.03,"shortBoundRange":0.07,"boundZone":0.02,"beamLimitDampRebound":0,"dampCutoffHz":500}],
            {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0},
        ],
    },
    }

    Suspension Mod from Kona61

    #1 Fruit91, Apr 25, 2021
    Last edited: Apr 26, 2021
  2. TC203

    TC203
    Expand Collapse

    Joined:
    Sep 9, 2020
    Messages:
    131
    Have you tried putting the “beamPrecompression” down in your beams. That might make it lower.

  3. Fruit91

    Fruit91
    Expand Collapse

    Joined:
    Dec 18, 2014
    Messages:
    9
    Yes it makes it lower but than i cant lower the "air bags" i want to use the air bags otherwise i wouldnt use the Mod :) Thanks

  4. TC203

    TC203
    Expand Collapse

    Joined:
    Sep 9, 2020
    Messages:
    131
    Ok. I’m not sure how otherwise unless you moved the nodes closer together or something. Reducing the pressure would probably just ruin the suspension.

  5. Fruit91

    Fruit91
    Expand Collapse

    Joined:
    Dec 18, 2014
    Messages:
    9
    Thats the thing, it works perfectly but i want to adjust the rear axle so i cant go much lower :(
    --- Post updated ---
    Maybe if u dont know how to solve it, u know someone ?

  6. Glockachu

    Glockachu
    Expand Collapse

    Joined:
    Sep 2, 2021
    Messages:
    1
    i dont know if im too late but still gonna try it..

    are you sure the rear axle's movement isnt obstructed by the chassis? from a car mechanics point of view (and not a modder): many cars need to be 'notched' to go lower than 'low' if you get what i mean.
    frame notching means that the rear axle/differential or half shafts are prob hitting the chassis and you need to make a hole/dent (dont know how to say this correct in english) to make more room for the axle/shafts.
    i have seen people adjusting the frame/chassis so that the axle can go higher.

    hope this could help you. search google to get some ideas about notching if this could be a problem for you.

  7. Lucas Mess

    Lucas Mess
    Expand Collapse

    Joined:
    Feb 14, 2021
    Messages:
    41
    If you remove the rear coils completely does it go as low as you want it to? If no then you have other obstruction like @Glockachu suggested above. If it does go low enough with coils removed then it is doable. Will you post the name of the mod you started with so I can look it over and give you a solution? I would also like to use this mod for myself.
