Blender Terrain texturing

Discussion in 'Troubleshooting: Bugs, Questions and Support' started by DirtGamer301, Mar 30, 2016.

  1. DirtGamer301

    DirtGamer301
    Expand Collapse

    Joined:
    Aug 23, 2015
    Messages:
    414
    Is there a way to some kind of overlay a terrain or selected part of a terrain with an image in Blender?

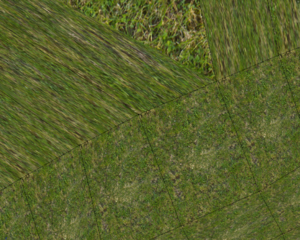

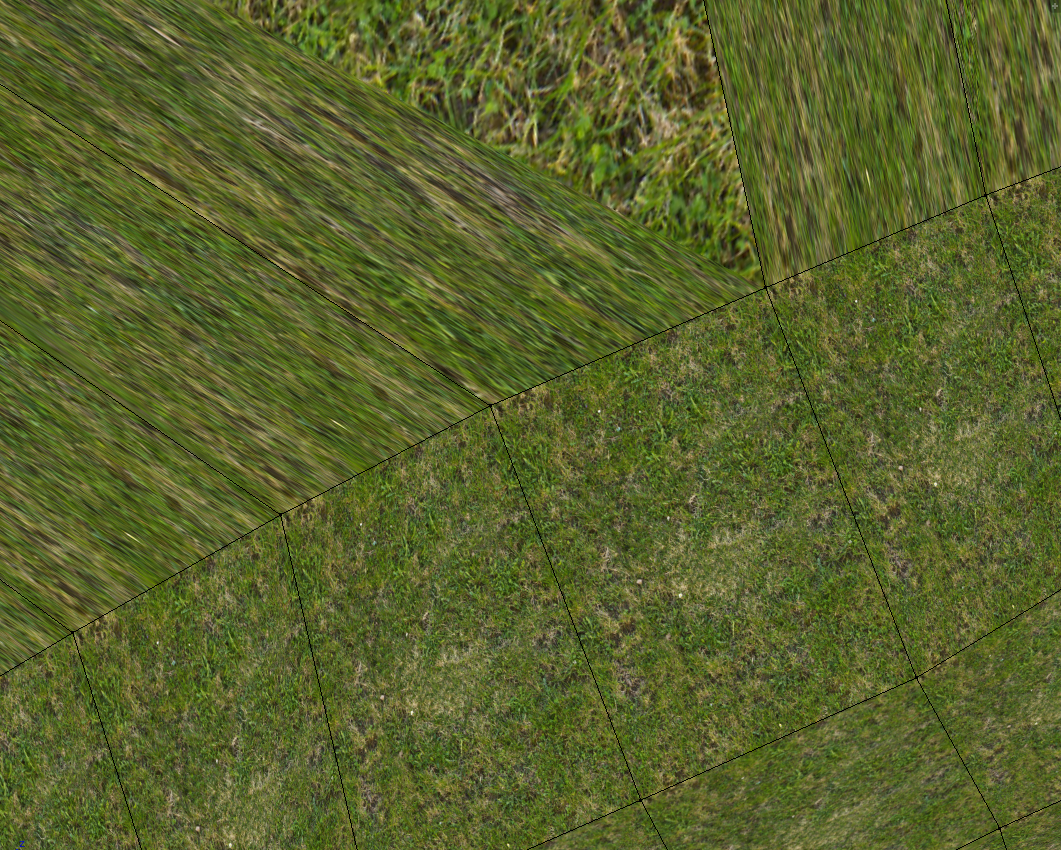

    Right now, if I simply open an image as texture it'll stretch and size and whatever the image to fit the quad (sure, as they're on the UV map like this).
    What I'd need is a way to tell Blender that it should lay the image above the selected faces in a way that they aren't getting stretched, scaled or anything, no matter what the face looks like.

  2. Nadeox1

    Nadeox1
    Expand Collapse
    Spinning Cube
    BeamNG Team

    Joined:
    Aug 5, 2012
    Messages:
    14,695
    Use Cube Projection for the UV.

    • Like Like x 1
  3. DirtGamer301

    DirtGamer301
    Expand Collapse

    Joined:
    Aug 23, 2015
    Messages:
    414
    Thanks, that worked very well :)
    --- Post updated ---

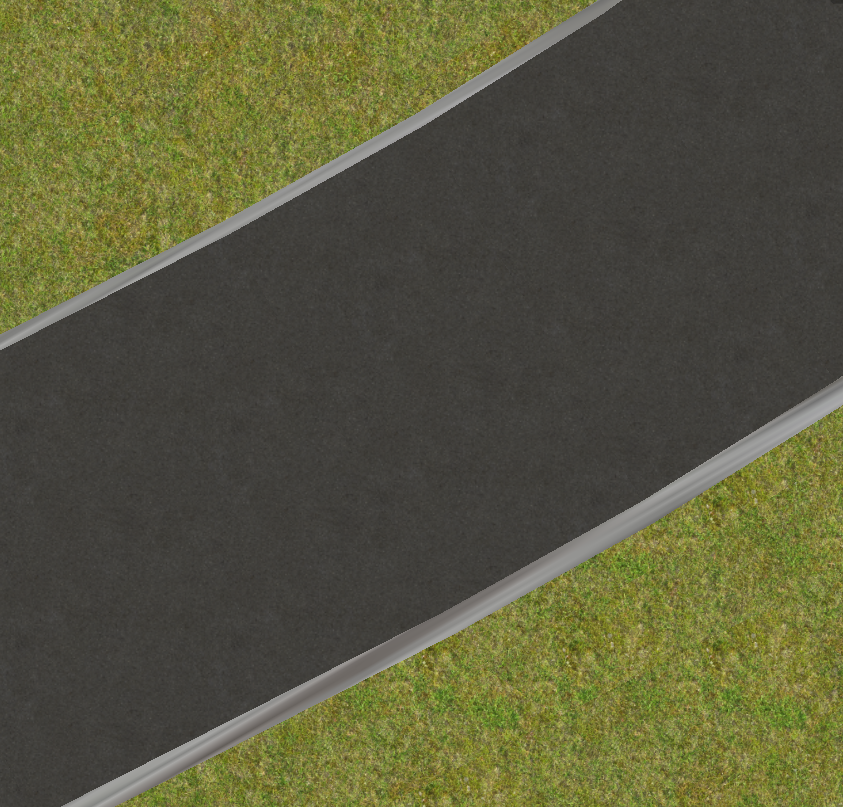

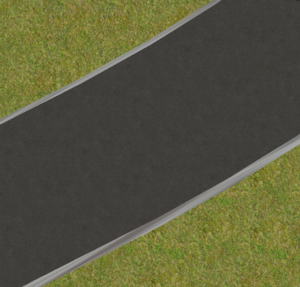

    Texturing the grass and road wasn't a big problem, texturing the kerbstone however was because there needs to be an exact was the image is laid over it (while it didn't matter for the other objects).
    It didn't work by simply pressing any of the other stock unwrap modes and rotating the UV.
    Is there some kind of "follow vertice line" thing?

  4. Nadeox1

    Nadeox1
    Expand Collapse
    Spinning Cube
    BeamNG Team

    Joined:
    Aug 5, 2012
    Messages:
    14,695
    Select the whole curb.
    In face mode, select a face (must be a QUAD). Allign your camera to it, UVMAP options > Follow active quads.

    • Like Like x 1
