Control list

How do I create (I KNOW THE APP) a list of controls on a vehicle?
Image:
(I mean for example that you can read off that you can Press O to open the tailgate)



There is the Special Vehicle keys app that shows which keys have what function. like the O button that opens the tailgate or y/u that opens the rear cargo doors. I am not really sure what you are asking



There is a "input_actions.json" file in the main vehicles folder for any vehicle with special keys.



I know but how do I get them to display on the app?



When it's in the input_actions.json, it automatically get's displayed.



Ok thanks I'll try when I'm home
--- Post updated ---

How does it work

Could you help me? link to the mod is in my signature (X18)



Ah I see, there are no "modern" key mapping files, so we'll have to make those:

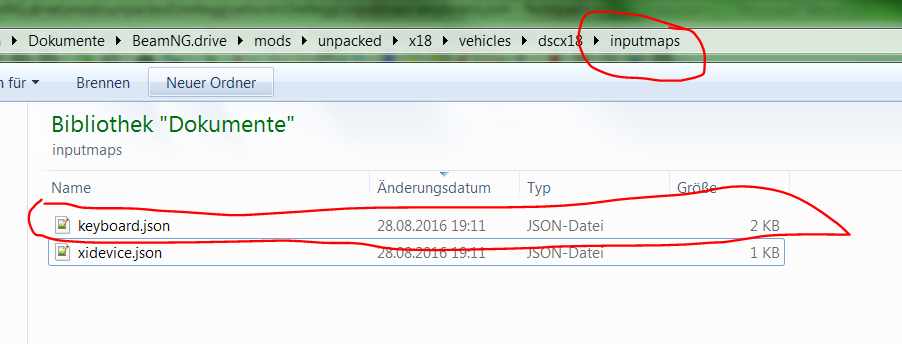

first you need to create a input actions file so the controls could be changed at need, the file is called "keyboard.json" and goes into a subfolder called "inputmaps":



"xdivice" would be a controller, not sure what button represents what though, so we'll ignore that for now.

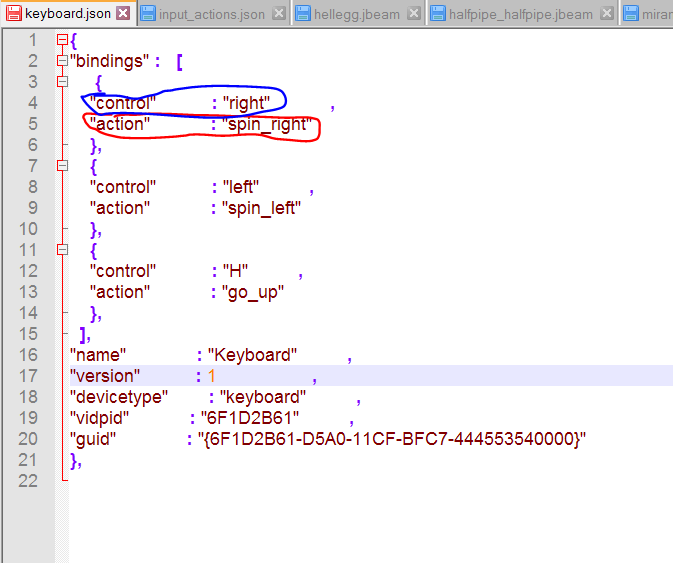

here is a example "keyboard.json" from one of my stuff:

"control" (blue) is the button the action should be mapped to, "right" stands for the right arrow key in this case, "H" stands for the H-key, etc.

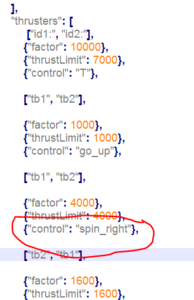

"action" (red) is the name the action will be called, that's what you'll have to put into the thruster jbeam, example:

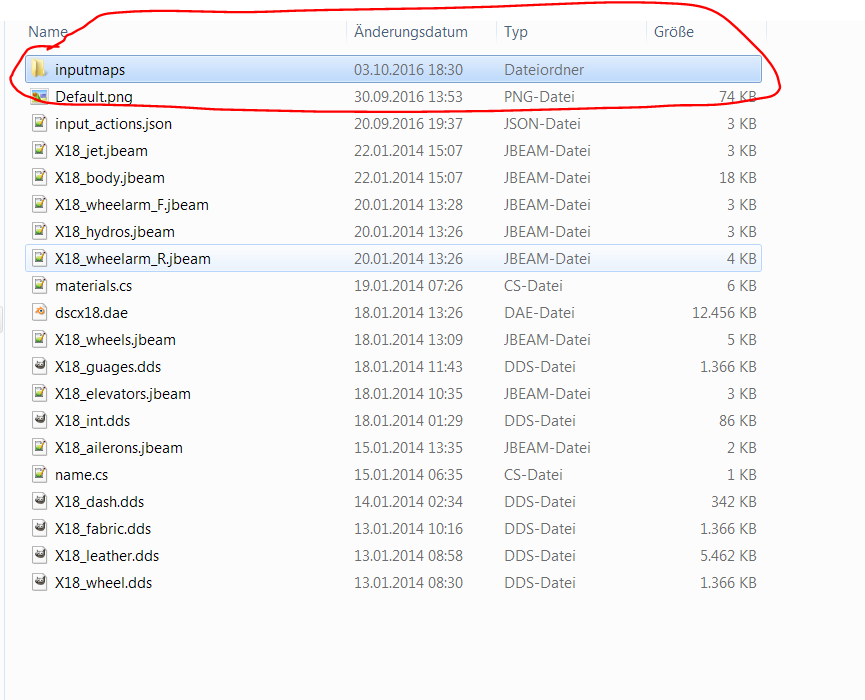

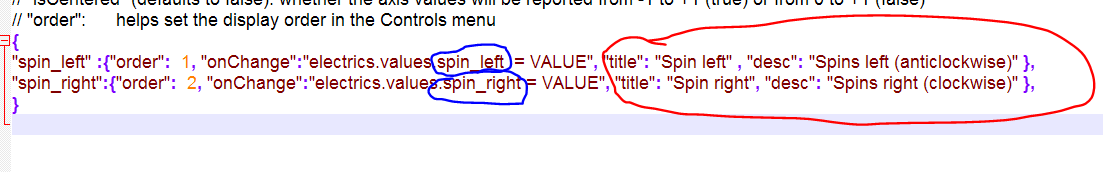

last step is setting up the "input_actions.json" file, located in the main folder:

example file:

blue is the action again(edit: sorry, changed the color), same as in the jbeam, red is what will be displayed.
I added my example files to this post.
If something doesen't work, feel free to ask again.
Good luck .



Thank you. I will credit you for this.
