Unsolved Custom suspension is saggy and alignment is out.

Discussion in 'Mod Support' started by dawizad, Nov 14, 2017.

  1. dawizad

    dawizad
    Expand Collapse

    Joined:
    Sep 18, 2014
    Messages:
    17
    --
    So basically my custom suspension for a single seater mod is broken. The alignment is out and the steering sways left or right. It seems to sag and the front/rear suffers from immense -/+ camber with the sliders set to zero. Any help will be appreciated. The suspension is based off of the Civetta Bollide btw and I have attached the front / rear ..jbeam files.

    - Post updated ---

    --- Post updated ---

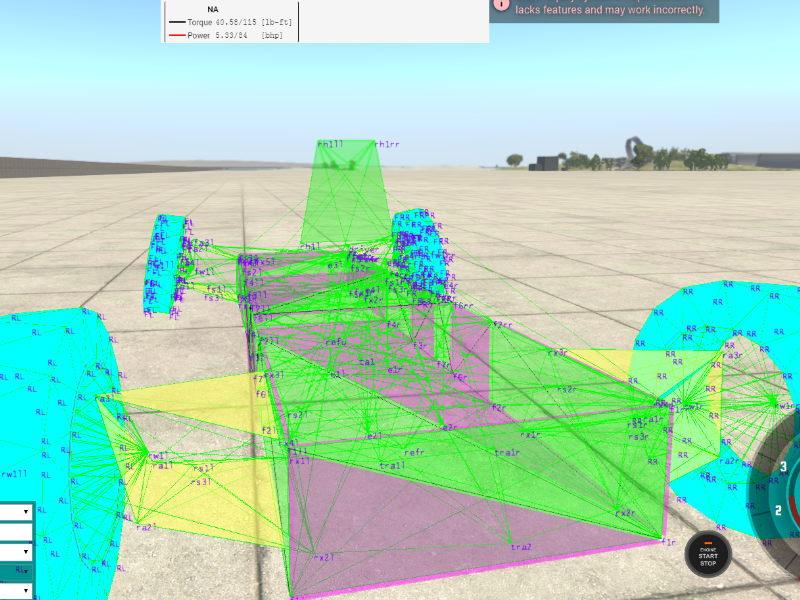

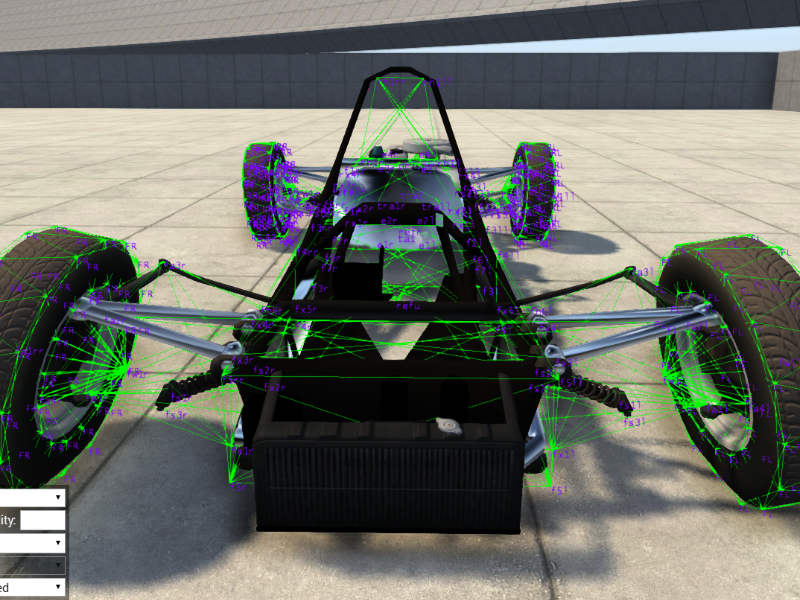

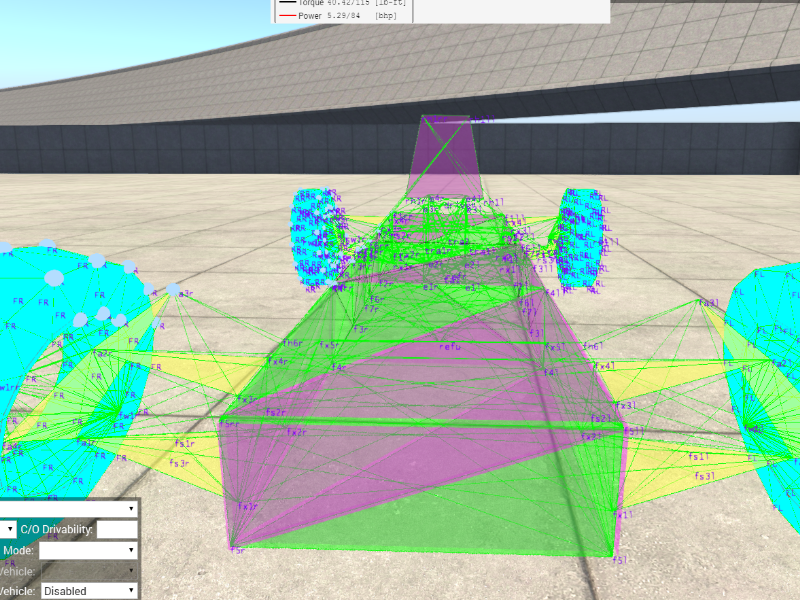

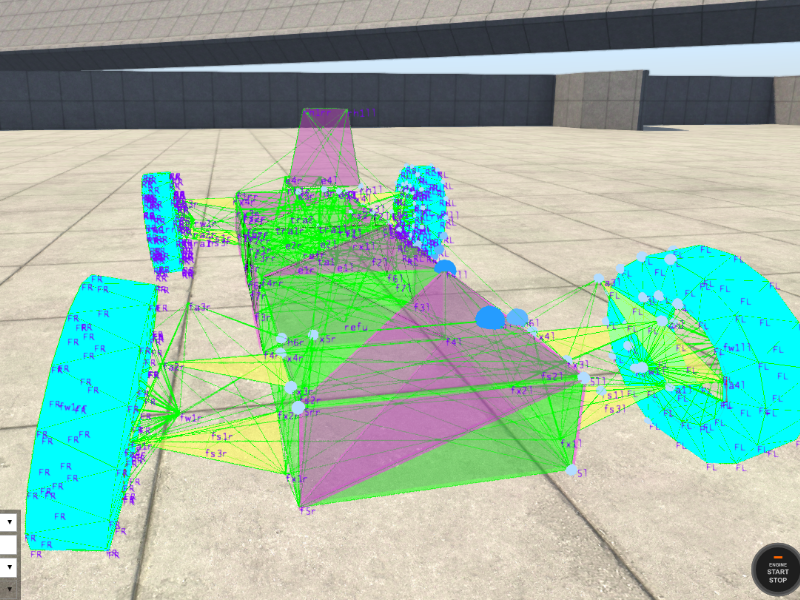

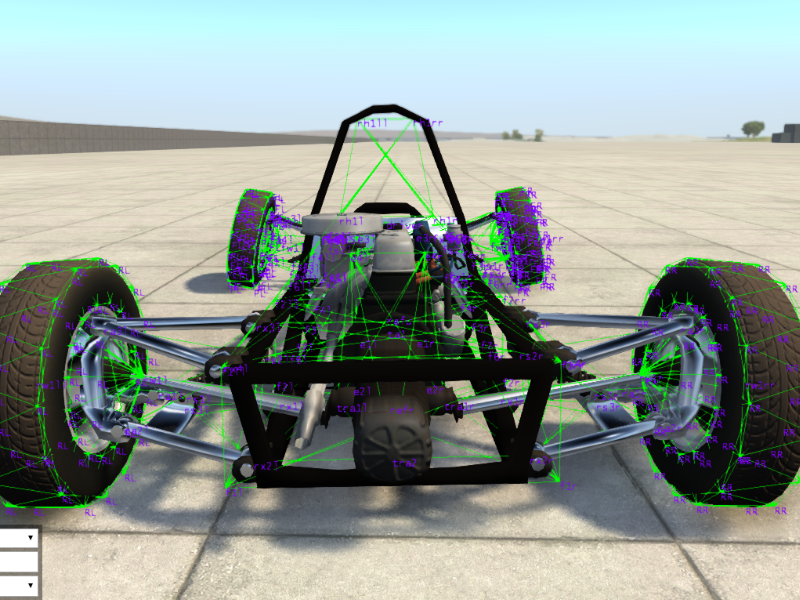

    Here's some pics for reference - dunno if it's very helpful - will get some more if they are needed.


    Attached Files:
