    Thought I'd make a thread for this, been working on it since the 7th of November and it's at the point where it's good enough to show properly. This originally started off as an SBR4 suspension and engine based open wheeler, not particularly powerful and designed for a basic, affordable feeder series. However once I'd slapped it on an SBR4 ingame I added some mockup aero and it quickly went from a small amount of downforce to enough to take corners at close to 4G's. I then decided to make it a proper Formula 1/Indycar spec car with full custom construction, nothing here will be based on SBR4 components. This might look similar to an F1 car from the outside, especially since I've taken a lot of inspiration from the 2021 car, however it's drivetrain and engine will be quite different, so don't call it an F1 car or I will get mad ;). The wheelbase of the car is basically the same as a Formula 2 car, but a bit wider in track. The car will be unbranded (fictionally one of the team manufacturers would have probably designed and built the base chassis) with different teams and manufacturers having their own engines and aero packages. The formula series this car is (fictionally) designed for is best described as F1 with much less technical restrictions and no consideration given to efficiency. Pure speed, noise and power :D

    Specifications (subject to change):
    4.0L 90° supercharged flat-plane V8, 950HP, rev limit at 11,000RPM
    100kW nitrous shot from a 20lb bottle, avaliable at driver's discretion for overtakes/defense, takes total power to 1100HP
    6 speed sequential transmission, may be switched to a DCT later
    1.6m track, 3.2m wheelbase, 4.9m total length
    5 tyre compounds, soft, medium, hard, wet, intermediate (F1 style)
    Wheels and tyres: 18x12 305/25R18 (front), 18x15 375/25R18 (rear)
    High and low downforce aero packages, with high and low drag respectively

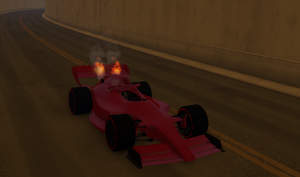

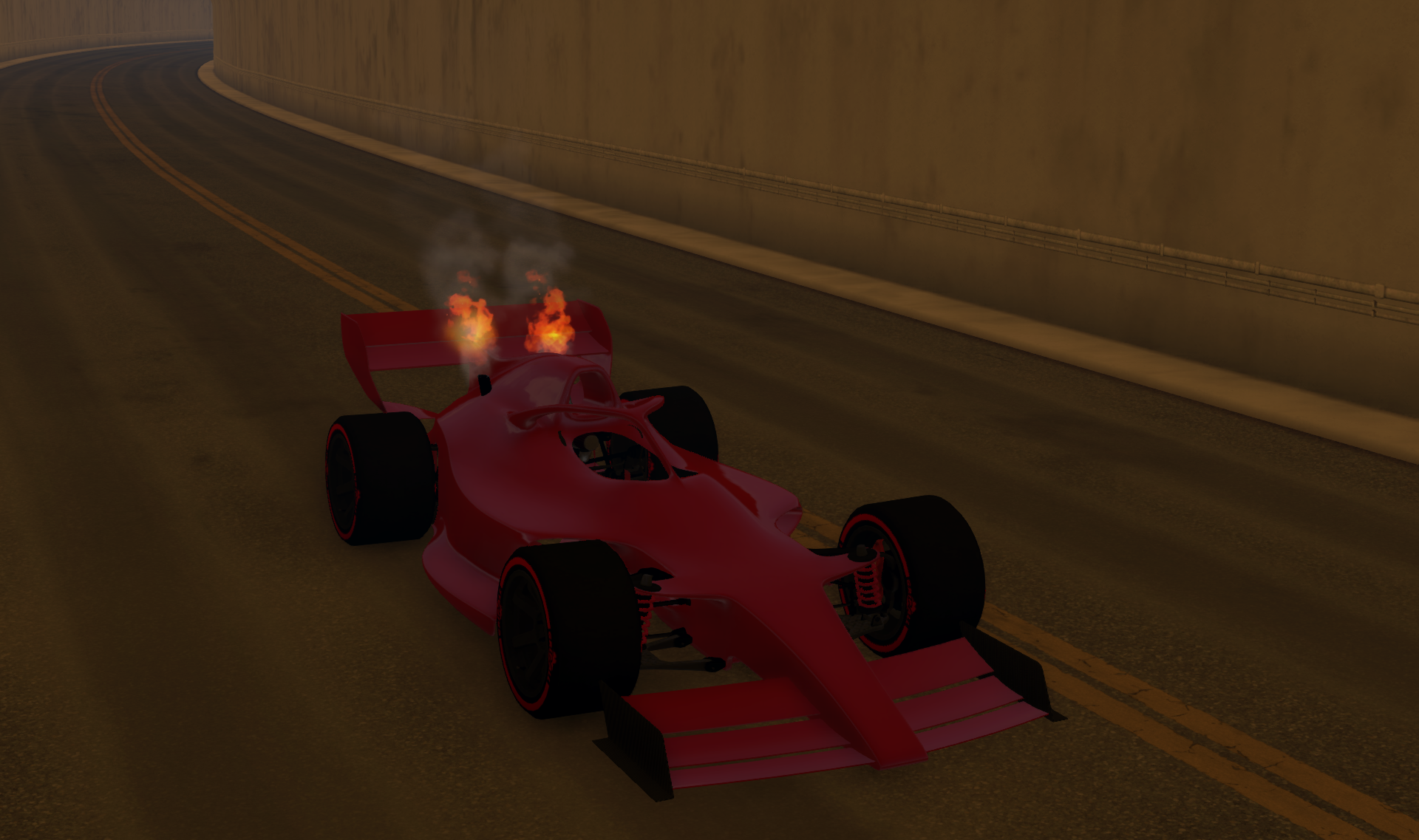

    Early ingame screenshots from the SBR4 based car:
    screenshot_2019-11-30_17-38-01.png screenshot_2019-12-10_13-45-03.png

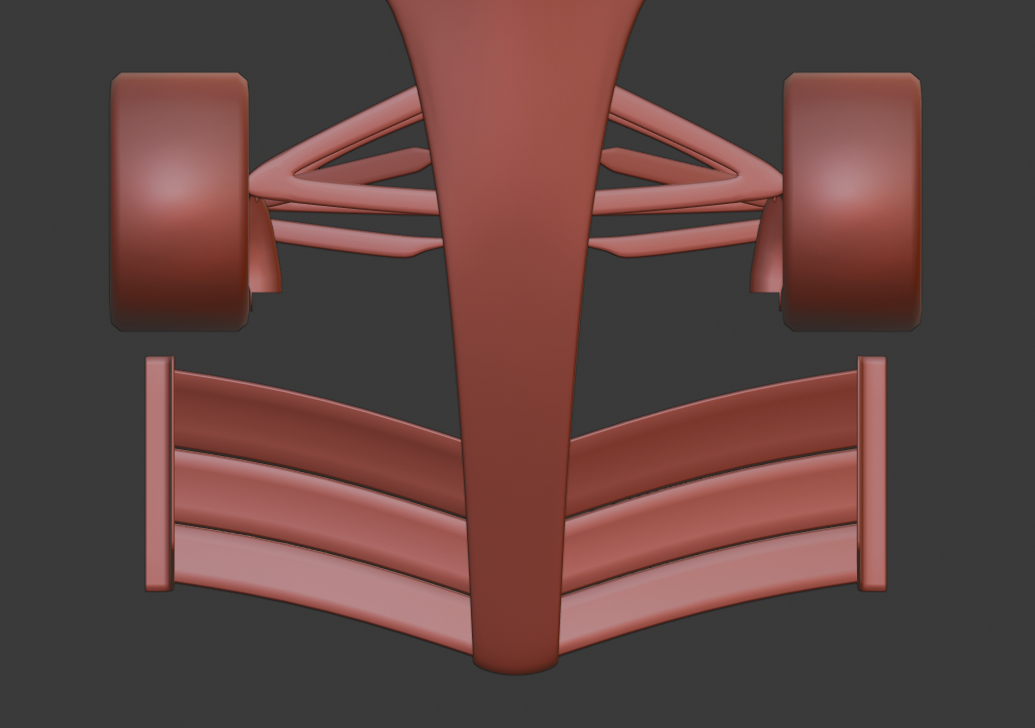

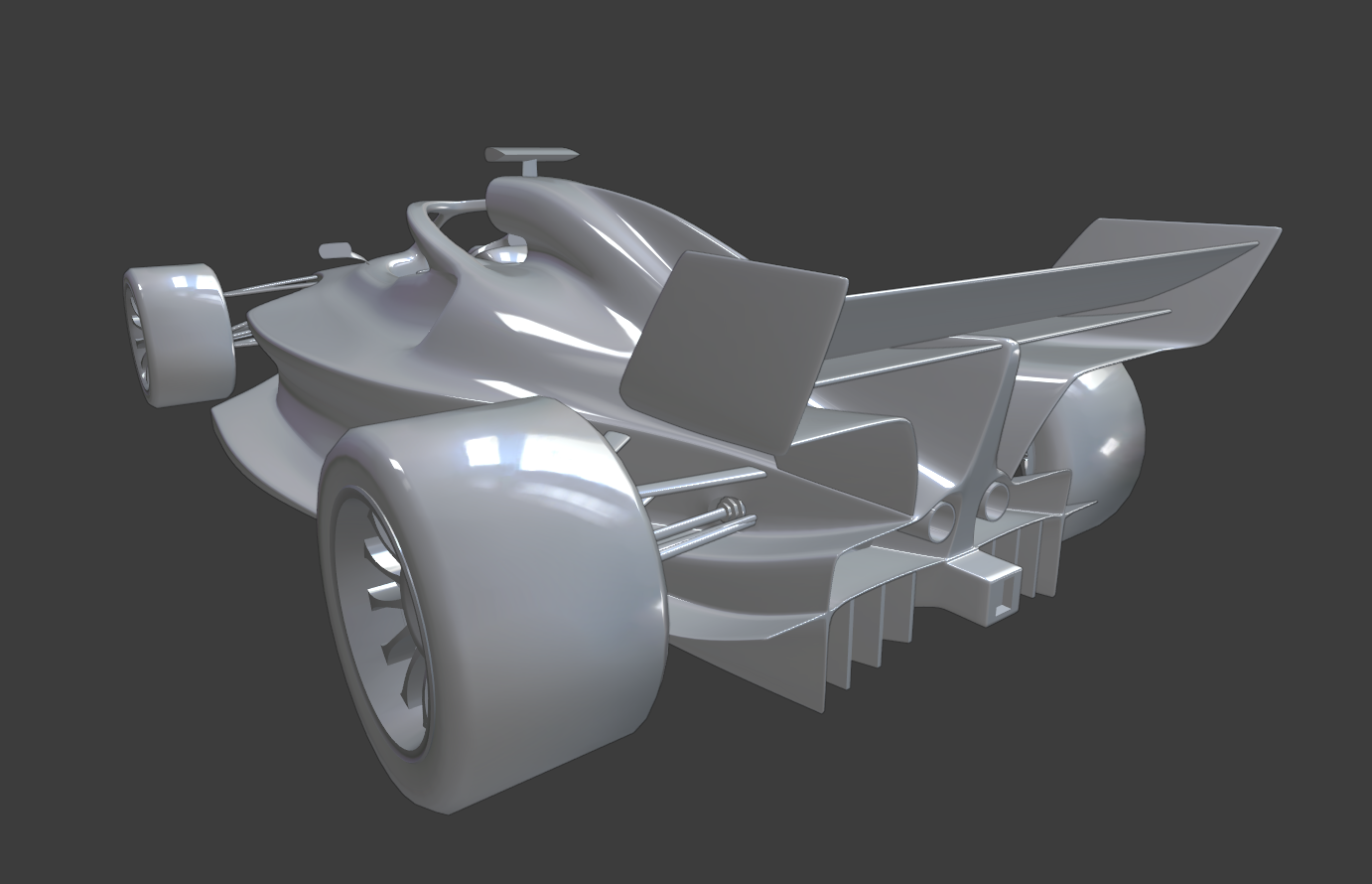

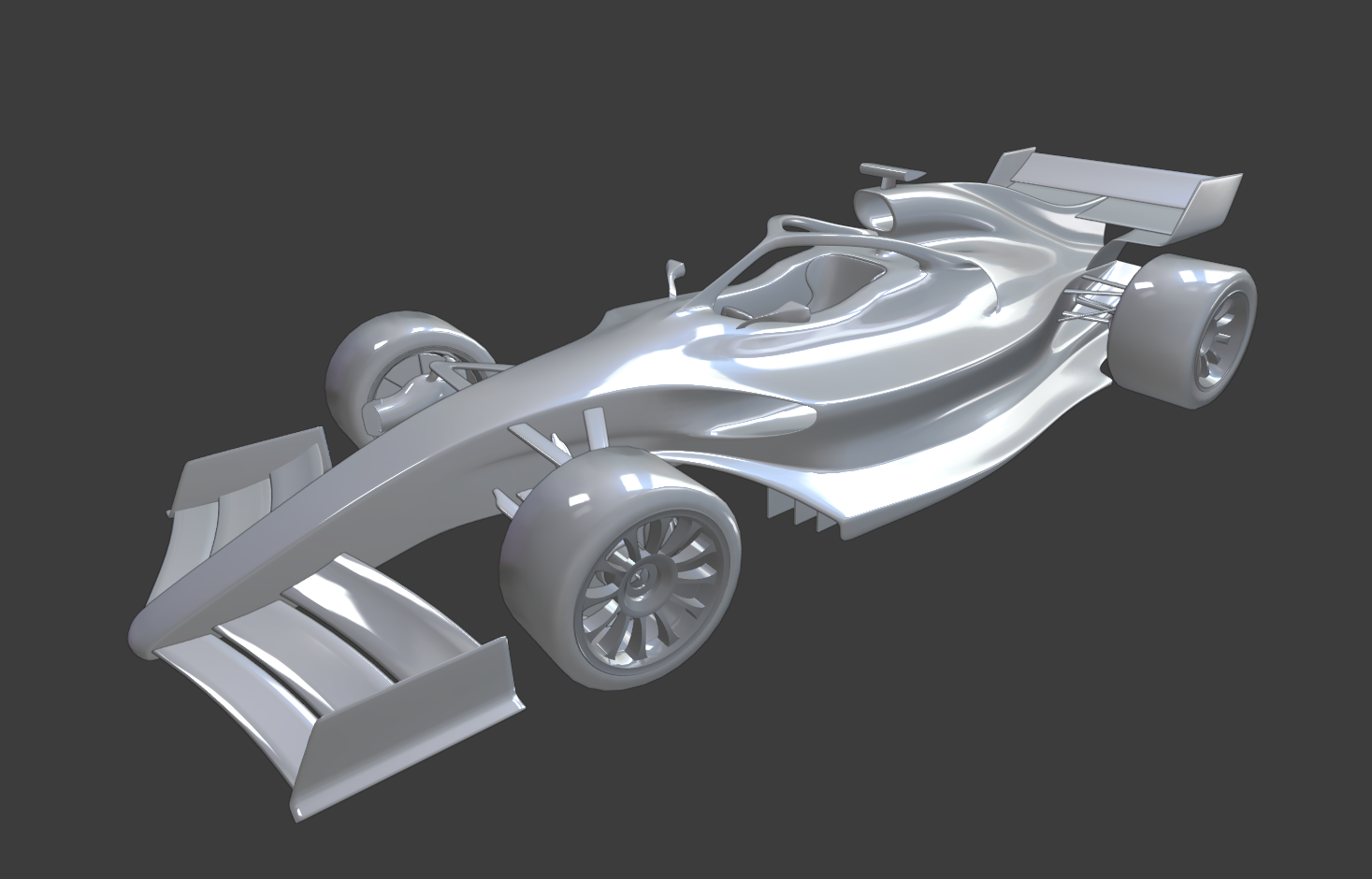

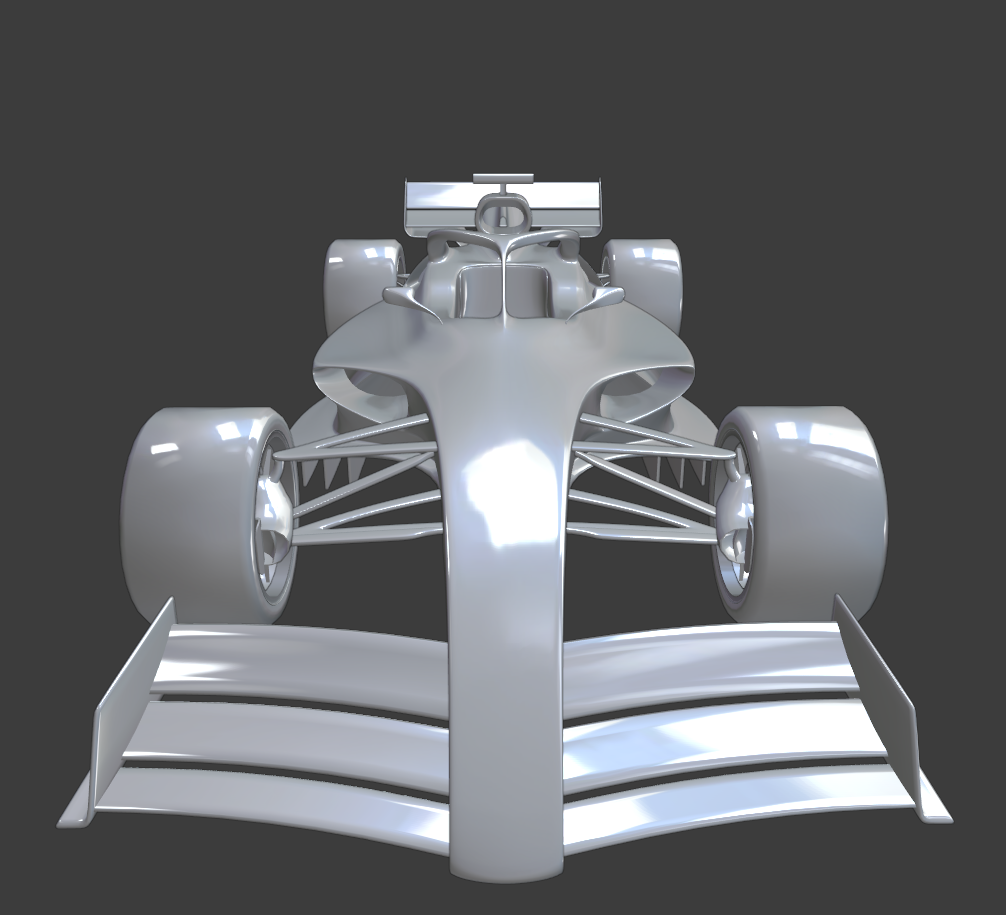

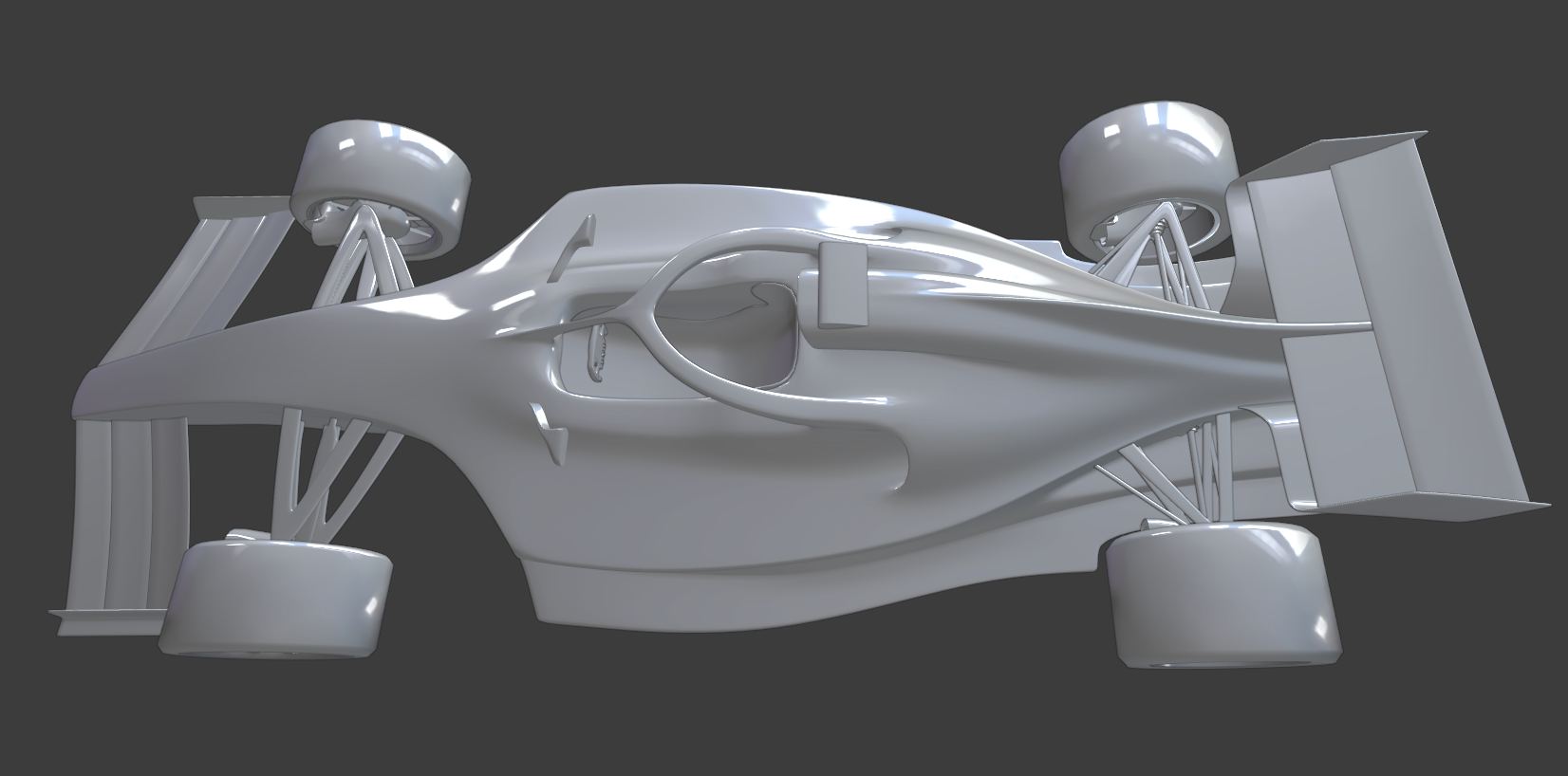

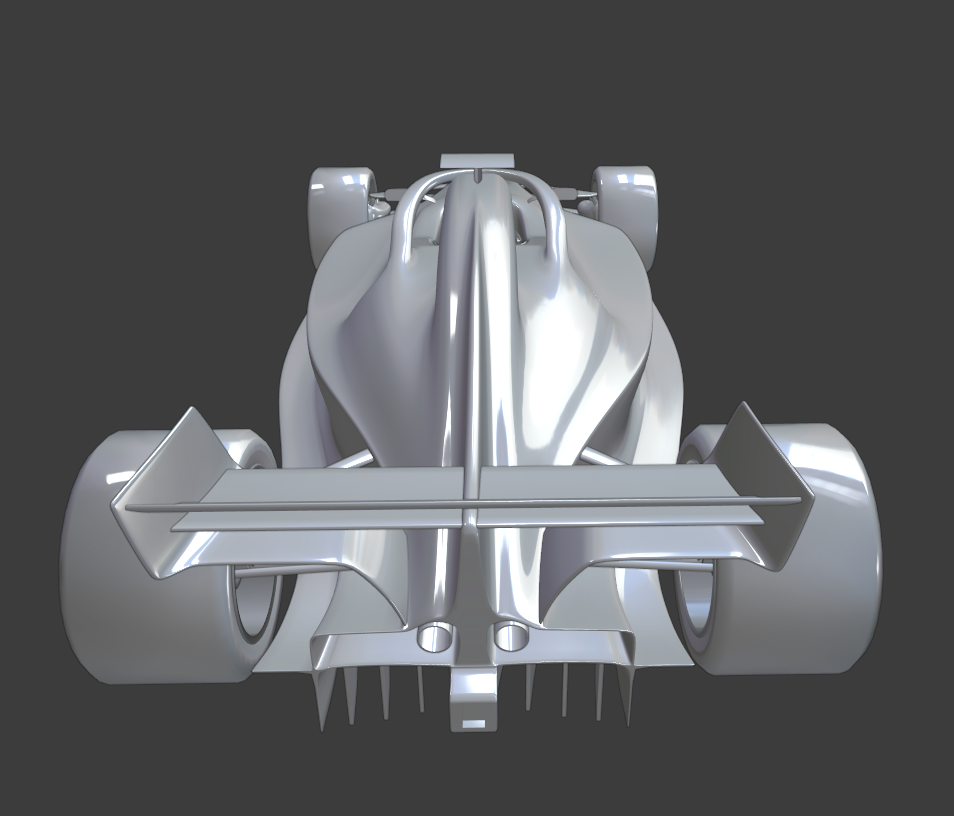

    Screenshots of the current model with proper proportions:
    upload_2020-1-22_22-23-25.png upload_2020-1-22_22-23-56.png upload_2020-1-22_22-21-44.png

    No release date planned, I never stick to them anyway, so any requests on that front will be ignored. Next area to be worked on is the suspension (front has been mocked up for positions but not modelled) and the cockpit. And before you ask, yes this is subsurfed, the actual polycount is still very reasonable and I'm making an effort not to go overboard with extra edge loops and instead making good use of edge crease. Considering the monocoque won't actually deform much (if it does you have a fundimental engineering problem) there shouldn't be any issues on that front, and the other breakable aero parts will probably be slightly lower poly.
