How do you centre things in 3DS Max?

Discussion in 'Troubleshooting: Bugs, Questions and Support' started by Calais, Jun 1, 2014.

  1. Calais

    Calais
    Expand Collapse

    Joined:
    Jan 12, 2014
    Messages:
    418
    How do you centre things in 3DS Max?

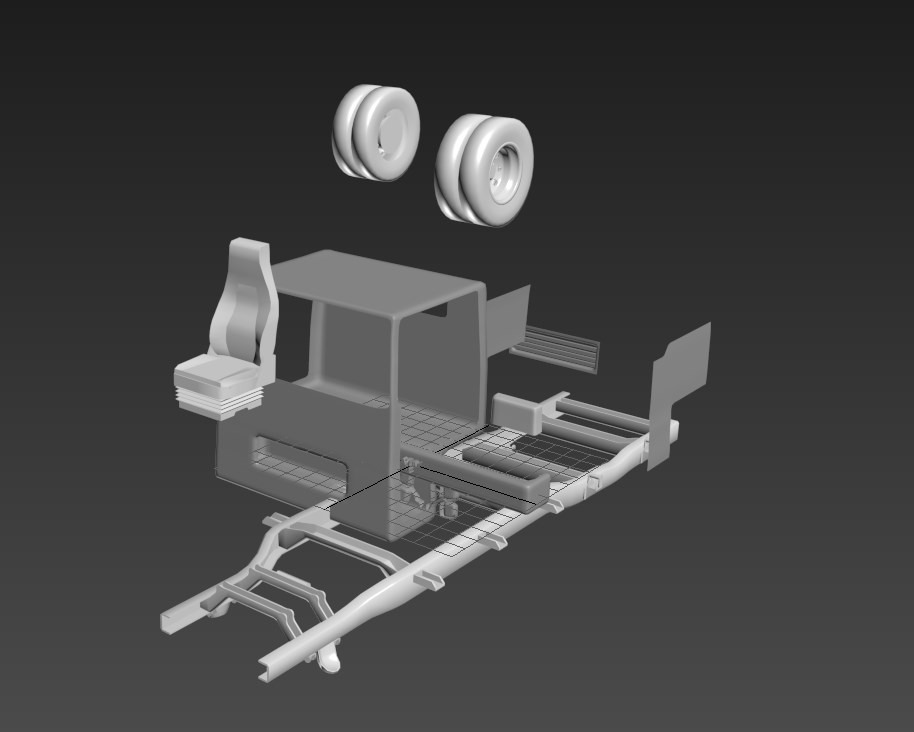

    When I put all the values to 0, this happens.


  2. Miura

    Miura
    Expand Collapse

    Joined:
    Aug 5, 2012
    Messages:
    311
    You mean centering the origin point if the meshes don't line up in game? Select the objects, then Hierarchy tab, Affect Pivot Only, set the coordinates to 0. If the pivot is rotated, Align to World. Probably need to Reset XForm from the Utilities tab after those.

    After that, move the vertices or polygons in the object, not the whole object. That way you don't need to do all this again.

  3. Fundador

    Fundador
    Expand Collapse

    Joined:
    May 21, 2013
    Messages:
    595
    On the hierarchy tab click affect pivot only and set it to 0. Max goes a bit funny when you mirror stuff though so you might want to try the xform modifier. That resets the axis of everything including trhe speedo needles and stuff which you will have to reset by hand.

    #3 Fundador, Jun 1, 2014
    Last edited: Jun 1, 2014
