how to assign broken glass texture

how to assign broken glass texture



you need to be more elaborate on what you're trying to do. there are many aspects to a broken glass texture from the material itself to the jbeam



broken glass texture



help?



You have to be more specific if you're going to get any help. Just saying "broken glass texture" isn't very helpful.



So are you trying to map the texture onto a body?



Okay, im doing a mod right now, when the car crashes the glass becomes 'no texture'.
I need to paste broken glass texture instead of no material.
How can i do this?
--- Post updated ---
please help



You need a texture that the can be switched to when the glass get broken, currently there is no texture to switch to so BeamNG throws in the default "No Texture" texture

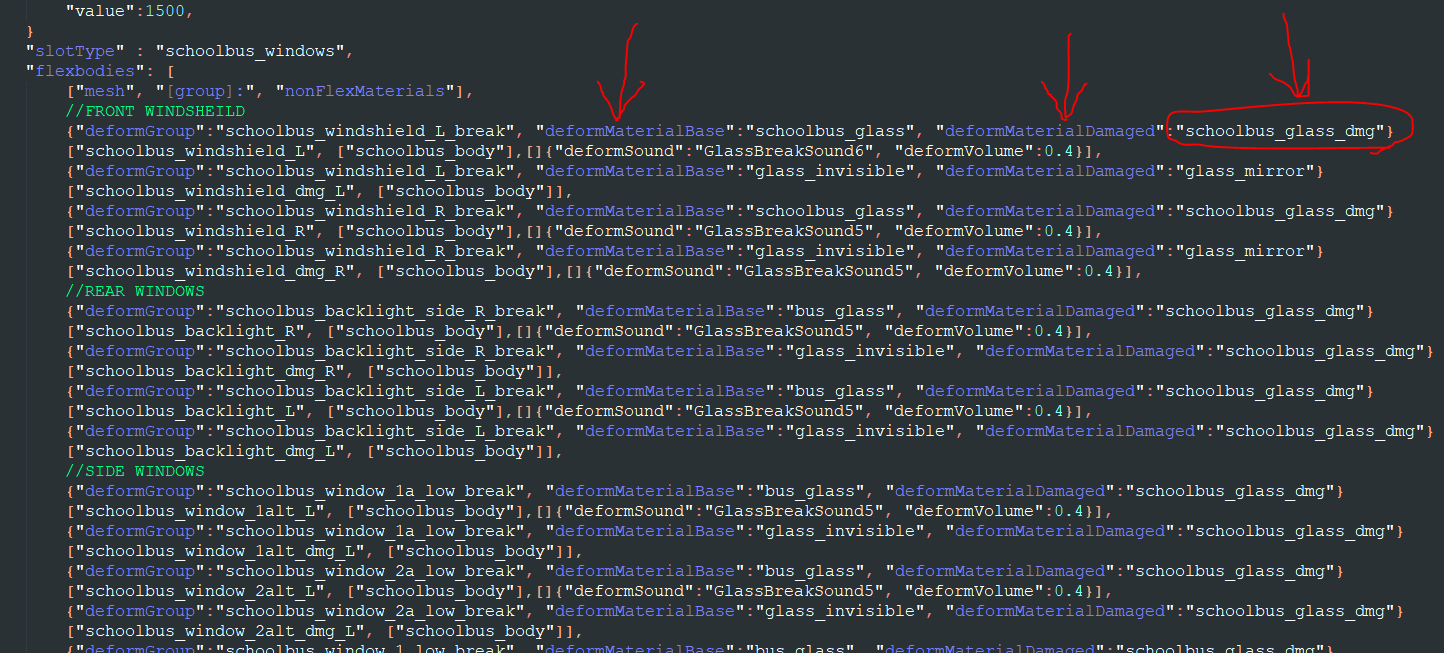

below is an example of a jbeam that is doing texture switching. It is under the "flexbodies" section with some extra programming to allow it to switch on a node/beam change.

Note the arrows and circle


The "deformMaterialBase":"schoolbus_glass" This is the texture that is there when nothing has happened

The "deformMaterialDamaged":"schoolbus_glass_dmg" This is the texture that will show up when the glass is broken.

You will need a defined material that BeamNG can pull from to load the damged glass texture, it must be listed in your materials file (or pre-loaded from the commons file)

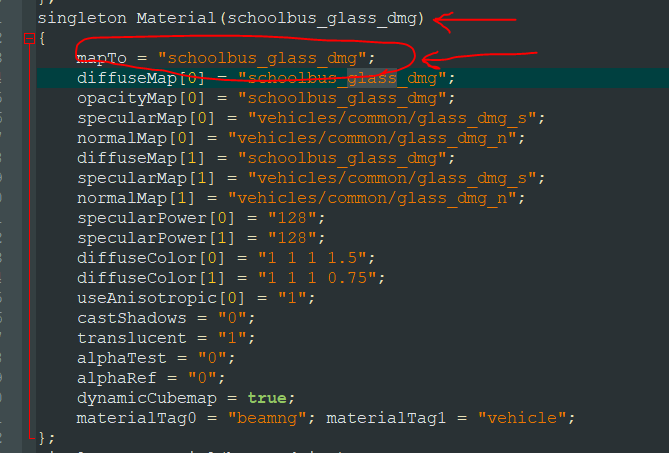

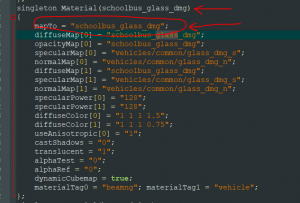

Below is the texture in my materials file which list the damage texture.
