How to remove trim for skin.

Discussion in 'Troubleshooting: Bugs, Questions and Support' started by brien_w, Apr 8, 2019.

  1. brien_w

    brien_w
    Expand Collapse

    Joined:
    Dec 24, 2016
    Messages:
    514
    I recently made a skin for the grand marshall, and it turned out alright. However, when I equip it, the black plastic trim stays. As a police car, this doesn’t look good. Does anyone know how to remove the trim on the skin?
    --- Post updated ---

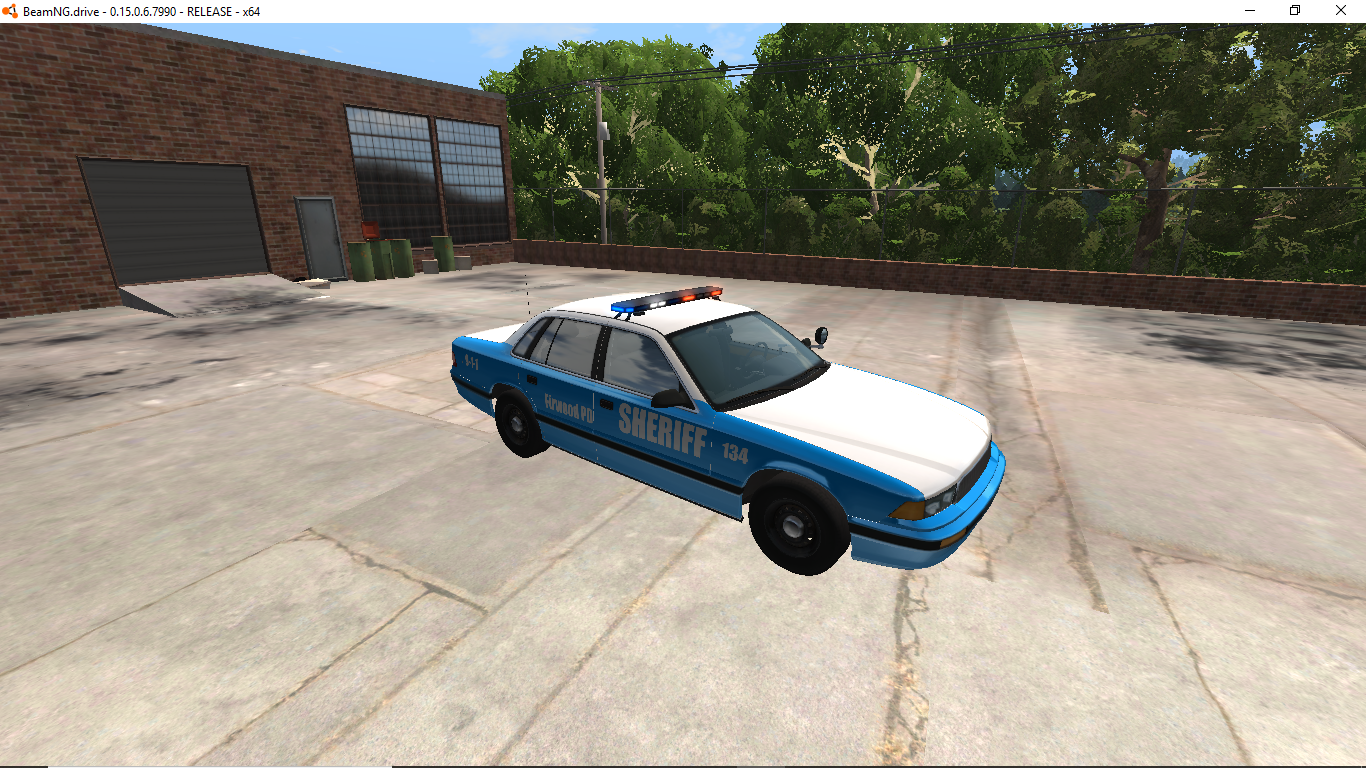

    Here is a picture of the skin.

  2. Eleanor

    Eleanor
    Expand Collapse

    Joined:
    Mar 21, 2019
    Messages:
    3
    Change "fullsize_d.dds" to "fullsize_alt_d.dds" in materials.cs. Same with the others.

  3. brien_w

    brien_w
    Expand Collapse

    Joined:
    Dec 24, 2016
    Messages:
    514
    By others do you mean the other folders or the other fullsize_s, fullsize_c, etc
    --- Post updated ---

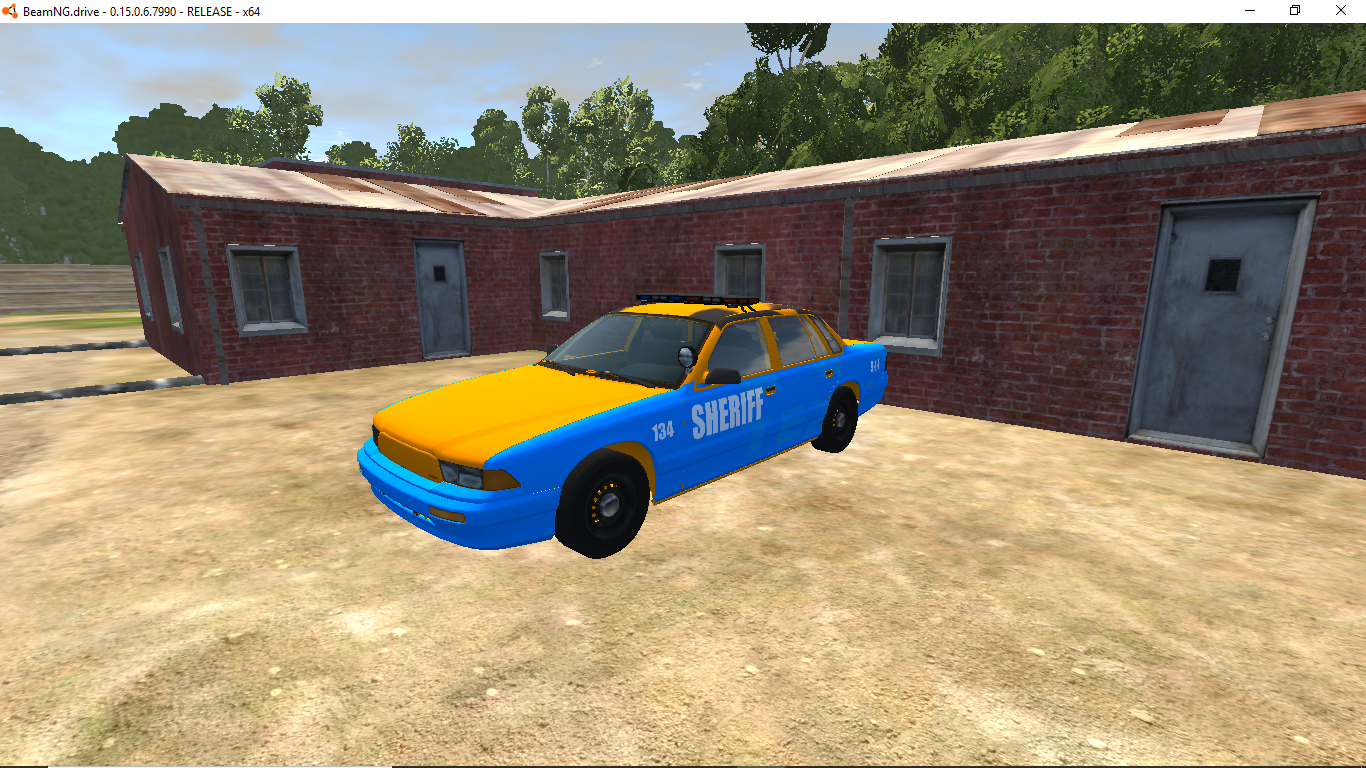

    changed the fullsize_d.dds to fullsize_alt_d.dds and this happened
    --- Post updated ---
    --- Post updated ---

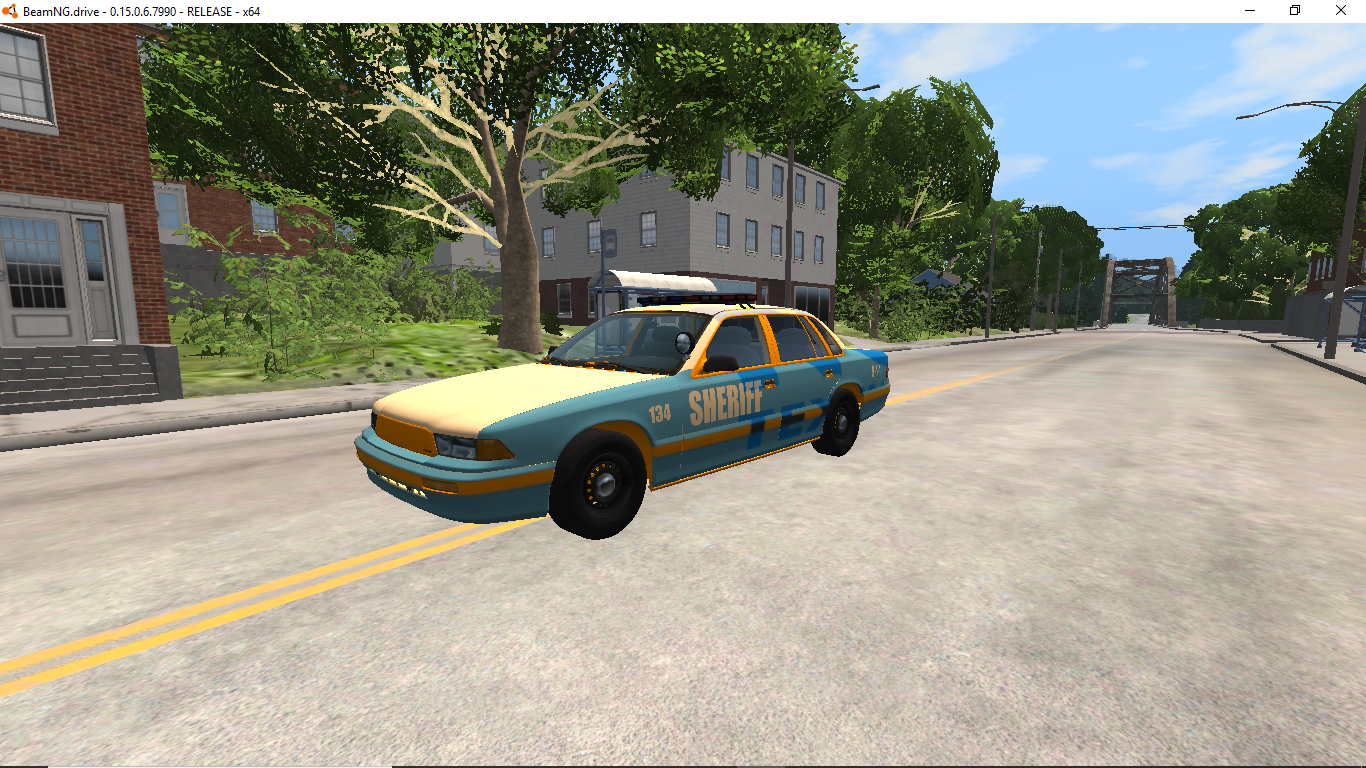

    Changed all the fullsize_letter.dds to fullsize_alt_letter.dds and got this.


    Attached Files:

    • upload_2019-4-7_17-59-53.png
  4. YellowRusty

    YellowRusty
    Expand Collapse

    Joined:
    Nov 9, 2016
    Messages:
    1,128
    I don't exactly know what @Eleanor was referring to with "others" - only the "c", "s" and "d" need to be changed.

    The reason this didn't work is because it's been entered backwards - it should not be 'alt_letter'; it should be 'letter_alt' (fullsize_c_alt.dds and so forth). As a result, the files don't load and you get the old orange NOTEXTURE material.

    Here's what the code looks like for one of my skins for the fullsize that turns off the trim:



    Code:
    singleton Material("fullsize.skin.sampleskinname")
    {
        mapTo = "fullsize.skin.sampleskinname";
        overlayMap[2] = "vehicles/fullsize/samplemodname/fullsize_skin_sampleskinname.dds";
        diffuseMap[2] = "vehicles/fullsize/fullsize_c_alt.dds";
        specularMap[2] = "vehicles/fullsize/fullsize_s_alt.dds";
        normalMap[2] = "vehicles/fullsize/fullsize_n.dds";
        diffuseMap[1] = "vehicles/fullsize/fullsize_d_alt.dds";
        specularMap[1] = "vehicles/fullsize/fullsize_s_alt.dds";
        normalMap[1] = "vehicles/fullsize/fullsize_n.dds";
        diffuseMap[0] = "vehicles/common/null.dds";
        specularMap[0] = "vehicles/common/null.dds";
        normalMap[0] = "vehicles/fullsize/fullsize_n.dds";
        specularPower[0] = "128";
        pixelSpecular[0] = "1";
        specularPower[1] = "32";
        pixelSpecular[1] = "1";
        specularPower[2] = "128";
        pixelSpecular[2] = "1";
        diffuseColor[0] = "1 1 1 1";
        diffuseColor[1] = "1 1 1 1";
        diffuseColor[2] = "1 1 1 1";
        useAnisotropic[0] = "1";
        useAnisotropic[1] = "1";
        useAnisotropic[2] = "1";
        castShadows = "1";
        translucent = "1";
        translucentBlendOp = "None";
        alphaTest = "0";
        alphaRef = "0";
        dynamicCubemap = true;
        instanceDiffuse[2] = true;
        materialTag0 = "beamng"; materialTag1 = "vehicle";
    };


  5. brien_w

    brien_w
    Expand Collapse

    Joined:
    Dec 24, 2016
    Messages:
    514

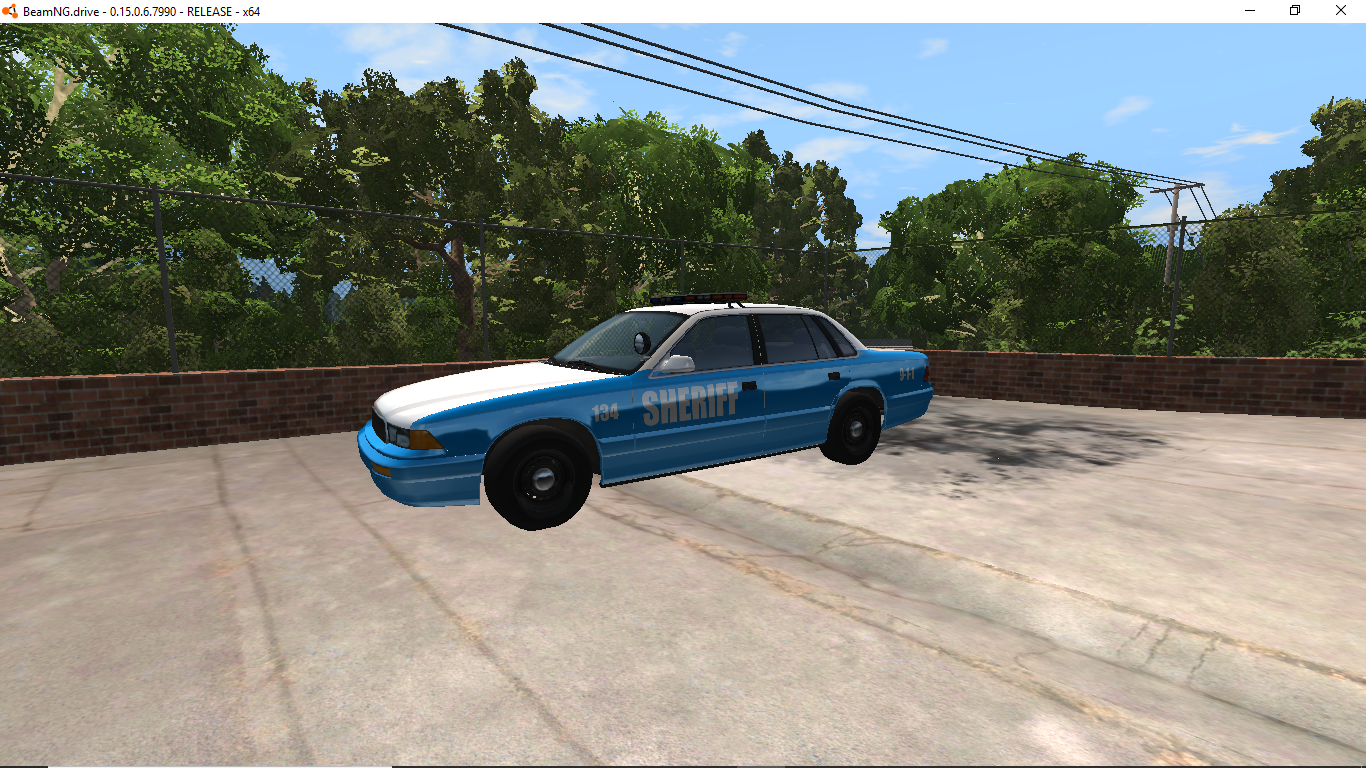

    Thank you!


    Attached Files:

    • upload_2019-4-7_19-31-46.png
    • Like Like x 1
  6. Eleanor

    Eleanor
    Expand Collapse

    Joined:
    Mar 21, 2019
    Messages:
    3

    Yup, that's the way round it's meant to be. "Others" being "c_alt" and "s_alt". It's was very late ;)
