Logitech G29 best setup?

Hello beam ng enthusiasts!

I am playing the game since the start in 2013 and I am still amazed by the development that comes with each update! Some days ago I bought myself the Logitech G29 and I set it up quite right I guess. I just want to share my setup with those who also bought this steering wheel in order to give them a great experience!

If anybody does have any suggestions to make the feeling of the force feedback or the steering even better, he/she is welcome to share its settings!

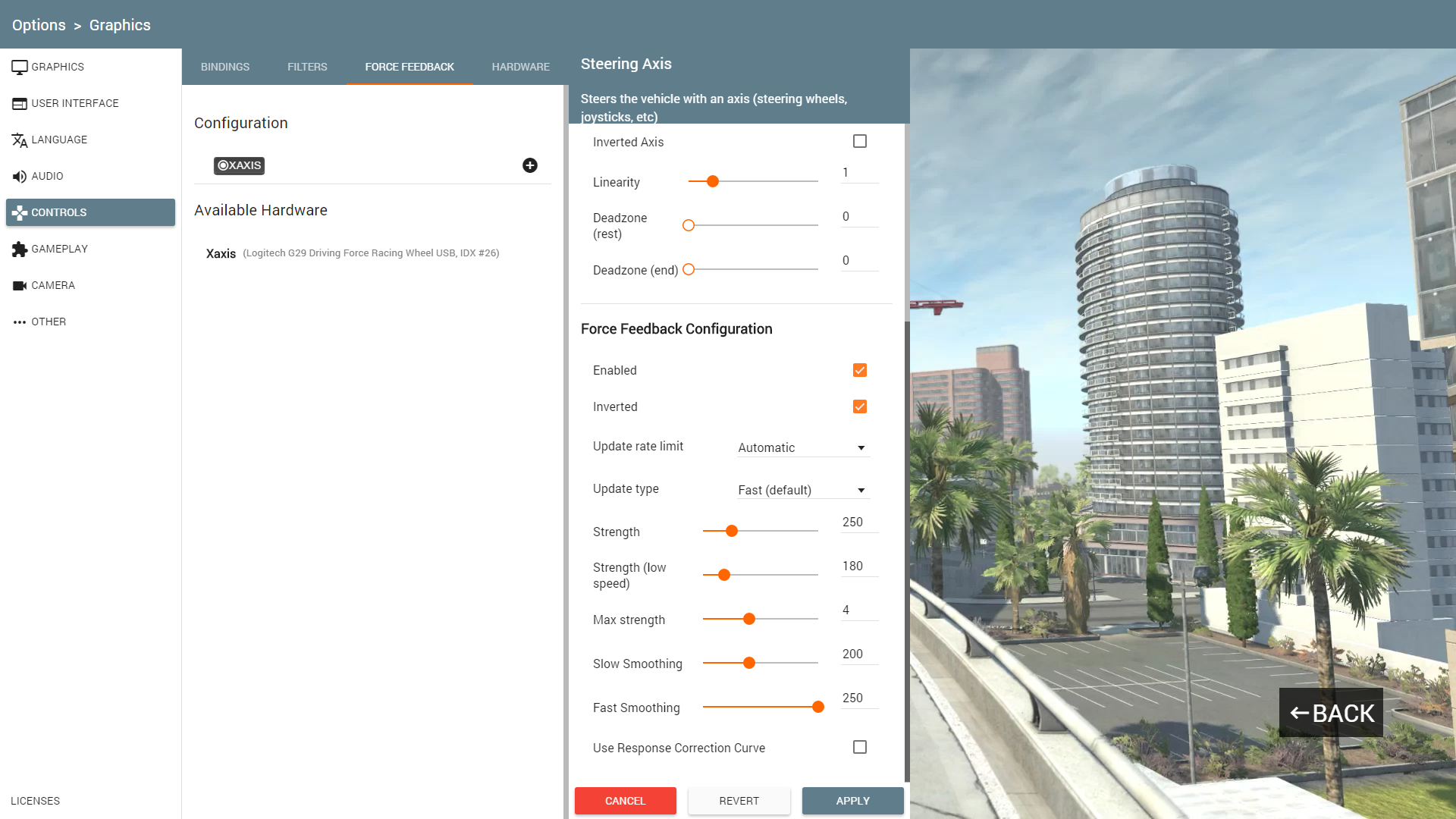

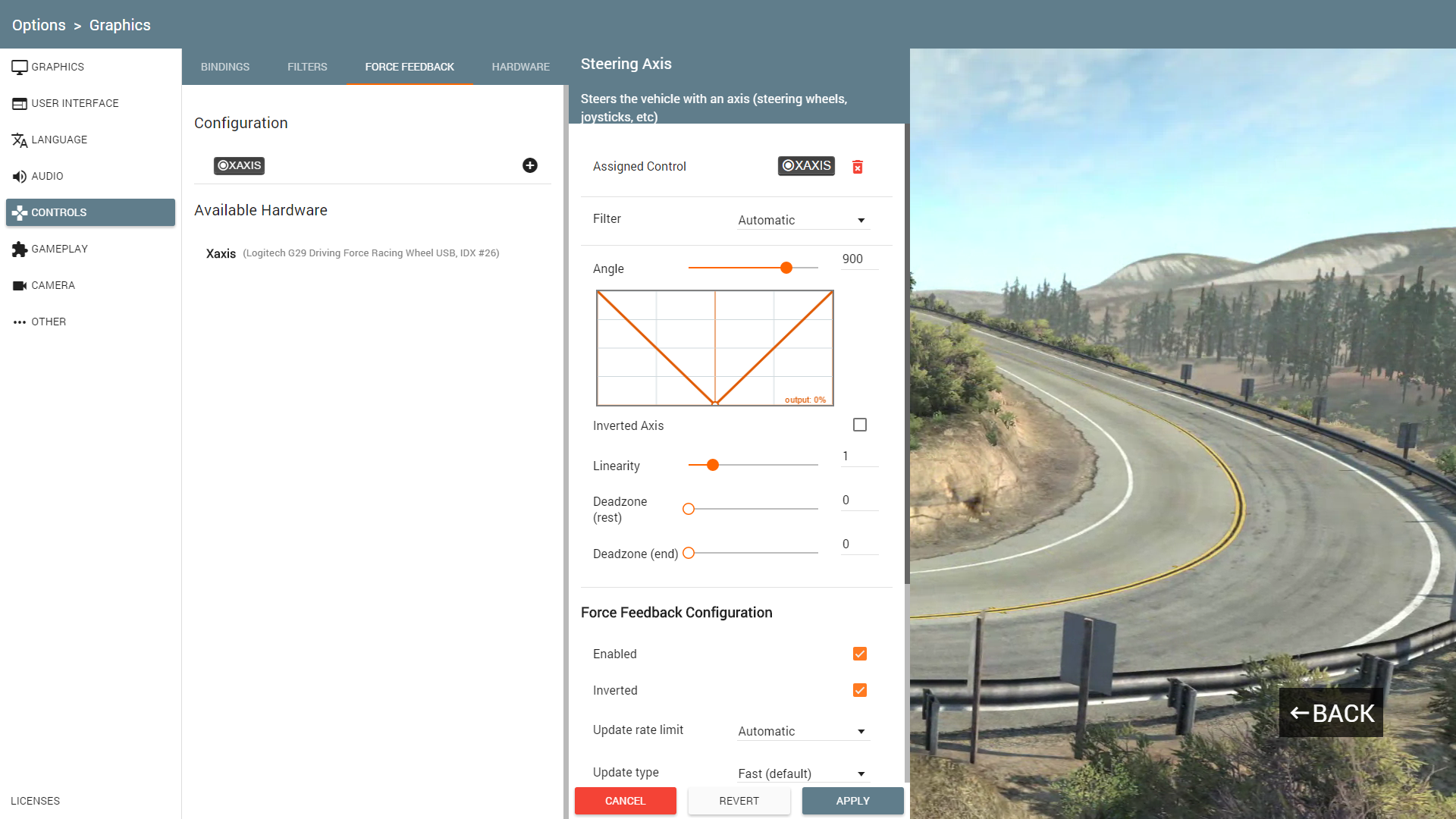

My ingame settings are shown in the pictures I have to say that I did not change any settings in the logitech gaming software (version: 8.96)!

What I also have to say is that the cars are still steering pretty much differently with the same settings...but still my settings are quite good for all the cars I guess...



Cool, thanks for sharing your configuration! Have you tried driving the ETK800 Series with the "advanced/dynamic power steering" selected in the parts selector yet?



Hey econadder, no I have never tried that! What's the difference? Did you try out my settings and did you like it? By the way, at first I had the steering wheel centering spring activated and set at 30% strength in the logitech gaming software...but after a while I realised that you cannot turn the wheel as fast as you need at times, especially when trying to prevent a loss of control...so I deactivated it completely.

I'd be glad for more reviews and for the sharing of others setups with the G29 wheel! As I've already been writing, my setup is quite good for all the cars but it differs from car to car...



Sadly, I do not have a racing wheel; just a joystick. I'd like to try one out someday. Because of this, I haven't been able to experience the FFB of the power steering. However, people who have tried it have commented that the advanced option feels really good/realistic.



i have a thrust master tmx do you think this would work?



I have got no idea...but doesn't anybody else have the G29 and was looking for good settings or has to share any experiences?



i tested it with mine
i started turning and it kept turning XD



I have a G29 + shifter myself for about 6 months and I found that you should disable the self centering force in the profiler, as it just pulls the wheel to the centre when the game would normally handle that.

Here's the FFB settings I've been using:
Strength: 700
Low Speed Strength: 200
Max Strength: 10
Slow Smoothing: 150
Fast Smoothing: 100
Plus a custom LUT (Response Correction Curve ingame).



Yeah, dissabling the centering spring really is most important!



Just got myself a G29 as well. I'm so used to Xbox 360 controllers and now I kinda suck at driving. Usually I can counter-steer the car easily when the car starts sliding but now that the steering is quite heavy I find myself helpless when the car starts sliding.

My wheel feels weird. It feels loose from 0-5% steering input but suddenly starts becoming heavy at say 6% input or more.

I will try your setting and see if it helps.



Understanding this is crucial, imo:
http://www.racedepartment.com/threads/like-your-ffb-strong-think-again.30763/



I just tried using your exact setting and suddenly my skill improved! My problem of uneven weight at steering is kinda solved too.

It was a good read, thank you for giving me that article. I noticed that I might set my FFB too strong to a point that I can't steer properly because the vibrations and steering is too heavy. I was using default values and turns out it is way too unoptimized for G29. Do you happen to know how to use the FFB Graph app to tweak the FFB? Might be helpful for new steering wheel users.

Edit: I just read over here http://www.edracing.com/edr/Wheel-Torque.php it states that Logitech G29 approximately has 2.1 Nm output torque. If that's true, to get "full" feedback range, we need to set max strength to 2.1. Then adjust strength, both slow speed and high speed so the max requested FFB is 2.1 Nm. Am I correct?



I must say now that I don't know. It is 4 years since I used a steering wheel and it was around time when realfeel plugin came to rFactor (1) that we did have bit of camps in sim racing community where others thought strong ffb is best and others thought weaker ffb is giving best results, then Niels (who was a modder of rFactor back then), shared tiny glimpse of his incredible bright brain and showed us how ffb really needs to be quite weak.

I have to say that I have never tested BeamNG with a wheel and so I don't know how you should set wheel, but what you write sounds logical, however we might need some one from the dev team to share their thoughts to really know how to get best out from the wheel.

It would be easy if you could induce certain force to wheel and test one step bigger and one step smaller force, if you can't feel the difference adjusting max force would be needed.



Well, I tried the method that I posted above.

First, I enabled the Force Feedback Graph, then set the limit to 2.5 (Nm). Then I idled my car, and steer lock to lock. We can see in the graph:
1. How much the game requested torque
2. How much the driver is receiving torque
3. The limit that we set (2.5 Nm).

I reduced the steering slow speed FFB strength up to the point where the game only requested 2.5 Nm of torque maximum (I steered like crazy lock to lock when standing still) and the driver is only receiving 2.5 Nm of torque. Then this is where it gets hard; to adjust the high speed strength FFB. I drive faster (more than 60 mp/h) and find some rough terrain or bumpy roads and see the graph. Then lowering the FFB strength value so the game only requested around 2.5 Nm where it gets really rough when I go fast. I believe this is the way to go so we can experience almost full range of FFB (albeit very weak one).

The problem with setting the max strength to 2.5 Nm is when you crash hard, the torque that your steering wheel is only 2.5 Nm. Need to amp up the value so huge crash results stronger torque requested and received.



Hmm, if your wheel's max is 2.1Nm, then it can't give you more than 2.5Nm, it can give you feeling of being stronger, but if measured it still will be equally strong, but instead you are saturating FFB so it is 2.5Nm with smaller impulse and does not increase from that, even it might feel so.

Or then setting it to 2.5Nm is not actually giving you 2.5Nm from wheel.

Then again, if you drive around in a skidpad (or at WCUSA race track, it has bit higher grip at the corners) so that you get maximum force to steering arm and set that to be 2.5Nm, I would think that you are all set. It does not matter if other forces go over the limit, as long as you get full resolution of how tires feel. Naturally it should be grippiest widest tires possible and other tires should have less force, if aiming for full realism, but maybe you need to set it for per vehicle and per tires to get full resolution and maximum possible FFB with different vehicles and tires.

So, those are just my thoughts, not sure if it is possible to get anything out from them, but that is how I kinda would understand the way to set for best FFB.



I've made a support ticket regarding this question and gave the devs the link to this thread. Hopefully they will eventually respond and help us.



It's is great to hear that it helped you! But what I found out is that it only works for original beam ng cars. If you've got the oldfullsize mod for example the steering is much to easy in my opinion...



I installed my G29 today but BeamNG.drive don't recognizes the steeling wheel. All buttons work on the steering wheel but I can't steer the car.
