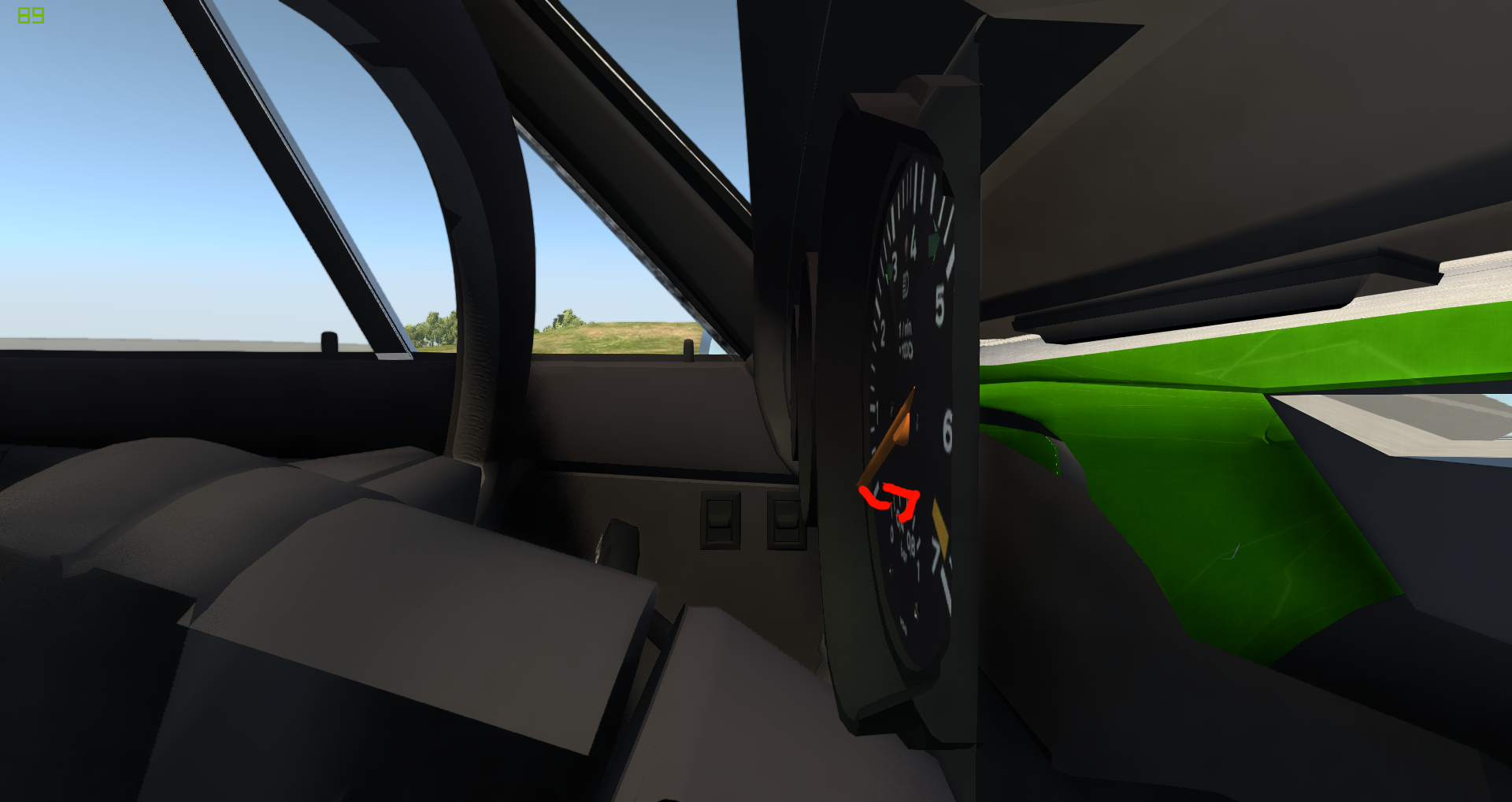

so in the last thread I asked how make the needles moving right, that worked all good so far, but on this vehicle the gauges are a little bit bent, so I think I need to move them like a little bit on the y axes, but what should i take as a reference number . That it is streight I used for "base rotation" this: Code: {"x":24, "y":0, "z":0}, so what do I have to set for y and z that it fits on the bent gauges ? here is the whole line for the needle if you need Code: ["rpm", "sbr_needle_tacho", "f7r","f7l","f8r", {"x":24, "y":0, "z":0}, {"x":0, "y":0, "z":-0.03} , {"x":0, "y":0, "z":0}, 0, 8250, -5000, 1],
Hey, could you please provide us your files, so we can have a closer look. You can also send the file via pm if you want. http://www.beamng.com/conversations/add?to=synsol,meywue&title=Mod Support
Hey, after having a look at your files, it seems that your mesh is all right! But you need to simply adjust you jbeam a bit. Just reset the baseRotation to (0,0,0). Should work properly afterwards. Code: ["wheelspeed", "sbr_needle_tachoO", "f8l","f7l","f8r", {"x":0, "y":0, "z":0}, {"x":0, "y":0, "z":-1}, {"x":0, "y":0, "z":0}, 0, 270, 90, 4], ["rpm", "sbr_needle_tacho", "f7r","f7l","f8r", {"x":0, "y":0, "z":0}, {"x":0, "y":0, "z":-0.03} , {"x":0, "y":0, "z":0}, 0, 8250, -5000, 1], ["fuel", "sbr_needle_fuel", "f7r","f7l","f8r", {"x":0, "y":0, "z":0}, {"x":0, "y":0, "z":69} , {"x":0, "y":0, "z":0}, 0, 1, -1.8, 1], ["watertemp", "sbr_needle_temp", "f7r","f7l","f8r", {"x":0, "y":0, "z":0}, {"x":0, "y":0, "z":-0.8} , {"x":0, "y":0, "z":0}, 60, 120, -85, 1], Let me know if you face any further problems!
