Unsolved Paint slot not appearing

Discussion in 'Mod Support' started by charge_1, Feb 24, 2024.

  1. charge_1

    charge_1
    Expand Collapse

    Joined:
    Nov 11, 2020
    Messages:
    1,005
    I am trying to add a paint slot to my Cloud mod, and am taking the code from a newly exported version of the car. I copied the code exactly, but the paint slot will not appear. This paint slot appears to be in the "camso_core.jbeam" file.

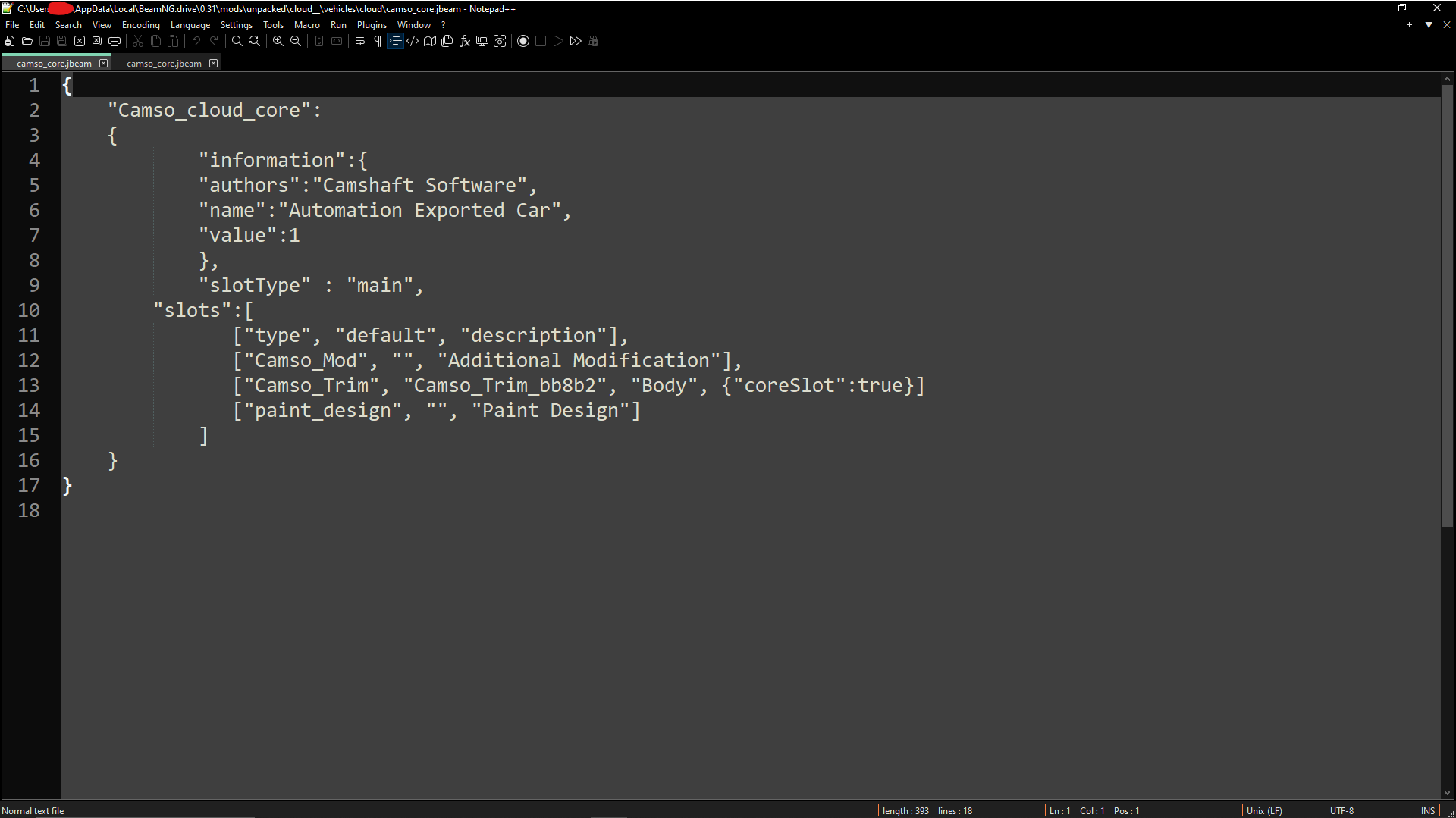

    this is the file I am trying to get the line of code from. it is the paint_design line at the bottom

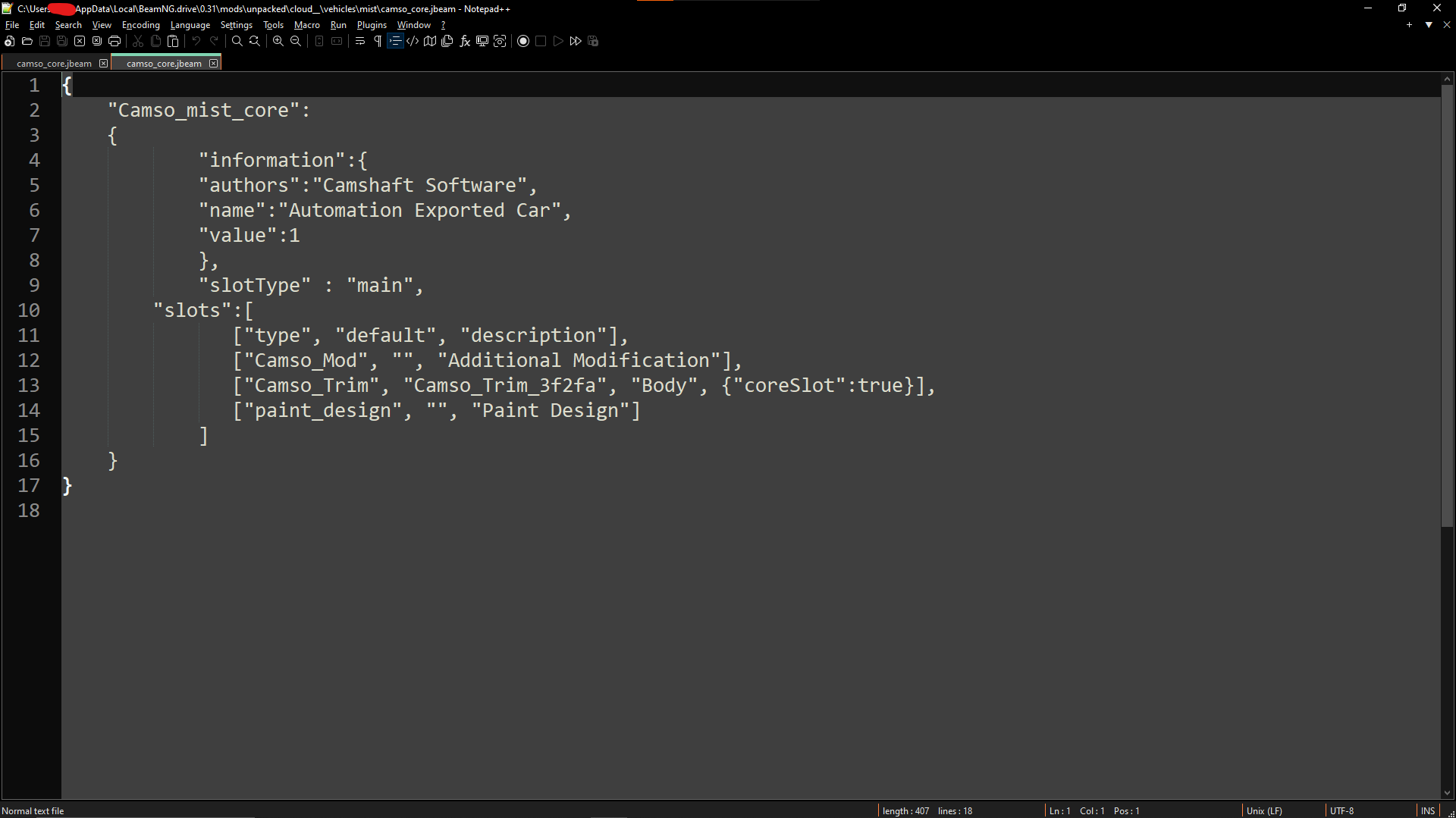

    and this is the file I'm trying to copy the code too, it was not there before

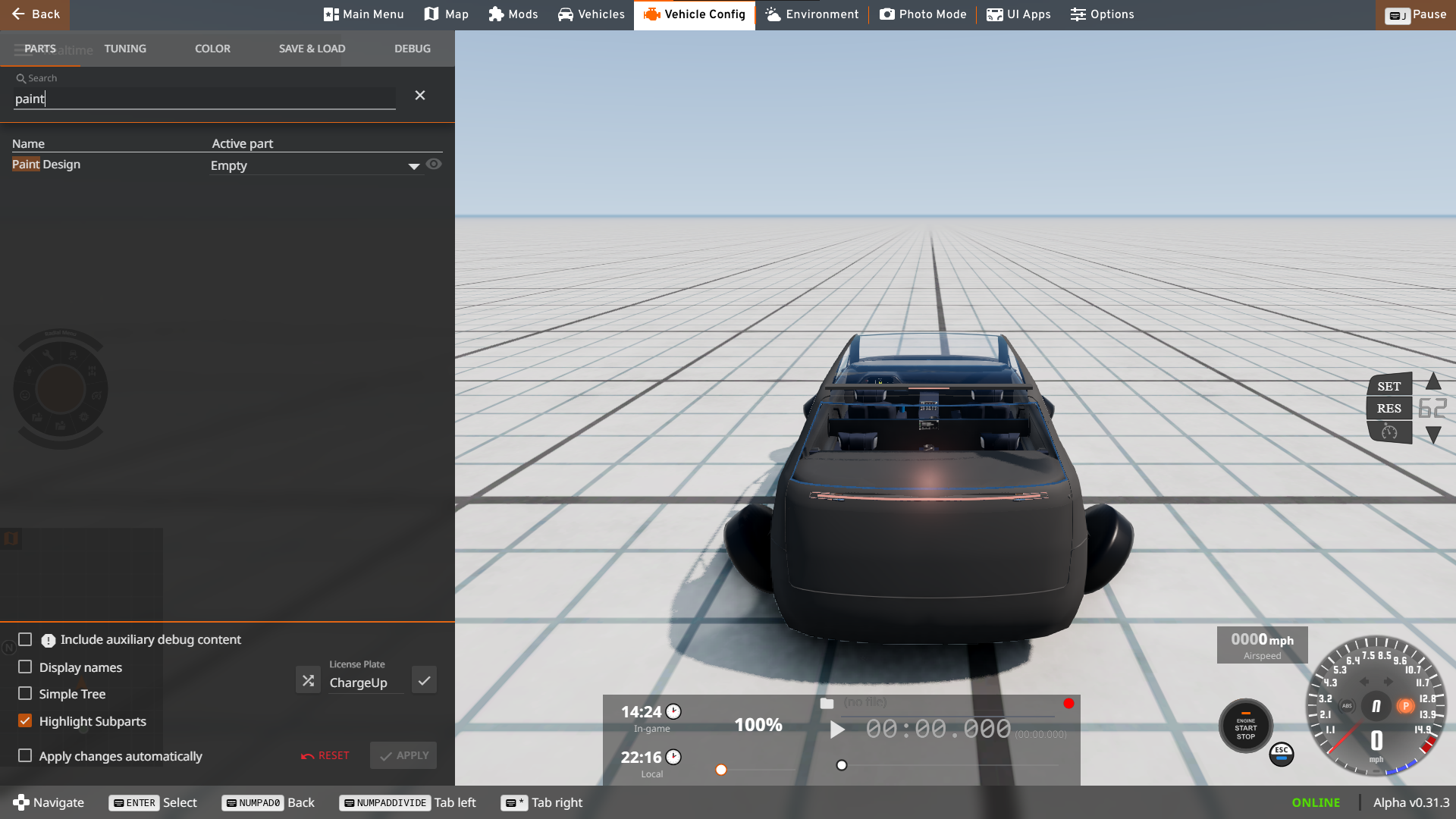

    This is what I see when I look up "paint" on the modified car

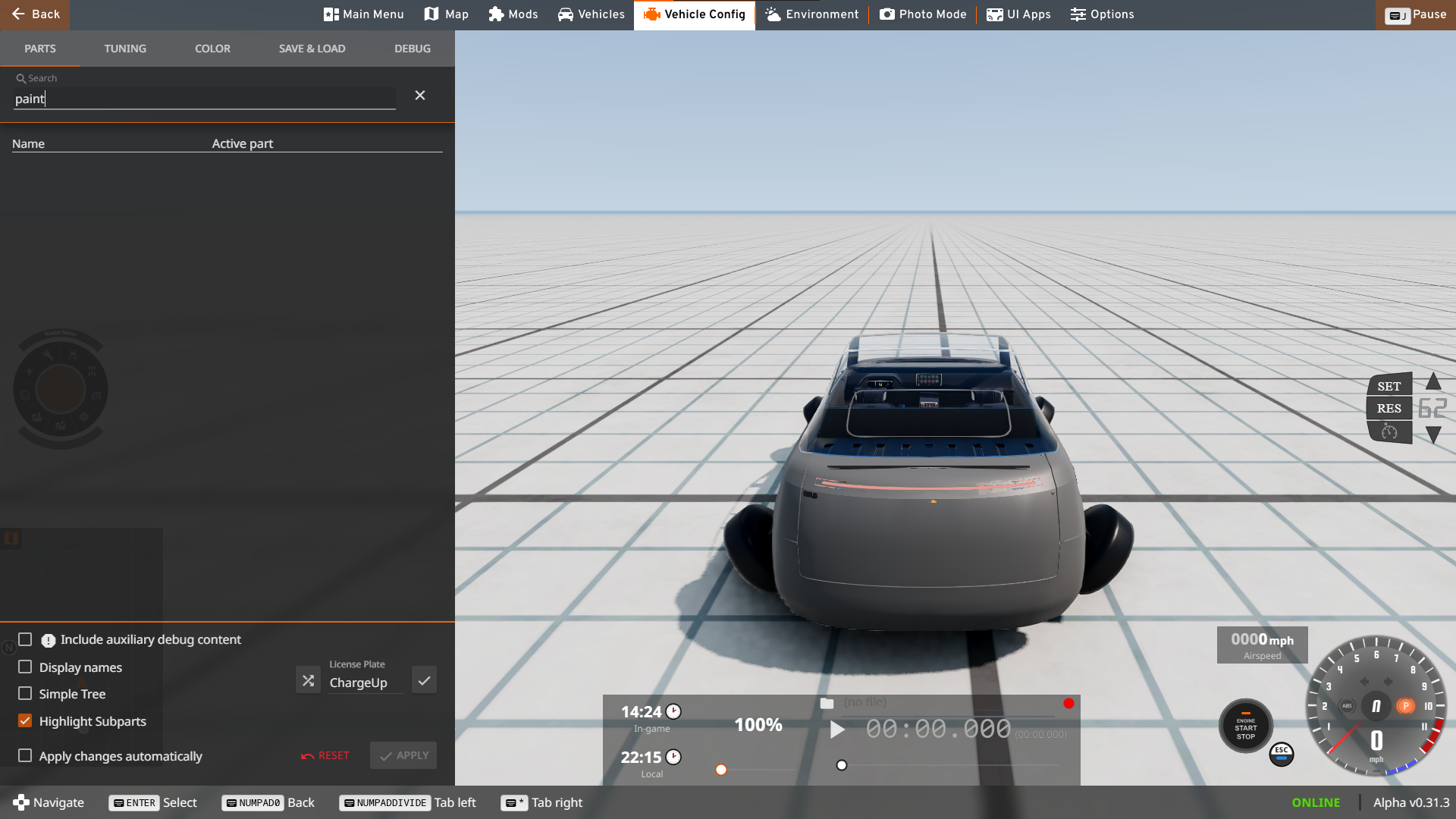

    and this is it on the car with the pre-installed paint slot

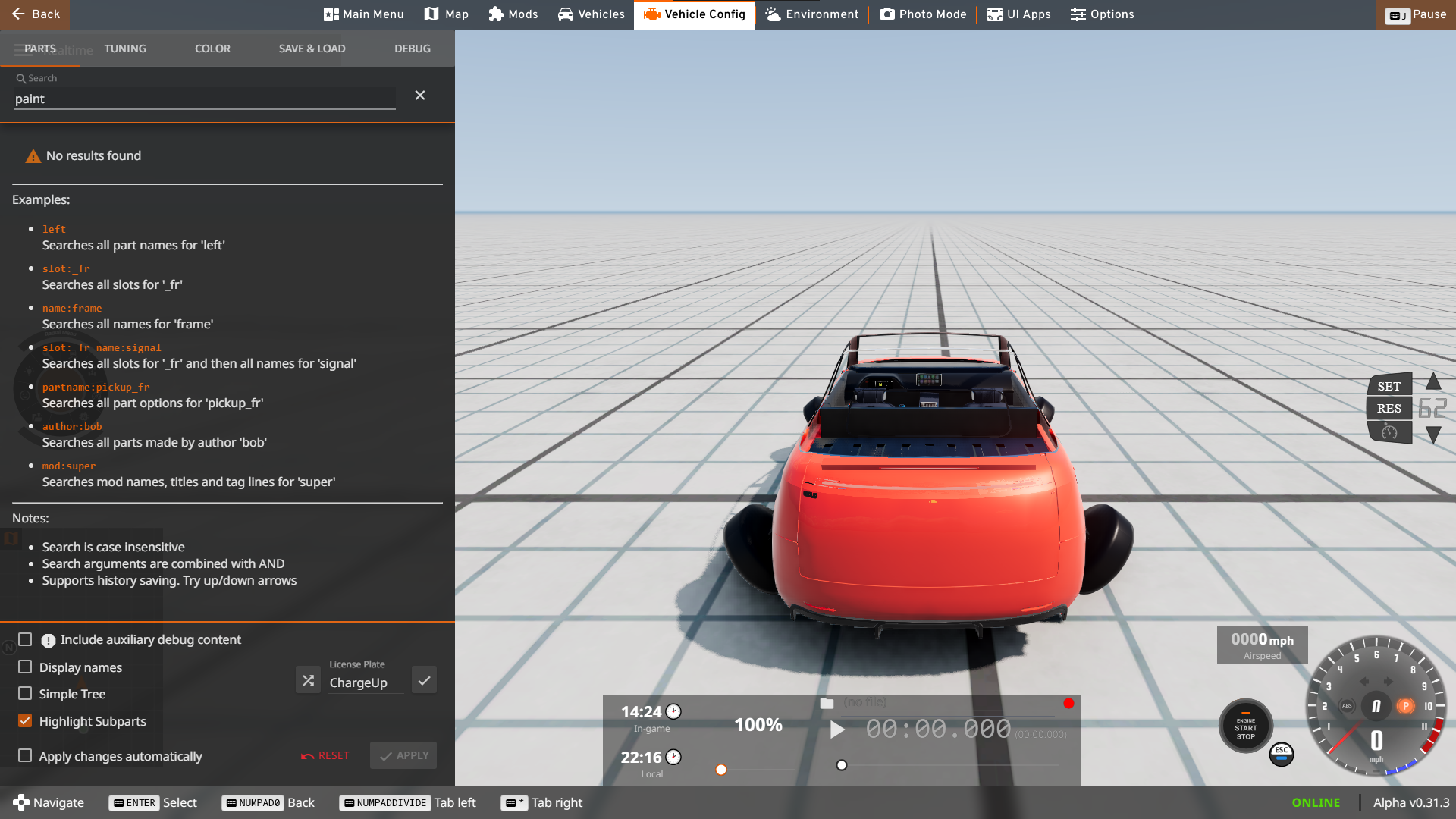

    and this car is not modifed

    notice how the first one says name and active part on the top instead of saying no results found like the bottom one? it seems like the game knows its there, but can't display it

    Yes, I had the mod unpacked. Yes, I restarted the game after applying the changes. the vehicles did not appear when the edits were finished, before the restart. Please help!

  2. Agent_Y

    Agent_Y
    Expand Collapse
    Jbeam/QA support
    BeamNG Team

    Joined:
    Jul 10, 2020
    Messages:
    10,352
    The slot just won't appear if there are no parts added for it.

    • Agree Agree x 1
  3. SSRG

    SSRG
    Expand Collapse

    Joined:
    Jun 17, 2023
    Messages:
    4,332
    It might be a slot type issue.
    The “doesn’t show anything but doesn’t say there’s nothing” happens when the slot exists, but has no parts assigned to it.

  4. charge_1

    charge_1
    Expand Collapse

    Joined:
    Nov 11, 2020
    Messages:
    1,005
    Oh ok, how do I assign a part?

  5. SSRG

    SSRG
    Expand Collapse

    Joined:
    Jun 17, 2023
    Messages:
    4,332
    Well, you make one, and then put “paint_design” as the slot type.

    • Like Like x 1
