PRESSUREWHEELS; What am I doing wrong?

I am making this post because I searched the whole site and only found one thread mentioning my specific issue, and it's 5 years old and still unsolved.......

Thread by @Deligenta ;
https://www.beamng.com/threads/pressurewheels-dont-generating-here-a-code.74907/

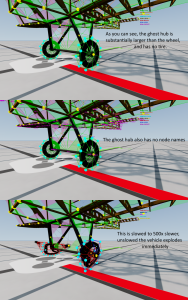

My exact issue is my "pressureWheels" data is being completely ignored by the game and it just generates a sort of place holder hub that is way too stiff and causes my vehicle to explode.

The part in question;

-is part of the "wheeldata" part

-no code to create such a hub exists inside of "wheeldata," or anywhere in my .Jbeam files

-has no node names or numbers

-has beam numbers, but no names

-has no node weight

-has no node group, although when it is present, it allows the wheel and tire meshes to be visible... so it must be grouped to both

-has no node material

-does not respond to any changes in code

-its beamSpring, beamDamp, beamDeform and beamStrength values as shown via in-game debug do not appear anywhere in my code, and when I run existing values through the only existing variable ($tirepressure_F) the value produced is nothing even remotely close that of this ghost hub

-removing the wheel and tire entirely does not remove the ghost hub as it's part of "wheeldata"



I will attach a .txt with my code, which is 1:1 copied from the 0.36.4 Vanilla Ibishu Pigeon 4-wheel front suspension, minimally edited to fit my needs. Although, even when I wrote my own I still had the same issue... AND when I used a completely unedited copy of the Pigeon stuff, I had the same exact issue still.



Just thought I'd post this here in case no one wanted to download my .txt and read it...

Below is a "beams" section from the axle itself, it is the only reference to pressureWheels outside of the wheeldata part, or the wheels and tires themselves.

---

//wheel attach
{"optional":true},
{"breakGroup":"wheel_FL"},
["fax1l","fw1ll", {"name":"axle_FL"}],
{"breakGroup":"wheel_FR"},
["fax1r","fw1rr", {"name":"axle_FR"}],
{"breakGroup":""},
{"optional":false},

---

Below is the wheeldata part itself. This is where the ghost hub originates, but there is no code here to generate such a hub.

---

"ww1asf_wheeldata_F": {
"information":{
"authors":"BeamNG",
"name":"Front Spindles",
"value":100
},
"slotType" : "ww1asf_wheeldata_F",
"pressureWheels": [
["name","hubGroup","group","node1:","node2:","nodeS","nodeArm:","wheelDir"],
//front
{"selfCollision":false},
{"collision":true},
{"hubcapBreakGroup":"hubcap_FR"},
{"hubcapGroup":"hubcap_FR"},
{"axleBeams":["axle_FR"]},
["FR", "wheel_FR", "tire_FR", "fw1rr", "fw1r", 9999, "fh4r", 1],
{"hubcapBreakGroup":"hubcap_FL"},
{"hubcapGroup":"hubcap_FL"},
{"axleBeams":["axle_FL"]},
["FL", "wheel_FL", "tire_FL", "fw1ll", "fw1l", 9999, "fh4l", -1],
{"selfCollision":true},
{"axleBeams":[]},{"disableMeshBreaking":false,"disableTriangleBreaking":false},
{"hubcapBreakGroup":""},
{"hubcapGroup":""},
{"enableHubcaps":false},
{"enableTireLbeams":false},
{"enableTireSideReinfBeams":false},
{"enableTireReinfBeams":false},
{"enableTreadReinfBeams":false},
{"enableTirePeripheryReinfBeams":false},
{"loadSensitivitySlope":""},
{"noLoadCoef":""},
{"fullLoadCoef":""},
{"frictionCoef":""},
{"slidingFrictionCoef":""},
{"softnessCoef":0.5},
{"treadCoef":1.0}
],
"powertrain" : [
["type", "name", "inputName", "inputIndex"],
["shaft", "wheelaxleFL", "differential_F", 1, {"connectedWheel":"FL", "breakTriggerBeam":"axle_FL", "uiName":"Front Left Axle", "friction":0.65, "dynamicFriction":0.00127}],
["shaft", "wheelaxleFR", "differential_F", 2, {"connectedWheel":"FR", "breakTriggerBeam":"axle_FR", "uiName":"Front Right Axle", "friction":0.65, "dynamicFriction":0.00127}]
]
}

---

Below is the wheels .Jbeam file. No code exists here to generate the ghost hub.

---

"nodes":[
["id","posX","posY","posZ"],
//--FRONT INDEPENDANT SUSPENSION--
{"frictionCoef":0.5},
{"nodeMaterial":"|NM_METAL"},
{"nodeWeight":2.75},
{"selfCollision":true},
{"collision":false},
{"group":"wheelhub_FR"},
["fw1r",-0.75000,0.00000,0.28000,{"staticCollision":false}],
{"group":"wheelhub_FL"},
["fw1l",0.75000,0.00000,0.28000,{"staticCollision":false}],
{"collision":true},
//wheel nodes
{"group":"wheelhub_FR"},
["fw1rr",-0.85000,0.00000,0.28000],
{"group":"wheelhub_FL"},
["fw1ll",0.85000,0.00000,0.28000],
{"group":""}
],
"beams":[
["id1:","id2:"],
//--FRONT WHEELS--
{"beamPrecompression":1,"beamType":"|NORMAL","beamLongBound":1.0,"beamShortBound":1.0},
{"beamSpring":501000,"beamDamp":10},
{"beamDeform":75000,"beamStrength":360000},
["fw1r","fw1rr"],
["fw1l","fw1ll"],
{"beamPrecompression":1,"beamType":"|NORMAL","beamLongBound":1.0,"beamShortBound":1.0}
],
"pressureWheels":[
["name","hubGroup","group","node1:","node2:","nodeS","nodeArm:","wheelDir"],
{"disableMeshBreaking":false,"disableHubMeshBreaking":false,"hasTire":false},

//general settings
{"hubRadius":0.2016},
{"wheelOffset":0.0},
{"hubWidth":0.0999},
{"numRays":20},

//hub options
{"hubTreadBeamSpring":701000,"hubTreadBeamDamp":8},
{"hubPeripheryBeamSpring":701000,"hubPeripheryBeamDamp":8},
{"hubSideBeamSpring":901000,"hubSideBeamDamp":8},
{"hubNodeWeight":0.3},
{"hubNodeMaterial":"|NM_METAL"},
{"hubFrictionCoef":0.5}
]

---

Below is the tires .Jbeam. No code exists to generate the ghost hub in here either.

---

"variables":[
["name", "type", "unit", "category", "default", "min", "max", "title", "description"],
["$tirepressure_F", "range","psi", "Wheels", 20, 0, 50, "Tire Pressure","Relative to atmospheric pressure",{"subCategory":"Front"}]
],
"pressureWheels": [
["name","hubGroup","group","node1:","node2:","nodeS","nodeArm:","wheelDir"],
{"disableMeshBreaking":false,"disableHubMeshBreaking":false},
{"hasTire":true},
{"enableTireReinfBeams":false},
{"enableTireLbeams":true},
{"enableTireSideReinfBeams":false},
{"enableTreadReinfBeams":true},
{"enableTirePeripheryReinfBeams":true},

//general settings
{"radius":0.28},
{"tireWidth":0.091},

//tire options
{"wheelSideBeamSpring":"$=$tirepressure_F*255","wheelSideBeamDamp":25},
{"wheelSideBeamSpringExpansion":271000,"wheelSideBeamDampExpansion":30},
{"wheelSideTransitionZone":0.1,"wheelSideBeamPrecompression":0.99},

{"wheelReinfBeamSpring":10000,"wheelReinfBeamDamp":140},
{"wheelReinfBeamDampCutoffHz":500,"wheelReinfBeamPrecompression":0.99},

{"wheelTreadBeamSpring":61000,"wheelTreadBeamDamp":48},
{"wheelTreadBeamDampCutoffHz":500,"wheelTreadBeamPrecompression":0.99},

{"wheelTreadReinfBeamSpring":61000,"wheelTreadReinfBeamDamp":44},
{"wheelTreadReinfBeamDampCutoffHz":500,"wheelTreadReinfBeamPrecompression":0.99},

{"wheelPeripheryBeamSpring":41000,"wheelPeripheryBeamDamp":22},
{"wheelPeripheryBeamDampCutoffHz":500,"wheelPeripheryBeamPrecompression":0.99},

{"wheelPeripheryReinfBeamSpring":41000,"wheelPeripheryReinfBeamDamp":22},
{"wheelPeripheryReinfBeamDampCutoffHz":500,"wheelPeripheryReinfBeamPrecompression":0.99},

//general tire values
{"nodeWeight":0.1},
{"nodeMaterial":"|NM_RUBBER"},
{"triangleCollision":false},
{"pressurePSI":"$tirepressure_F"},
{"dragCoef":5},

//groundmodel friction multipliers
{"frictionCoef":1.0},
{"slidingFrictionCoef":1.0},
{"treadCoef":0.7},

//advanced friction values
{"noLoadCoef":1.04},
{"loadSensitivitySlope":0.00026},
{"fullLoadCoef":0.30},
{"softnessCoef":0.7},

//deform values
{"wheelSideBeamDeform":11000,"wheelSideBeamStrength":14000},
{"wheelTreadBeamDeform":8100,"wheelTreadBeamStrength":11000},
{"wheelPeripheryBeamDeform":41000,"wheelPeripheryBeamStrength":41000},
{"hubBeamDeform":14000, "hubBeamStrength":88000},
{"axleBeams":[]},{"disableMeshBreaking":false,"disableTriangleBreaking":false}
]
