doesn't all need to be cosmetic upgrades, it also needs adjustable rear suspension, camber etc, but the main thing i think that should be done is getting the Engine to actually be in the rear, and make the engine a solid object, it is to soft and it spikes, coz if you hit a wall the engine smokes at the front @53_herbie_53
Almost same error happens to almost all mods The Skoda has smoke coming on front even that the engine is rear The V6R4, same Getting a full rear engine on game and make it smoke on back is difficult

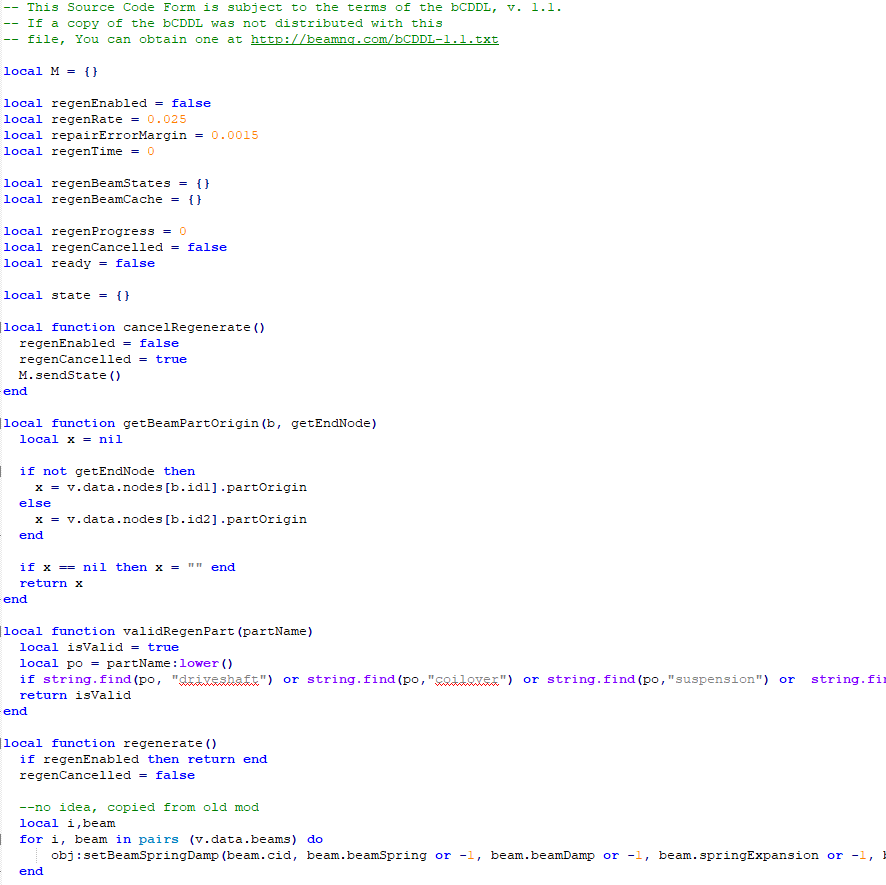

i have a idea the etk series have a crash detection (i think its integrated in the esp) if a crash hapens the crash detection triggeres the break and the hzzard light could it be possible to trigger with this system the button for the selve repair app ?
i was gunna say, i think you should make the rear fenders independent like the front so possibly stop the spike

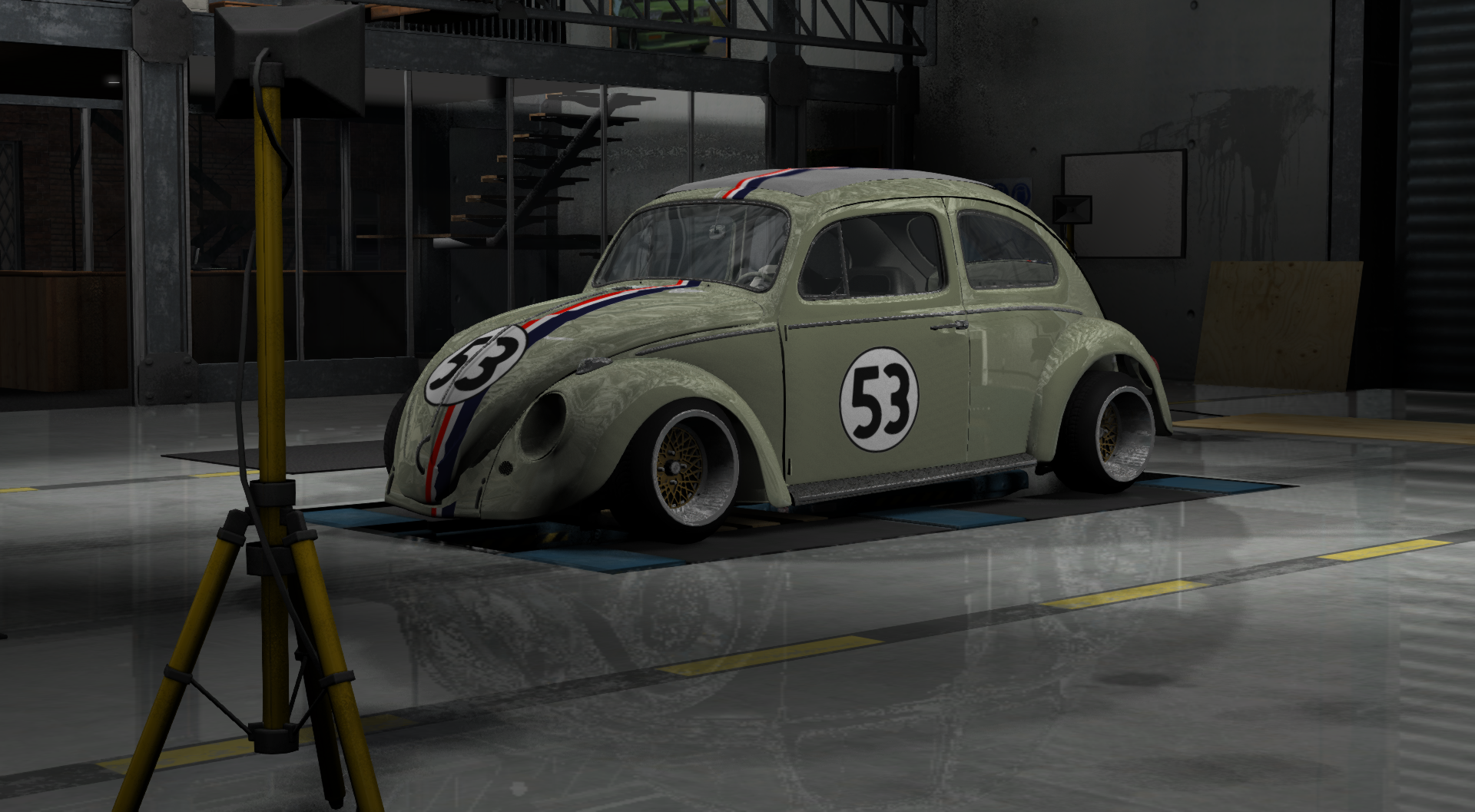

Well, I'm pretty sure nobody wanted a config, but same, I'm going to post this here Hope you like my config
I don't know, it is not that hard to make it smoke from back when crashed, I just moved engine to rear and that made it smoke from back. Added somewhat correct weight for engine and adjusted engine shape a little, etc. It would need still proper shape to be made and would need to find measurements for that, then I think that engine connection to body might need adjusting, as it is quite loose now and still might be connected to front, engine mounting to body beams might need adjusting, but I could not quickly see those. Now it does not stall at spawn and altered inertia to be included other rotational masses than flywheel, but it still is rough estimation, default flywheel adds quite bit of inertia, so use of lightened is recommend or modifying stock flywheel to have less inertia. It is just 1.3L and torque curve is from automobile catalog, so it is bit weak, but it's easy to make upgrades for more power. Code: { "herbie_engine_1.3": { "information":{ "authors":"Fufsgfen", "name":"1.3L F4 Engine", "value":800, }, "slotType" : "miramar_engine", "slots": [ ["type", "default", "description"] ["miramar_exhaust","miramar_exhaust", "Exhaust"], ["miramar_transmission","miramar_transmission_4M", "Transmission"], ["n2o_system","", "Nitrous Oxide System"], ], "powertrain": [ ["type", "name", "inputName", "inputIndex"], ["combustionEngine", "mainEngine", "dummy", 0], ], "mainEngine": { "torque":[ ["rpm", "torque"] [ 0 , 0.00 ], [ 500 , 25.05 ], [ 1000 , 36.39 ], [ 1500 , 63.54 ], [ 2000 , 83.29 ], [ 2500 , 95.54 ], [ 3000 , 100.28 ], [ 3500 , 98.93 ], [ 4000 , 92.78 ], [ 4500 , 81.02 ], [ 4600 , 77.43 ], [ 5500 , 59.52 ], [ 6000 , 50.57 ], [ 6500 , 41.61 ], [ 7000 , 32.66 ], [ 7500 , 23.71 ], ], "idleRPM":950, "maxRPM":5000, "hasRevLimiter":true, "inertia":0.0625, //for 200mm 14lbs flywheel + other rotational mass of engine "friction":8 "dynamicFriction":0.02, //"burnEfficiency":0.29 "burnEfficiency":[ [0, 0.10], [0.05, 0.21], [0.4, 0.34], [0.7, 0.45], [1, 0.32], ], "torqueReactionNodes:":["e1l","e2l","e4r"] "energyStorage": "mainTank", "requiredEnergyType":"gasoline", //exhaust "particulates":0.055 "instantAfterFireCoef": 0.25, "sustainedAfterFireCoef": 1, //cooling and oil system "thermalsEnabled":true, "engineBlockMaterial":"iron", "engineBlockAirCoolingEfficiency":40, "blockFanMaxAirSpeed":4, "oilVolume":4, "oilRadiatorArea":0.3, "oilRadiatorEffectiveness":200000 //engine durability "cylinderWallTemperatureDamageThreshold":120 "headGasketDamageThreshold":1500000 "pistonRingDamageThreshold":1500000 "connectingRodDamageThreshold":2000000 "maxTorqueRating": 165, "maxOverTorqueDamage": 350, //node beam interface "waterDamage": {"[engineGroup]:":["engine_intake"]}, "radiator": {"[engineGroup]:":["radiator"]}, "engineBlock": {"[engineGroup]:":["engine_block"]}, "breakTriggerBeam":"engine", "uiName":"Engine", "soundConfig": "soundConfig", }, "soundConfig": { "sampleName": "B4", "mainGain": -18, "maxLoadMix": 0.65, "minLoadMix": 0, "onLoadGain":1, "offLoadGain":0.7, "eqLowGain": 10, "eqLowFreq": 400, "eqLowWidth": 0, "eqHighGain": -5, "eqHighFreq": 6000, "eqHighWidth": 0.2, "lowCutFreq":80, "fundamentalFrequencyCylinderCount":4 "eqFundamentalGain": 10 }, "vehicleController": { "clutchLaunchStartRPM":1600, "clutchLaunchTargetRPM":2200, //**highShiftDown can be overwritten by automatic transmissions** "highShiftDownRPM":[0,0,0,2500,2900,3200,3300] //**highShiftUp can be overwritten by intake modifications** "highShiftUpRPM":4500 }, "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["miramar_engineblock", ["miramar_engine"]], ["miramar_engine_1_6", ["miramar_engine"]], {"deformGroup":"radtube_break", "deformMaterialBase":"miramar", "deformMaterialDamaged":"invis"}, ["miramar_radtube", ["miramar_radtube","miramar_engine"]], {"deformGroup":"coil_break", "deformMaterialBase":"miramar", "deformMaterialDamaged":"invis"}, ["miramar_ignitioncoil", ["miramar_engine","miramar_body"]], {"deformGroup":"", "deformMaterialBase":"", "deformMaterialDamaged":""}, ], "props": [ ["func" , "mesh" , "idRef:", "idX:", "idY:" , "baseRotation" , "rotation" , "translation" , "min", "max", "offset", "multiplier"] ["radiatorFanSpin" , "miramar_coolingfan", "e2r","e2l","e4r", {"x":7, "y":0, "z":0}, {"x":0, "y":1, "z":0} , {"x":0, "y":0, "z":0}, -360, 360, 0, 1], ], "nodes": [ ["id", "posX", "posY", "posZ"], //1.3L F4 Engine {"frictionCoef":0.5}, {"nodeMaterial":"|NM_METAL"}, {"selfCollision":false}, {"collision":true}, {"group":"miramar_engine"}, {"nodeWeight":10.58}, {"engineGroup":"engine_block"} ["e1r", -0.27, 0.9, 0.29], ["e1l", 0.27, 0.9, 0.29,{"chemEnergy":2000,"burnRate":0.39,"flashPoint":800,"specHeat": 0.1,"selfIgnitionCoef":false,"smokePoint":650,"baseTemp":"thermals","conductionRadius":0.13}], ["e2r", -0.27, 1.63, 0.38], ["e2l", 0.27, 1.63, 0.38,{"chemEnergy":2000,"burnRate":0.39,"flashPoint":800,"specHeat": 0.1,"selfIgnitionCoef":false,"smokePoint":650,"baseTemp":"thermals","conductionRadius":0.13}], {"engineGroup":["engine_block","engine_intake"]} {"nodeWeight":10.58}, ["e3r", -0.13, 0.93, 0.68], ["e3l", 0.13, 0.93, 0.68,{"chemEnergy":2000,"burnRate":0.39,"flashPoint":800,"specHeat": 0.1,"selfIgnitionCoef":false,"smokePoint":650,"baseTemp":"thermals","conductionRadius":0.13}], ["e4r", -0.13, 1.58, 0.68], ["e4l", 0.13, 1.58, 0.68,{"isExhaust":"mainEngine","chemEnergy":2000,"burnRate":0.39,"flashPoint":800,"specHeat": 0.1,"selfIgnitionCoef":false,"smokePoint":650,"baseTemp":"thermals","conductionRadius":0.13}], {"nodeWeight":3}, ["e5l", 0.29, 1.08, 0.72,{"chemEnergy":2000,"burnRate":0.39,"flashPoint":800,"specHeat": 0.5,"selfIgnitionCoef":false,"smokePoint":650,"baseTemp":"thermals","conductionRadius":0.13}], ["e6l", 0.37, 1.48, 0.70,{"chemEnergy":2000,"burnRate":0.39,"flashPoint":800,"specHeat": 0.5,"selfIgnitionCoef":false,"smokePoint":650,"baseTemp":"thermals","conductionRadius":0.13}], {"engineGroup":""} {"group":""}, ], "beams": [ ["id1:", "id2:"], {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, {"beamSpring":15001000,"beamDamp":400}, {"beamDeform":175000,"beamStrength":"FLT_MAX"}, //engine ["e1r","e1l"], ["e2r","e2l"], ["e3r","e3l"], ["e4r","e4l"], ["e1r","e2r"], ["e1l","e2l"], ["e3r","e4r"], ["e3l","e4l"], ["e1r","e3r"], ["e1l","e3l"], ["e2r","e4r"], ["e2l","e4l"], ["e2r","e3r"], ["e2l","e3l"], ["e2r","e3l"], ["e2l","e3r"], ["e1r","e4r"], ["e1l","e4l"{"isExhaust":"mainEngine"}], ["e1r","e4l"], ["e1l","e4r"], ["e1r","e2l"], ["e1l","e2r"], ["e3r","e4l"], ["e3l","e4r"], ["e1r","e3l"], ["e1l","e3r"], ["e2r","e4l"], ["e2l","e4r"], {"beamSpring":1840460,"beamDamp":145}, //air filter {"beamDeform":8580,"beamStrength":"FLT_MAX"}, ["e4l", "e6l"], ["e3l", "e5l"], ["e6l", "e5l"], ["e6l", "e2l"], ["e5l", "e1l"], ["e6l", "e3l"], ["e5l", "e4l"], ["e6l", "e1l"], ["e2l", "e5l"], {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], "triangles": [ ["id1:","id2:","id3:"], {"groundModel":"metal"}, /* ["e5l", "e1l", "e3l"], ["e4r", "e3r", "e2r"], ["e3r", "e1r", "e2r"], ["e1r", "e1l", "e2r"], ["e2r", "e1l", "e2l"], ["e3l", "e1l", "e3r"], ["e3r", "e1l", "e1r"], ["e4r", "e4l", "e3l"], ["e4r", "e3l", "e3r"], ["e4r", "e2r", "e4l"], ["e4l", "e2r", "e2l"], ["e4l", "e2l", "e6l"], ["e6l", "e3l", "e4l"], ["e6l", "e2l", "e5l"], ["e6l", "e5l", "e3l"], ["e2l", "e1l", "e5l"], */ {"triangleType":"NONCOLLIDABLE"}, ["e2l", "e2r", "e1r"], ["e1r", "e1l", "e2l"], {"triangleType":"NORMALTYPE"}, ], },
@fufsgfen wow dude, can't you just do the whole .jbeam stuff?! haha, i really suck at it lol. btw. why did you rename the engine to "herbie_engine_1.3" isn't this causing trouble?
