WIP Beta released 1968 Ford Mustang Shelby GT500KR (Update 08/07/2021)

Discussion in 'Land' started by mehio, May 16, 2021.

  1. mehio

    mehio
    Expand Collapse

    Joined:
    Jun 20, 2018
    Messages:
    103

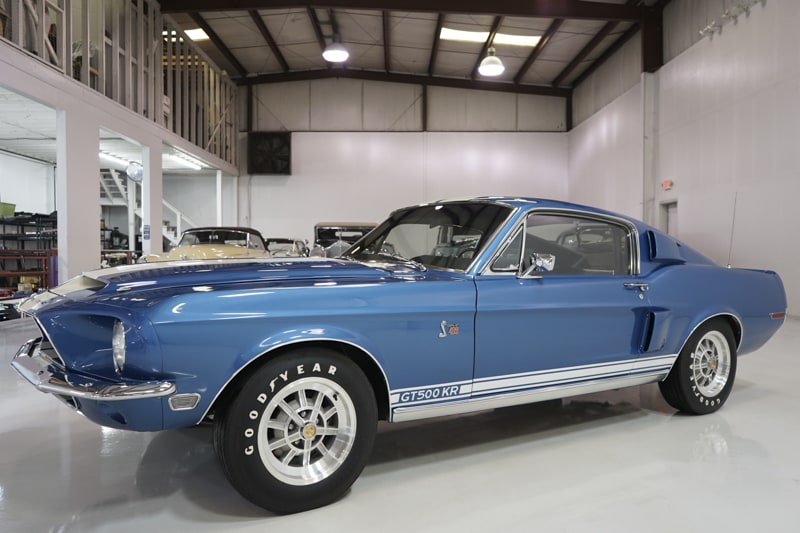

    This is the 1968 Ford Mustang Shelby GT500KR.
    About a year and a half of work has gone into this mod to make it crash and handle just like the real thing. Alot of research and countless hours of observing how the car rides in videos on youtube was put into this project.

    The video showcases several features:
    1. Handling and body movement.
    2. Separable parts.

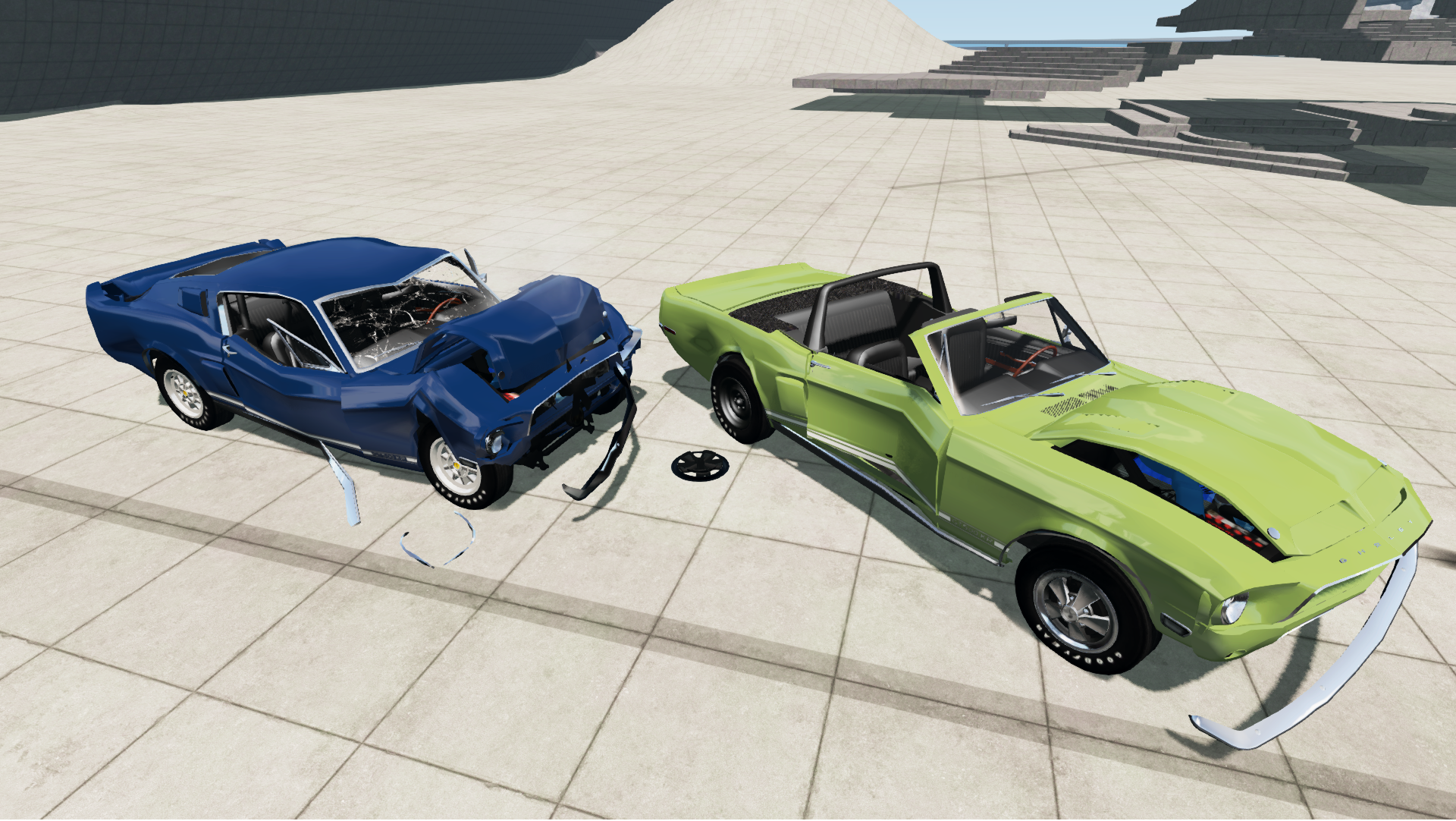

    3. Crashing and body deformation.

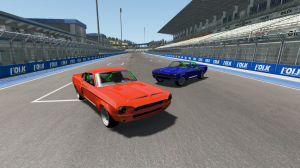

    4. Different variants (stock, race, fastback, convertible, auto, manual...)



    Technical details:


    The Jbeam is based off of the Moonhawk but several major changes were made to fit the body and panels of the mustang. Suspension and steering also had an overhaul.

    Steering:

    The steering originally came out of the moonhawk however it was heavily modified to a completely different setup. The 1968 mustang’s steering system is located aft of the steering box and came with a tie rod attached to the back of the hub (aft of the Z-axis of the wheel), whereas the moonhawk’s steering system is forward of the steering box and tie rod is attached to the front of the hub. When it comes to the jbeam, the tie rod nodes which connect the tie rod to the hub (fh3r/fh3l) had to be placed at the back of the hub (with proper triangles and beams). With the current setup, the car’s steering is reversed since the whole steering system is now aft of the steering box which means the steering box gearing had to be changed so that its output is reversed. In the Jbeam, this simply means multiplying the steering factor by -1.

    Rear Suspension:

    The moonhawk’s rear suspension included coil springs whereas the mustang has leaf springs. To solve this problem, a “transplant operation” is done. The rear suspension out of the Burnside was put on the mustang. The biggest challenge was to find spots on the body and frame to attach the suspension and then tweaking values to make it handle like a mustang, otherwise the rear was sagging and bouncy over bumps and dips significantly under heavy acceleration.

    Drivetrain:
    The engine (428 CobraJet) has all the correct torque values gathered from several sources. It has the correct oil capacity, radiator fluid capacity, radiator size, fan speed, fan clutch engagement etc...
    The transmission and differential all have the correct gear ratios and final drive ratio for automatics as well as manual transmissions along with offered options of limited slip and open differentials.

    0-60 times and weight of the vehicle are close the real world values.

    Seatbelts:
    The seatbelts are experimental. It is an attempt at making soft fabric using nodes and beams.

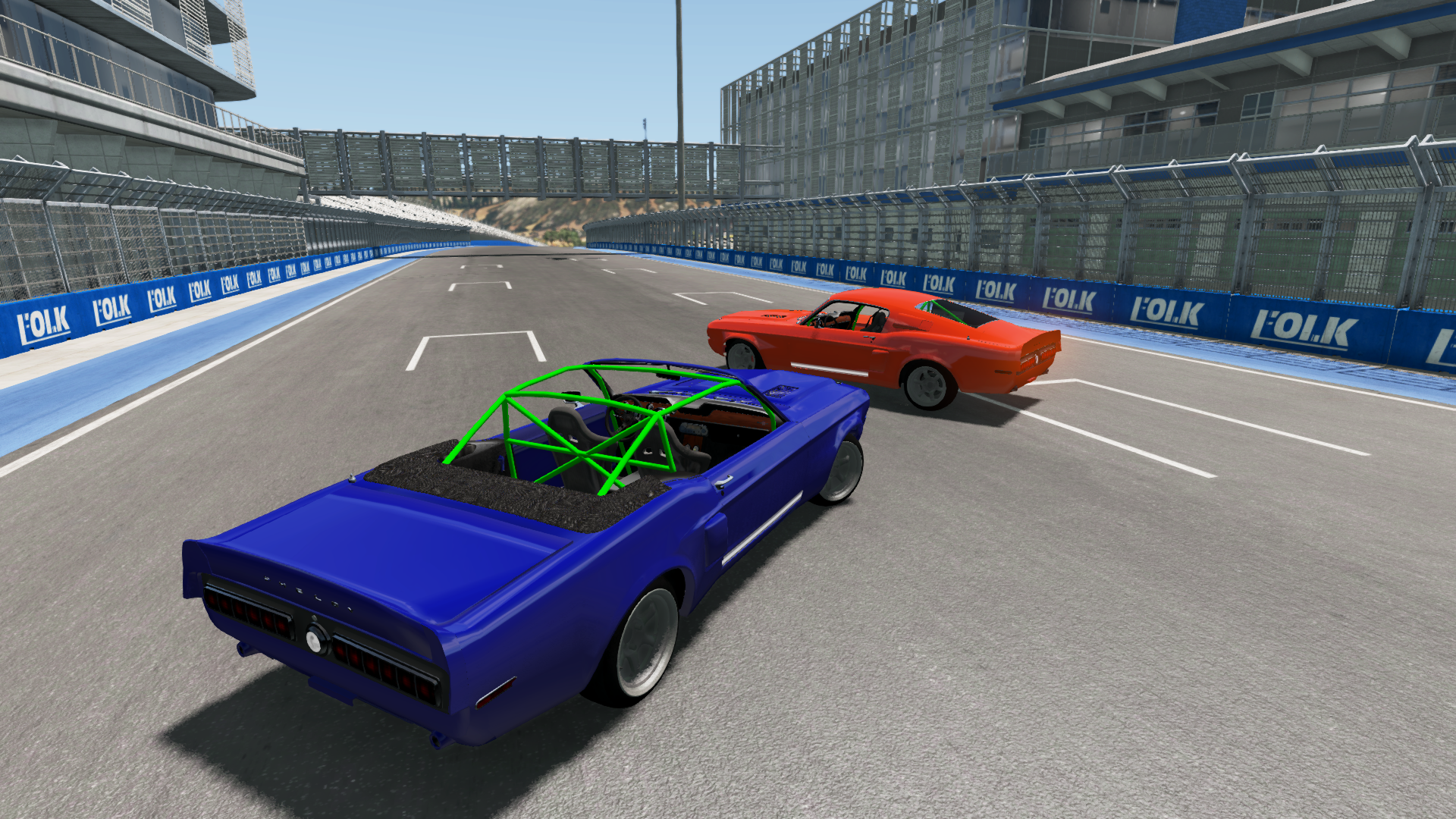

    Built in rollcage:
    The 1968 Shelby GT500KR came stock with a built in rollcage. This is also built into the jbeam of the mod.


    Issues and further work :
    1. Texture quality. Never been good at texturing. Also should consider moving to json materials system.
    2. Spiking under transmission tunnel. (Solved)
    3. Spiking door panels. (Improved)
    4. Overheat issue. Although all numbers and radiator size match real life.
    5. Race version leans to the left when heavy braking. Need steering wheel and pedals to properly assess and tune suspension.
    6. Convertible version is experimental. Still has some Jbeam issues (improved).

    EDIT: 06/27/2021

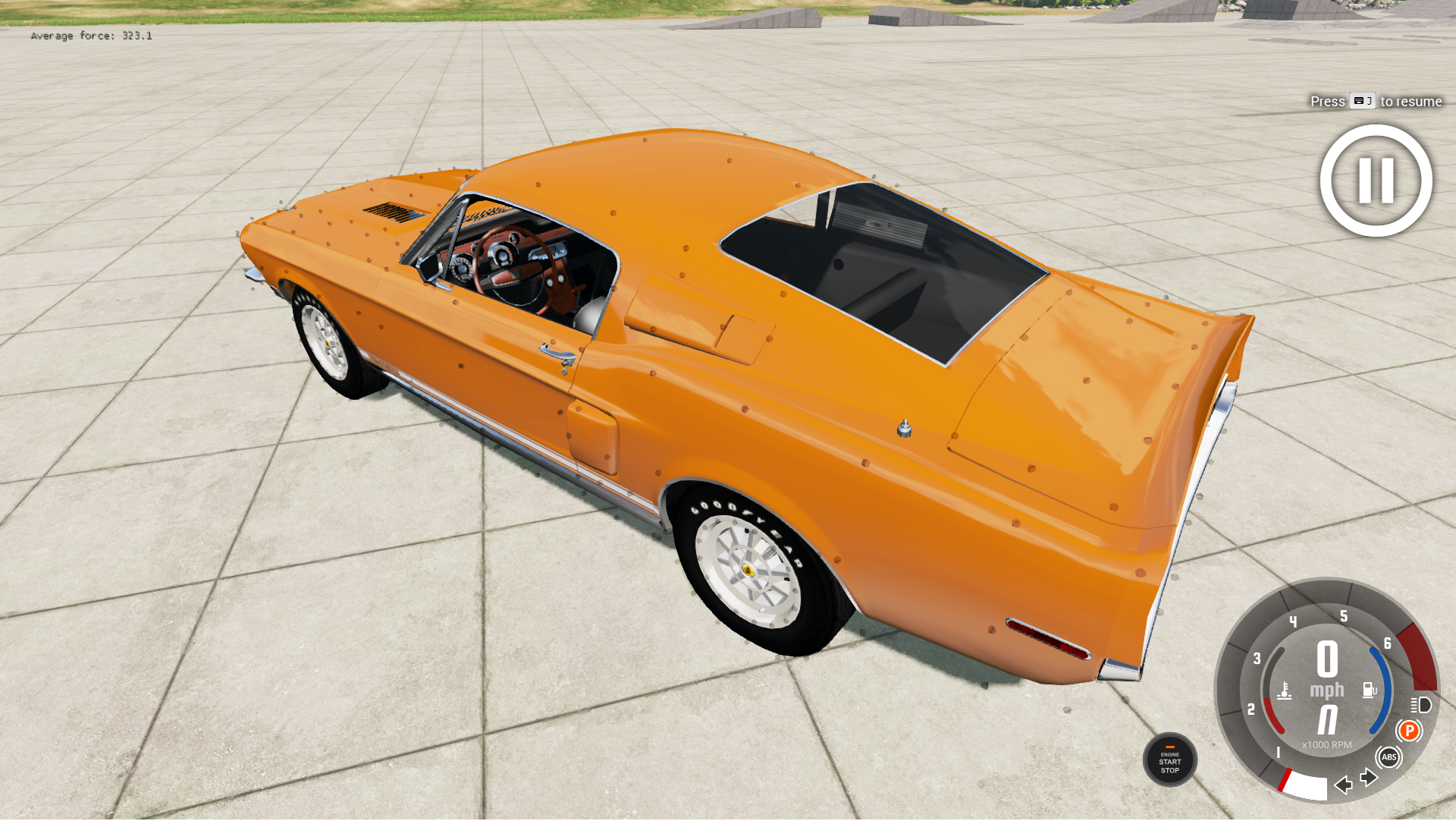

    Jbeam stability improvement. Average force: 323

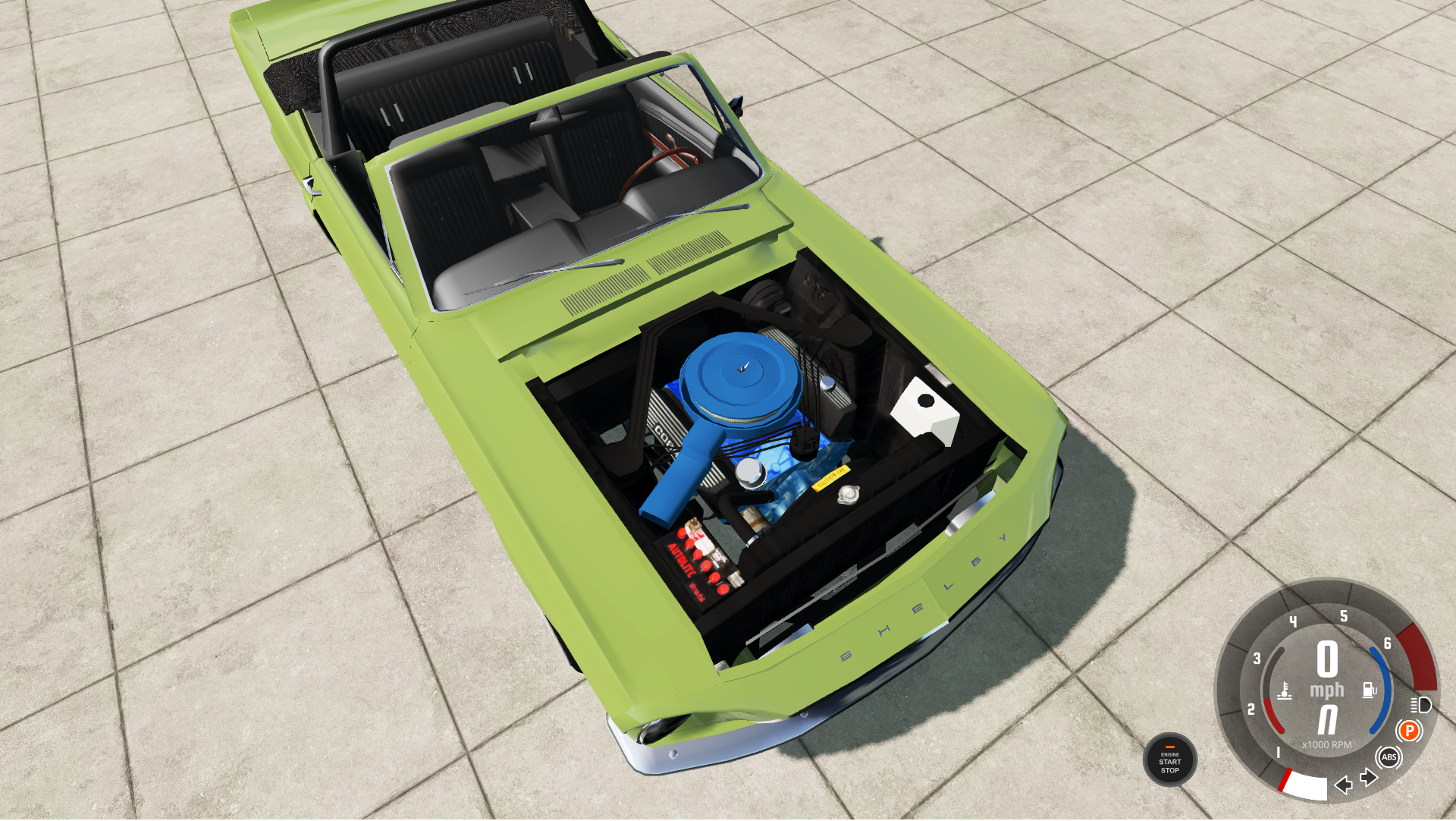

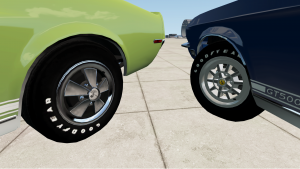

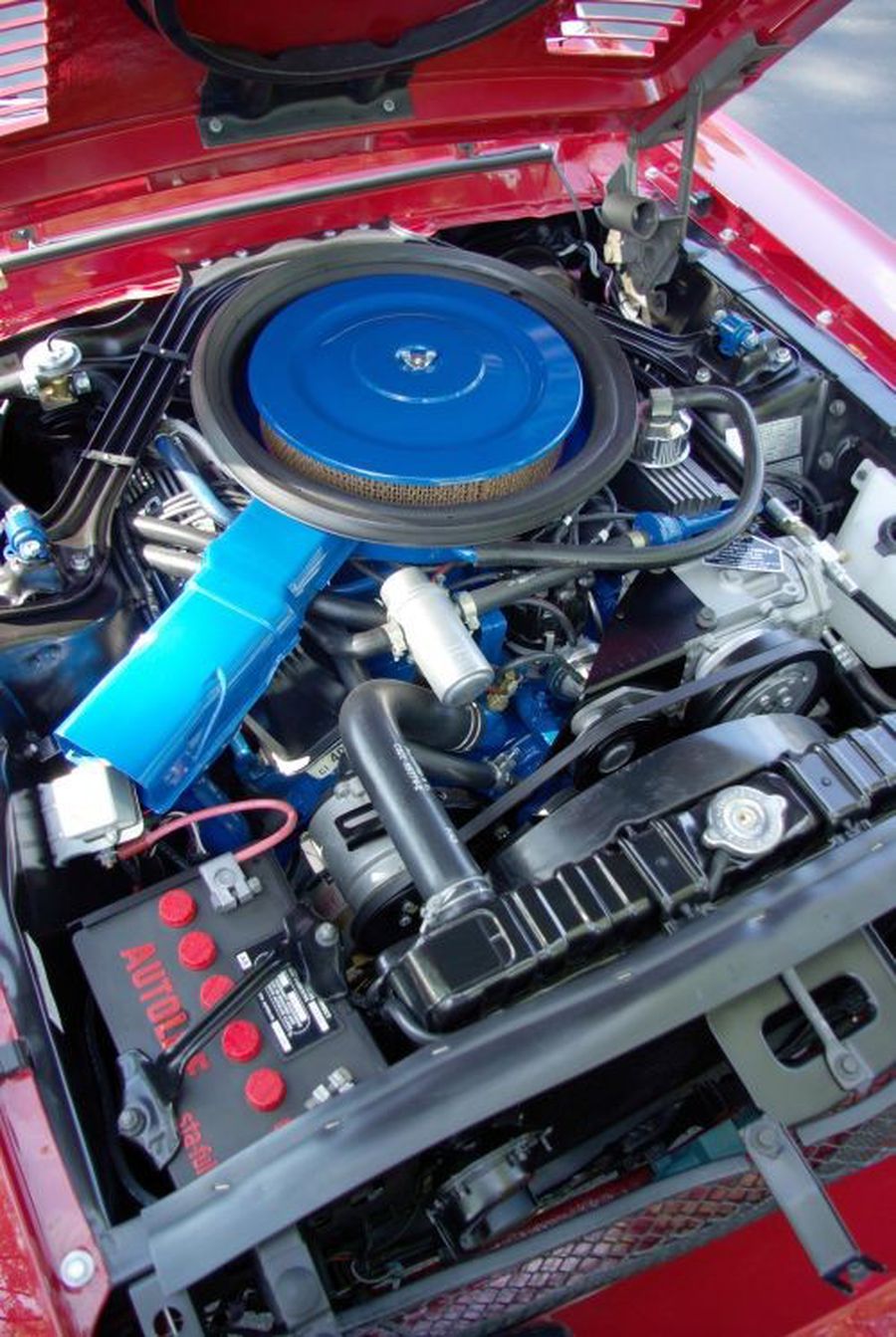

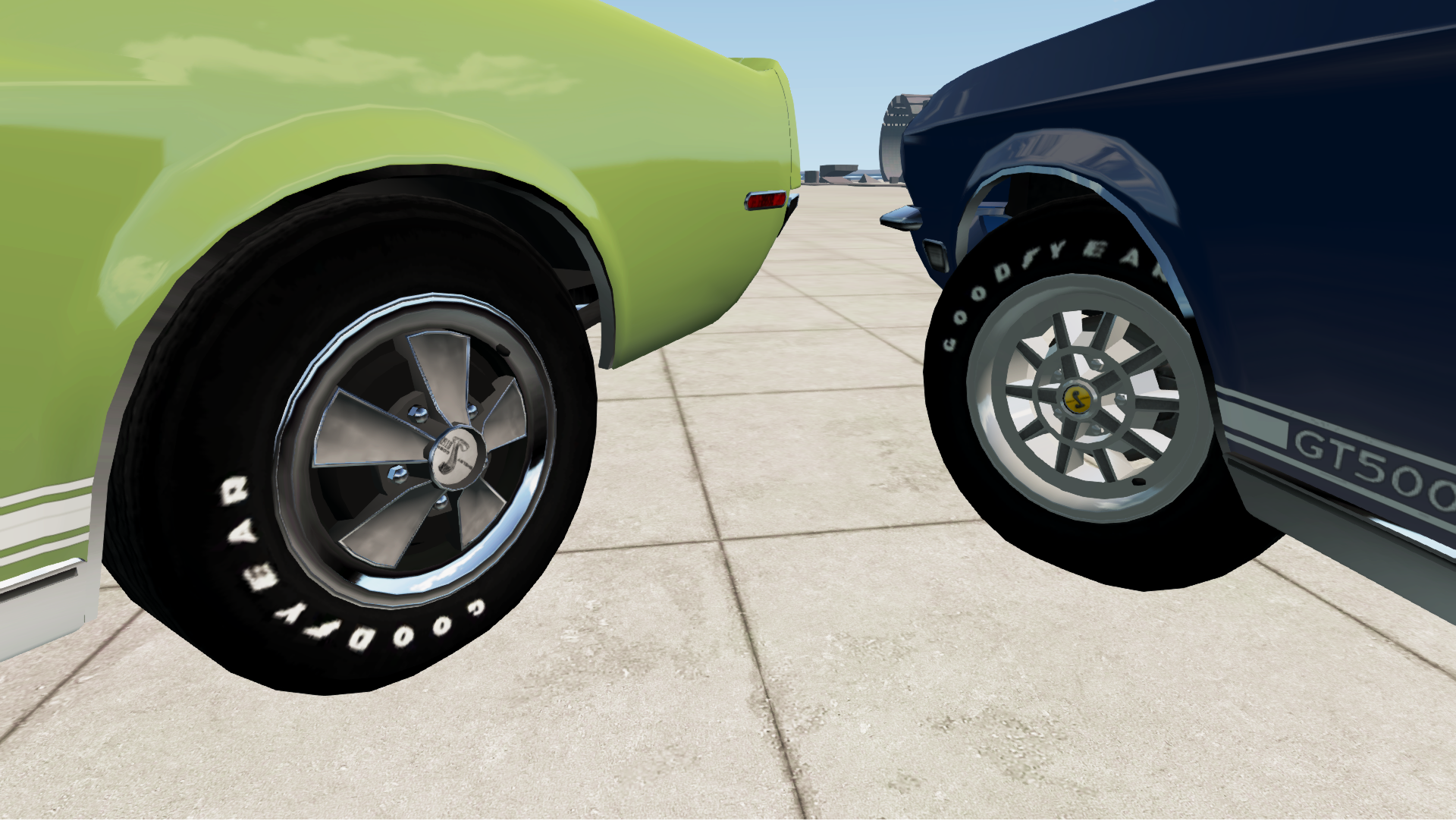

    Several details fixed such as : correct air cleaner colour, correct wheel colours

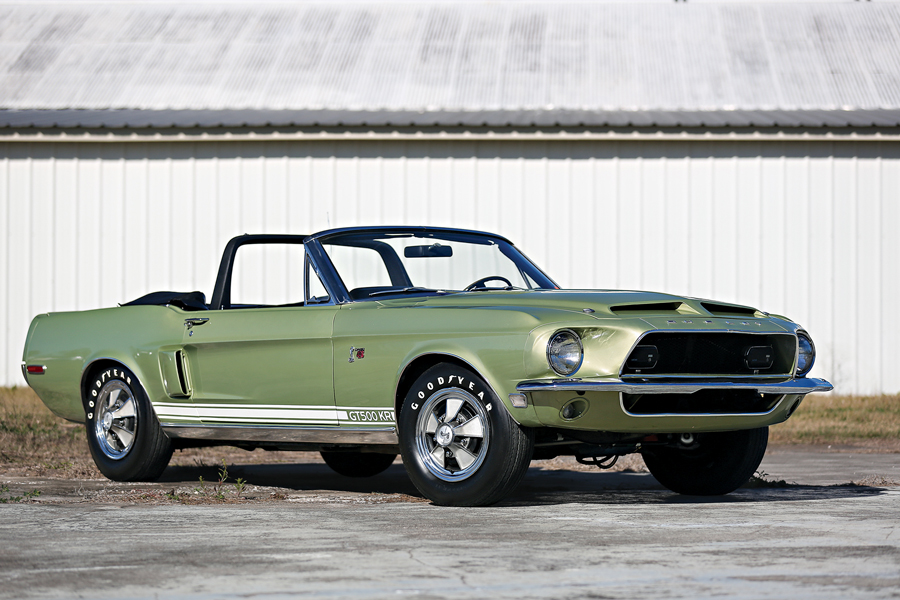

    (Note: The paint jobs in game might not look like the real life pictures due to graphics, shader and lighting quality etc... but they are the correct RGB and brightness).

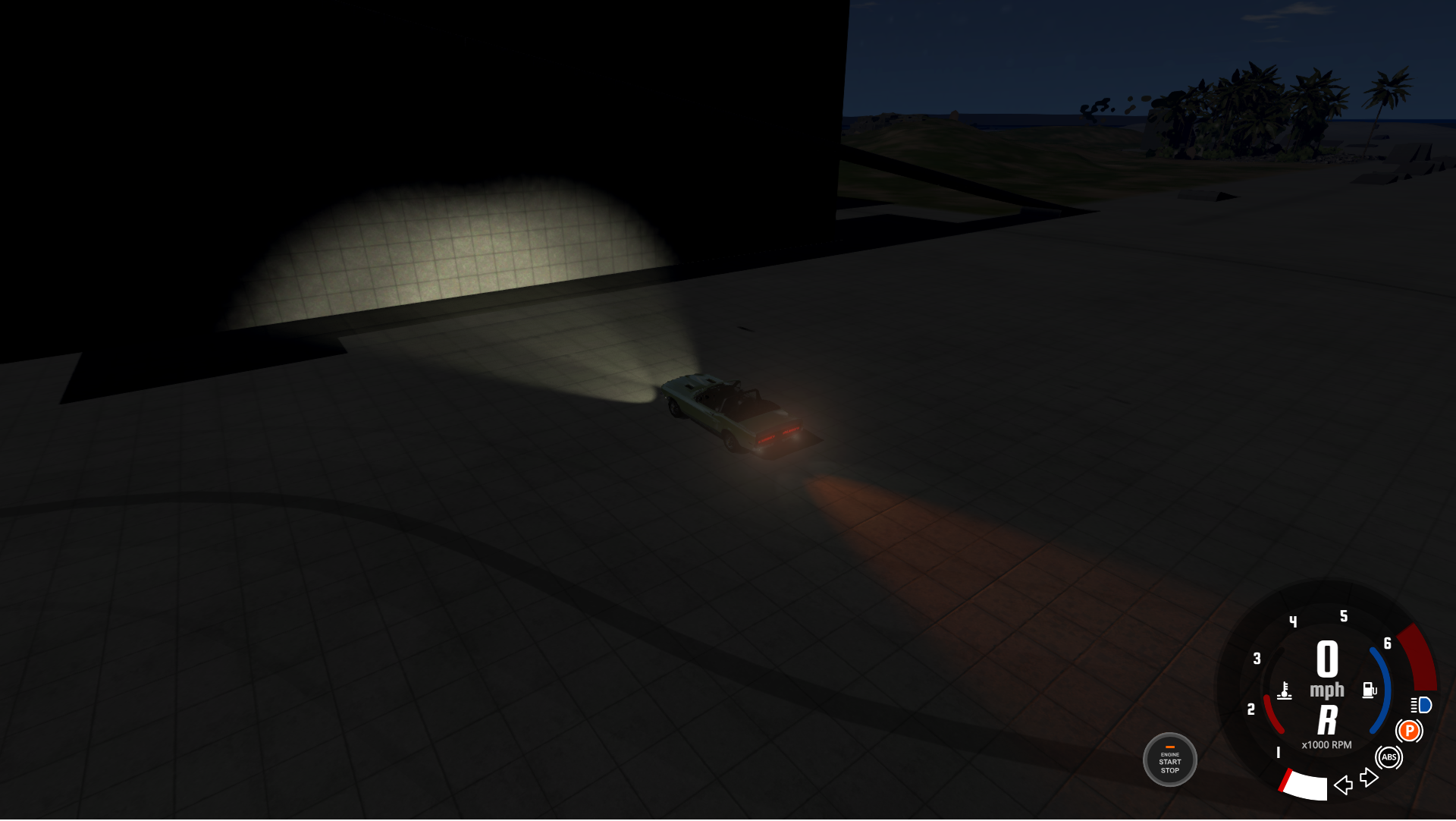

    Spotlights fixed and calibrated

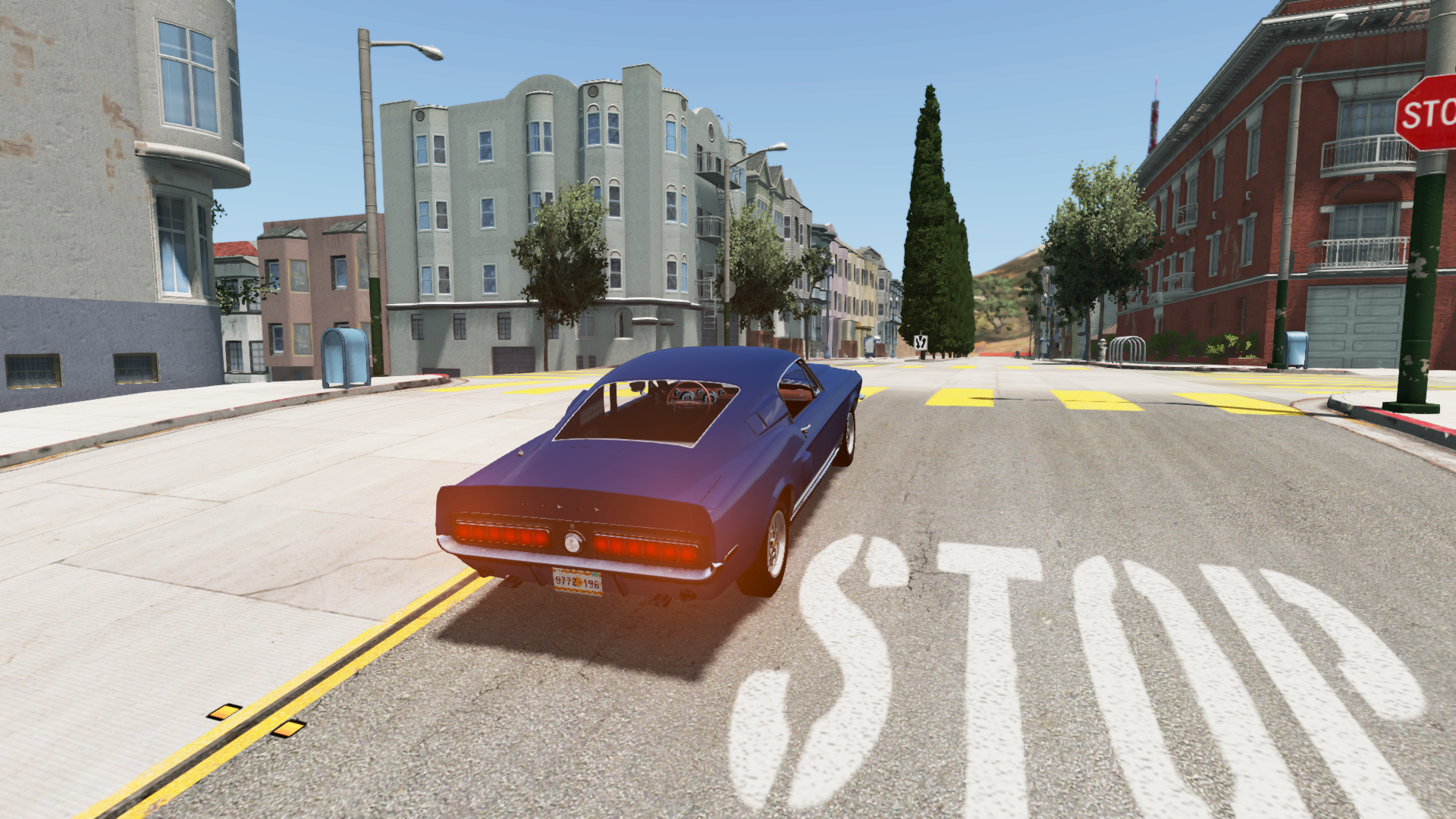

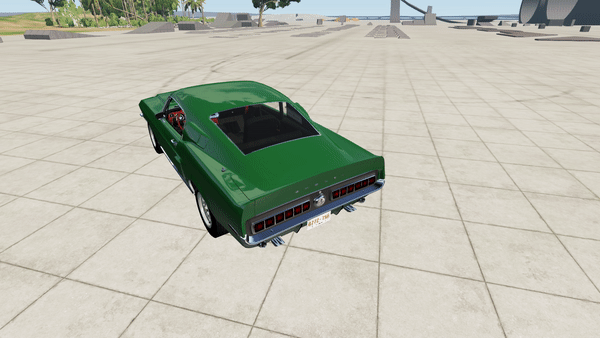

    The 1968 Shelby 500KR came with sequential taillights, same as the ones on the Thunderbird.

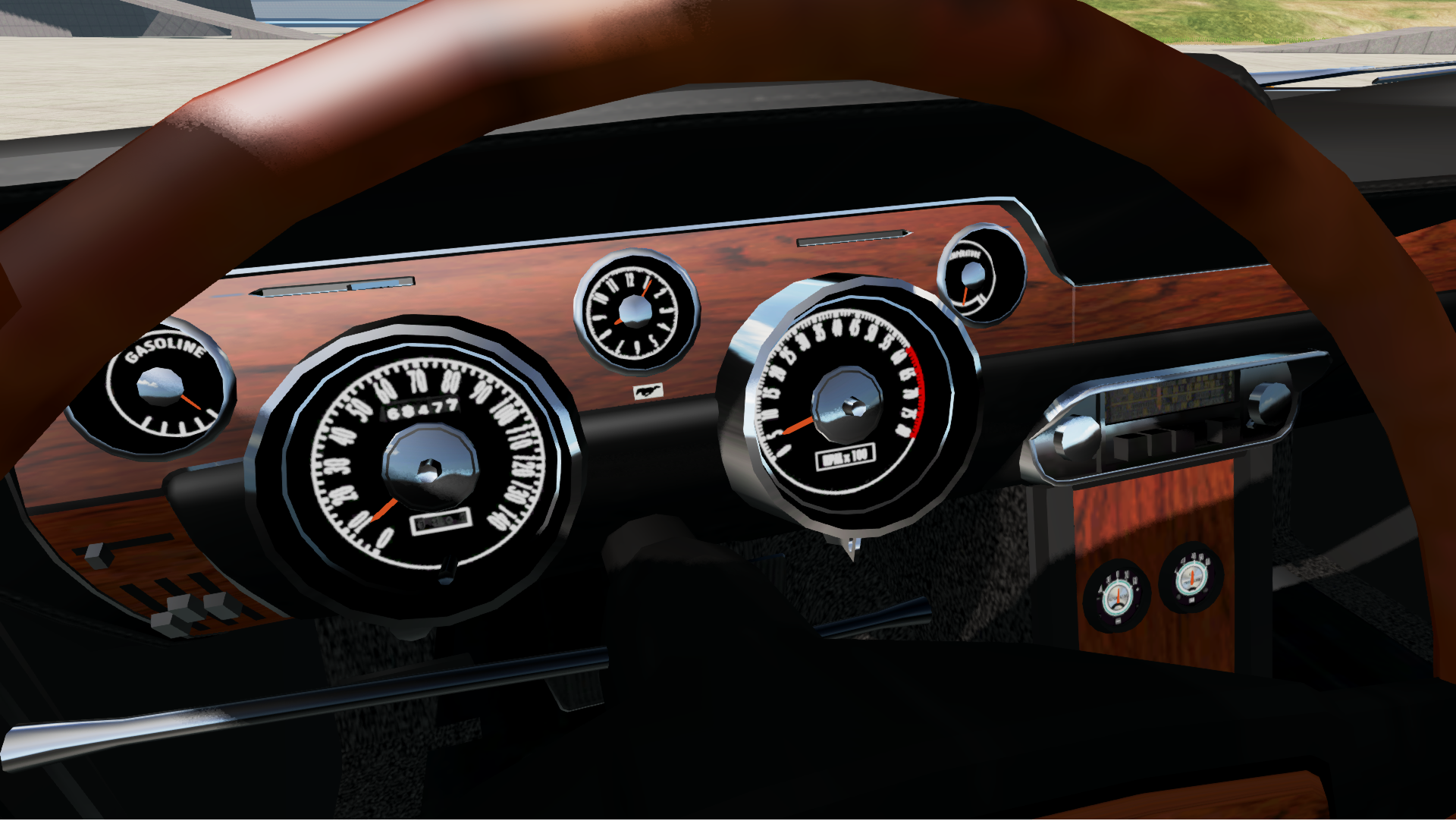

    Working dash with calibrated needles showing correct time, fuel, rpm etc...
    The tiny mustang logo under the clock illuminates when highbeams switched on.

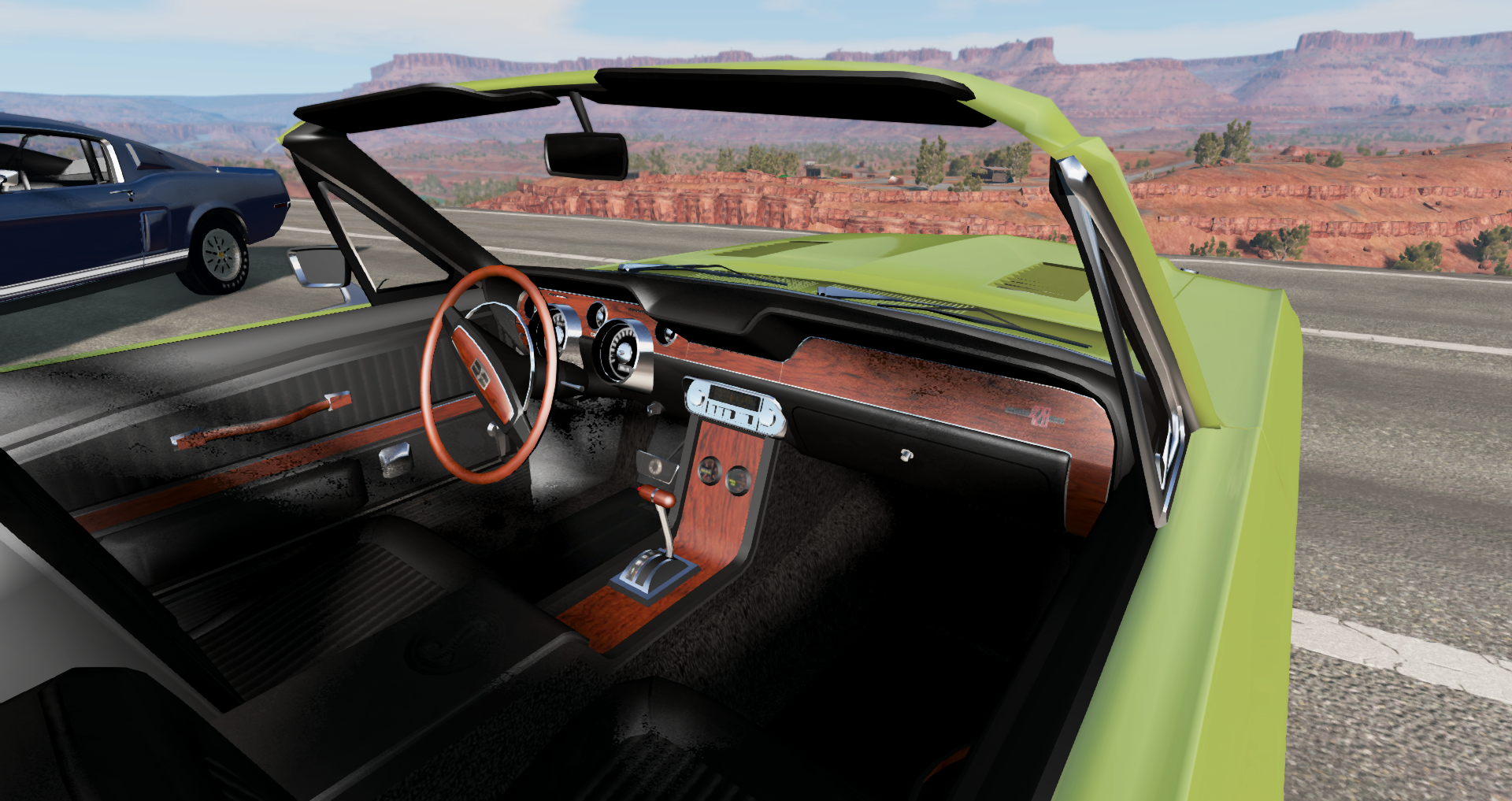

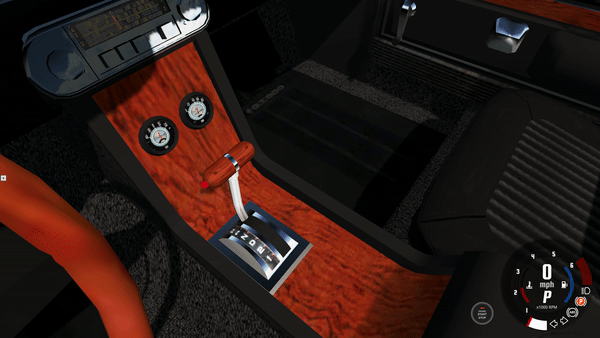

    Fixed and calibrated auto shifter now in correct positions:


    Overall Jbeam improvement, cleaner deformation and more convertible variant improvements (convertible variant is still experimental and prone to unpredictable behaviour)

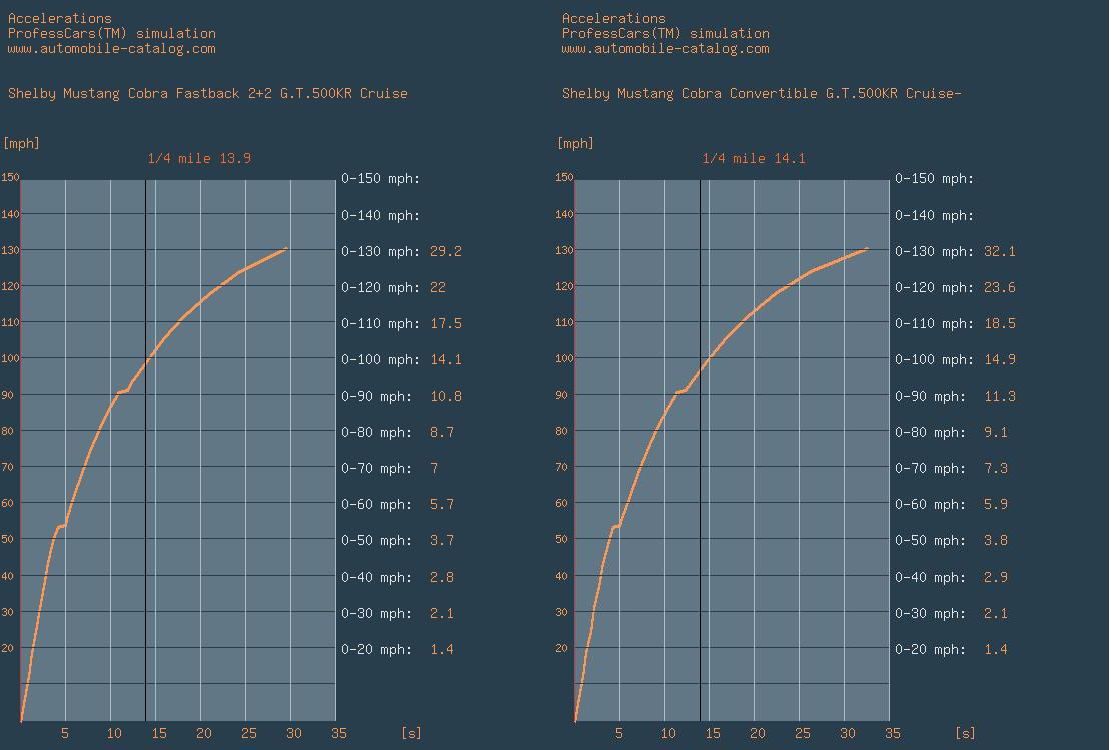

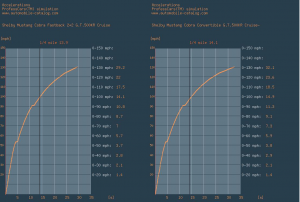

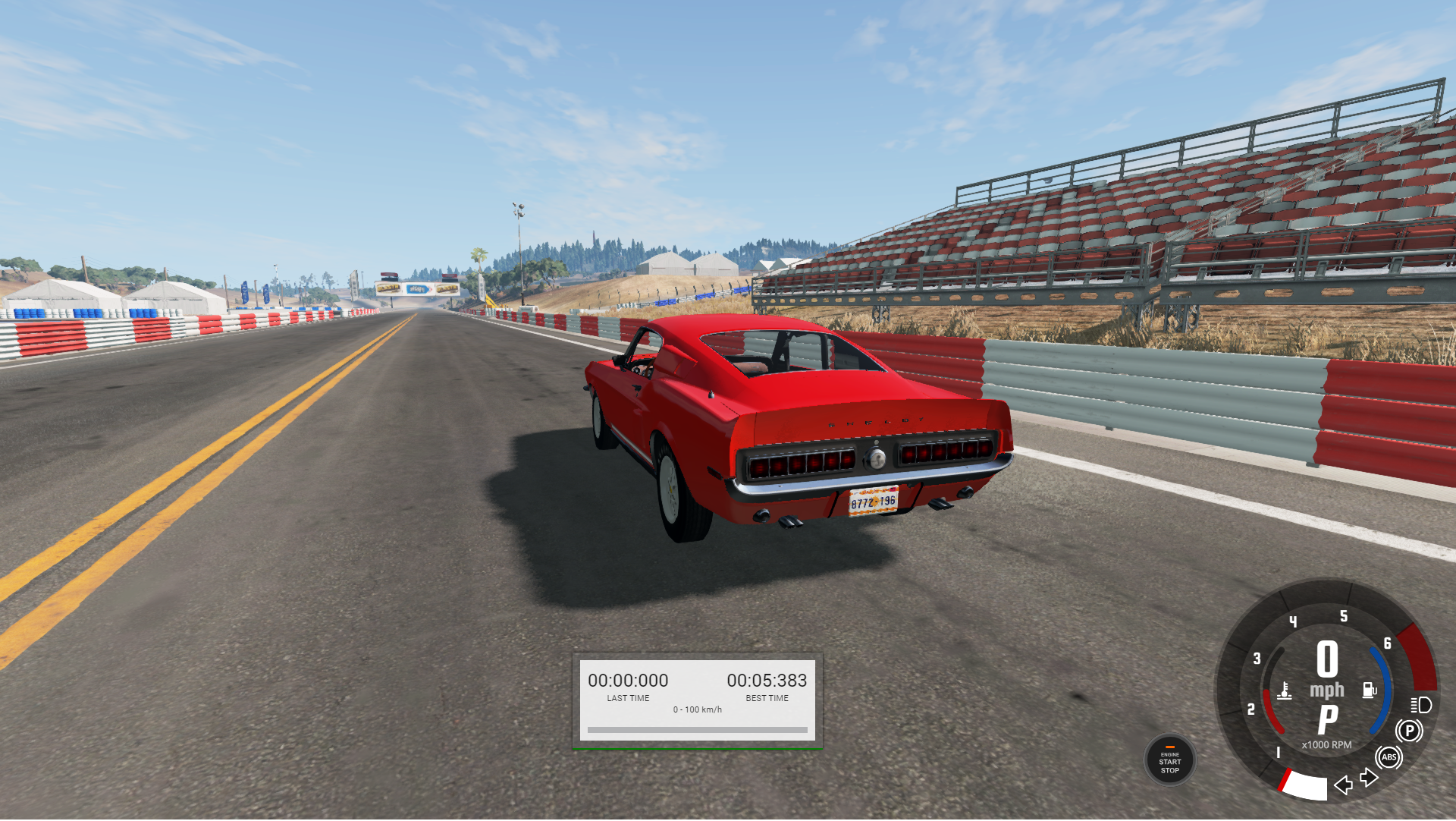

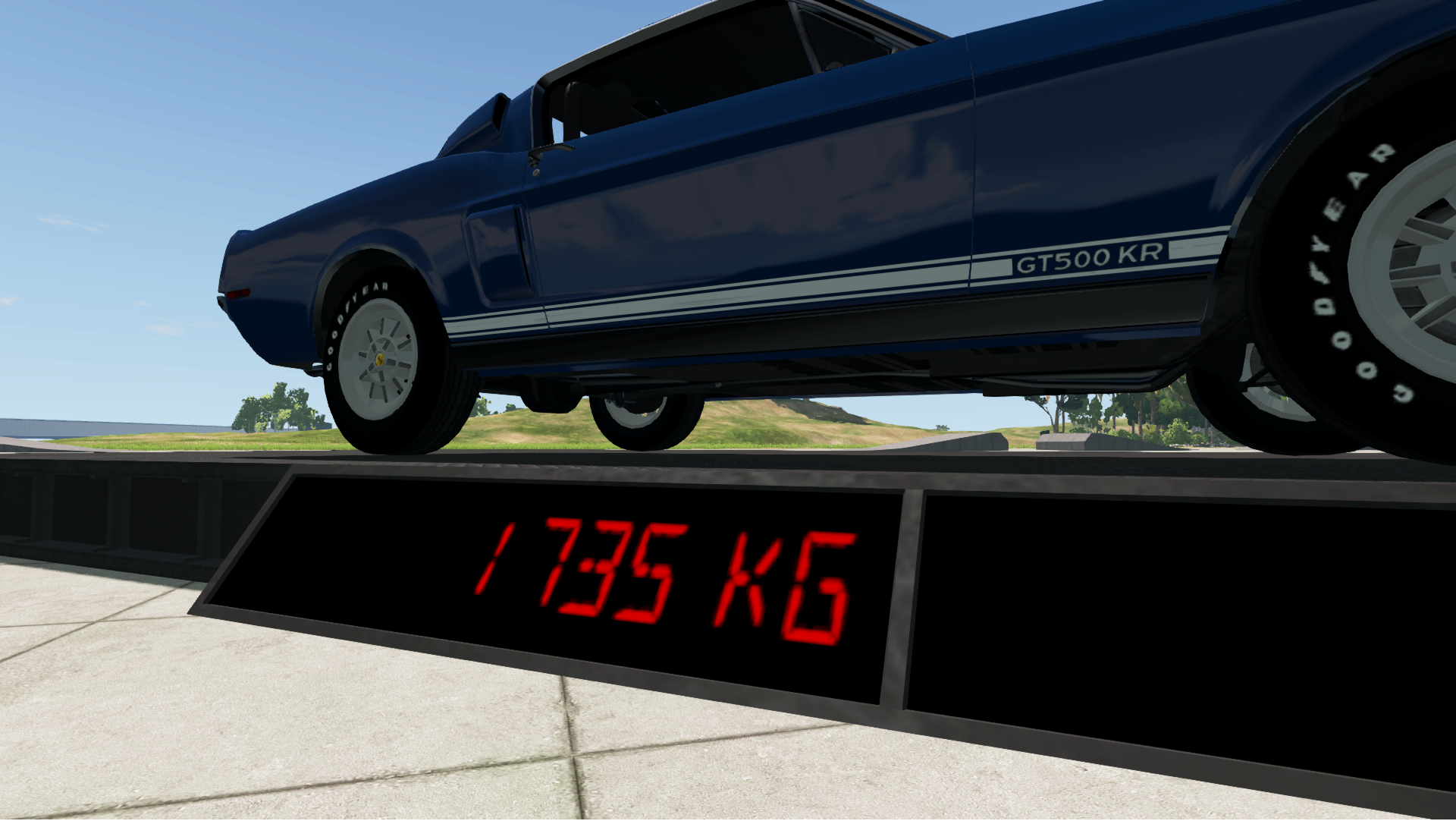

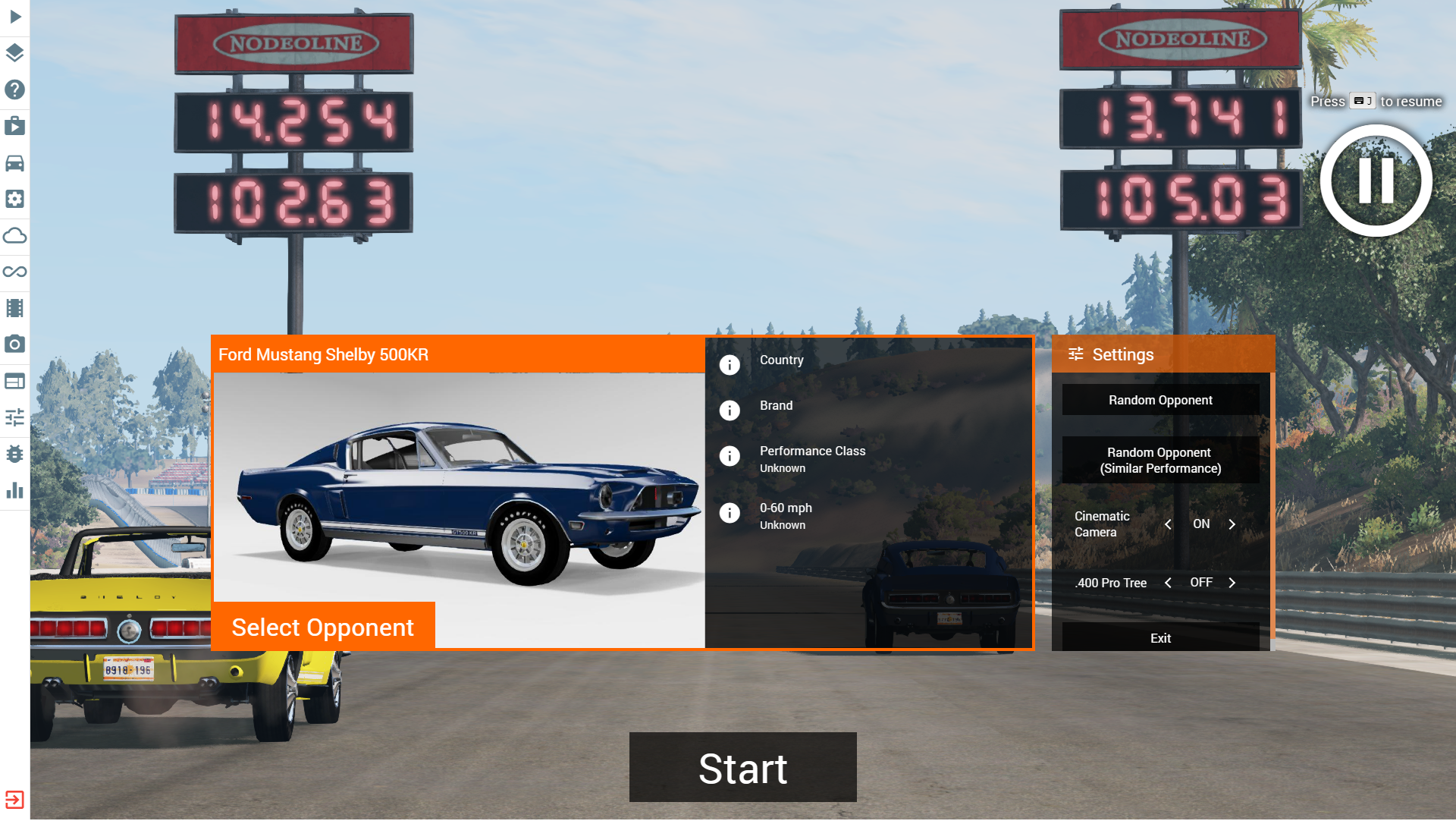

    Weight (Gross weight), 0 to 60 mph and quarter mile times reflect real world values (improved):



    Whats Next?

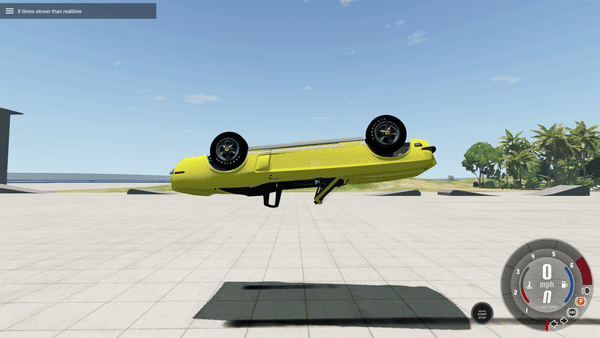

    Final suspension, chassis and body torture (stress) test simulating heavy use and beyond normal operational capacity in order to determine ruggedness, stability and reliability.

    Will record and document the process on video and post on Youtube if required.

    Heres the link to the channel:
    https://www.youtube.com/channel/UCyGvarVLDiJ6FabQTB34KMQ/videos


    Released!



    Credits:
    Beamng: Jbeam and other resources
    GTAmod: 3d Model (Still looking for original author) although the wide body kit and several body parts by me.
    Help in general: Inn0centJok3r for sharing LUA material.
    TrackpadUser answering questions about gauge needles.


    Attached Files:

    #1 mehio, May 16, 2021
    Last edited: Aug 7, 2021
    • Like Like x 71
    • Agree Agree x 4
  2. Cincinnatus

    Cincinnatus
    Expand Collapse

    Joined:
    Aug 25, 2020
    Messages:
    652
    Nice...

    • Like Like x 2
  3. mrdoggyman876

    mrdoggyman876
    Expand Collapse

    Joined:
    Apr 19, 2019
    Messages:
    2
    omg this my fav car!!!!!!

    • Like Like x 2
  4. MatGamerPL299

    MatGamerPL299
    Expand Collapse

    Joined:
    Sep 12, 2020
    Messages:
    35
    Nice job

    • Like Like x 1
    • Agree Agree x 1
  5. a plane guy

    a plane guy
    Expand Collapse

    Joined:
    Mar 14, 2021
    Messages:
    1,434
    I’m in love...

    • Like Like x 2
  6. GoredontheDestroyer

    GoredontheDestroyer
    Expand Collapse

    Joined:
    Dec 19, 2015
    Messages:
    291
    Bro.

    Brother.

    Male Sibling.

    Yes.

    • Like Like x 1
  7. millionairhobo

    millionairhobo
    Expand Collapse

    Joined:
    Dec 10, 2018
    Messages:
    11
    God DAMN! this looks so clean! I hope this becomes a real thing and not just another mod we stare at on the forums for months on end. Good luck with getting this thing done and released, I'll definitely be watching this thread :)

    • Like Like x 2
    • Agree Agree x 2
  8. ThatCarGuyDownTheStreet

    ThatCarGuyDownTheStreet
    Expand Collapse

    Joined:
    Mar 30, 2017
    Messages:
    2,386
    Was totally expecting a garbage meshslap, but instead I was pleasantly surprised. This looks really good.

    • Agree Agree x 5
    • Like Like x 1
  9. EunosRoadster69

    EunosRoadster69
    Expand Collapse

    Joined:
    Jan 26, 2021
    Messages:
    443
    Youre back!! atleast i think its you with the old ford mustang thread that dissapeared out of nowhere.
    correct me if im wrong lol.

    • Like Like x 1
  10. Driveline Animations

    Driveline Animations
    Expand Collapse

    Joined:
    Sep 25, 2020
    Messages:
    63
    i'm already excited

    • Like Like x 2
  11. Delta747Fan

    Delta747Fan
    Expand Collapse

    Joined:
    Aug 15, 2018
    Messages:
    26
    I'm not a Ford guy, but these older Mustangs just look fantastic. You did a very nice job with this model!

    • Like Like x 2
  12. mehio

    mehio
    Expand Collapse

    Joined:
    Jun 20, 2018
    Messages:
    103
    No thats not me. This is my second mod. My first one is the 1991 Chevrolet Caprice.
    --- Post updated ---
    It will definitely be released. Just waiting for the youtube video to reach a number of views and likes. In the meantime, just doing some minor cleaning and adjustments.

    #12 mehio, May 16, 2021
    Last edited: May 16, 2021
    • Like Like x 3
  13. EunosRoadster69

    EunosRoadster69
    Expand Collapse

    Joined:
    Jan 26, 2021
    Messages:
    443
    Okay good to know:) still love the mod its amazing looking at the video

    • Like Like x 1
  14. Sithhy™

    Sithhy™
    Expand Collapse

    Joined:
    Apr 5, 2017
    Messages:
    3,064
    Looks neat, but it seems that some of the body areas lack edge split, like the trunk & part of the body infront (behind?) the hood

    • Like Like x 1
    • Agree Agree x 1
  15. lucas.zwiers

    lucas.zwiers
    Expand Collapse

    Joined:
    Apr 2, 2020
    Messages:
    23
    epic

    • Like Like x 1
  16. mehio

    mehio
    Expand Collapse

    Joined:
    Jun 20, 2018
    Messages:
    103
    It will definitely be released. Just waiting for youtube video to reach a number of views and likes. In the meantime, just doing some minor cleaning a
    Yes absolutely, the trunk on the convertible needs a bit if work as well as other parts of the body. Please be aware that the 3d model is not mine (as stated in the credits) but heavily modified and cleaned by me.

    • Like Like x 3
  17. Cincinnatus

    Cincinnatus
    Expand Collapse

    Joined:
    Aug 25, 2020
    Messages:
    652

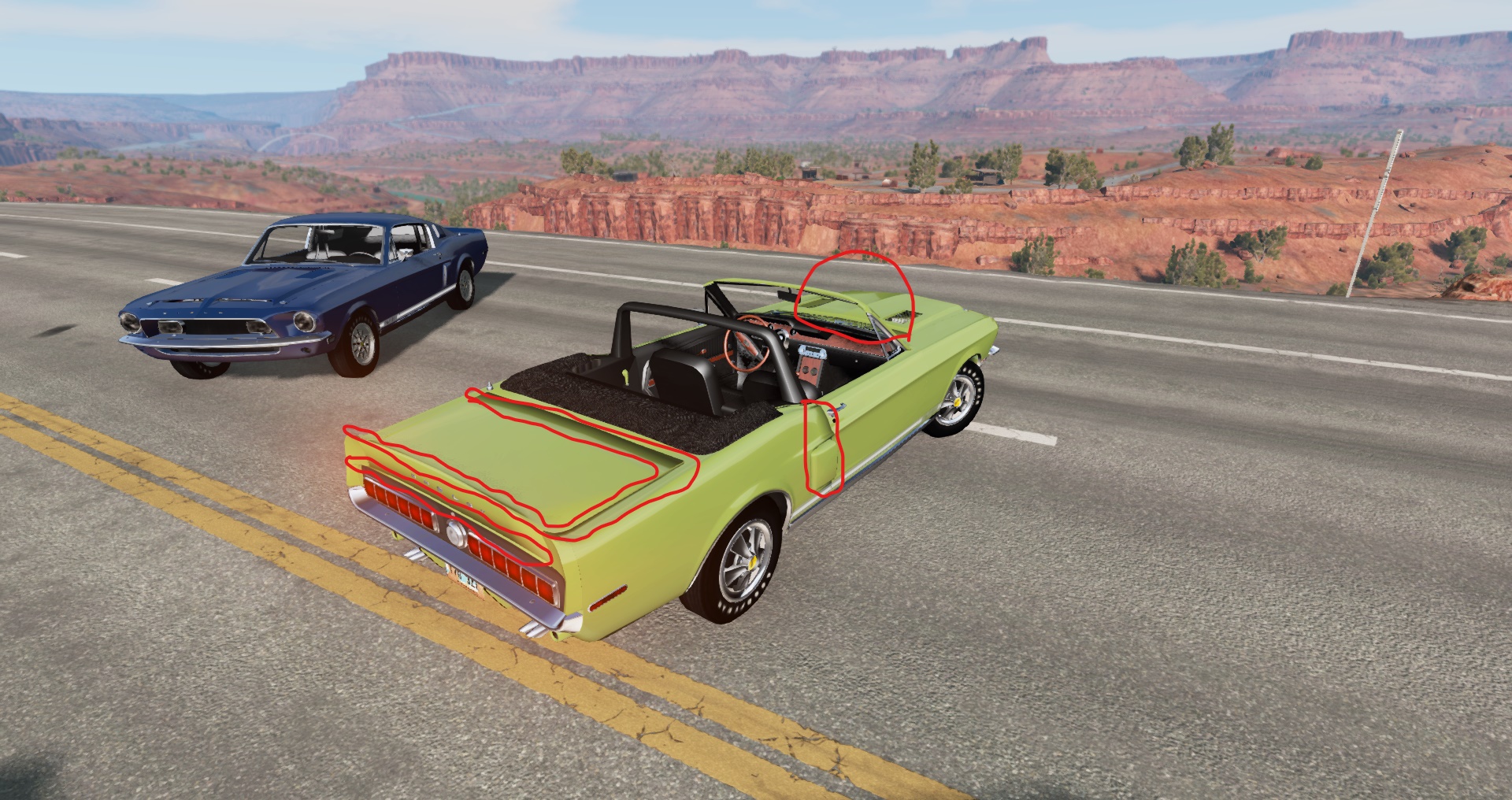

    Agreed. The most noticeable areas are circled:
    Another area that could see improvement would be the lights. It looks like there's just a low-quality light texture slapped on. It would be cool if you could model the lights. Then, you could change the light texture to glass.
    Other than that, the mod looks great! Keep up the good work! :)
