Amaterasu Automotive

Discussion in 'Automation' started by A Sawblade Dude, Aug 17, 2019.

  1. A Sawblade Dude

    A Sawblade Dude
    Expand Collapse

    Joined:
    Jul 12, 2016
    Messages:
    302
    Hello all, welcome to the Amaterasu Automotive company's thread! All vehicles shown here are designed by me. :cool:



    Amaterasu is based in Yokohama, Japan. They specialize in passenger vehicles in a range of sizes and levels of performance, and are known for their quality, reliability, and affordability. Their entire list of vehicles produced from past to present will be shown below.

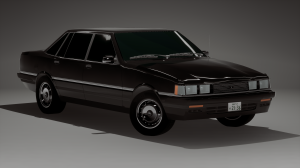

    The Amaterasu M50 is the fifth generation sedan in the M-Series. It's design features a steel monocogue chassis, and steel panels. The engine is located in the front, is mounted longitudinally, and is RWD. The M60 was available in 3 different trim levels, both the Maxim and Marquis trims were released in 1984, and the Monarch trim, which was released in 1986. The M50 was produced until 1988. Consider the Maxim as more of a 'base model' trim, while the Marquis is the higher end luxury trim, and the Monarch is the faster, sportier trim.

    M50Maxim1.png M50Maxim2.png

    The Maxim trim weighs in at 2759 lbs (55% front / 45% rear), and features a double wishbone front, and a solid axle coil rear suspension configuration, open differential, as well as hydropneumatic springs, twin-tube dampers, and passive sway bars. The braking system includes 275mm solid discs up front with 2 piston calipers, and 245mm solid discs in the rear with 1 piston calipers. It is equipped with 205 medium compound radial tires wrapped around 15 inch alloy rims.

    M50Maxim3.png M50Maxim4.png

    The Maxim is powered by the Amaterasu J2000-SE, which is an aluminum block 2.0L (2000cc) inline six making 102 hp @ 6000 RPM, and 116 lb-ft @ 3300 RPM. It features a 12V SOHC aluminum head, cast crankshaft, connecting rods, and pistons, multi point electronic fuel injection in a single configuration, standard intake, short cast exhaust manifold, three-way catalytic converter, and reverse flow mufflers.

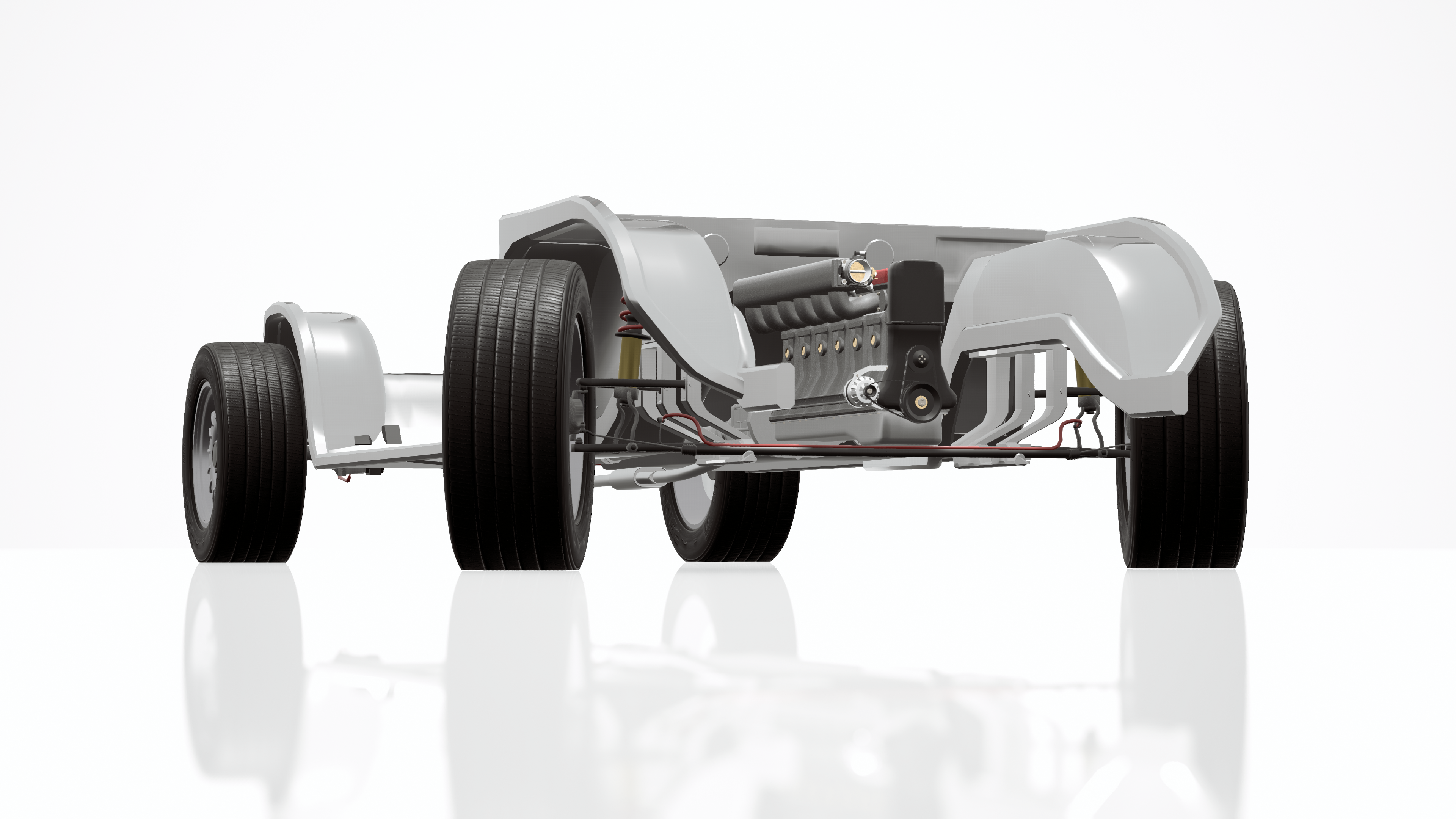

    M50Maxim5.png M50Maxim6.png

    The Maxim is equipped with a 4 speed automatic transmission, and seats 5 adults. It features a standard interior, standard 8 track in car entertainment, variable hydraulic power steering, and top of the line safety features and equipment. The approximate cost for the M50 Maxim is $18,600.00.


    DOWNLOAD: Coming Soon

    M50Marquis1.png M50Marquis2.png

    The Marquis trim weighs in at 2849 lbs (55% front / 45% rear), and features a double wishbone front, and a solid axle coil rear suspension configuration, open differential, as well as softer hydropneumatic springs, softer twin-tube dampers, and passive sway bars. The braking system includes 275mm solid discs up front with 2 piston calipers, and 245mm solid discs in the rear with 1 piston calipers. It is equipped with 205 medium compound radial tires wrapped around 15 inch alloy rims.

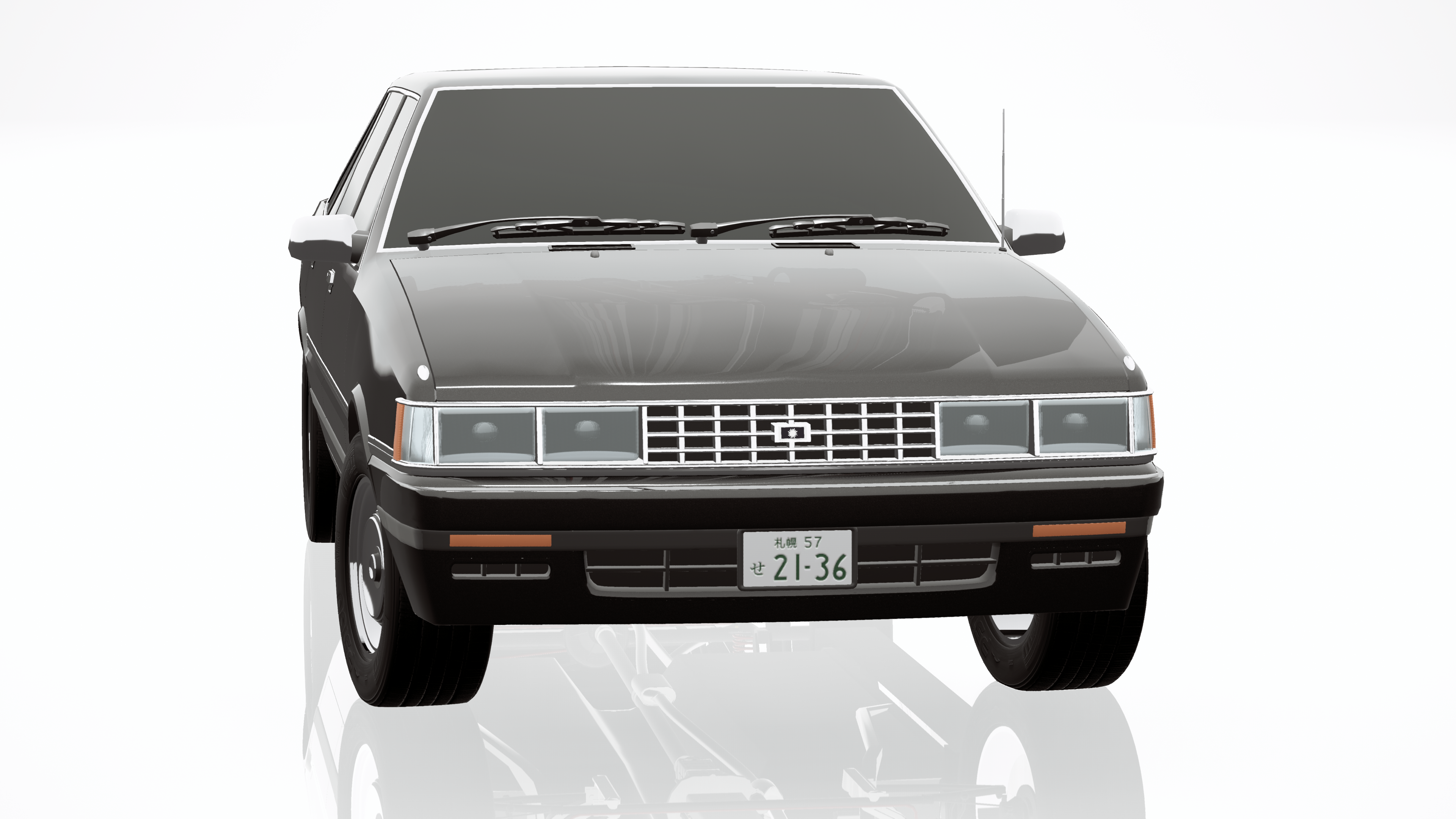

    M50Marquis3.png M50Marquis4.png

    The Marquis is powered by the Amaterasu J2000-SE, which is an aluminum block 2.0L (2000cc) inline six making 102 hp @ 6000 RPM, and 116 lb-ft @ 3300 RPM. It features a 12V SOHC aluminum head, cast crankshaft, connecting rods, and pistons, multi point electronic fuel injection in a single configuration, standard intake, short cast exhaust manifold, three-way catalytic converter, and reverse flow mufflers.

    M50Marquis5.png M50Marquis6.png

    The Marquis is equipped with a 4 speed automatic transmission, and seats 5 adults. It features a premium interior, premium cassette in car entertainment, variable hydraulic power steering, and top of the line safety features and equipment. The approximate cost for the M50 Marquis is $21,600.00.


    DOWNLOAD: Coming Soon

    M50Monarch1.png M50Monarch2.png

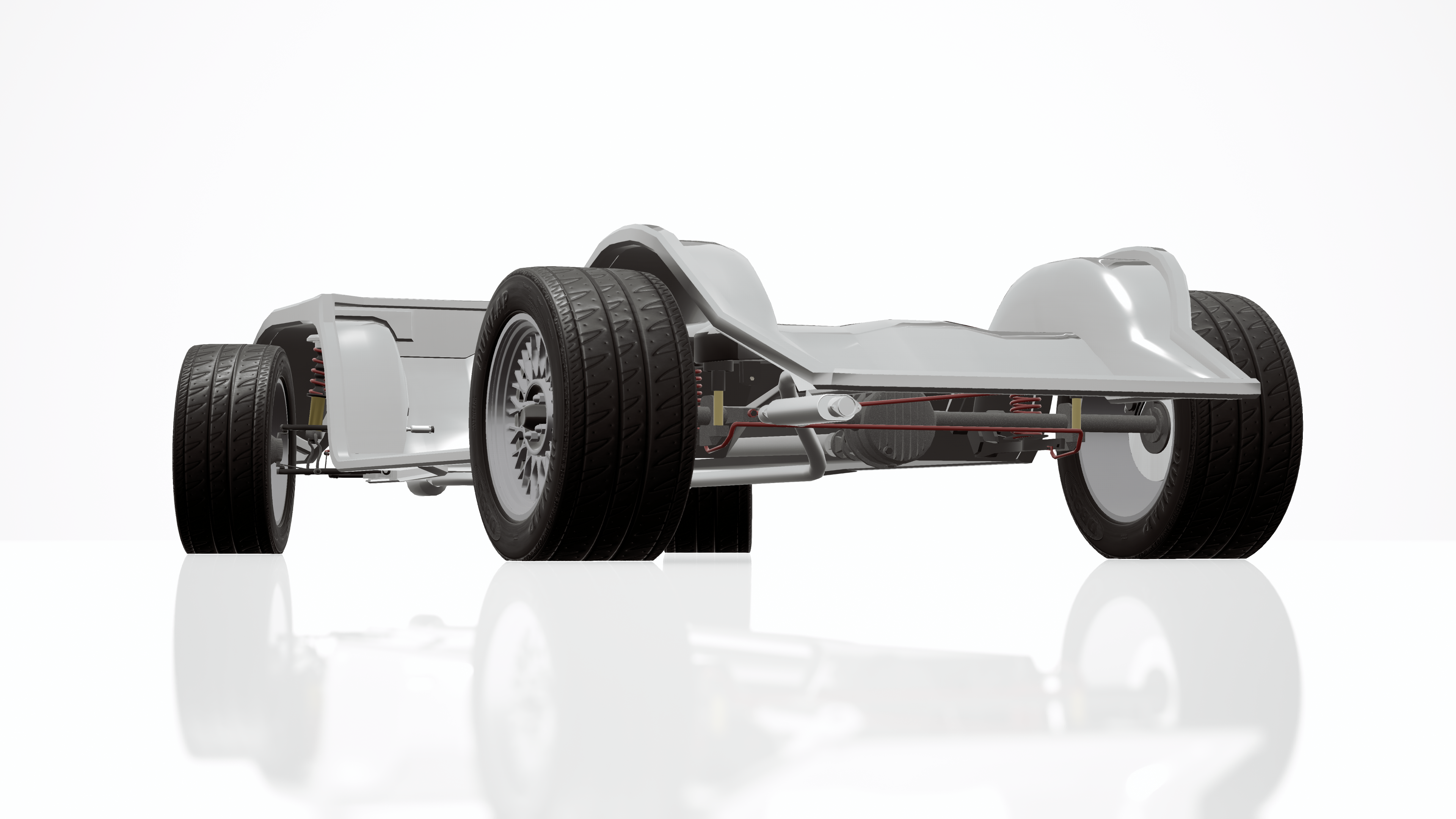

    The Monarch trim weighs in at 2886 lbs (55% front / 45% rear), and features a double wishbone front, and a solid axle coil rear suspension configuration, geared limited slip differential, as well as stiffer standard springs, stiffer gas mono-tube dampers, and passive sway bars. The braking system includes 275mm vented discs up front with 3 piston calipers, and 245mm solid discs in the rear with 2 piston calipers. It is equipped with 245 / 265 sport compound radial tires wrapped around 16 inch alloy rims.

    M50Monarch3.png M50Monarch4.png

    The Monarch is powered by the Amaterasu J2000-DET, which is a turbocharged aluminum block 2.0L (2000cc) inline six making 205 hp @ 6200 RPM, and 189 lb-ft @ 5100 RPM. It features a 24V DOHC aluminum head, forged crankshaft, connecting rods, and pistons, multi point electronic fuel injection in a single configuration, performance intake, short cast turbo exhaust manifold, journal bearing single turbo, high flow three-way catalytic converter, and straight through mufflers.

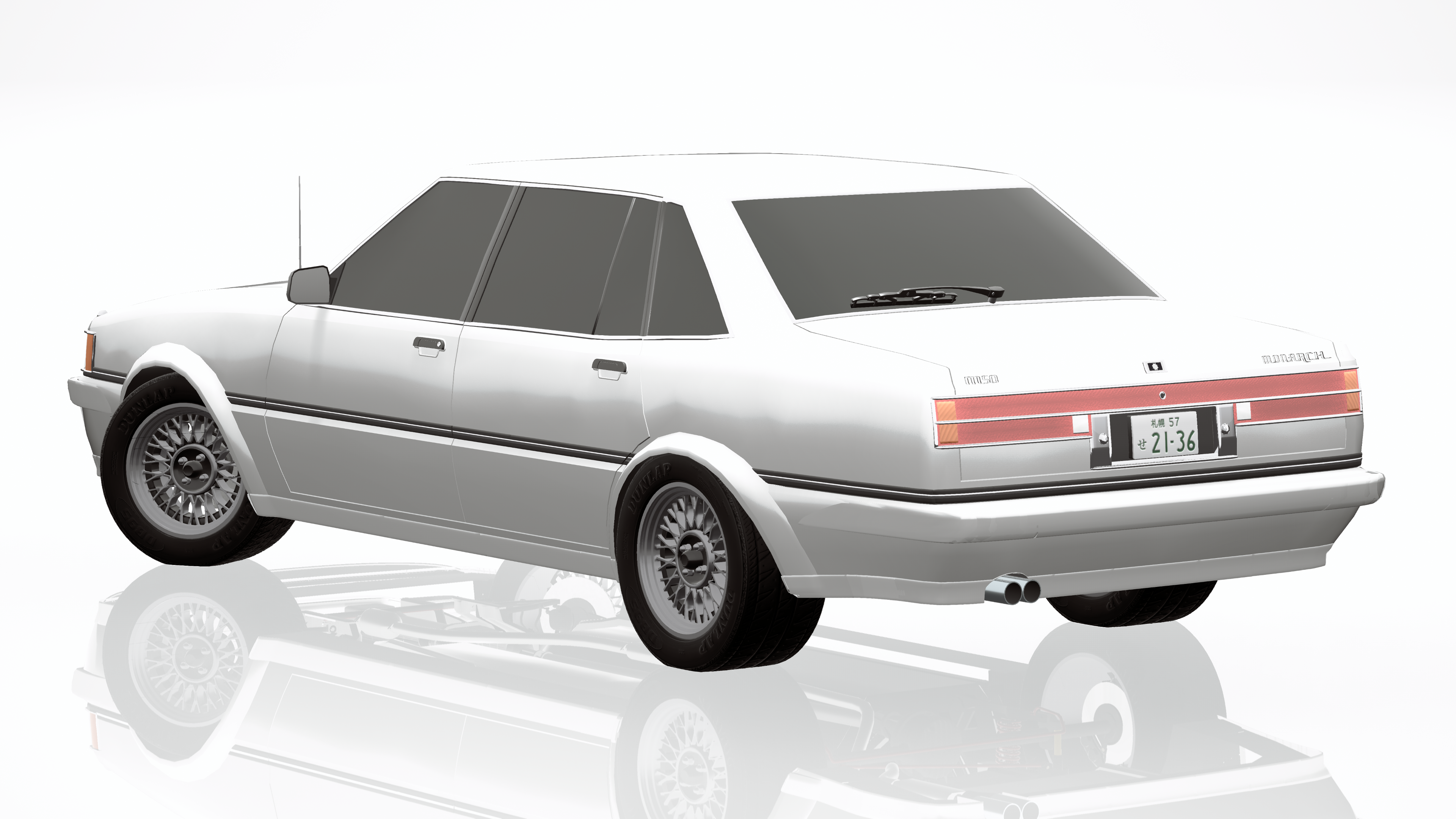

    M50Monarch5.png M50Monarch6.png

    The Monarch is equipped with a 5 speed manual transmission, and seats 5 adults. It features a sport interior, standard 8 track in car entertainment, variable hydraulic power steering, and top of the line safety features and equipment. The approximate cost for the M50 Monarch is $27,900.00.


    DOWNLOAD: Coming Soon

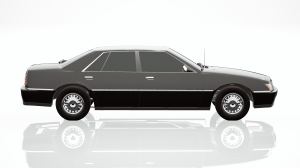

    The Amaterasu M60 is the sixth generation sedan in the M-Series. It's design features a steel monocogue chassis, and steel panels. The engine is located in the front, is mounted longitudinally, and is RWD. The M60 was available in 3 different trim levels, both the Maxim and Marquis trims were released in 1988, and the Monarch trim, which was released in 1990. The M60 was also facelifted halfway through it's lifetime, and dubbed the Version II. The Maxim and Marquis Version II trims were released in 1992, and the Monarch Version II trim was released in 1994. The M60 was produced until 1992, while the M60 Version II was produced until 1996. Consider the Maxim as more of a 'base model' trim, while the Marquis is the higher end luxury trim, and the Monarch is the faster, sportier trim.

    M60Maxim1.png M60Maxim2.png

    The Maxim trim weighs in at 2812 lbs (56% front / 44% rear), and features a double wishbone front and rear suspension configuration, open differential, as well as hydropneumatic springs, twin-tube dampers, and passive sway bars. The braking system includes 275mm vented discs up front with 2 piston calipers, and 255mm solid discs in the rear with 1 piston calipers. It is equipped with 215 medium compound radial tires wrapped around 15 inch alloy rims.

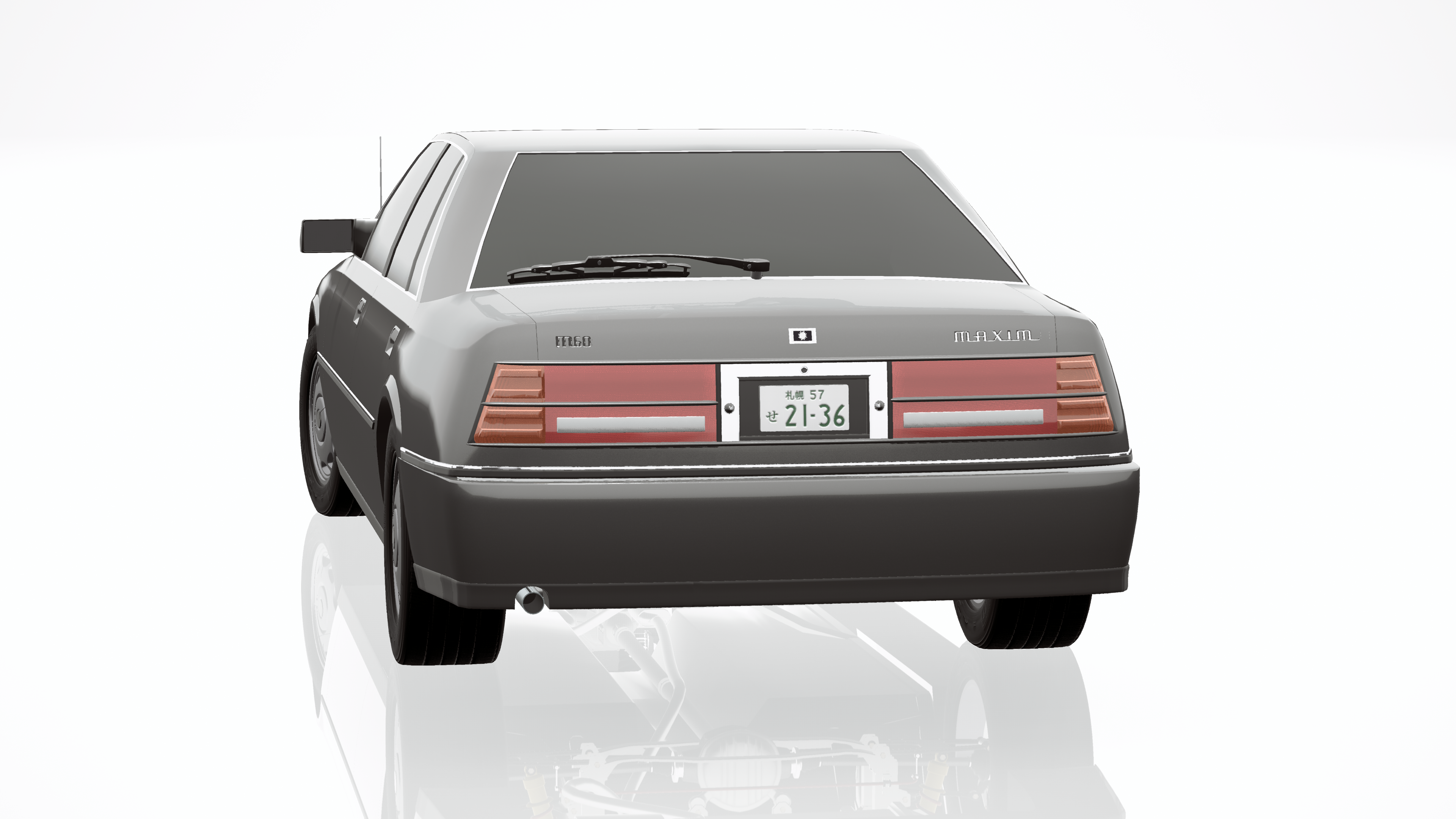

    M60Maxim3.png M60Maxim4.png

    The Maxim is powered by the Amaterasu J2000-SE, which is an aluminum block 2.0L (2000cc) inline six making 102 hp @ 6000 RPM, and 116 lb-ft @ 3300 RPM. It features a 12V SOHC aluminum head, cast crankshaft, connecting rods, and pistons, multi point electronic fuel injection in a single configuration, standard intake, short cast exhaust manifold, three-way catalytic converter, and reverse flow mufflers.

    M60Maxim5.png M60Maxim6.png

    The Maxim is equipped with a 4 speed automatic transmission, and seats 5 adults. It features a standard interior, standard cassette in car entertainment, variable hydraulic power steering, ABS, and top of the line safety features and equipment. The approximate cost for the M60 Maxim is $21,700.00.


    DOWNLOAD: Coming Soon

    M60Marquis1.png M60Marquis2.png

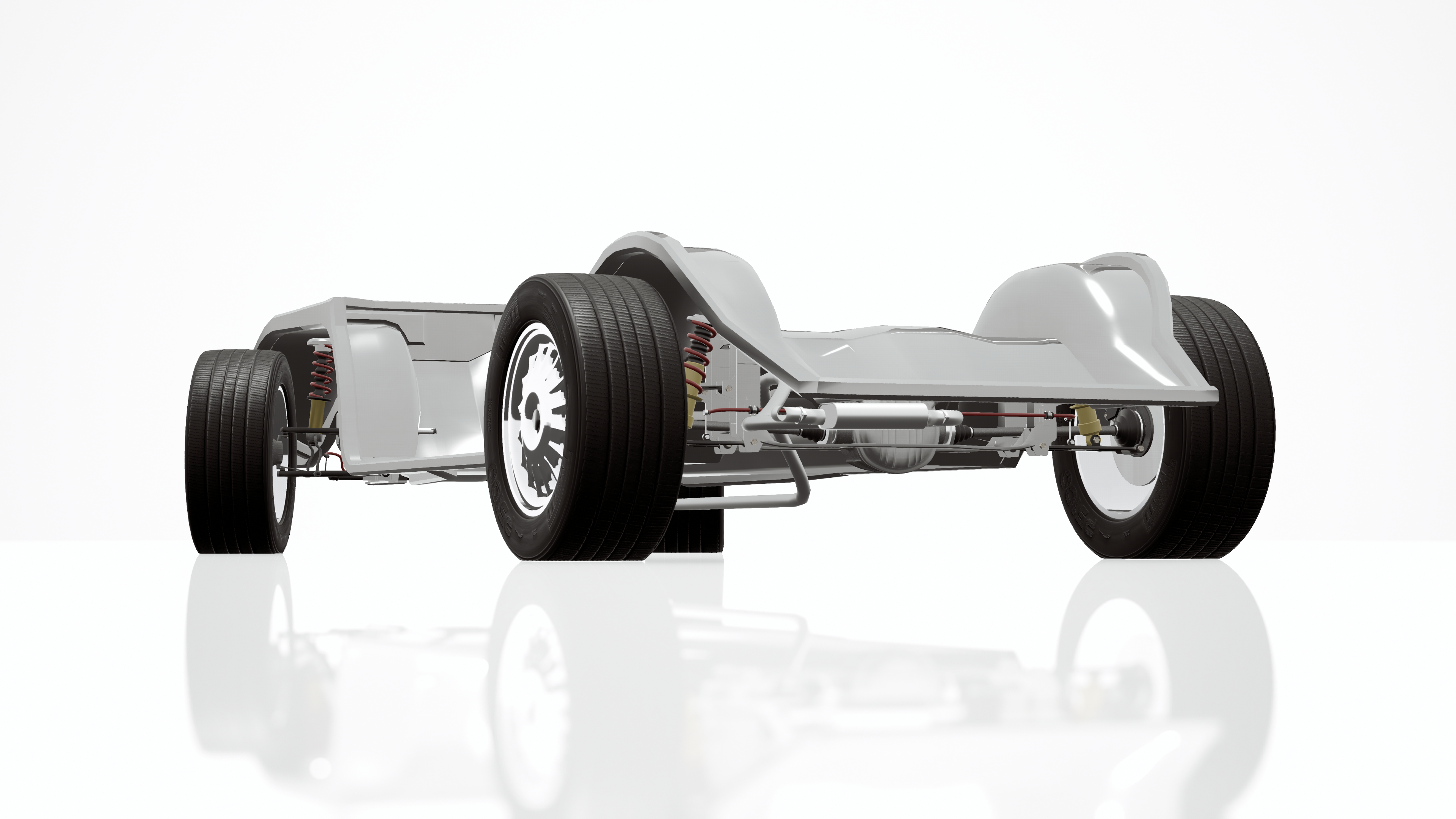

    The Marquis trim weighs in at 2909 lbs (56% front / 44% rear), and features a double wishbone front and rear suspension configuration, open differential, as well as hydropneumatic springs, twin-tube dampers, and passive sway bars. The braking system includes 275mm vented discs up front with 2 piston calipers, and 255mm solid discs in the rear with 1 piston calipers. It is equipped with 215 medium compound radial tires wrapped around 15 inch alloy rims.

    M60Marquis3.png M60Marquis4.png

    The Marquis is powered by the Amaterasu J2000-SE, which is an aluminum block 2.0L (2000cc) inline six making 102 hp @ 6000 RPM, and 116 lb-ft @ 3300 RPM. It features a 12V SOHC aluminum head, cast crankshaft, connecting rods, and pistons, multi point electronic fuel injection in a single configuration, standard intake, short cast exhaust manifold, three-way catalytic converter, and reverse flow mufflers.

    M60Marquis5.png M60Marquis6.png

    The Marquis is equipped with a 4 speed automatic transmission, and seats 5 adults. It features a premium interior, premium cassette in car entertainment, variable hydraulic power steering, ABS, and top of the line safety features and equipment. The approximate cost for the M60 Marquis is $23,700.00


    DOWNLOAD:
    Coming Soon

    M60Monarch1.png M60Monarch2.png

    The Monarch trim weighs in at 2951 lbs (56% front / 44% rear), and features a double wishbone front and rear suspension configuration, geared limited slip differential, as well as standard springs, adaptive dampers, and passive sway bars. The braking system includes 285mm vented discs up front with 3 piston calipers, and 255mm vented discs in the rear with 2 piston calipers. It is equipped with 245 / 265 sport compound radial tires wrapped around 16 inch alloy rims.

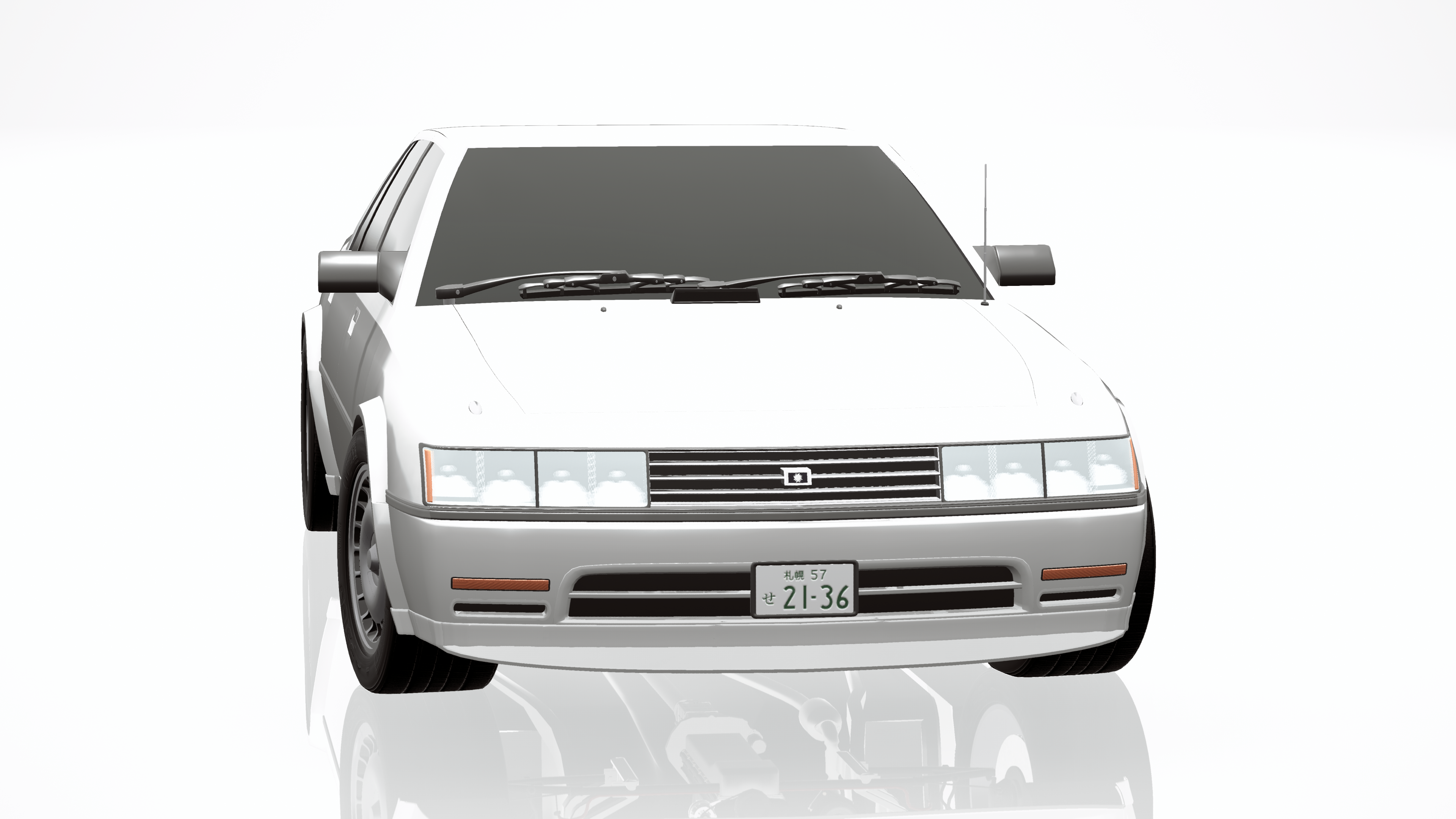

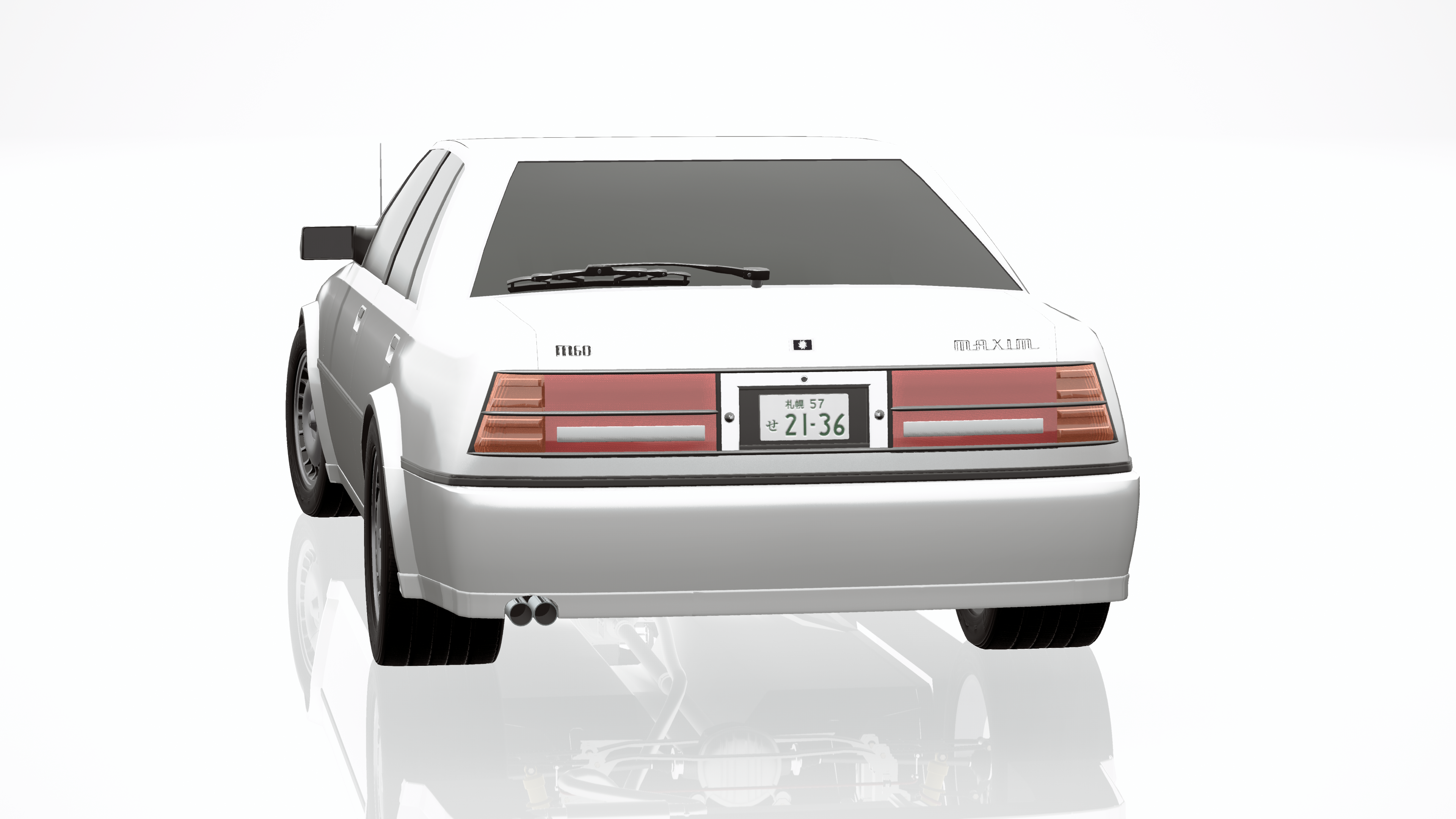

    M60Monarch3.png M60Monarch4.png

    The Monarch is powered by the Amaterasu J2000-DET, which is a turbocharged aluminum block 2.0L (2000cc) inline six making 205 hp @ 6200 RPM, and 189 lb-ft @ 5100 RPM. It features a 24V DOHC aluminum head, forged crankshaft, connecting rods, and pistons, multi point electronic fuel injection in a single configuration, performance intake, short cast turbo exhaust manifold, journal bearing single turbo, high flow three-way catalytic converter, and straight through mufflers.

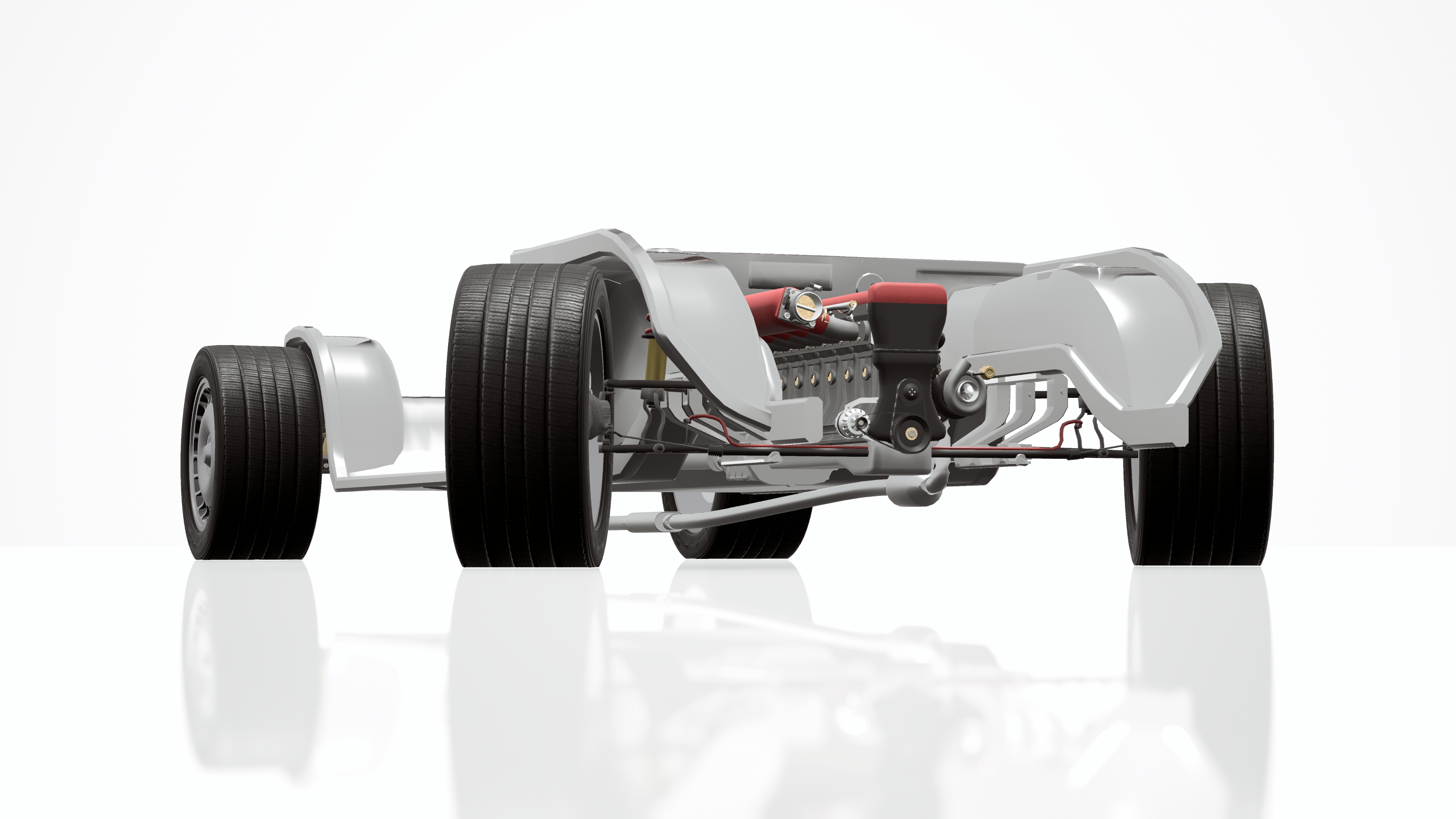

    M60Monarch5.png M60Monarch6.png

    The Monarch is equipped with a 5 speed manual transmission, and seats 5 adults. It features a sport interior, standard cassette in car entertainment, variable hydraulic power steering, ABS, and top of the line safety features and equipment. The approximate cost for the M60 Monarch is $29,500.00.


    DOWNLOAD: Coming Soon

    #1 A Sawblade Dude, Aug 17, 2019
    Last edited: Sep 23, 2019
    • Like Like x 7
  2. Kueso

    Kueso
    Expand Collapse

    Joined:
    Oct 14, 2016
    Messages:
    2,735
    i like it!

    • Like Like x 1
  3. A Sawblade Dude

    A Sawblade Dude
    Expand Collapse

    Joined:
    Jul 12, 2016
    Messages:
    302
    Thank you! This vehicle has by far been the most time and effort I've put into an Automation build so I'm glad someone likes it. :D
    --- Post updated ---
    Made some good progress on the Marquis and Monarch trims. Don't have pics since I need to get to bed for work tomorrow, lol... :p
    I also realized I had both the Marquis and Monarch trims mixed up in my first post so I switched them around. The M50 Monarch is the top of the line trim that was produced from 1986-1988.

    • Like Like x 1
  4. A Sawblade Dude

    A Sawblade Dude
    Expand Collapse

    Joined:
    Jul 12, 2016
    Messages:
    302

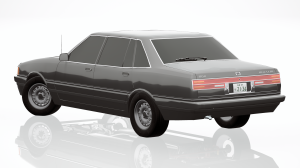

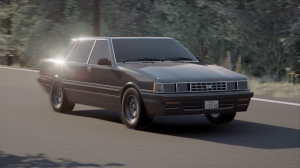

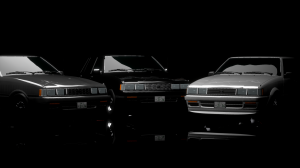

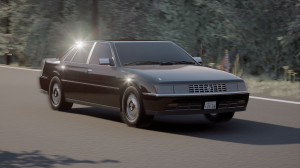

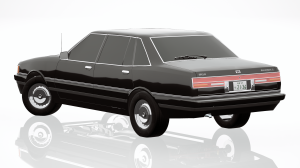

    I've completed the other two M50s. The Marquis being the high end luxury trim shown in black, and the Monarch being the sportier trim shown in white.
    HiResPhoto39.png HiResPhoto40.png

    • Like Like x 1
  5. MrCin

    MrCin
    Expand Collapse

    Joined:
    Feb 26, 2018
    Messages:
    611
    marquis look like pessima

  6. A Sawblade Dude

    A Sawblade Dude
    Expand Collapse

    Joined:
    Jul 12, 2016
    Messages:
    302
    Now that you say it I can see what you mean. The M50 was heavily inspired by the Toyota GX71 Mark II and Nissan Leopard more so than the Pessima, however.

  7. A Sawblade Dude

    A Sawblade Dude
    Expand Collapse

    Joined:
    Jul 12, 2016
    Messages:
    302
    I've updated my first post to include the M50 Marquis and Monarch trims, feel free to check out the specs!

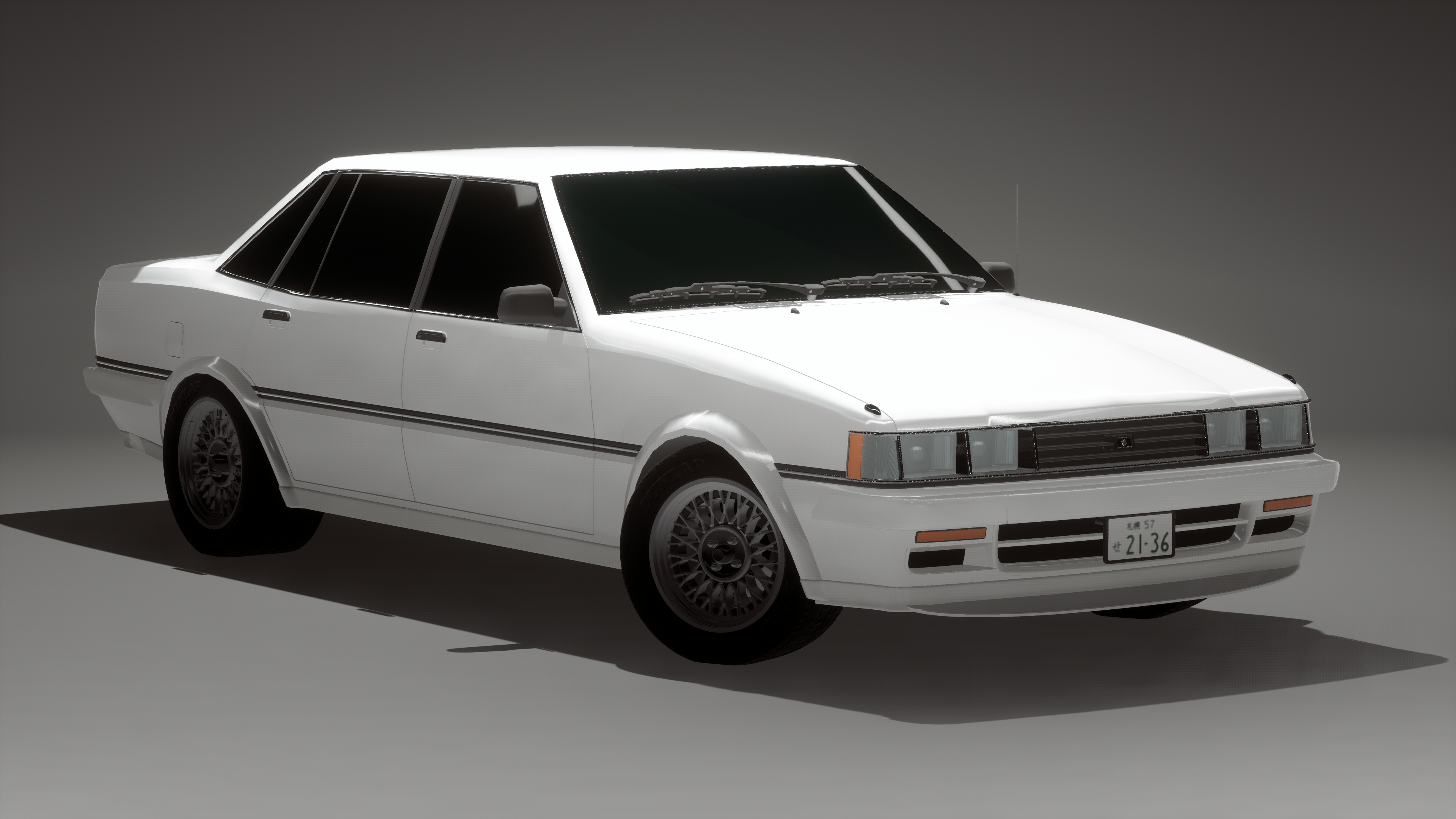

    M50Marquis1.png M50Monarch1.png

    • Like Like x 1
  8. A Sawblade Dude

    A Sawblade Dude
    Expand Collapse

    Joined:
    Jul 12, 2016
    Messages:
    302
    I've noticed a flaw in my designs. The windshield wipers are backwards... :p
    I'm gonna change them now, lol. I live in Canada so while the way they're placed currently is normal for me, it's not normal in Japan.

    --- Post updated ---

    The issue has been fixed. Now time to continue working on the next project!

    --- Post updated ---

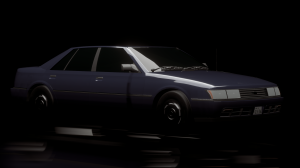

    With the huge success of the Amaterasu M50, It's not a big surprise that some design elements would carry over for the next generation of the M-Series.
    (Still a WIP)

    #8 A Sawblade Dude, Aug 26, 2019
    Last edited: Aug 26, 2019
    • Like Like x 2
  9. Kueso

    Kueso
    Expand Collapse

    Joined:
    Oct 14, 2016
    Messages:
    2,735
    i kinda see a maxima lol

    rate my car:
    1995 Hirochi Fūjin base and VT (Variable Turbocharged) editions

    With the jump in sales from the 1991 Hirochi Steadfast (small economy car, competitor to the Covet), Hirochi needed a halo car. It would use the boxer technology they have so far advanced and a bit of design help from Civetta. So Hirochi went on a mission for the perfect supercar- but fate is a wild mistress, and had much more in store for Hirochi than they would have liked. The first hurtle was securing an engine design- with the recent death of Arigamu Hirochi, head of Engineering and Founder, the team had to scramble, to say the least. They decided on a full aluminium flat 6 cylinder with over 492 HP N/A and 627 turbocharged. The engine went through rigorous testing, and continued to fail from bad piston rings. Due to this setback, Hirochi could not make it to the 1992 Detroit Auto show to display their new engine and its stunning new advancements, such as early GDI systems. Hirochi settled for EFI per cylinder- not what they would have liked. This solved the piston ring issues.

    So off they went. The engine was now fool proof and nearly indestructible. But now for the next hurtle. The aluminium processing plant Hirochi was using for the, at the time concept, Fūjin had just burned to the ground due to a faulty gas line. This severely limited production of a car that once was to be mass produced. With that in mind, Hirochi's sports division, OKUDAI, was consulted and given full access to the new concept. This is where things turned around for the wavering project. With the one condition that they were to not mess with the engine, Okudai and Civetta set out to finish the project. After another 3 full years of development, the finished Hirochi Fūjin was slated to start production on January 2nd of 1995 and start to be sold in December after all pre-orders were approved and built. The car was only offered as a pre-order, and only 650 were sold in its 2 year lifespan. the VT was introduced in 1996 and only ever sold 60 units. No roadster or spyder editions were ever produced, though some believe they were to be made before the aluminium factory burned.

    all in all, it was a car to advanced for its time.

    Specs:
    492 WHP/338 LB-FT (627 WHP/486 LB-FT for VT) out of a N/A (or turbocharged) 4.0L F6 mid-longitudinal mounted motor.
    RWD (AWD for VT)
    DOHC 30V
    12.4:1 compression (9.6:1 for VT)
    4 piston front/rear vented brakes 17" front 13" rear
    Luxury interior w/ luxury CD player (fancy XD)
    Aluminium panels w/ carbon fibre chassis
    redline @8800 RPM

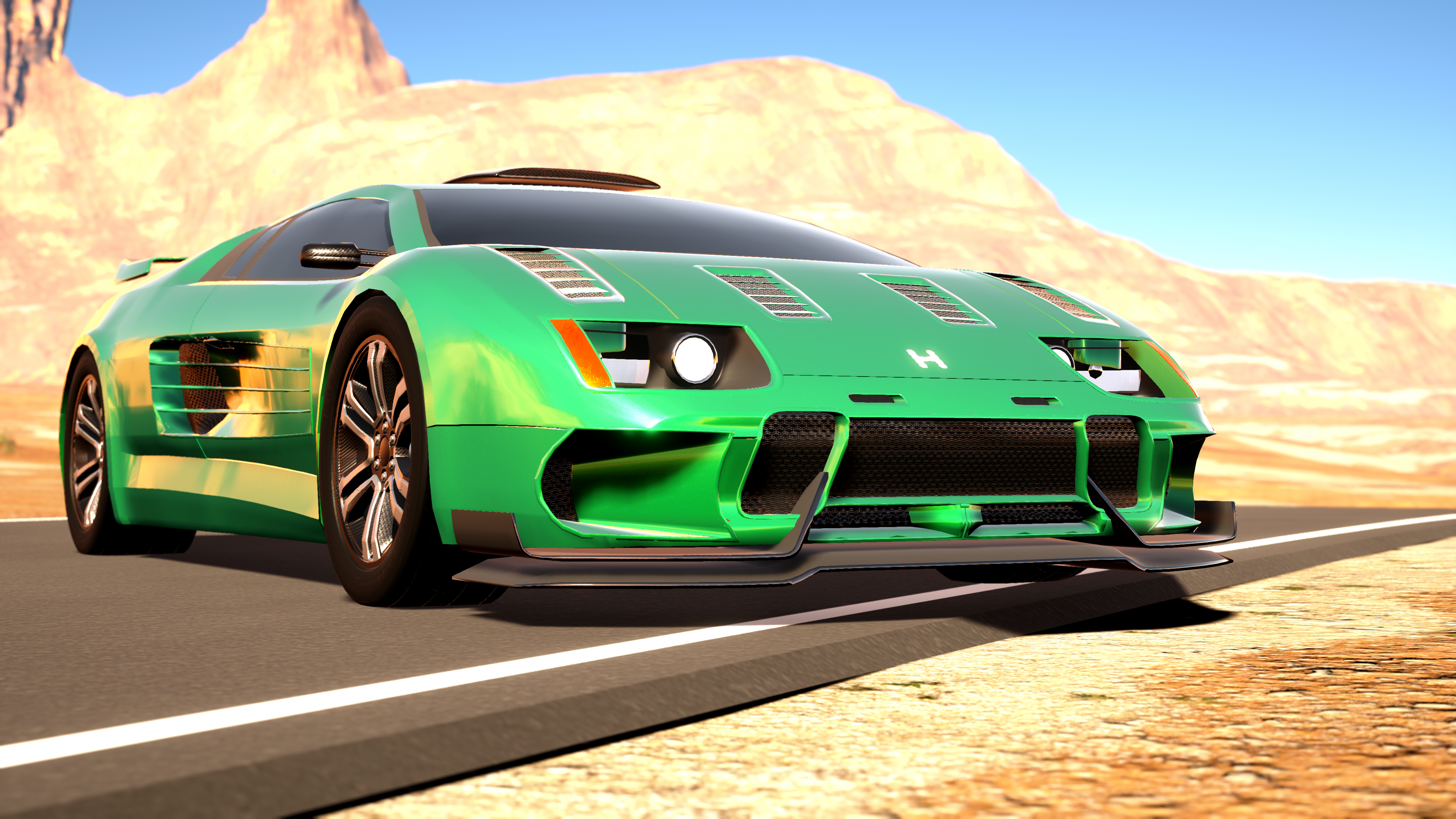

    Pics of VT edition in the rare Kryptonite Green:
    HiResPhoto2.png HiResPhoto3.png

    #9 Kueso, Aug 26, 2019
    Last edited: Aug 26, 2019
  10. A Sawblade Dude

    A Sawblade Dude
    Expand Collapse

    Joined:
    Jul 12, 2016
    Messages:
    302
    With the huge sucess of the Amaterasu M50, It's not a big suprise that some design elements would carry over for the next generation of the M-Seri
    I love the background story into the Fūjin. Performance stats are impressive for a car from '91. The design is wild and aggressive which I like. I think it deserves a 8.5-9/10

    • Like Like x 1
  11. Kueso

    Kueso
    Expand Collapse

    Joined:
    Oct 14, 2016
    Messages:
    2,735
    yeah-
    the engine was reworked multiple times throughout the cars development.
    in 91 the N/A version originally made 383 WHP and 481 with the turbocharged one. after subsequent changes in materials and tweaks, the engine was completed in 94 by Hirochi alone. at the listed power figures in my OP. the engine was 'pubically announced' in 91 to be done to keep people interested. So it was technically completed in 91 but subject to massive change even OKUDAI didnt know about. So it did end up being a bit more convoluted than they needed to make it- but it blew people away when the new power figures were finally released in 94.

    • Like Like x 1
  12. A Sawblade Dude

    A Sawblade Dude
    Expand Collapse

    Joined:
    Jul 12, 2016
    Messages:
    302
    Sorry that I've been so inactive, I'll try to put more time into Automation than I have lately... :p

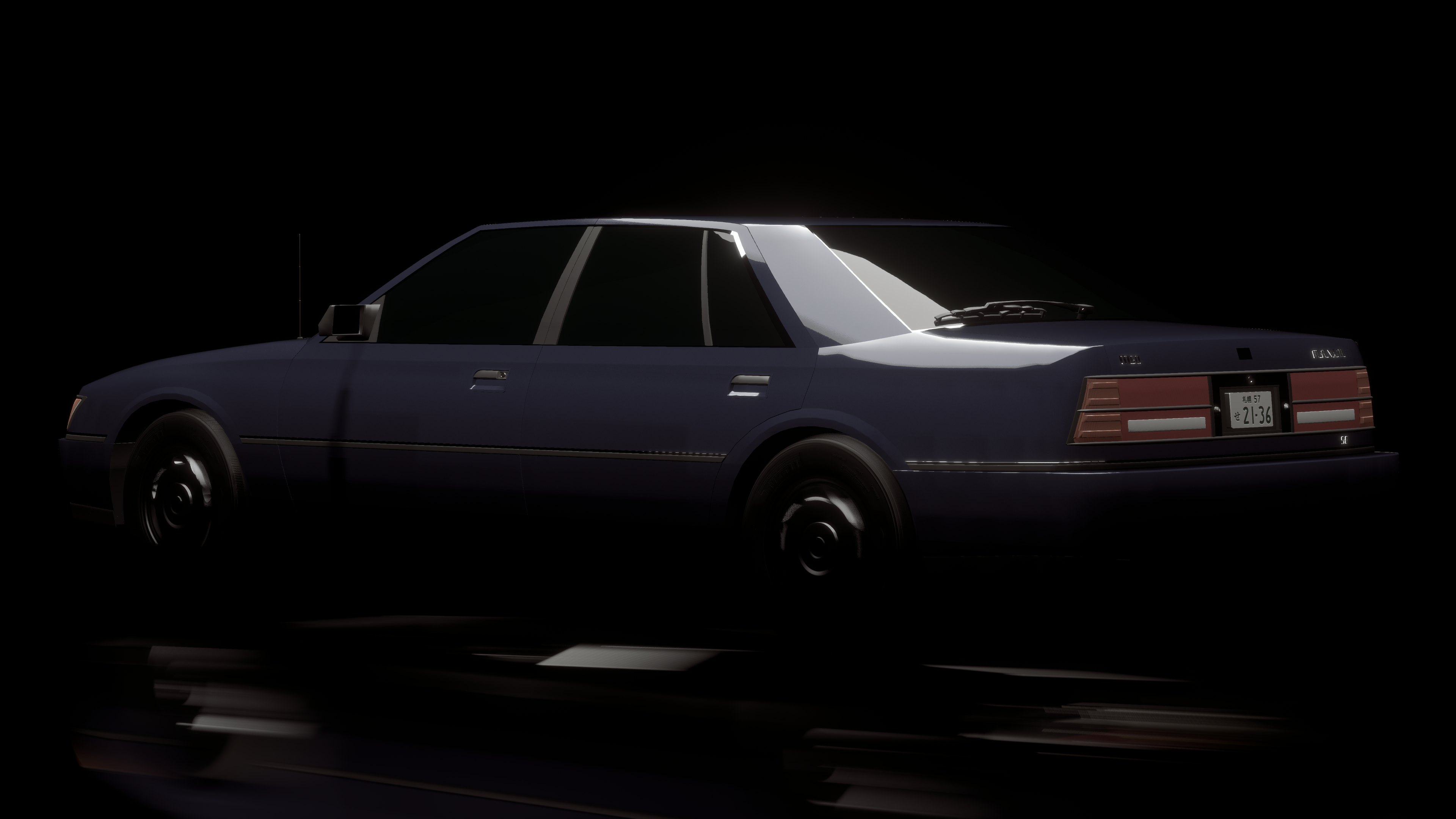

    In terms of progress on the 6th Gen M-Series, I've gotten the design for the rear laid out and I'm quite happy with the result.
    Let me know what you guys think! :D

    #12 A Sawblade Dude, Sep 15, 2019
    Last edited: Sep 15, 2019
    • Like Like x 1
  13. Kueso

    Kueso
    Expand Collapse

    Joined:
    Oct 14, 2016
    Messages:
    2,735
    Hot

    • Like Like x 1
  14. A Sawblade Dude

    A Sawblade Dude
    Expand Collapse

    Joined:
    Jul 12, 2016
    Messages:
    302
    Thanks man :)

    • Like Like x 1
  15. TubroTerra

    TubroTerra
    Expand Collapse

    Joined:
    Jul 24, 2019
    Messages:
    81
    Very Nice! :D

    • Like Like x 1
  16. A Sawblade Dude

    A Sawblade Dude
    Expand Collapse

    Joined:
    Jul 12, 2016
    Messages:
    302
    Slowly but surely getting closer to the finished product, the M60 is really coming along nicely!
    --- Post updated ---
    To explain further in detail what I’ve done so far, adjusted the trim so I can use the two tone option this body has, split the grille in the bumper into two, and I’m redesigning the taillights to be a lot cleaner. I can’t wait to work on it some more tomorrow and finally get it finished! :cool:

    • Like Like x 2
  17. A Sawblade Dude

    A Sawblade Dude
    Expand Collapse

    Joined:
    Jul 12, 2016
    Messages:
    302

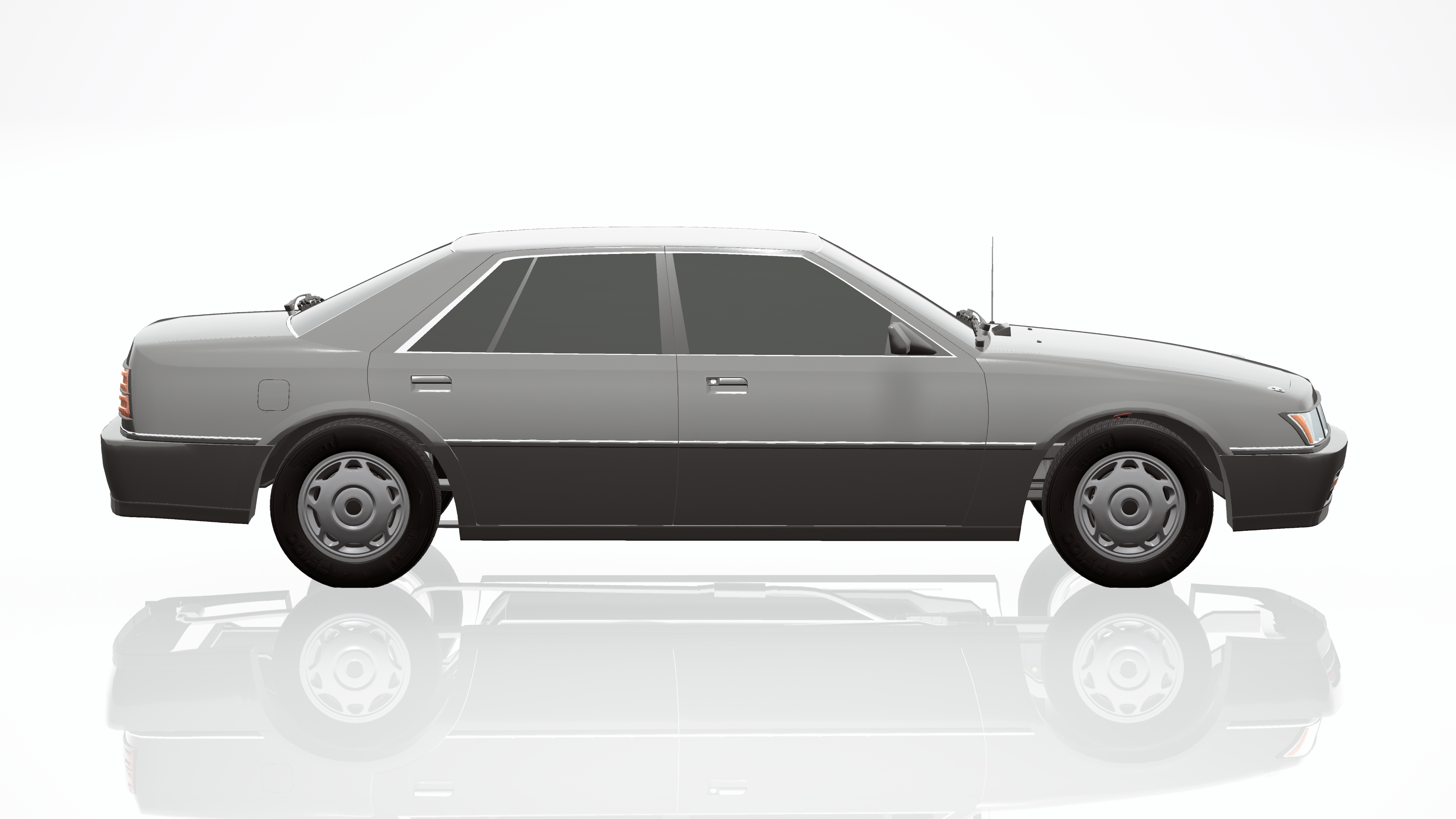

    Well, here it is! The Amaterasu M60 Maxim.
    HiResPhoto96.png HiResPhoto95.png
    I'm too tired to even begin writing up the specs so I'll do it at some point soon. At least you can take in these images and let my know what you think of the final product! :D

    • Like Like x 1
  18. Kueso

    Kueso
    Expand Collapse

    Joined:
    Oct 14, 2016
    Messages:
    2,735
    long boi
    looks nice!

    • Like Like x 1
    • Agree Agree x 1
  19. TubroTerra

    TubroTerra
    Expand Collapse

    Joined:
    Jul 24, 2019
    Messages:
    81
    Very Nice! :D

    • Like Like x 2
    • Agree Agree x 1
  20. A Sawblade Dude

    A Sawblade Dude
    Expand Collapse

    Joined:
    Jul 12, 2016
    Messages:
    302
    Thanks guys!
