Can't figure out to solve this: Vehicles get stuck and destroyed by custom made 3D models

Discussion in 'Content Creation' started by ThomasZ, Dec 7, 2019.

  1. ThomasZ

    ThomasZ
    Expand Collapse

    Joined:
    Dec 7, 2019
    Messages:
    2

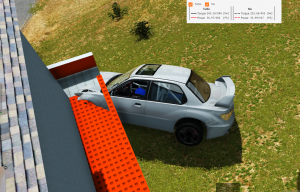

    Hi guys, I'm new to this forum and I couldn't find anywhere the answer to my problem. The title is quite long but explains exactly the problem I have: I use both Sketchup and Blender, with collision mesh etc..., but still all vehicles get stuck in every 3D model I create (see attached pic). Any idea on how I could solve this?

    P.s. Yes I watched the videos in this forum but the problem's still there.

    Thanks :)


    Attached Files:

    • example.png
  2. Nadeox1

    Nadeox1
    Expand Collapse
    BeamNG.Support
    Staff Member

    Joined:
    Aug 5, 2012
    Messages:
    13,811
    Make sure your model does not have opposing faces too close to each other.

    In very broken terms, nodes are 'pushed' the opposite direction of a face.

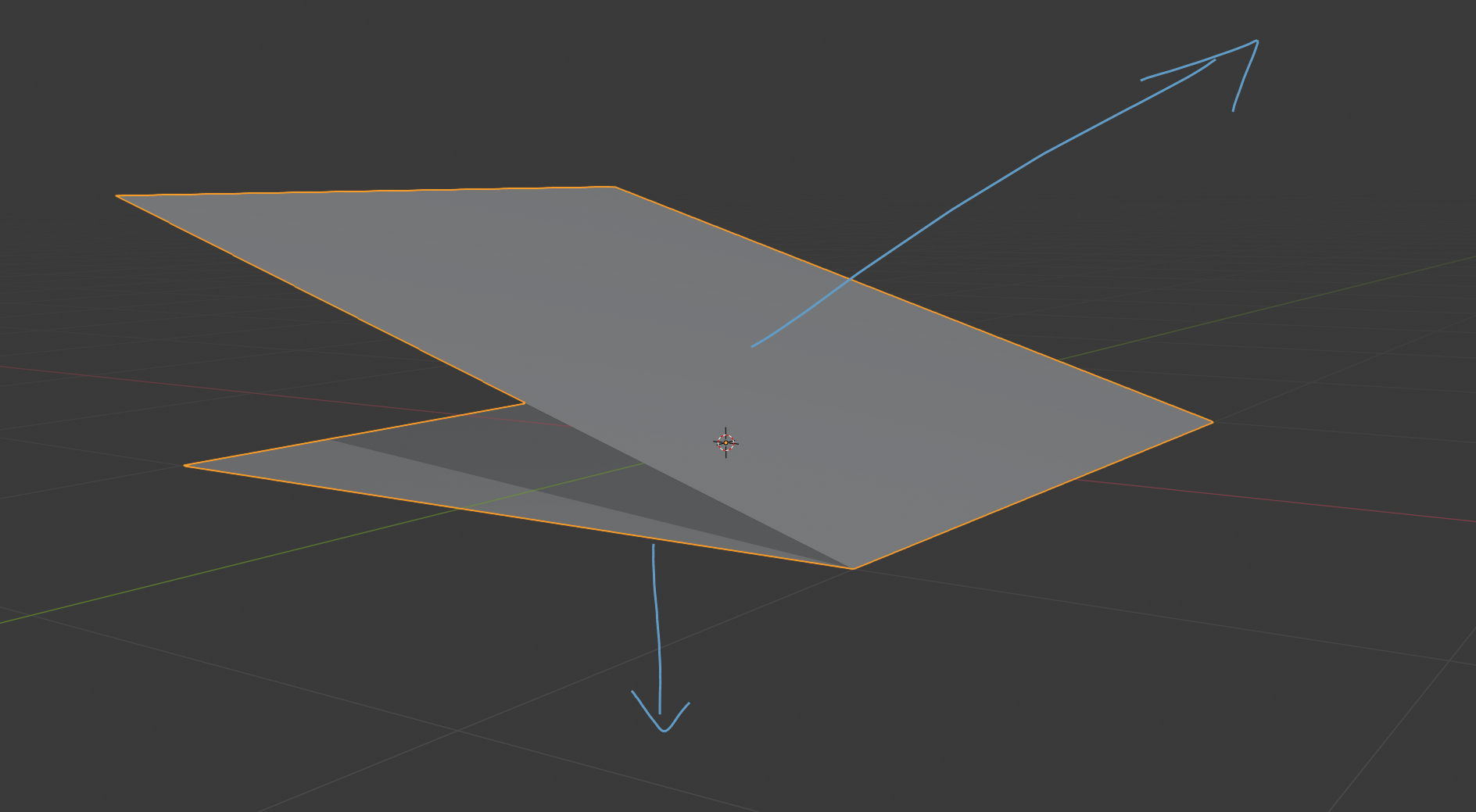

    If you have faces like this:

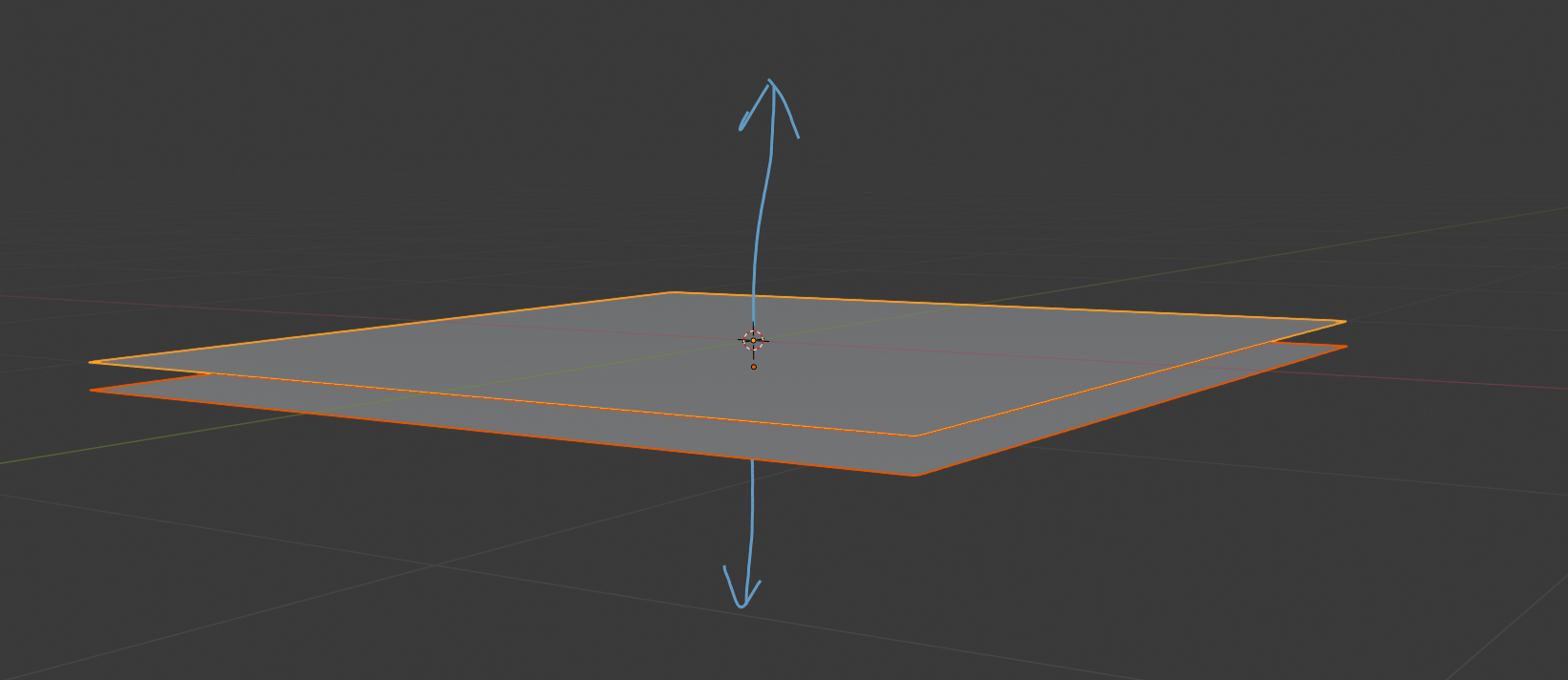

    Or like this:

    And so on, you might have faces eating/grabbing the vehicles nodes, or pushing them apart getting them stuck.

    IIRC this happens with very low distances, like around 2-3cm and below.

    • Like Like x 2
  3. ThomasZ

    ThomasZ
    Expand Collapse

    Joined:
    Dec 7, 2019
    Messages:
    2
    Thanks a lot, I managed to solve the problem as you said! Didn't know it was this simple, thanks :)
