Solved Deform group of sunroof

schumacher · Jun 27, 2017

my mod has a sunroof and its currently connected to rear right window. so if the rr window breaks the sunroof breaks aswell. Id like to make it a seperatly breakable piece; for that I need the deform group which is called for the window rr :

{"deformGroup":"sideglass_R_break",

Is there any for sunroofs?

schumacher · Jun 29, 2017

Darren9 said: ↑
You'll need to create a new one, in a "beams" section choose some beams that are roughly where your sunroof is, put them into a "deformGroup" and add a "deformationTriggerRatio".
Code:
{"deformGroup":"sunroof_break", "deformationTriggerRatio":0.08},
["wi1","rf1r"],
["wi1","rf1"],
["wi1","rf1l"],
{"deformGroup":""},
In the flexbody section where your sunroof mesh is add it to the same deform group, along with the normal and broken materials (the line above it, and close the deformGropu after it), the stock ones also add a sound.
Code:
{"deformGroup":"sunroof_break", "deformMaterialBase":"something_glass", "deformMaterialDamaged":"something_glass_dmg"}
["sunroof_mesh", ["sunroof_node_group"],[]{"deformSound":"GlassBreakSound5", "deformVolume":0.7}],
{"deformGroup":""},
Adjust the spring/deform of the beams in the deformGroup and the deformationTriggerRatio to set when it breaks.
Click to expand...

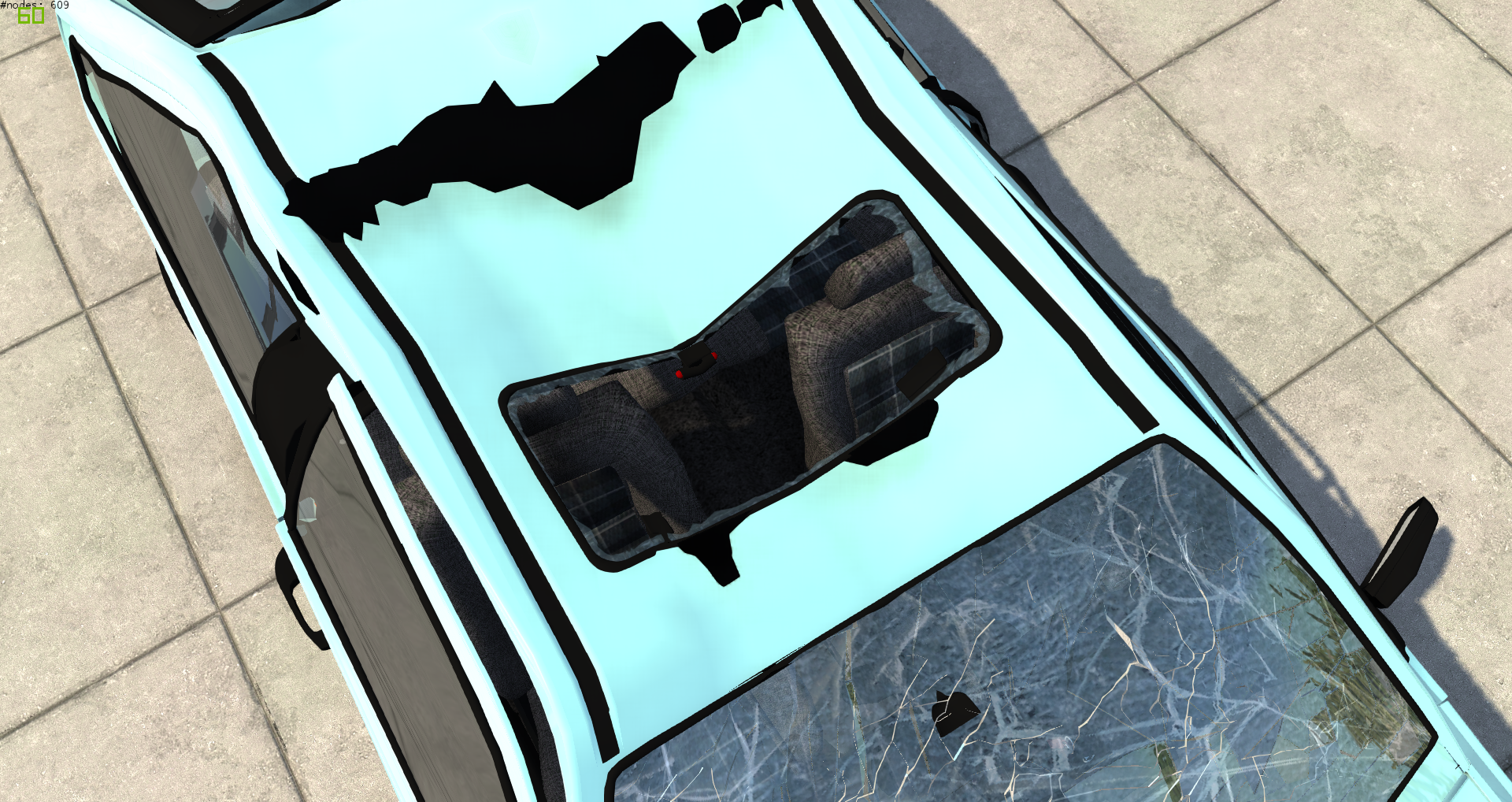

Thank you very much, works almost perfect I just have a little issue with the spring and deform of the beams. I set the deformationTriggerRatio to like 0.20 but it is pretty still pretty strong. I tried writing {"deformGroup"2""}, which didn't worked aswell. So it breaks but it you really have to crush the car; where exactly do I need to modify the spring/deform ratio
Code:
//sunroof
          {"deformGroup":"sunroof_break", "deformationTriggerRatio":0.08},
          ["rf2","rf1"],
          ["rf2l","rf1l"],
          ["rf2r","rf1r"],
          {"deformGroup":""},
Thats the setup in the body.jbeam of my based covet jbeam.
Code:
        {"deformGroup":"sunroof_break", "deformMaterialBase":"hatch_glass", "deformMaterialDamaged":"hatch_glass_dmg"},
        ["Scirocco_Schiebedach", ["hatch_body"],[]{"deformSound":"GlassBreakSound5", "deformVolume":0.7}],

        {"deformGroup":"sunroof_break", "deformMaterialBase":"scirocco_glass_int", "deformMaterialDamaged":"hatch_glass_dmg"},
        ["Scirocco_Schiebedach_int", ["hatch_body"]],
Thats in the glass.jbeam
