Unsolved Direct-Shift CVT Replica Problems

Discussion in 'Mod Support' started by BombBoy4, Mar 14, 2018.

  1. BombBoy4

    BombBoy4
    Expand Collapse

    Joined:
    May 16, 2015
    Messages:
    2,047

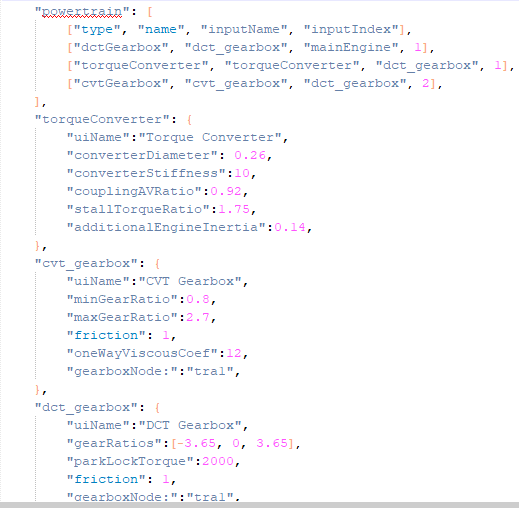

    I'm trying to replicate Toyota's Direct-Shift CVT transmission with no success. Currently, this is the jBeam:
    As you can see, it connects the DCT to the engine, then a torque converter to the DCT, then a CVT to the torque converter. All parts are named and tweaked in their respective places, but it causes the car to not even load. Any help is appreciated :)


    Attached Files:

  2. metalmuncher

    metalmuncher
    Expand Collapse

    Joined:
    Aug 6, 2012
    Messages:
    257
    Torque converters can only be connected to an engine:
    Code:
      if not device.parent.deviceCategories.engine then
        log("E", "torqueConverter.validate", "Parent device is not an engine device...")
        log("E", "torqueConverter.validate", "Actual parent:")
        log("E", "torqueConverter.validate", powertrain.dumpsDeviceData(device.parent))
        return false
      end
    I think a better way to achieve this would be to adapt the existing CVT code in cvtGearbox.lua to create a new single device which includes the direct drive gear you want. You would probably also need to adapt the shiftLogic-cvtGearbox controller to use the new feature properly.

    • Informative Informative x 1
  3. Diamondback

    Diamondback
    Expand Collapse
    Moderator
    BeamNG Team

    Joined:
    Apr 8, 2014
    Messages:
    1,580
    Exactly what was said above.

    In addition, you don't really need to create a dedicated powertrain device even, the existing CVT device can be used to replicate the behavior of that new CVT generation.
    You just need a new shift logic to control the thing differently :)

    • Informative Informative x 1
