On Hold Gavril D series NASCAR truck (release date yet to be determined)

Discussion in 'Land' started by matty1080, Aug 1, 2017.

?

do you prefer me using rendered images in my updates or if i use the screenshots of the models?

Poll closed Aug 19, 2017.
  1. rendered

    44 vote(s)
    65.7%
  2. unrendered

    23 vote(s)
    34.3%
Thread Status:
Not open for further replies.
  1. CharredWing

    CharredWing
    Expand Collapse

    Joined:
    Feb 24, 2017
    Messages:
    552
    BUT, Hoosiers are the best tires. Period. Notice that I am a hillbilly who only gets to watch local stock car racing, so I am extremely biased. But Hoosiers can even be used offroad! Like in the Choirboy Formula Offroad truck.

  2. matty1080

    matty1080
    Expand Collapse

    Joined:
    Mar 4, 2017
    Messages:
    487
    NASCAR is a wild series and the crashes that occur can be put down to a number of factors, things like aero, loss of grip, mechanical failure or simply a driver running out of talent at a crucial moment. i dont think we need to argue back and forth about weather crashes are down to aero or grip because it could be one of them, both or neither, we as racing fans on the internet couldn't know for sure. so why dont we all just be friends and tell old Matty why the mesh for his mod wont load in the right f*cking place (see main post and please HELP ME!). k thanks.
    p.s. loving your enthusiasm
    --- Post updated ---
    don't the NASCAR trucks use hoosier tires for the mud summer dirt race at Eldora speedway
    there's an idea who wants dirt track tires????

    • Agree Agree x 3
  3. Dummiesman

    Dummiesman
    Expand Collapse

    Joined:
    Sep 17, 2013
    Messages:
    4,684
    At those speeds they really don't have much leeway. Just look at F1 cars, they require their spoilers for a reason.

    • Agree Agree x 2
  4. opkraut

    opkraut
    Expand Collapse
    Banned

    Joined:
    May 30, 2015
    Messages:
    1,198
    Exactly this. There's a reason why the NASCAR series stay almost exclusively on ovals.
    For example, the series beneath the Monster Series races at Road America. This is always an entertaining race, because the drivers have to slow down, and then accelerate hard multiple times per lap. Trying to accelerate out of a corner in an 800+ HP rear-wheel drive brick is challenging, to say the least.

    • Agree Agree x 6
  5. matty1080

    matty1080
    Expand Collapse

    Joined:
    Mar 4, 2017
    Messages:
    487


    just thought id add this clip from the Goodwood festival of speed 2015

    pretty wild

  6. Dummiesman

    Dummiesman
    Expand Collapse

    Joined:
    Sep 17, 2013
    Messages:
    4,684
    This, exactly this is what I've been trying to say! Maybe I'm not communicating properly or something lol.

  7. Bakasan

    Bakasan
    Expand Collapse

    Joined:
    Dec 3, 2013
    Messages:
    1,434

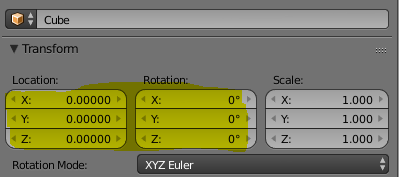

    Generally meshes spawning in the wrong place are usually a side effect of incorrectly configured translation/rotation of objects in Blender
    The yellow highlighted section must be set to 0, otherwise it will cause problems in-game

    Also, might be worth checking if the jbeam translation modifiers aren't causing any issues

    • Agree Agree x 1
  8. matty1080

    matty1080
    Expand Collapse

    Joined:
    Mar 4, 2017
    Messages:
    487
    that makes perfect sense thankyou
    im looking into it now
    --- Post updated ---

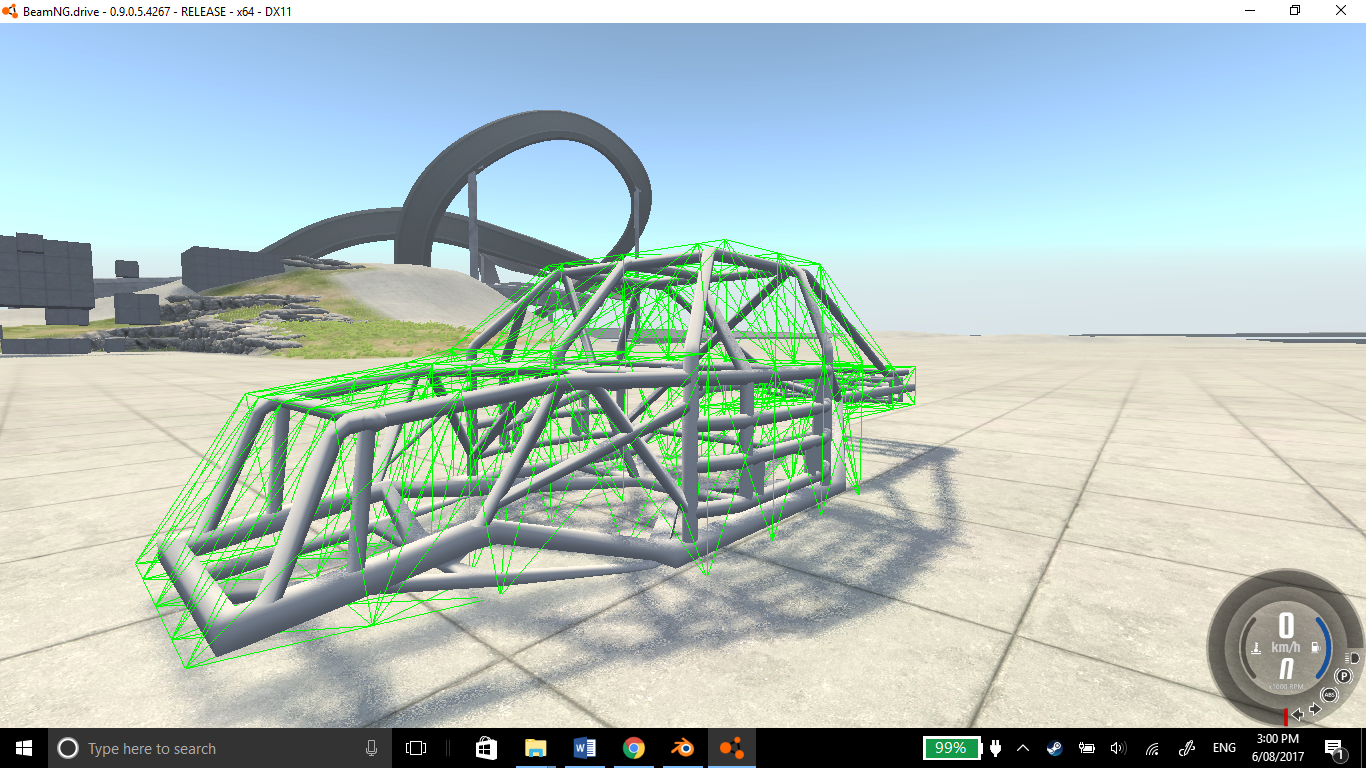

    yep that fixed the issue. the x rotation in blender was set to -180 which is probably what caused the inverted rotation issue

    thanks so much


    Attached Files:

    • resolved1.png
    • Like Like x 3
  9. Drifting H-Series

    Drifting H-Series
    Expand Collapse

    Joined:
    Sep 16, 2016
    Messages:
    86
    awesome, now the project can continue

  10. matty1080

    matty1080
    Expand Collapse

    Joined:
    Mar 4, 2017
    Messages:
    487
    correct, im currently making a new nb structure for the roll cage. if all goes well i will use it in the final mod

  11. Dummiesman

    Dummiesman
    Expand Collapse

    Joined:
    Sep 17, 2013
    Messages:
    4,684

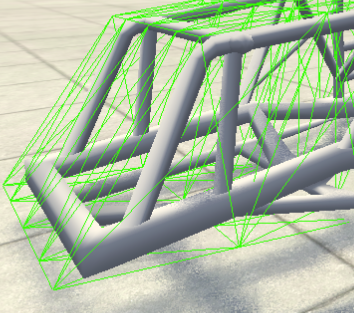

    Your front end here should probably only be 3 rows max, instead of 5.


    Attached Files:

    • upload_2017-8-6_2-34-32.png
    • Agree Agree x 2
  12. matty1080

    matty1080
    Expand Collapse

    Joined:
    Mar 4, 2017
    Messages:
    487
    Yeah i now realise from playing around with it in game that the beams and nodes need to match up with the segments in the mesh for it to deform without glitches

  13. supercharge71

    supercharge71
    Expand Collapse

    Joined:
    Jan 14, 2017
    Messages:
    263
    That is nuts

  14. Bakasan

    Bakasan
    Expand Collapse

    Joined:
    Dec 3, 2013
    Messages:
    1,434
    Pretty much, in an ideal world you would have a node placed at every vert of the model, which in theory would cause no mesh stretching, however the jbeam would be far too complex, resulting in awful framerate and little jbeam rigidity/stability. Basically, you want to find a compromise between having good deformation properties but also maintaining structural integrity and a decent framerate:)
    That said, it's a good idea to make sure all of the jbeam nodes are touching or very close to a vert in the model. Think of it as an LOD model;)

    • Agree Agree x 4
  15. MRcrash

    MRcrash
    Expand Collapse
    BeamNG Team

    Joined:
    Dec 12, 2014
    Messages:
    1,231
    Deleted post

  16. matty1080

    matty1080
    Expand Collapse

    Joined:
    Mar 4, 2017
    Messages:
    487
    Please excuse me whilst i double check what a LOD model is
    --- Post updated ---
    Ok i remember now
    Yes that makes perfect sense to think of it as a LOD model
    A low polly version of the mesh

  17. carlosjr

    carlosjr
    Expand Collapse
    Banned

    Joined:
    Jul 29, 2017
    Messages:
    232
    Really looking forward to this, cant wait for it to be finished

  18. carlosjr

    carlosjr
    Expand Collapse
    Banned

    Joined:
    Jul 29, 2017
    Messages:
    232
    Looked at this again because its looking absolutely amazing and I can't wait until its finished
    For a couple months I was helping out with a modified team that runs with the Modified Touring Series, Valenti Modified Racing Series, and Tri Track Open Modified Series, and I have this video from it. I don't know if this would be useful in any way at all, but even if it isn't, still was looking for an excuse to post this somewhere.

    Here's some pictures that I have of the car itself, again not sure if any of these will help but oh well










    Full album:
    http://imgur.com/a/VNSgB

  19. Kentucky Fried Chicken

    Kentucky Fried Chicken
    Expand Collapse

    Joined:
    Aug 3, 2016
    Messages:
    406
    Actually, the air was taken off his spoiler, causing him to spin. Didn't I just say that?

    Holy fucking shit people.

    The creator is striving for accuracy. You guys seem to not know shit about NASCAR Truck specs from the mid 90's. How about you do your research before you make suggestions instead of turn this mod from a mid 90's NASCAR truck to a cross between a Viagra pill, Bruckell Road Cruiser meme and dried chicken.

    • Agree Agree x 3
  20. CharredWing

    CharredWing
    Expand Collapse

    Joined:
    Feb 24, 2017
    Messages:
    552
    I am just saying, that maybe we could use Hoosiers as the tires. I know that they don't use Hoosiers for NASCAR, but they are the best motorsport tires to me.
