Unsolved Help i Am making a suzuki Jimny called the ibishu crawler but Jbeam exporter is not working

Discussion in 'Mod Support' started by BADSUPRA0708, Jun 23, 2021.

  1. BADSUPRA0708

    BADSUPRA0708
    Expand Collapse

    Joined:
    Feb 15, 2021
    Messages:
    31

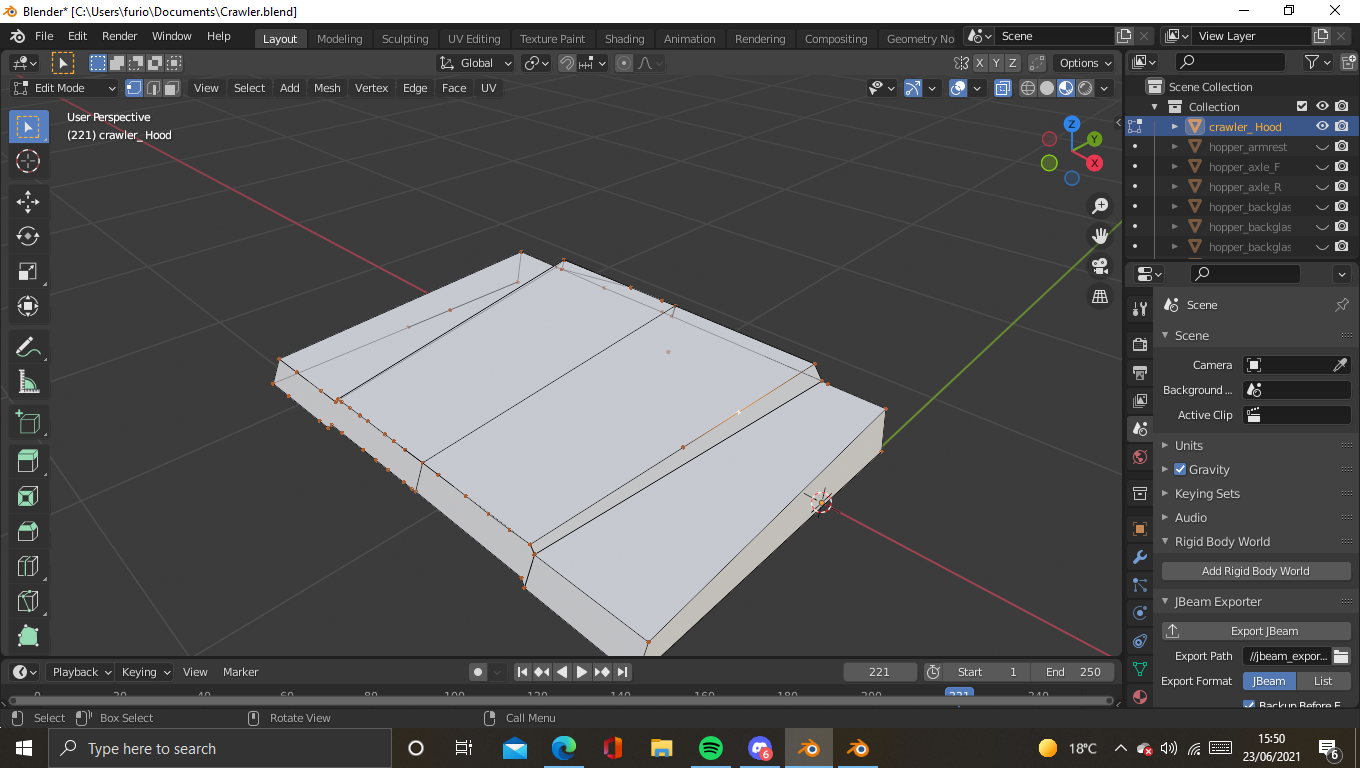

    Im trying to do this hood But it will not work with The jbeam exporter Says
    ERROR: Mesh contains Ngons, only triangles and quads are supported.
    idk what is wrong


    Attached Files:

    • 2021-06-23.png
    • 2021-06-231.png
  2. _Diamond_Coal_

    _Diamond_Coal_
    Expand Collapse

    Joined:
    Apr 5, 2019
    Messages:
    505
    Maybe it's because you use Ngons instead of tris or quads? lol

  3. BADSUPRA0708

    BADSUPRA0708
    Expand Collapse

    Joined:
    Feb 15, 2021
    Messages:
    31
    Sorry its my first time
    --- Post updated ---
    soo does this mean i have to do everything allll over again

  4. Cincinnatus

    Cincinnatus
    Expand Collapse

    Joined:
    Aug 25, 2020
    Messages:
    612
    That looks way too messy to be a jbeam. There are vertices in places that aren't necessary, and if you did need them, you should've created more edge loops. I'd recommend restarting and taking a look at vanilla jbeams. Also, I wouldn't recommend using the blender jbeam exporter to make a hood jbeam.

  5. BADSUPRA0708

    BADSUPRA0708
    Expand Collapse

    Joined:
    Feb 15, 2021
    Messages:
    31
    welp i already did it time to find out what happens in beamng
    --- Post updated ---
    well i hit it once it glitched so hard the game crashed

  6. Turbo49>

    Turbo49>
    Expand Collapse

    Joined:
    Apr 1, 2021
    Messages:
    484
    You can't have ngons, ngons are faces that have more than 4 vertices. You must separate everything in quads.

  7. BADSUPRA0708

    BADSUPRA0708
    Expand Collapse

    Joined:
    Feb 15, 2021
    Messages:
    31
    Welp yep restart
    --- Post updated ---
    Alright im restarting
    --- Post updated ---
    Do you wanna see it when it is finished?

  8. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    3,662
    At least learn the absolute basics of Jbeam before using the exporter... This won't work.

  9. BADSUPRA0708

    BADSUPRA0708
    Expand Collapse

    Joined:
    Feb 15, 2021
    Messages:
    31

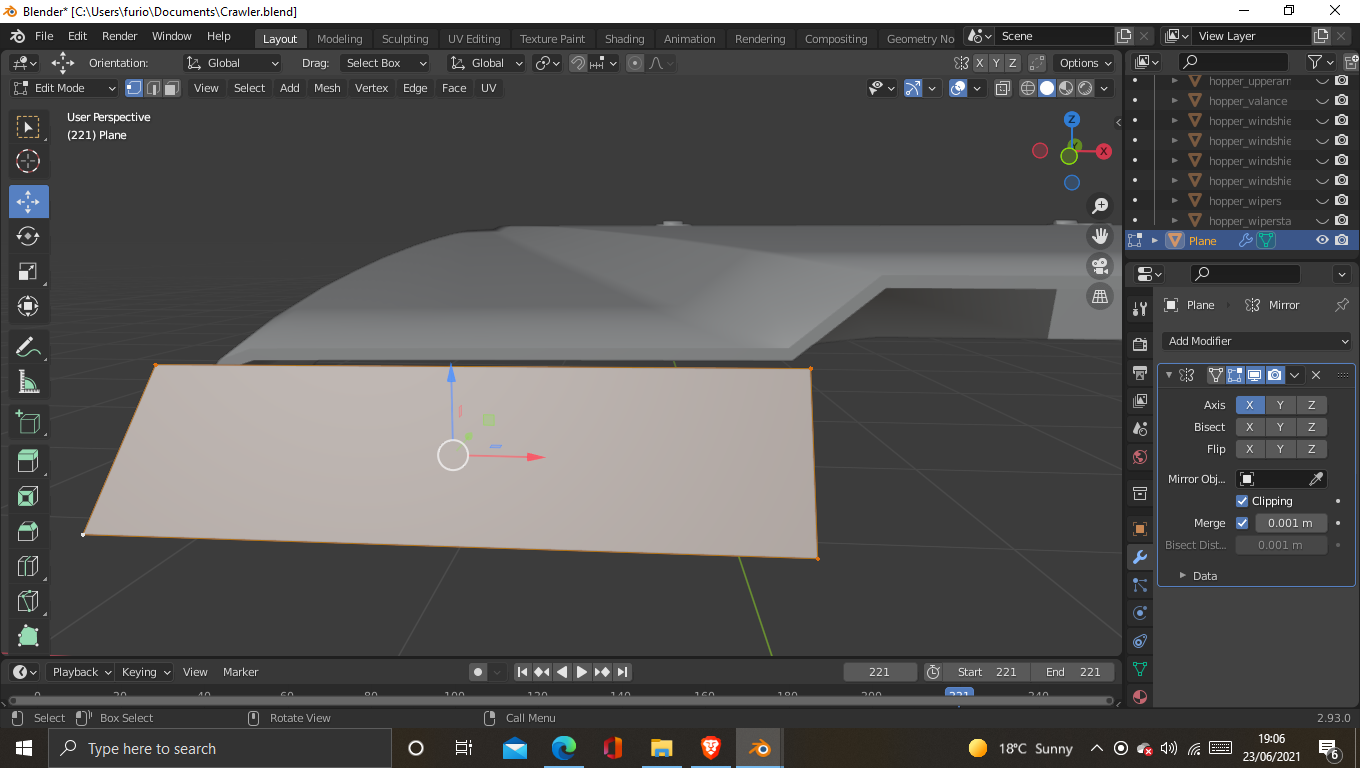

    Like this?


    Attached Files:

    • 2021-06-232.png
  10. Turbo49>

    Turbo49>
    Expand Collapse

    Joined:
    Apr 1, 2021
    Messages:
    484
    Yes, like that.

  11. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    3,662
    This looks a lot more fitting for Jbeam

  12. BADSUPRA0708

    BADSUPRA0708
    Expand Collapse

    Joined:
    Feb 15, 2021
    Messages:
    31
    Right so do i need to press e and add Another vertice or do i add another plane
    --- Post updated ---
    idk its my first time sorry im like patrick star who breaks the retard limiter

  13. Turbo49>

    Turbo49>
    Expand Collapse

    Joined:
    Apr 1, 2021
    Messages:
    484
    Select an edge, press e, repeat until you have everything in place, fill the areas you need to fill with F an forming a closed mesh, then adjust vertices positions.

  14. BADSUPRA0708

    BADSUPRA0708
    Expand Collapse

    Joined:
    Feb 15, 2021
    Messages:
    31
    Alright then i will keep this thread open just in case something else goes wrong
    --- Post updated ---
    or just triangulate them??

  15. Turbo49>

    Turbo49>
    Expand Collapse

    Joined:
    Apr 1, 2021
    Messages:
    484
    No, that's gonna give you a very messy result. For the jbeam to work properly the beams must be arranged well, and triangulating will put them in a messy manner.
    --- Post updated ---
    You could use the knife cut though.

  16. BADSUPRA0708

    BADSUPRA0708
    Expand Collapse

    Joined:
    Feb 15, 2021
    Messages:
    31
    how though?
    --- Post updated ---
    so use quads?
    --- Post updated ---

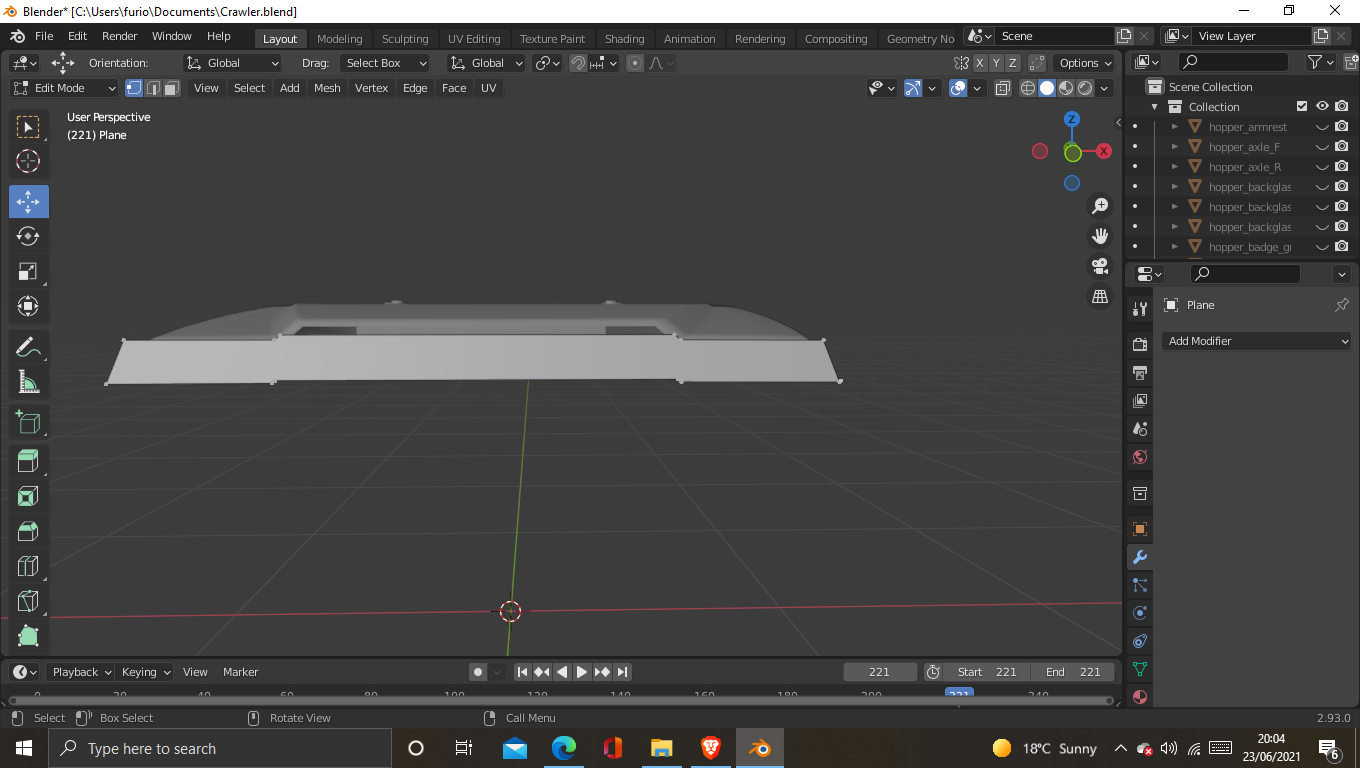

    also does this still be able to work


    Attached Files:

    • 2021-06-233.png
  17. Turbo49>

    Turbo49>
    Expand Collapse

    Joined:
    Apr 1, 2021
    Messages:
    484
    No, cut lines vertically beetween those vertices so that each face only have 4 vertices.

  18. BADSUPRA0708

    BADSUPRA0708
    Expand Collapse

    Joined:
    Feb 15, 2021
    Messages:
    31
    do i seperate them??
    --- Post updated ---
    seperate them into 4 vertices each?

  19. Turbo49>

    Turbo49>
    Expand Collapse

    Joined:
    Apr 1, 2021
    Messages:
    484
    Yes

  20. BADSUPRA0708

    BADSUPRA0708
    Expand Collapse

    Joined:
    Feb 15, 2021
    Messages:
    31
    so like this


    Attached Files:

    • 2021-06-234.png
