How to correctly import/export official vehicles via Blender

Discussion in 'Content Creation' started by Nadeox1, Jul 21, 2015.

  1. Nadeox1

    Nadeox1
    Expand Collapse
    BeamNG.Support
    Staff Member

    Joined:
    Aug 5, 2012
    Messages:
    9,946

    (imported from here)


    //NOTE: It's NOT SUGGESTED to mod the original vehicles DAE. If you want to create parts or mods for a vehicle, use MULTIDAE instead!\\
    >> Multidae tutorial - Introduction-to-MultiDae
    Why? If an update changes something in the original DAE, you mod will become outdated.

    What you will learn:

    • How to correctly Import & Export an Official Vehicle without breaking the smoothing group

    Requirements:


    • Knowledge of Blender
    • Semi-Advanced knowledge of 3D Modelling

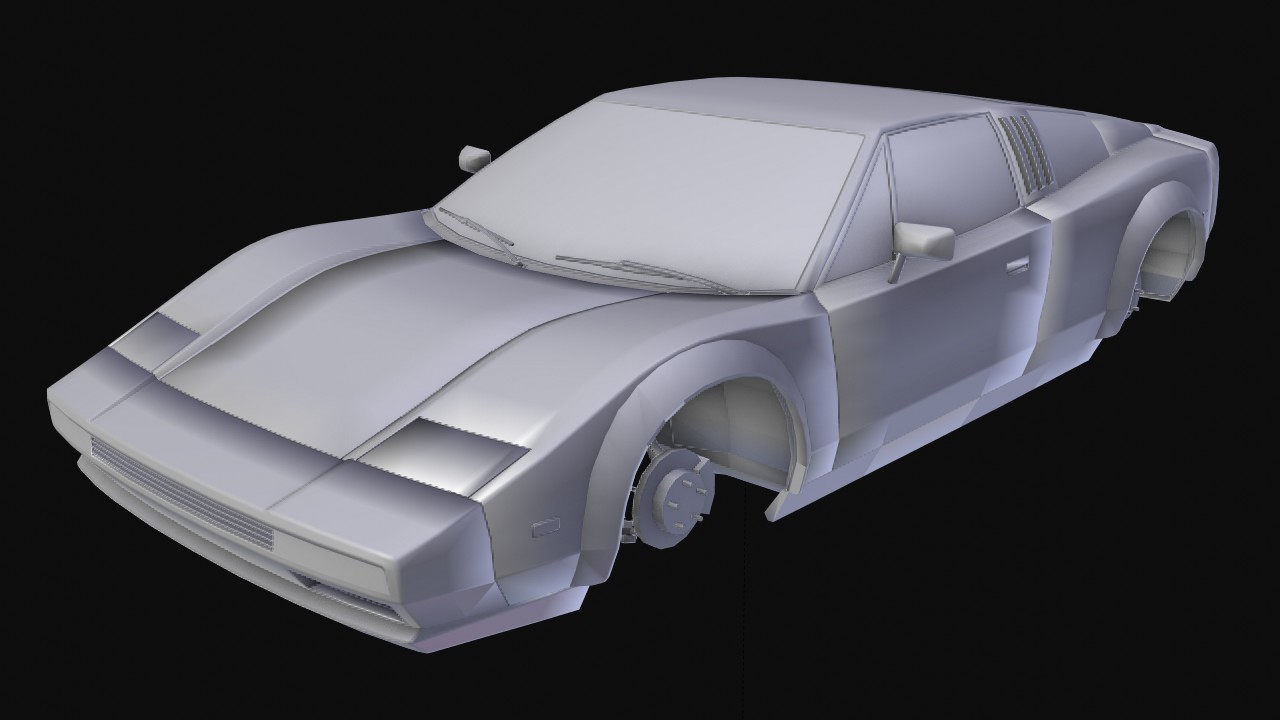

    1. Why when I import certain official vehicles in Blender those looks weird like this?


    Some vehicles are modelled in '3D Studio Max'.
    3D Studio Max offers some features which aren't avalaible in Blender.
    One of them is 'Smoothing Group'. It allows the artist to define the hard edges without actually splitting the edges.
    Blender doesn't enable this automatically.
    It can be enabled by following the instructions in this post:
    https://www.beamng.com/threads/how-...icial-vehicles-via-blender.14793/#post-546913
    Or by using the 'Edge Split' modifier, which actually modifies the mesh.

    When you import an official vehicle made in 3D Studio Max in Blender, the smoothing groups won't be read, so it will appear all lumpy because it doesn't have hard edges.

    2. Solution

    An easy solution to this is to add an edge split modifier by yourself.
    NOTE: Edge Split is an automated modifier. The result will never be the exact same as the original vehicle.

    To start, select an object. Go in the 'Modifiers' panel and add an 'Edge Split' modifier. Usually angles of 50° or 60° works nicely.

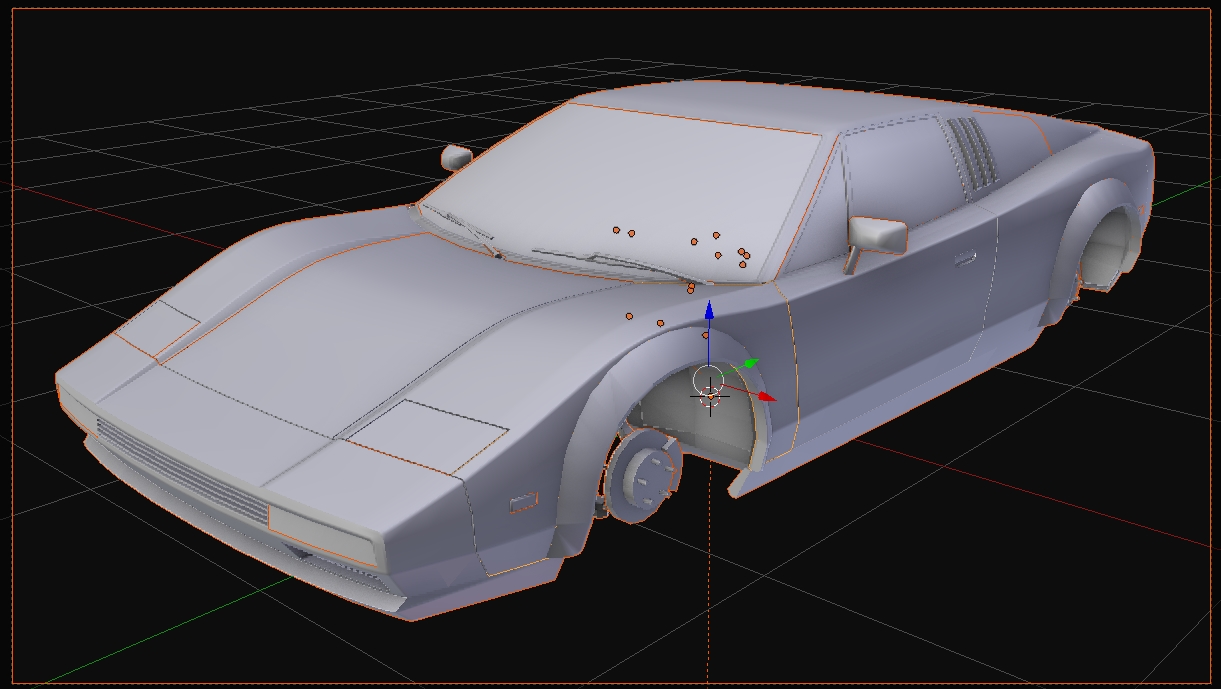

    The result is evident:


    To quickly apply the same modfier on all the objects:

    Keep the object with the modifier selected
    Press A twice: The first one will Deselect all. The second will Select all.
    The object with the modifier will have a different colour because it's the object we manually selected (Active Object)

    Press CTRL+L. A 'Make Links' window will appear. Press the 'Modifiers' button.

    Congratulations, you just added the same modifier too all the objects.

    3. Exporting correctly

    Files > Export > Collada

    Make sure to have the 'Apply Modifier' option selected. Then you are ready to export your .dae.

    #1 Nadeox1, Jul 21, 2015
    Last edited: Jun 11, 2017
  2. luckyman

    luckyman
    Expand Collapse

    Joined:
    Aug 5, 2012
    Messages:
    396
    Most awesome helpful thread on the planet. :eek:

    i30delta likes this.
  3. kevinsole

    kevinsole
    Expand Collapse

    Joined:
    Dec 26, 2016
    Messages:
    20
    but how would I know the Width of the vehicle that I am creating?

  4. SandwichesANDmilk

    SandwichesANDmilk
    Expand Collapse

    Joined:
    Jul 10, 2016
    Messages:
    1,012
    help i cant find the edge split!!

  5. Nadeox1

    Nadeox1
    Expand Collapse
    BeamNG.Support
    Staff Member

    Joined:
    Aug 5, 2012
    Messages:
    9,946


    You may want to have a look at some Blender Basics tutorial first.

    BombBoy4 and Dunkleosteus like this.
  6. SandwichesANDmilk

    SandwichesANDmilk
    Expand Collapse

    Joined:
    Jul 10, 2016
    Messages:
    1,012
    i looked REALLY closely at the picture and found how access it
    i suck at blender XD

    Dunkleosteus likes this.
  7. Doug7070

    Doug7070
    Expand Collapse

    Joined:
    Aug 7, 2013
    Messages:
    112
    Achgtung!
    Blender does in fact support smoothing groups without using the edge split modifier.
    To activate the feature, go to the Object Data tab in the Properties panel with your desired object selected (the three vertexes connected by lines icon) and check the "Auto Smooth" box under the "Normals" group. The angle value below the check box acts the same as in the Edge Split modifier, and it also observes edges marked as sharp on the model with Edges>Mark Sharp in edit mode.

    The default angle value of 30 degrees seems to work quite well, at least on the Super model.
    If you want to quickly apply this to every part of a vehicle, select all the parts in object mode (just hit A to select all), then check the "Auto Smooth" box, right click the box, and select "Copy To Selected" to apply the value to all the selected parts as well. (You can do this for any value field in Blender, in fact, to easily apply values and options to multiple objects!)

  8. GALAXYGAMER

    GALAXYGAMER
    Expand Collapse

    Joined:
    Aug 26, 2016
    Messages:
    350
    beware i dont kn ow if this is how you do it still this is from 2015

  9. BombBoy4

    BombBoy4
    Expand Collapse

    Joined:
    May 16, 2015
    Messages:
    1,574
    It should.

  10. p_i_x_x_e_l

    p_i_x_x_e_l
    Expand Collapse

    Joined:
    May 13, 2016
    Messages:
    7
    Thanks a lot! I was exporting the new hopper to blender to make nice Pictures, idk and I found the edge split mod out but I didn´t knew how to apply it to multiple objects at once.
    But do you know how to correctly set up the materials with the textures (The node Setup) ? Or at least can you say what the textures are? There are:
    hopper_XXX_d diffuse
    hopper_XXX_n normal
    hopper_XXX_s specular? But what does it control exactly? The roughness of the glossy shader or the mix between glossy and diffuse?
    hopper_XXX_g (Light) Emission
    hopper_XXX_r no clue, but it´s only 1 single completely transparent Image file in the Hoppers data

    Correct me if I´m in the wrong thread.

  11. Nadeox1

    Nadeox1
    Expand Collapse
    BeamNG.Support
    Staff Member

    Joined:
    Aug 5, 2012
    Messages:
    9,946
    Yeah, not exactly the correct thread. That's something specific to rendering.

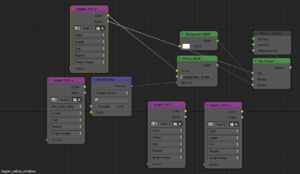

    Anyhow, I used this setup on one of my recent projects:


  12. Fera

    Fera
    Expand Collapse

    Joined:
    Sep 24, 2016
    Messages:
    2,461
    How do I find the vehicle models themselves? (Where are they in the files?)

    I understand everything else, except where the files are.

  13. Nadeox1

    Nadeox1
    Expand Collapse
    BeamNG.Support
    Staff Member

    Joined:
    Aug 5, 2012
    Messages:
    9,946
    InstallationDirectory > content > vehicles

  14. Fera

    Fera
    Expand Collapse

    Joined:
    Sep 24, 2016
    Messages:
    2,461
    i'm assuming that those folders would be related to the steam folder. Am I right?

  15. Nadeox1

    Nadeox1
    Expand Collapse
    BeamNG.Support
    Staff Member

    Joined:
    Aug 5, 2012
    Messages:
    9,946
    Wherever the game is installed.
    The default Steam path is Steam/Steamapps/Common/BeamNG.Drive

  16. Fera

    Fera
    Expand Collapse

    Joined:
    Sep 24, 2016
    Messages:
    2,461
    I opened the .dae with blender, but all I get is a cube... What's wrong?

  17. Dealercrash

    Dealercrash
    Expand Collapse

    Joined:
    Apr 1, 2016
    Messages:
    3,205
    I think you need to just go in the Import folder, then find the directory for the vehicles and click on the vehicle there

  18. Fera

    Fera
    Expand Collapse

    Joined:
    Sep 24, 2016
    Messages:
    2,461
    Ok, I'll try that in a sec. Thanks! :)

  19. Kirahl

    Kirahl
    Expand Collapse

    Joined:
    Aug 5, 2012
    Messages:
    150
    This is incredibly helpful and makes smoothing things out so much easier, wish I came across it earlier.

  20. domiscrazzy

    domiscrazzy
    Expand Collapse

    Joined:
    Nov 14, 2017
    Messages:
    25
    When in here did you explain how to Import a vehicle??
