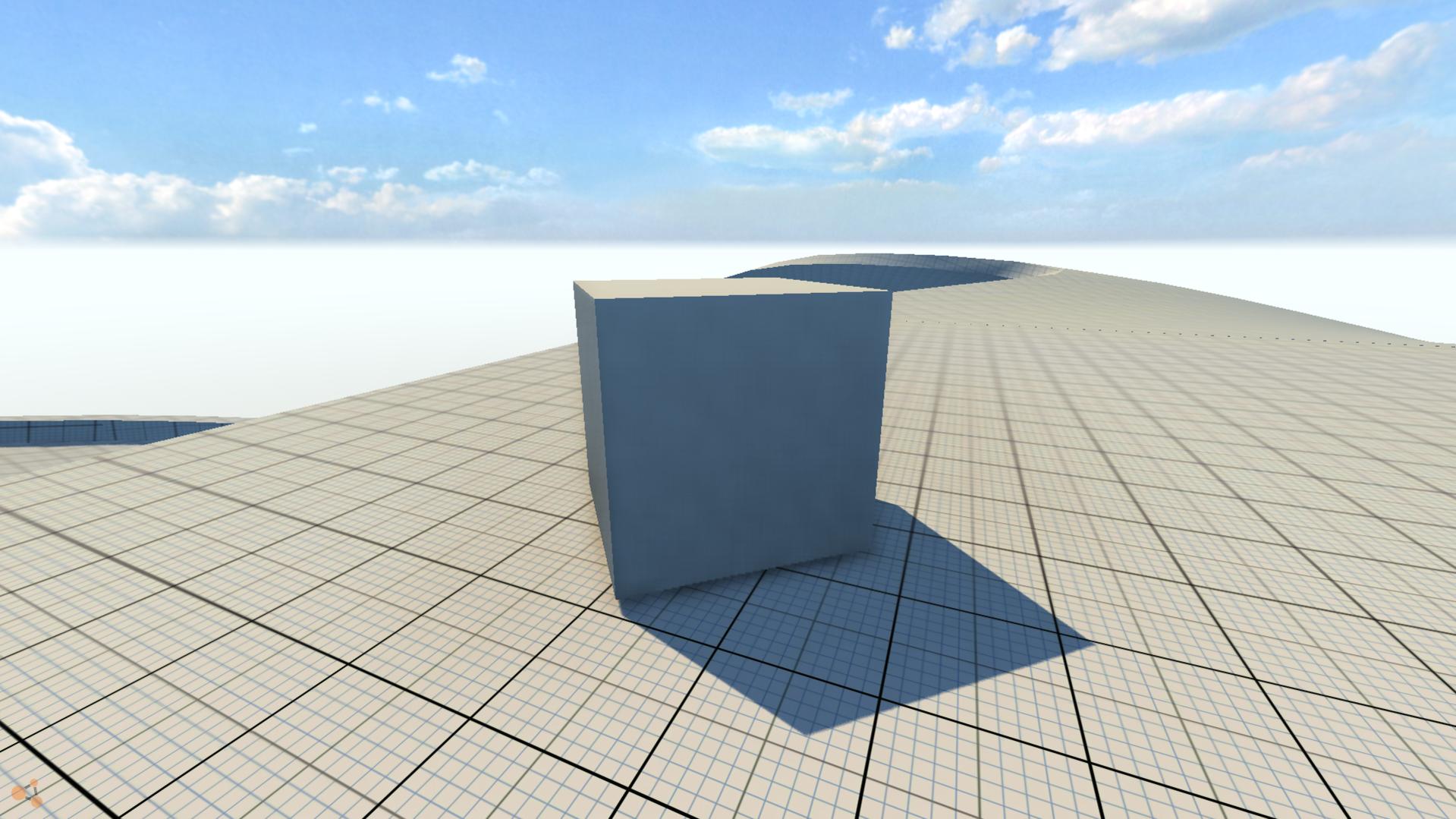

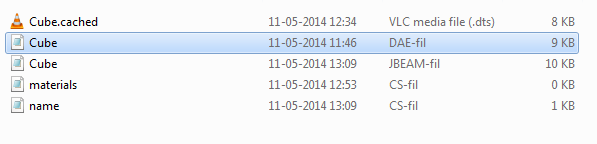

So I have this cube, but only the JBeams show up. I'm not sure how I am supposed to add a material. I don't even know if the game recognized my .DAE file. As you can see the .DAE is there, but I don't know for sure how, the game even knows to use it. I haven't found anything on the wiki or any other threads. What am I missing?

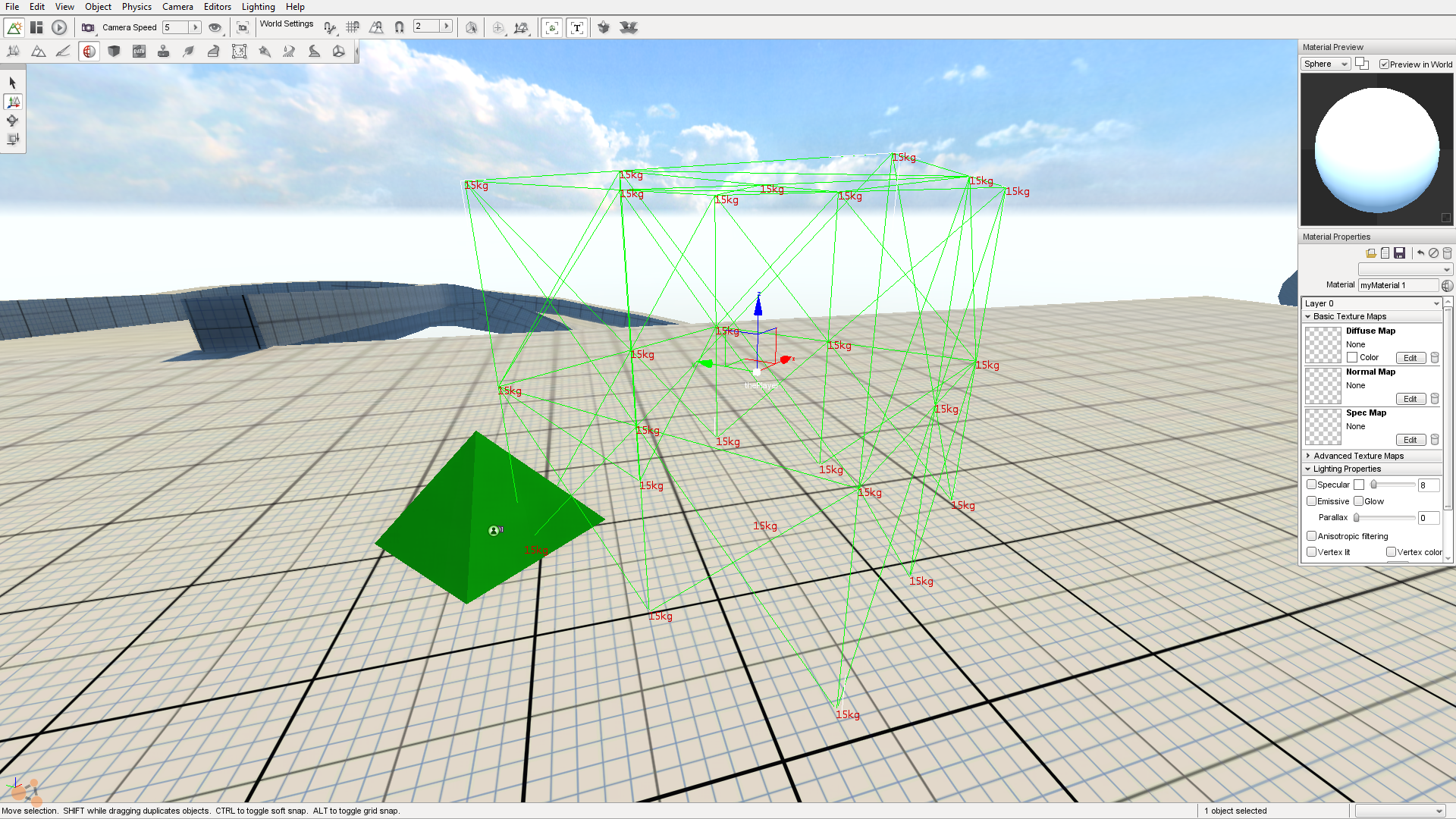

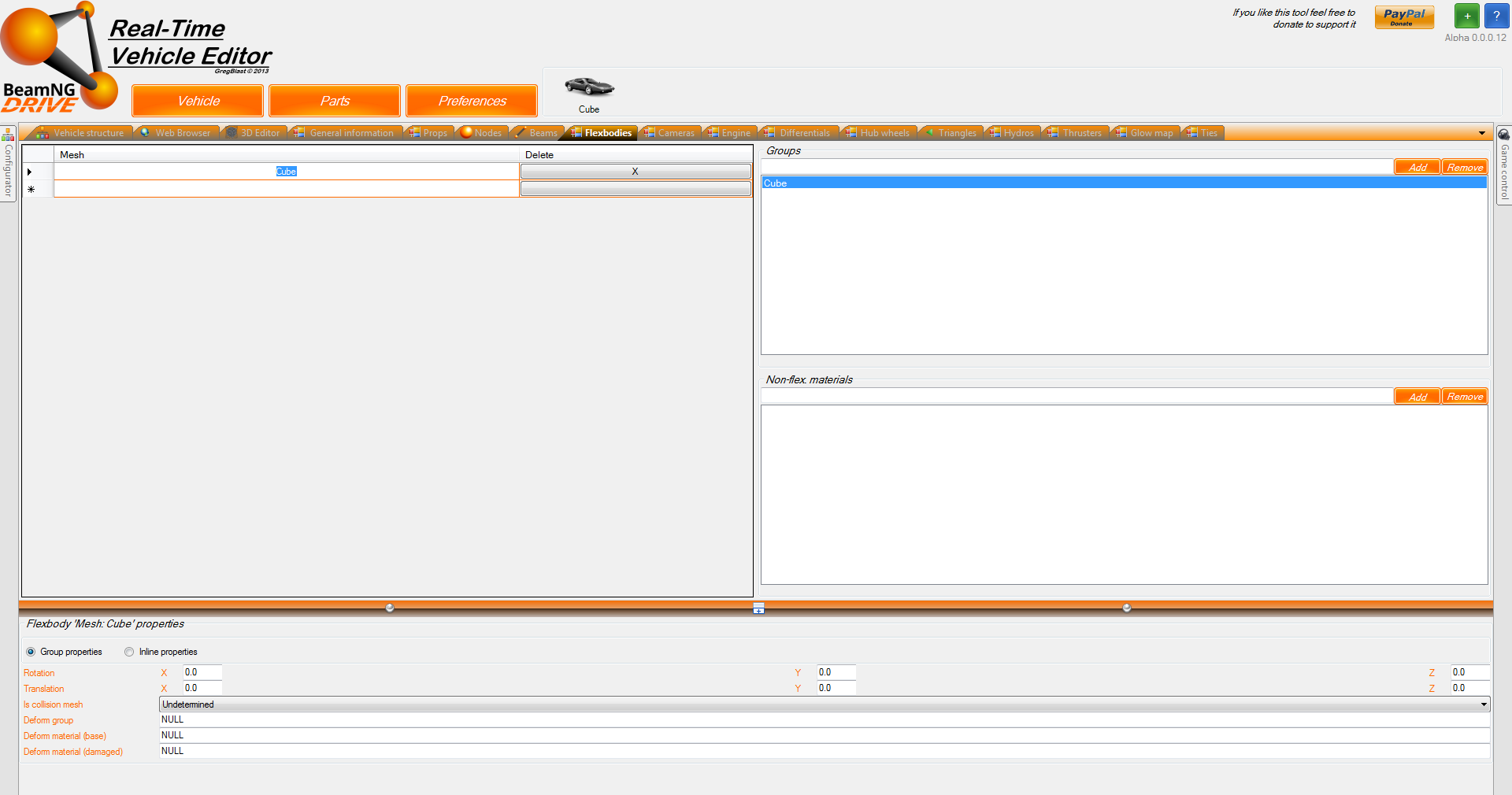

I think I did, but I don't even know how it works. This is what I have. I don't know what to make of this.
Yes you can here is the code! Code: { "Cube":{ "information":{ "name":"Cube", "authors":"Bjarke"}, "slotType":"main", "refNodes":[ ["ref:", "back:", "left:", "up:"], ["2kru5d2v_new0", "2kru5d2v_new0", "2kru5d2v_new0", "2kru5d2v_new0"]], "props":[ ["func", "mesh", "idRef:", "idX:", "idY:", "baseRotation", "rotation", "translation", "min", "max", "offset", "multiplier"], [", ", ", ", "2kru5d2v_new0", "zjx3reps_new1", "35bi2n5j_new2", {"x":0.0, "y":0.0, "z":0.0}, {"x":0.0, "y":0.0, "z":0.0}, {"x":0.0, "y":0.0, "z":0.0}, 0.0, 0.0, 0.0, 1.0]], "flexbodies":[ ["mesh", "[group]:", "nonFlexMaterials"], {"rotation":{"x":0.0, "y":0.0, "z":0.0}, "translation":{"x":0.0, "y":0.0, "z":0.0}}, ["Cube", ["Cubederp"]]], "nodes":[ ["id", "posX", "posY", "posZ"], {"group":"Cubederp", "selfCollision":false, "collision":true, "nodeMaterial":"|NM_METAL", "frictionCoef":1.0, "nodeWeight":15.0}, ["2kru5d2v_new0", 1.1, -1.1, 1.1], ["35bi2n5j_new2", 1.1, -1.1, -1.1], ["e5rpysnr_new3", 1.1, 1.1, -1.1], ["bxksp05x_new4", 1.1, -1.1, 0.0], ["s0aa0c22_new5", 1.1, 1.1, 0.0], ["r2n3k414_new6", 1.1, 0.0, 0.0], ["o0hyccmw_new7", 1.1, 0.0, 1.1], ["5darsq1p_new8", 1.1, 0.0, -1.1], ["vruvdx5q_new9", -1.1, -1.1, 1.1], ["ftg5lnmh_new10", -1.1, -1.1, -1.1], ["250o4fd0_new11", -1.1, -1.1, 0.0], ["pqqpve0e_new12", 0.0, -1.1, 1.1], ["i4y0tkc4_new13", 0.0, -1.1, -1.1], ["vradkqzd_new14", 0.0, -1.1, 0.0], ["ajkmgpxc_new15", -1.1, 1.1, 1.1], ["slzi5pn0_new16", -1.1, 1.1, -1.1], ["jm0323pe_new17", -1.1, 1.1, 0.0], ["v4hlgrur_new18", -1.1, 0.0, 1.1], ["hjjccrju_new19", -1.1, 0.0, -1.1], ["v5hj4xwu_new20", -1.1, 0.0, 0.0], ["4cxfzdli_new21", 0.0, 1.1, 1.1], ["0xonuzoc_new22", 0.0, 1.1, -1.1], ["ocf2uqef_new23", 0.0, 1.1, 0.0], ["sbahb4ro_new25", 0.0, 0.0, -1.1], ["lwfrllsg_new26", 0.0, 0.0, 1.1], ["djcf5cga_new26", 1.1, 1.1, 1.1], {"group":"", "nodeWeight":260.0}, ["ojwk325z_new26", 0.0, 0.0, 0.0], {"group":""}], "beams":[ ["id1:", "id2:"], {"beamSpring":1000000, "beamDeform":10000, "beamStrength":"FLT_MAX", "beamDamp":300}, ["2kru5d2v_new0", "o0hyccmw_new7"], ["2kru5d2v_new0", "bxksp05x_new4"], ["bxksp05x_new4", "35bi2n5j_new2"], ["o0hyccmw_new7", "pqqpve0e_new12"], ["pqqpve0e_new12", "2kru5d2v_new0"], ["o0hyccmw_new7", "zjx3reps_new1"], ["o0hyccmw_new7", "r2n3k414_new6"], ["r2n3k414_new6", "bxksp05x_new4"], ["r2n3k414_new6", "5darsq1p_new8"], ["5darsq1p_new8", "35bi2n5j_new2"], ["r2n3k414_new6", "s0aa0c22_new5"], ["zjx3reps_new1", "s0aa0c22_new5"], ["s0aa0c22_new5", "e5rpysnr_new3"], ["e5rpysnr_new3", "5darsq1p_new8"], ["zjx3reps_new1", "4cxfzdli_new21"], ["4cxfzdli_new21", "ajkmgpxc_new15"], ["4cxfzdli_new21", "jm0323pe_new17"], ["ajkmgpxc_new15", "jm0323pe_new17"], ["ocf2uqef_new23", "slzi5pn0_new16"], ["jm0323pe_new17", "slzi5pn0_new16"], ["slzi5pn0_new16", "0xonuzoc_new22"], ["0xonuzoc_new22", "e5rpysnr_new3"], ["s0aa0c22_new5", "ocf2uqef_new23"], ["ocf2uqef_new23", "0xonuzoc_new22"], ["4cxfzdli_new21", "ocf2uqef_new23"], ["ocf2uqef_new23", "jm0323pe_new17"], ["slzi5pn0_new16", "hjjccrju_new19"], ["hjjccrju_new19", "v5hj4xwu_new20"], ["v5hj4xwu_new20", "jm0323pe_new17"], ["v5hj4xwu_new20", "v4hlgrur_new18"], ["v4hlgrur_new18", "ajkmgpxc_new15"], ["v4hlgrur_new18", "vruvdx5q_new9"], ["vruvdx5q_new9", "250o4fd0_new11"], ["250o4fd0_new11", "v5hj4xwu_new20"], ["250o4fd0_new11", "ftg5lnmh_new10"], ["ftg5lnmh_new10", "hjjccrju_new19"], ["vruvdx5q_new9", "pqqpve0e_new12"], ["pqqpve0e_new12", "vradkqzd_new14"], ["vradkqzd_new14", "250o4fd0_new11"], ["vradkqzd_new14", "bxksp05x_new4"], ["vradkqzd_new14", "i4y0tkc4_new13"], ["i4y0tkc4_new13", "ftg5lnmh_new10"], ["i4y0tkc4_new13", "35bi2n5j_new2"], ["v4hlgrur_new18", "pqqpve0e_new12"], ["v4hlgrur_new18", "vbz5jlrr_new24"], ["vbz5jlrr_new24", "v4hlgrur_new18"], ["v4hlgrur_new18", "pqqpve0e_new12"], ["pqqpve0e_new12", "vbz5jlrr_new24"], ["vbz5jlrr_new24", "4cxfzdli_new21"], ["vbz5jlrr_new24", "o0hyccmw_new7"], ["o0hyccmw_new7", "4cxfzdli_new21"], ["v4hlgrur_new18", "jm0323pe_new17"], ["4cxfzdli_new21", "s0aa0c22_new5"], ["zjx3reps_new1", "ocf2uqef_new23"], ["ocf2uqef_new23", "ajkmgpxc_new15"], ["s0aa0c22_new5", "0xonuzoc_new22"], ["ocf2uqef_new23", "e5rpysnr_new3"], ["jm0323pe_new17", "0xonuzoc_new22"], ["ajkmgpxc_new15", "v5hj4xwu_new20"], ["jm0323pe_new17", "hjjccrju_new19"], ["v5hj4xwu_new20", "slzi5pn0_new16"], ["v5hj4xwu_new20", "ftg5lnmh_new10"], ["250o4fd0_new11", "hjjccrju_new19"], ["v4hlgrur_new18", "250o4fd0_new11"], ["vruvdx5q_new9", "v5hj4xwu_new20"], ["vruvdx5q_new9", "vradkqzd_new14"], ["pqqpve0e_new12", "250o4fd0_new11"], ["pqqpve0e_new12", "bxksp05x_new4"], ["2kru5d2v_new0", "vradkqzd_new14"], ["vradkqzd_new14", "35bi2n5j_new2"], ["i4y0tkc4_new13", "250o4fd0_new11"], ["vradkqzd_new14", "ftg5lnmh_new10"], ["2kru5d2v_new0", "r2n3k414_new6"], ["o0hyccmw_new7", "bxksp05x_new4"], ["r2n3k414_new6", "35bi2n5j_new2"], ["bxksp05x_new4", "5darsq1p_new8"], ["r2n3k414_new6", "e5rpysnr_new3"], ["s0aa0c22_new5", "5darsq1p_new8"], ["r2n3k414_new6", "zjx3reps_new1"], ["o0hyccmw_new7", "s0aa0c22_new5"], ["vbz5jlrr_new24", "vruvdx5q_new9"], ["vbz5jlrr_new24", "2kru5d2v_new0"], ["vbz5jlrr_new24", "ajkmgpxc_new15"], ["4cxfzdli_new21", "v4hlgrur_new18"], ["lpwusn2w_new26", "o0hyccmw_new7"], ["pqqpve0e_new12", "lpwusn2w_new26"], ["lpwusn2w_new26", "4cxfzdli_new21"], ["lpwusn2w_new26", "v4hlgrur_new18"], ["lpwusn2w_new26", "ajkmgpxc_new15"], ["lpwusn2w_new26", "zjx3reps_new1"], ["lpwusn2w_new26", "2kru5d2v_new0"], ["lpwusn2w_new26", "vruvdx5q_new9"], ["e5rpysnr_new3", "sbahb4ro_new25"], ["sbahb4ro_new25", "0xonuzoc_new22"], ["sbahb4ro_new25", "5darsq1p_new8"], ["5darsq1p_new8", "0xonuzoc_new22"], ["sbahb4ro_new25", "i4y0tkc4_new13"], ["35bi2n5j_new2", "sbahb4ro_new25"], ["5darsq1p_new8", "i4y0tkc4_new13"], ["sbahb4ro_new25", "hjjccrju_new19"], ["hjjccrju_new19", "i4y0tkc4_new13"], ["sbahb4ro_new25", "ftg5lnmh_new10"], ["sbahb4ro_new25", "slzi5pn0_new16"], ["hjjccrju_new19", "0xonuzoc_new22"], ["lwfrllsg_new26", "4cxfzdli_new21"], ["o0hyccmw_new7", "lwfrllsg_new26"], ["lwfrllsg_new26", "pqqpve0e_new12"], ["lwfrllsg_new26", "v4hlgrur_new18"], ["djcf5cga_new26", "o0hyccmw_new7"], ["djcf5cga_new26", "4cxfzdli_new21"], ["bxksp05x_new4", "i4y0tkc4_new13"], ["djcf5cga_new26", "lwfrllsg_new26"], ["djcf5cga_new26", "r2n3k414_new6"], ["djcf5cga_new26", "s0aa0c22_new5"], ["djcf5cga_new26", "ocf2uqef_new23"], ["4cxfzdli_new21", "s0aa0c22_new5"], ["ojwk325z_new26", "ocf2uqef_new23"], ["ojwk325z_new26", "r2n3k414_new6"], ["ojwk325z_new26", "vradkqzd_new14"], ["ojwk325z_new26", "v5hj4xwu_new20"], ["ojwk325z_new26", "lwfrllsg_new26"], ["ojwk325z_new26", "sbahb4ro_new25"], ["ojwk325z_new26", "djcf5cga_new26"], ["ojwk325z_new26", "ajkmgpxc_new15"], ["ojwk325z_new26", "vruvdx5q_new9"], ["ojwk325z_new26", "2kru5d2v_new0"], ["ojwk325z_new26", "35bi2n5j_new2"], ["ojwk325z_new26", "e5rpysnr_new3"], ["ojwk325z_new26", "slzi5pn0_new16"], ["ojwk325z_new26", "ftg5lnmh_new10"]], "triangles":[ ["id1:", "id2:", "id3:"], {"group":"Cubetri"}, ["ftg5lnmh_new10", "ftg5lnmh_new10", "i4y0tkc4_new13"], ["250o4fd0_new11", "ftg5lnmh_new10", "i4y0tkc4_new13"], ["i4y0tkc4_new13", "vradkqzd_new14", "250o4fd0_new11"], ["vradkqzd_new14", "i4y0tkc4_new13", "35bi2n5j_new2"], ["35bi2n5j_new2", "bxksp05x_new4", "vradkqzd_new14"], ["vruvdx5q_new9", "250o4fd0_new11", "vradkqzd_new14"], ["pqqpve0e_new12", "vradkqzd_new14", "bxksp05x_new4"], ["bxksp05x_new4", "2kru5d2v_new0", "pqqpve0e_new12"], ["vruvdx5q_new9", "vradkqzd_new14", "pqqpve0e_new12"], ["bxksp05x_new4", "35bi2n5j_new2", "5darsq1p_new8"], ["5darsq1p_new8", "r2n3k414_new6", "bxksp05x_new4"], ["r2n3k414_new6", "5darsq1p_new8", "e5rpysnr_new3"], ["e5rpysnr_new3", "s0aa0c22_new5", "r2n3k414_new6"], ["o0hyccmw_new7", "r2n3k414_new6", "s0aa0c22_new5"], ["s0aa0c22_new5", "zjx3reps_new1", "o0hyccmw_new7"], ["2kru5d2v_new0", "bxksp05x_new4", "r2n3k414_new6"], ["r2n3k414_new6", "o0hyccmw_new7", "2kru5d2v_new0"], ["s0aa0c22_new5", "e5rpysnr_new3", "0xonuzoc_new22"], ["0xonuzoc_new22", "ocf2uqef_new23", "s0aa0c22_new5"], ["zjx3reps_new1", "s0aa0c22_new5", "ocf2uqef_new23"], ["ocf2uqef_new23", "4cxfzdli_new21", "zjx3reps_new1"], ["4cxfzdli_new21", "ocf2uqef_new23", "jm0323pe_new17"], ["jm0323pe_new17", "ajkmgpxc_new15", "4cxfzdli_new21"], ["ocf2uqef_new23", "0xonuzoc_new22", "slzi5pn0_new16"], ["slzi5pn0_new16", "jm0323pe_new17", "ocf2uqef_new23"], ["jm0323pe_new17", "slzi5pn0_new16", "hjjccrju_new19"], ["hjjccrju_new19", "v5hj4xwu_new20", "jm0323pe_new17"], ["ajkmgpxc_new15", "jm0323pe_new17", "v5hj4xwu_new20"], ["v5hj4xwu_new20", "v4hlgrur_new18", "ajkmgpxc_new15"], ["v4hlgrur_new18", "v5hj4xwu_new20", "250o4fd0_new11"], ["250o4fd0_new11", "vruvdx5q_new9", "v4hlgrur_new18"], ["v5hj4xwu_new20", "hjjccrju_new19", "ftg5lnmh_new10"], ["ftg5lnmh_new10", "250o4fd0_new11", "v5hj4xwu_new20"], ["4cxfzdli_new21", "ajkmgpxc_new15", "v4hlgrur_new18"], ["v4hlgrur_new18", "lwfrllsg_new26", "4cxfzdli_new21"], ["lwfrllsg_new26", "v4hlgrur_new18", "vruvdx5q_new9"], ["vruvdx5q_new9", "pqqpve0e_new12", "lwfrllsg_new26"], ["lwfrllsg_new26", "pqqpve0e_new12", "2kru5d2v_new0"], ["2kru5d2v_new0", "o0hyccmw_new7", "lwfrllsg_new26"], ["lwfrllsg_new26", "o0hyccmw_new7", "zjx3reps_new1"], ["zjx3reps_new1", "4cxfzdli_new21", "lwfrllsg_new26"], ["hjjccrju_new19", "sbahb4ro_new25", "i4y0tkc4_new13"], ["i4y0tkc4_new13", "ftg5lnmh_new10", "hjjccrju_new19"], ["slzi5pn0_new16", "0xonuzoc_new22", "sbahb4ro_new25"], ["sbahb4ro_new25", "hjjccrju_new19", "slzi5pn0_new16"], ["0xonuzoc_new22", "e5rpysnr_new3", "5darsq1p_new8"], ["5darsq1p_new8", "sbahb4ro_new25", "0xonuzoc_new22"], ["sbahb4ro_new25", "5darsq1p_new8", "35bi2n5j_new2"], ["35bi2n5j_new2", "i4y0tkc4_new13", "sbahb4ro_new25"], ["o0hyccmw_new7", "s0aa0c22_new5", "djcf5cga_new26"], ["djcf5cga_new26", "s0aa0c22_new5", "ocf2uqef_new23"], ["ocf2uqef_new23", "4cxfzdli_new21", "djcf5cga_new26"], ["o0hyccmw_new7", "4cxfzdli_new21", "lwfrllsg_new26"], ["o0hyccmw_new7", "djcf5cga_new26", "4cxfzdli_new21"], {"group":""}]} }
I attached a zip file with my first model in this game, 2 cubes attached to each other with a rope. Take a look at my code and see if you can find what you have to fix. I also included the .dae just in case you wanna see the 3 different meshes and how everything is connected.

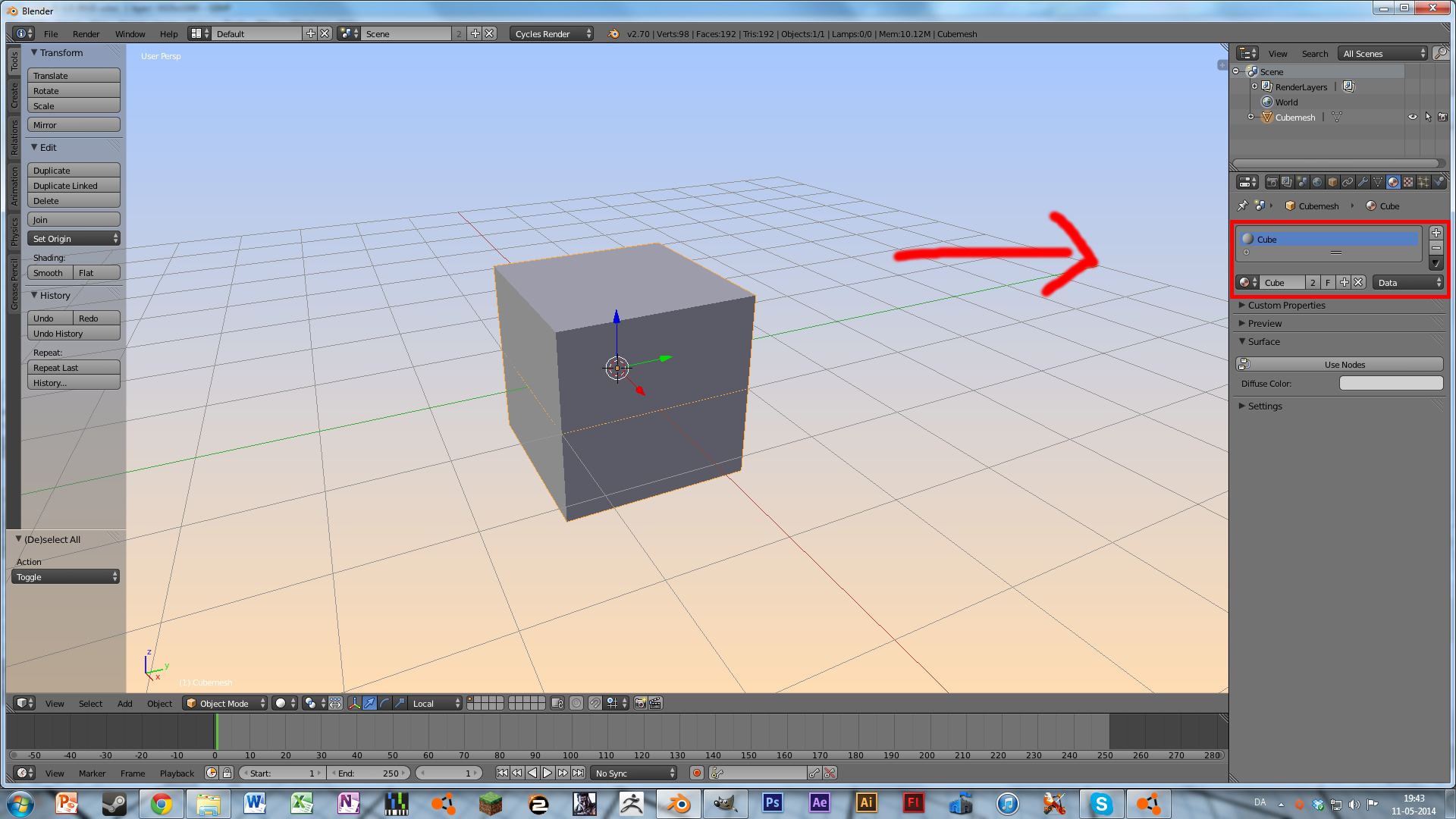

IDK why is there a rotation and translation section... Anyways under the "mesh" rename "Cube" to object name which is in the DAE mesh (NOT the DAE name itself). Group seems fine, but there is one more bracket after it, which shouldnt be there, so remove it.
I tried everything you did. I renamed the mesh inside the .DAE and the mesh in the JBeam file accordingly. If I remove one of the three brackets, it breaks completely. I have attached the files, so you can inspect them. View attachment Cube.zip The weird thing is that the code looks exactly like it should, but it just doesn't work at all. - - - Updated - - - I found the culprit! I just had to make a material before I exported the .DAE. I have no idea why I forgot about that.
