Introduction to Vehicle Creation - Feedback Thread

Discussion in 'Content Creation' started by B25Mitch, Nov 26, 2014.

  1. SquishyPanda

    SquishyPanda
    Expand Collapse

    Joined:
    Jun 3, 2015
    Messages:
    11
    Aha! That worked ^_^ Thanks!
    --- Post updated ---
    I am back on track :) Thanks for your help

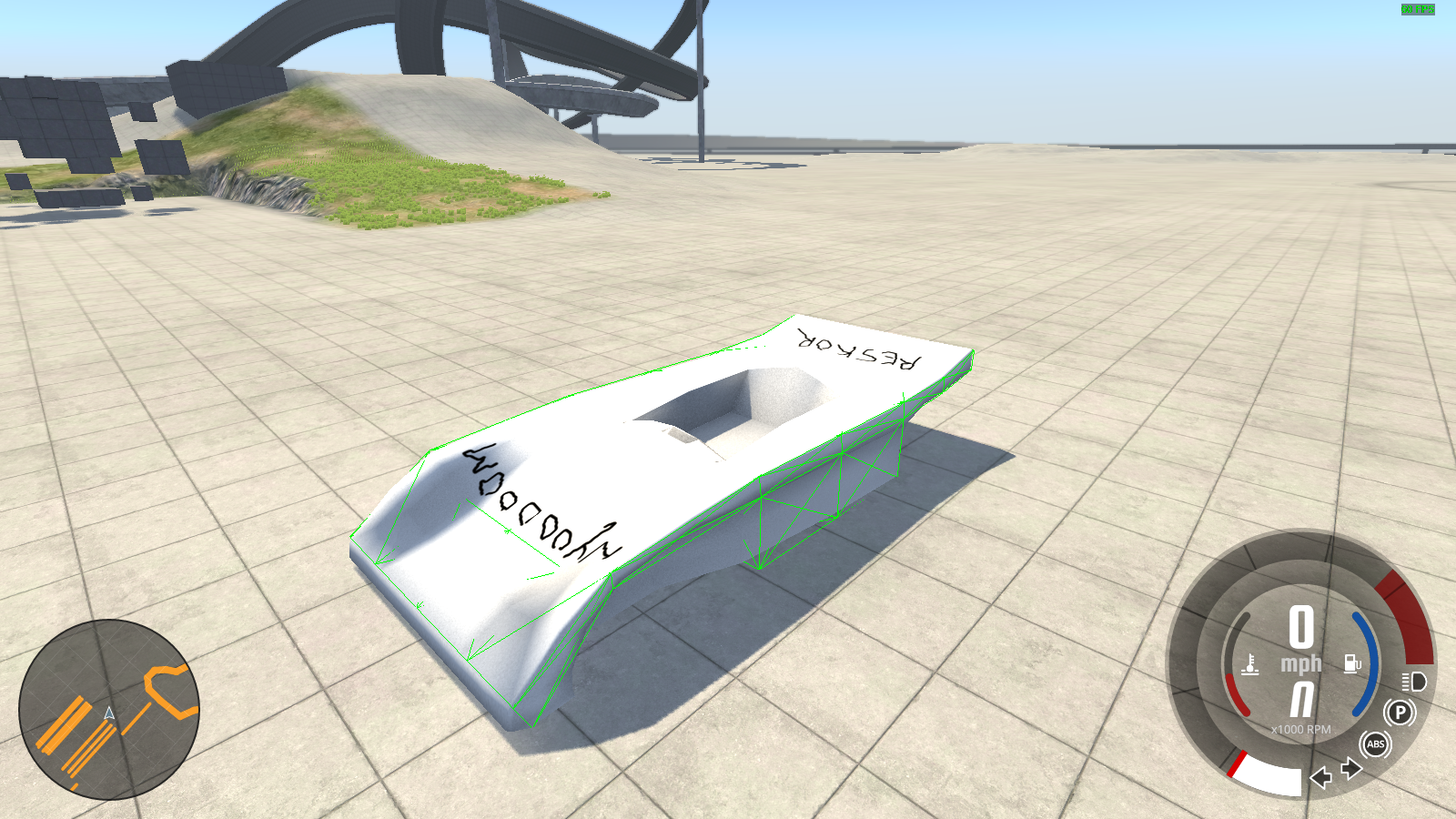

    As you can see, I am also a master of Photoshop.

    The reskor body currently wobbles like an underinflated air mattress left outside in a gentle breeze. Is it good practice to add some internal jbeams to stiffen it? Or should I be tweaking the jbeam properties in the jbeam file?

  2. SquishyPanda

    SquishyPanda
    Expand Collapse

    Joined:
    Jun 3, 2015
    Messages:
    11
    I threw in a few interior beams and it seems to work pretty well. It would be better if I added more but I was just doing them in notepad because I didn't want to do the blender bits over again haha.

    I know I'm getting ahead of myself if I've blown an evening being confounded by a three-click operation in Blender, but will there be/is there already a tutorial on making vehicles out of separate pieces (chassis, body panels, suspension bits, etc) and anchoring them together?

  3. SquishyPanda

    SquishyPanda
    Expand Collapse

    Joined:
    Jun 3, 2015
    Messages:
    11
    I don't know what happened but everything's gone off the rails. I tried starting over to make a different car body now that I have an idea of how the jbeams structures are supposed to work, but following the same steps as the first time yields a console full of errors:
    "unable to get original node positions"
    The camera goes to the floor and is stuck there, and the debug menu won't open. Hitting K doesn't do anything. Everything works fine if I tab back to another vehicle.

    What's weird is the thing that was working yesterday is now giving me the same problem :/ I feel like I've messed something up translating a blender file to jbeams. I applied my mirror modifier and hit Ctrl-A and made sure Location, Scale, and Rotation were checked before exporting. I couldn't even get the Blender starter cube to load in the game.

    In blender, I typically leave the object origin at 0,0,0 and move things around in edit mode to make sure everything stays above the Z plane. I've also tried moving the object so the origin is above the Z plane. Neither option seems to be working today.

    Should I just take up pottery or something instead?

  4. SquishyPanda

    SquishyPanda
    Expand Collapse

    Joined:
    Jun 3, 2015
    Messages:
    11

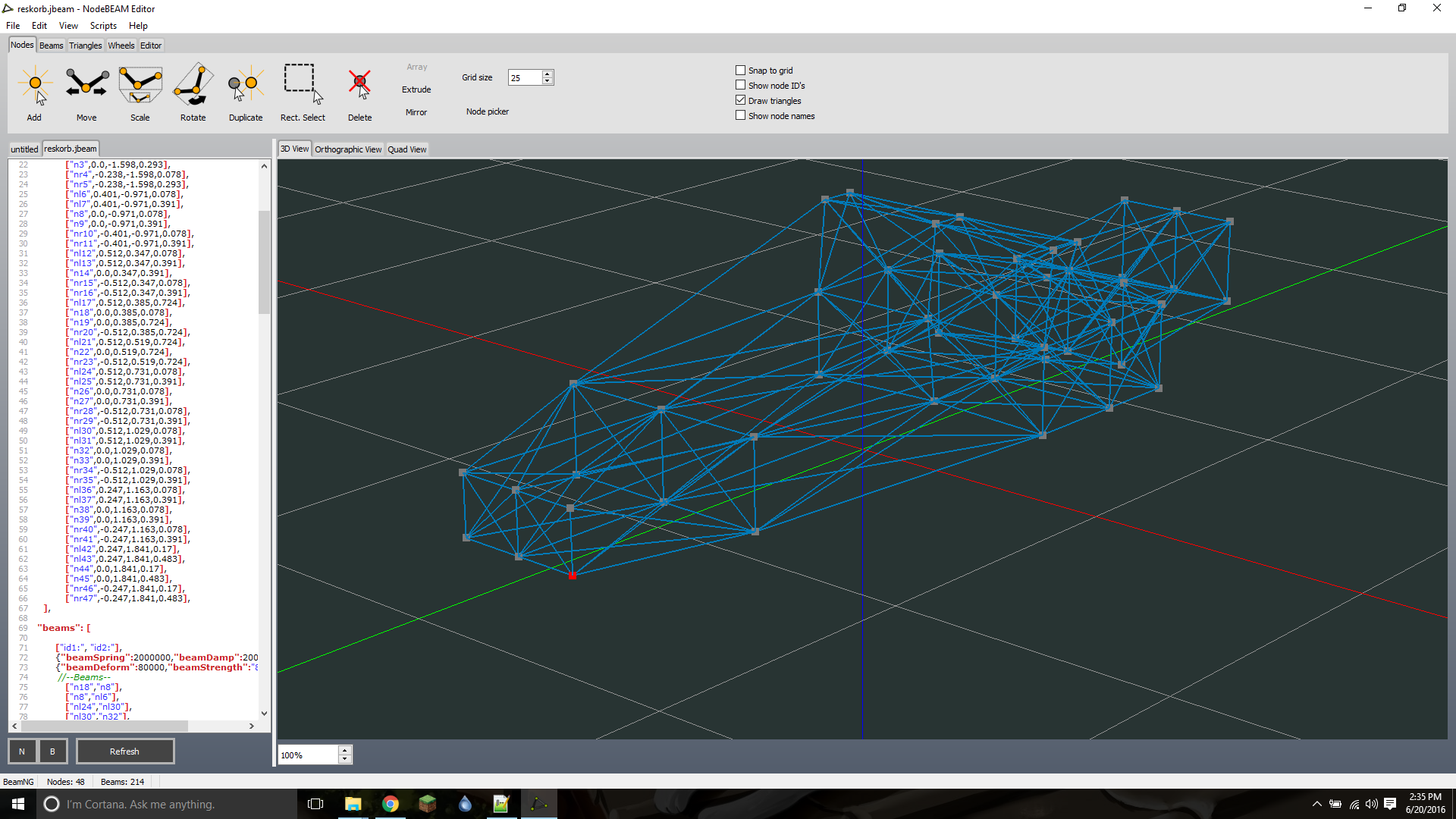

    As far as I can tell all my brackets are paired up and I'm not missing any commas. I don't have any refNodes but it worked without them the first time I tried this. The jbeam file loads in NodeBeam editor but one of the nodes is red
    Should I try to make a refNodes section? Is the red node screwing me up?
    --- Post updated ---
    Oh nevermind the red one is just the first node in the list haha. I'll start working on that refNodes section
    --- Post updated ---
    Still no dice :(
    jbeam file
    (BTW your rock crawler and rock bouncer are neat-o. I totally blew a couple of hours cruising around the Utah map with those.)

    #124 SquishyPanda, Jun 21, 2016
    Last edited: Jun 21, 2016
  5. SquishyPanda

    SquishyPanda
    Expand Collapse

    Joined:
    Jun 3, 2015
    Messages:
    11
    Hm. I removed the extra commas and junk, cleared the cache, and tried again. Still the same problem :/

  6. burilkovdeni

    burilkovdeni
    Expand Collapse

    Joined:
    Aug 21, 2014
    Messages:
    1,080
    Put in mods.

    This should work.

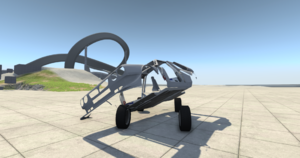

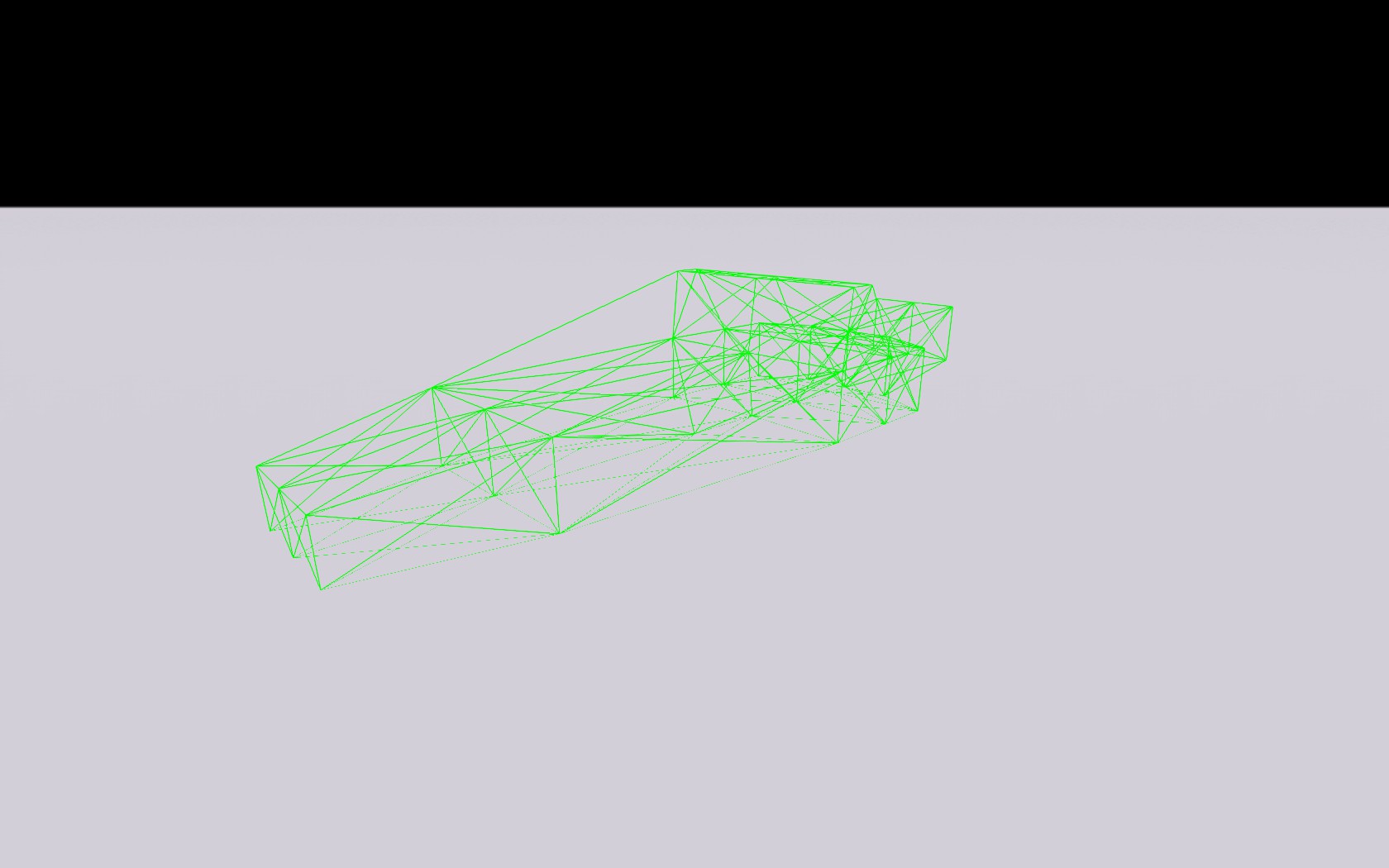

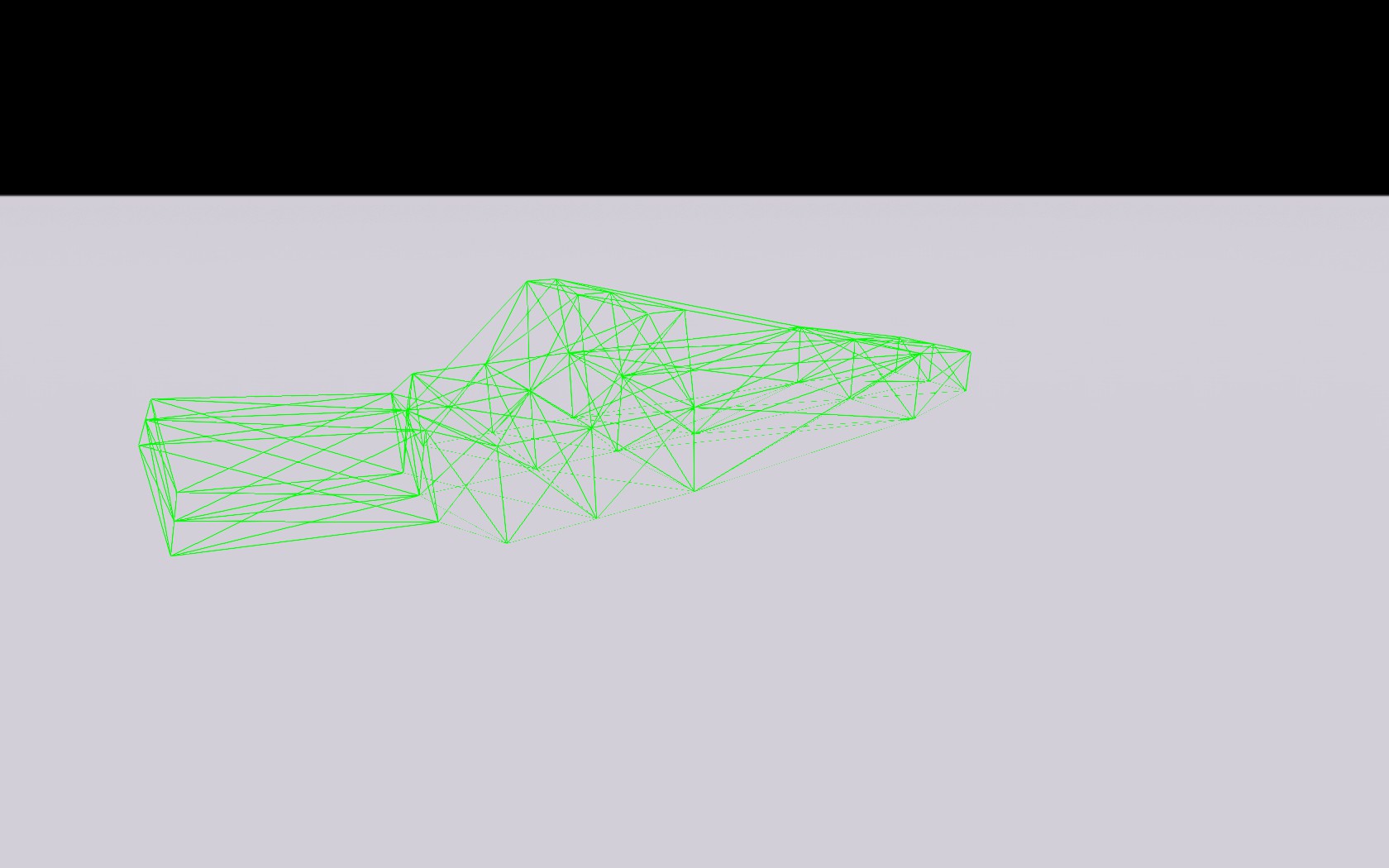

    20160621112124_1.jpg 20160621112743_1.jpg < Ingame.


    Attached Files:

  7. SquishyPanda

    SquishyPanda
    Expand Collapse

    Joined:
    Jun 3, 2015
    Messages:
    11

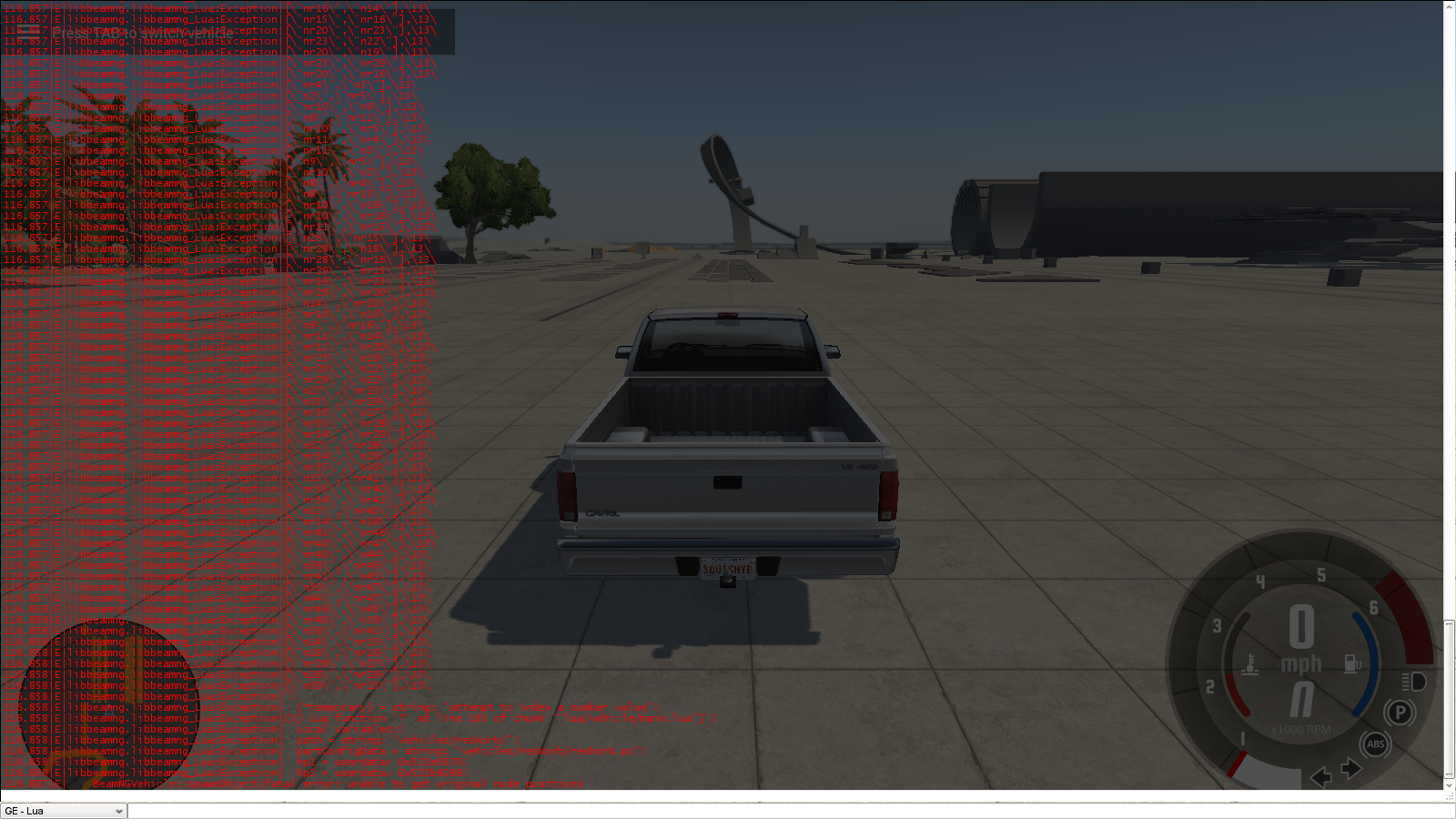

    The camera works now for some reason but I'm still getting teh same "unable to get original node positions" message:
    Looks like there is a line of red text for every node and beam.

    I will do that. My bad cluttering up this thread.

  8. Acrain7

    Acrain7
    Expand Collapse

    Joined:
    Sep 7, 2015
    Messages:
    2,823

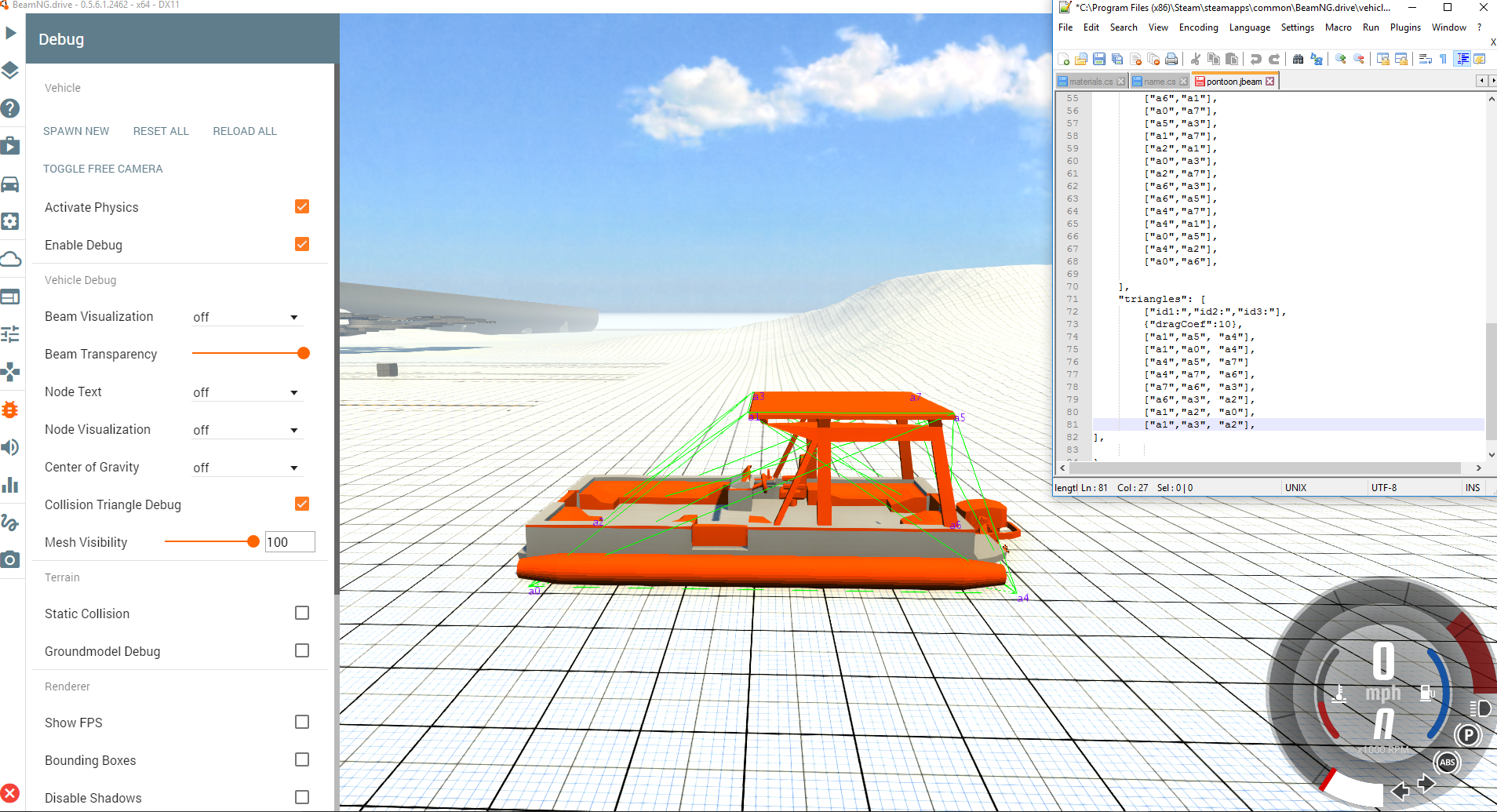

    what am i doing wrong with the collision triangles? i followed the same steps as the tutorial, but it wont show up ingame...
    EDIT:
    fixed, had forgotten to save jbeam file XD

    #128 Acrain7, Jun 23, 2016
    Last edited: Jun 23, 2016
  9. RedBoyRyan

    RedBoyRyan
    Expand Collapse

    Joined:
    Jun 2, 2016
    Messages:
    24
    nvm, i figured out how Thx Google but the other guy is not encourging

  10. CaddyCar02

    CaddyCar02
    Expand Collapse

    Joined:
    Apr 12, 2015
    Messages:
    25
    Good But not exactly what I'm looking for. This tutorial is more for building from scratch. I have recently remodeled the pigeon but extending the body but don't know how to edit the jbeam correctly.

    - Looking for how to edit jbeam files already associated with a vehicle.
    - If you want a more detailed answer just ask

  11. Dextc18

    Dextc18
    Expand Collapse

    Joined:
    Aug 13, 2016
    Messages:
    11
    Hi there, I am having trouble creating my new mod. I have followed all the steps up to the point of the first game test, but the game does not recognise it. I have checked in the mods menu, and it is not there, I have tried using just a folder and a zip file, and neither work, and I have also tried placing both of these in the content/vehicles folder, and that also did not work. I remember after some certain updates, some mods would go "missing" that I had installed. Would be possible that it is the version that is the problem? (I am using the most current version- 0.61). Thanks!

  12. Mario64iscool2

    Mario64iscool2
    Expand Collapse

    Joined:
    Mar 20, 2016
    Messages:
    63
    Sorry for bumping this thread but my vehicle won't show up in selector...


    Attached Files:

    • Agree Agree x 1
  13. Mario64iscool2

    Mario64iscool2
    Expand Collapse

    Joined:
    Mar 20, 2016
    Messages:
    63
    It just won't appear, that's why I'm confused.
    The video says it all.

  14. Mario64iscool2

    Mario64iscool2
    Expand Collapse

    Joined:
    Mar 20, 2016
    Messages:
    63
    Is it a matter of the exporter being unable to handle the load?

  15. gianpiero

    gianpiero
    Expand Collapse

    Joined:
    Aug 23, 2013
    Messages:
    373
    i have this problem


    Attached Files:

    • screenshot_00026.png
  16. Nadeox1

    Nadeox1
    Expand Collapse
    BeamNG.Support
    Staff Member

    Joined:
    Aug 5, 2012
    Messages:
    12,955
    3D Model 'origin' is not at 0,0,0 probably.

    • Like Like x 1
  17. Mario64iscool2

    Mario64iscool2
    Expand Collapse

    Joined:
    Mar 20, 2016
    Messages:
    63

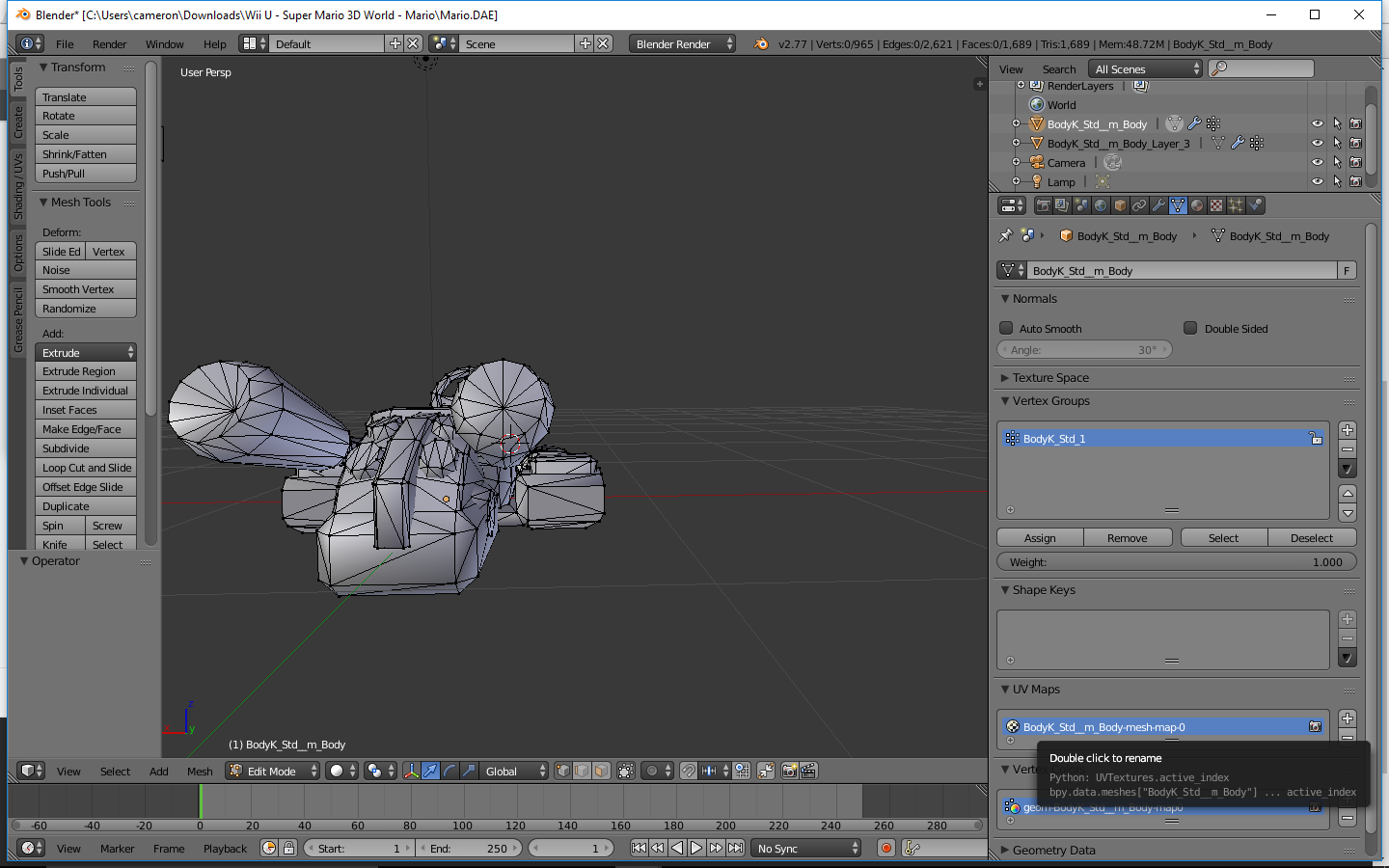

    Cross bracing this would only add more beams. Besides, It's already triangulated.


    Attached Files:

    • Screenshot (59).png
    #134 Mario64iscool2, Sep 6, 2016
    Last edited: Sep 6, 2016
  18. Mario64iscool2

    Mario64iscool2
    Expand Collapse

    Joined:
    Mar 20, 2016
    Messages:
    63
    ...
    Why?

  19. Mario64iscool2

    Mario64iscool2
    Expand Collapse

    Joined:
    Mar 20, 2016
    Messages:
    63
    How would I use the High Poly for the render with the low-poly Jbeam? BTW, the vehicle is built to be indestructible.

    #136 Mario64iscool2, Oct 1, 2016
    Last edited: Oct 1, 2016
  20. Mario64iscool2

    Mario64iscool2
    Expand Collapse

    Joined:
    Mar 20, 2016
    Messages:
    63
    I exported it, it won't load in-game...

    Edit: It'll load, it turns out I had more than one Jbeam, and they conflicted with one another.

    #136 Mario64iscool2, Oct 11, 2016
    Last edited: Oct 11, 2016
  21. DankEngihn

    DankEngihn
    Expand Collapse

    Joined:
    May 22, 2016
    Messages:
    20
    I know I'm bumping, but I'm stuck at the textures part. I have the everything up to the textures done, but I have no clue what to do from here.

  22. blueshift

    blueshift
    Expand Collapse

    Joined:
    Jun 12, 2015
    Messages:
    457
    Have you taken a look at the wiki? http://wiki.beamng.com/Modeling_and_Texturing_Guide

    • Like Like x 1
  23. DankEngihn

    DankEngihn
    Expand Collapse

    Joined:
    May 22, 2016
    Messages:
    20
    • Like Like x 1
    • Agree Agree x 1
  24. booger4495

    booger4495
    Expand Collapse

    Joined:
    Apr 27, 2016
    Messages:
    6
    Troubles with 3D Model


    Sorry for bumping but i'm having issues with trying to get my 3D model to show up. I have my Jbeam showing up and i can crash into it. But when i add all the scripts that the tutorial said too, the project is still just a Jbeam. :/. I've added the materials.cs and name.cs and i'm pretty sure I've checked my main Jbeam script and i can't find whats going wrong. Anyone have any ideas for whats going on? Would appreciate :)


    Attached Files:
