My Boat's Paint Project

Discussion in 'General Off-Topic' started by n0ah1897, Jul 1, 2014.

  1. n0ah1897

    n0ah1897
    Expand Collapse

    Joined:
    Jan 31, 2013
    Messages:
    625
    So I figured I'd post a sort of "log" of me and my dad's little project. So our boat is a 1974 Correct Craft Martinique inboard ski boat. It has a Ford PCM 351W engine with 240 horsepower. We recently had the transmission rebuilt a year or 2 ago because it is the original transmission with over 1500 hours on it (you measure boats by hours instead of miles).

    Here is a picture of what the boat looked like when we bought it 4 or 5 years back.


    As you can see it is quite an ugly color and far from the original paint job.

    Here is a pic of a stock paint job for a '74 Martinique for reference.


    So to begin this project we needed to remove everything attached to the boat as well as remove all stickers and decals.


    Removing the decals from both sides of the boat took forever. They were applied with industrial strength gorilla glue or something. (The fact that they were 20 year old decals didn't help either)

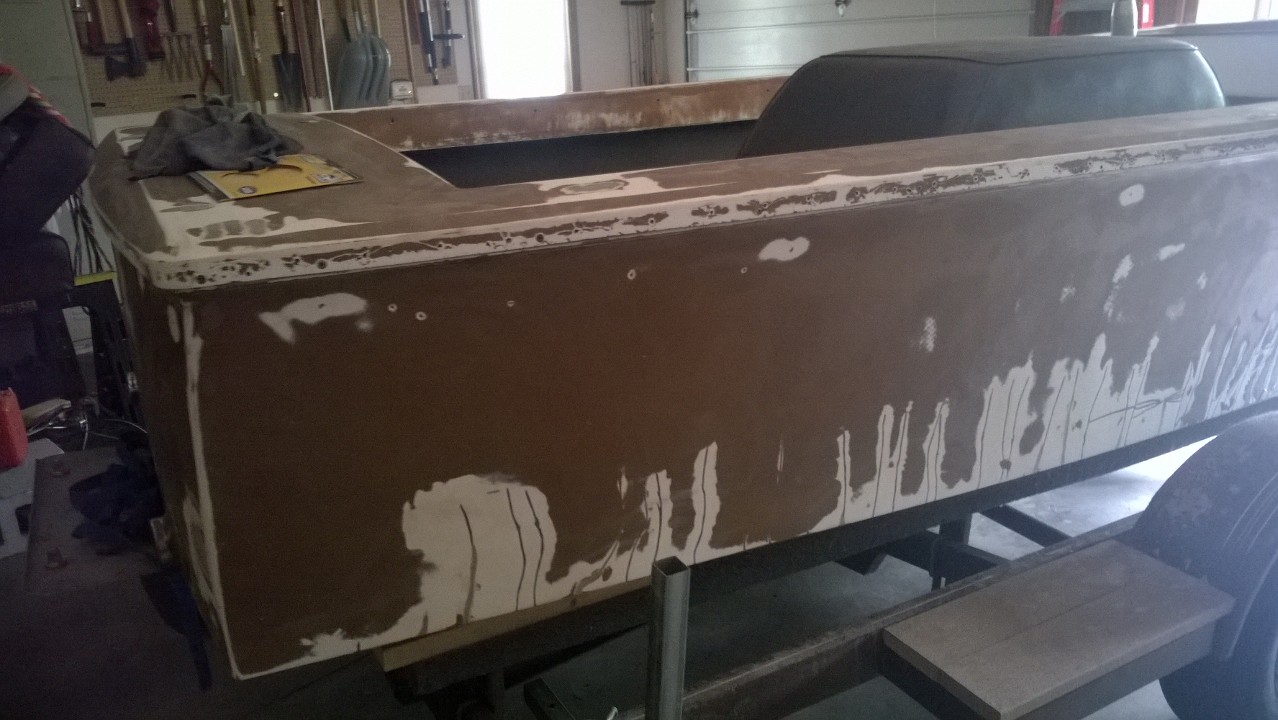

    Then it was time to start grinding. (My dad did all the grinding and epoxy work because he is a perfectionist and it is his boat)

    qsRL1RZ.jpg Fq02olt.jpg

    There was a metric butt ton of cracks that needed to be ground out and filled. (We didn't even touch the bottom of this boat during the project due to restrictions and limited equipment)

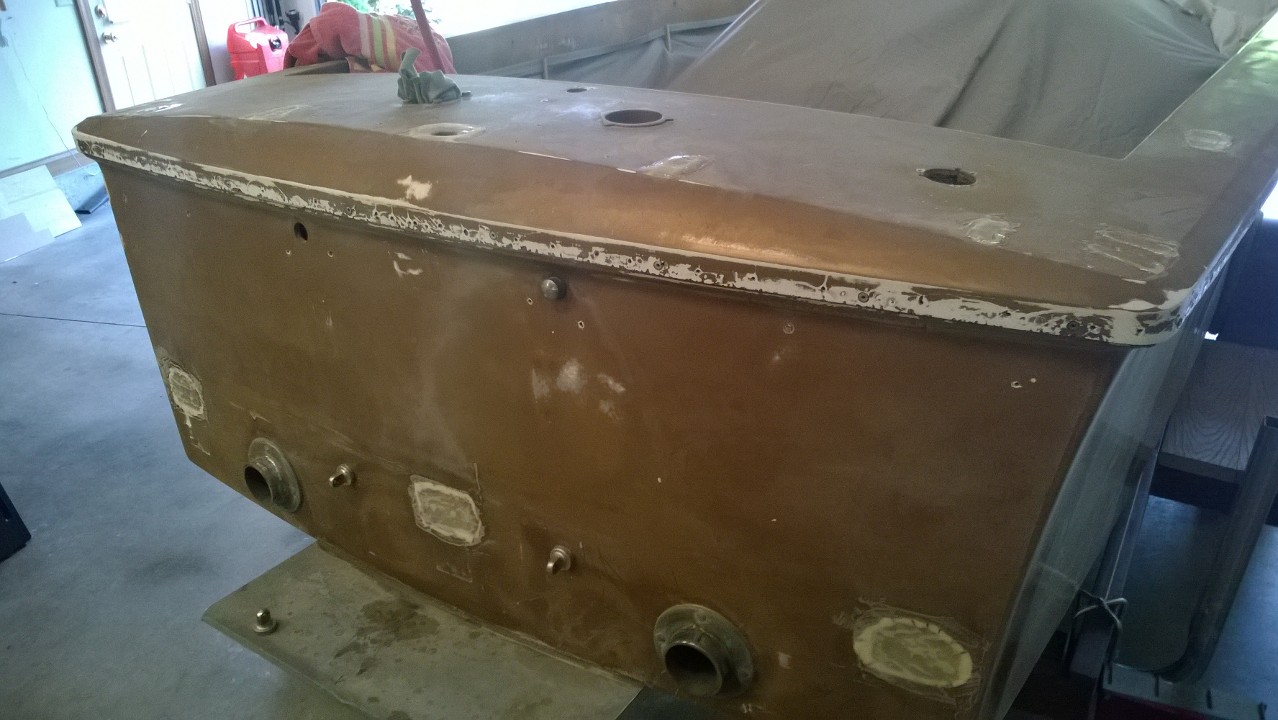

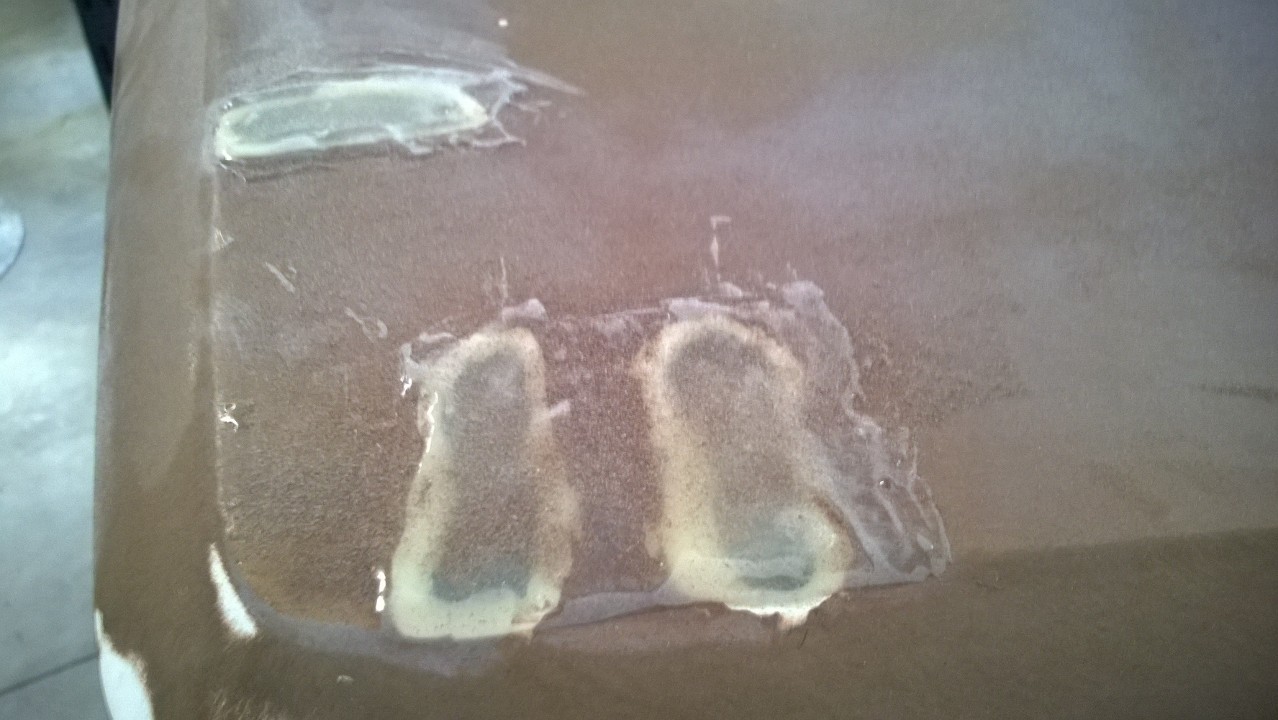

    After grinding everything out we epoxied the areas with this special epoxy that becomes 3 times stronger than steel when dry.

    5dzDExc.jpg l2Tk04G.jpg AuJDuLF.jpg

    We used the epoxy in the large areas that had been ground out, then used a putty to fill in the tinier cracks.

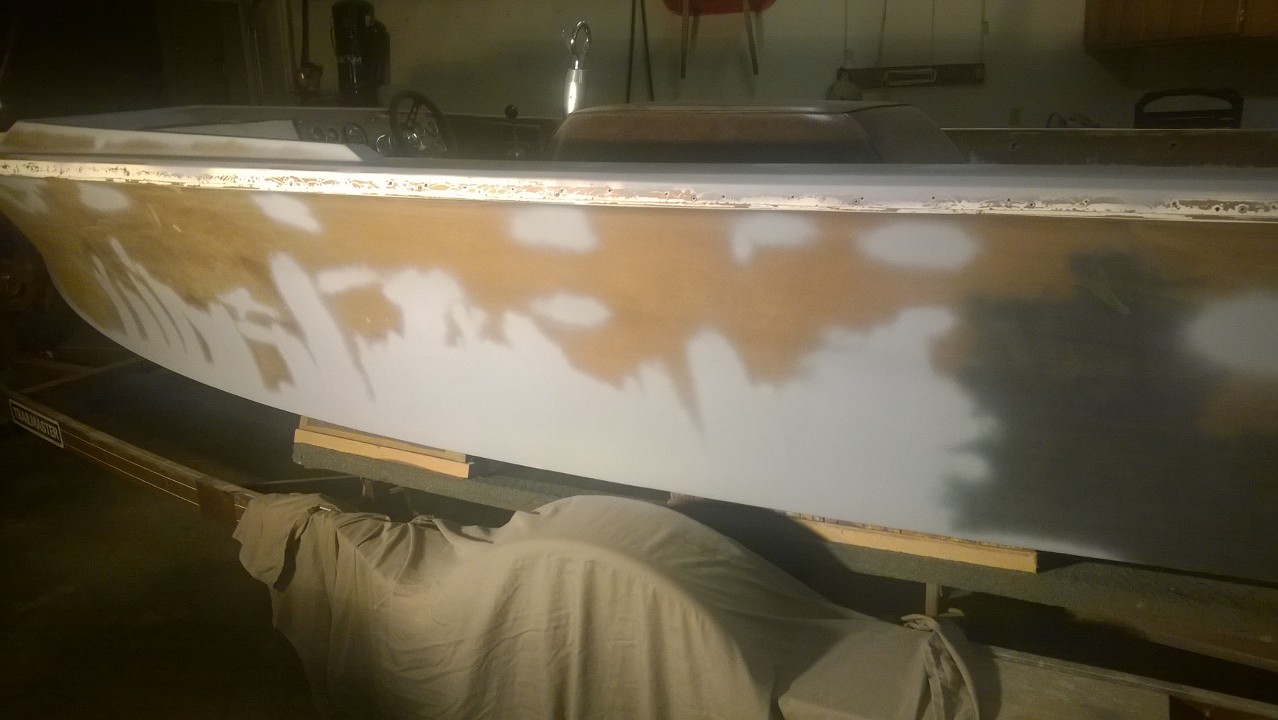

    Then we used some spray paint to prime the areas and fill in the miniscule cracks and wet sanded the boat with really fine sandpaper once everything dried.

    y6qUQgl.jpg Y77yL6u.jpg 8d6G7oz.jpg

    Now comes the real paint.

    tWa0mU7.jpg q7QN4v3.jpg

    We decided on an orange and black color scheme. The orange is an Alice Chalmer tractor orange. (The pictures don't show the actual color quite right so once we can get it in the sunlight I'll take a pic to give you a better idea of the actual color).

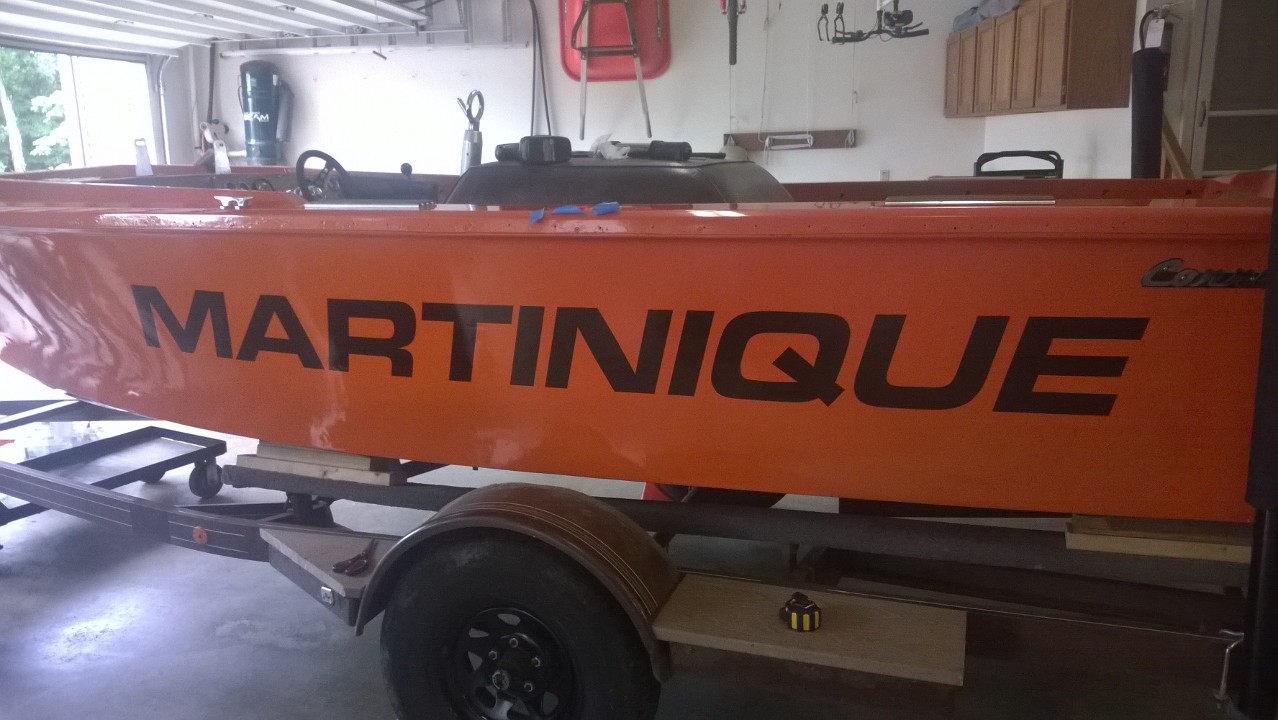

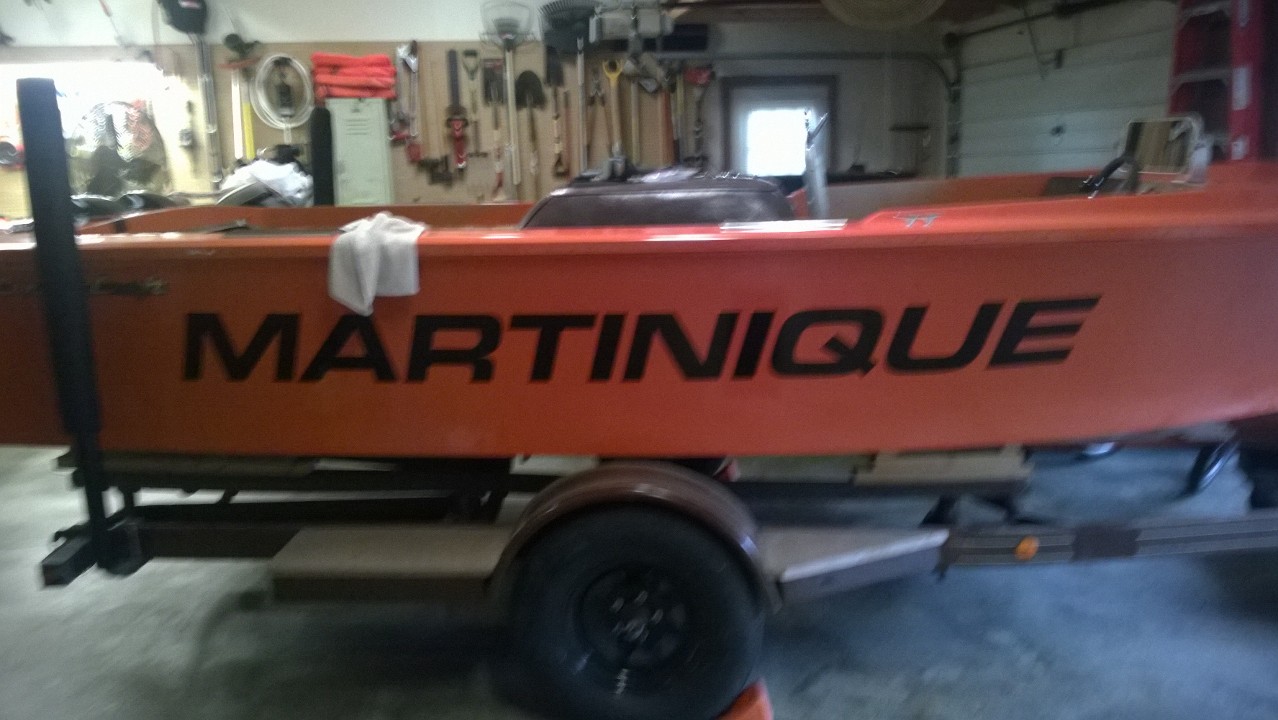

    We also have a family friend that does decals and he managed to find the exact same font for the lettering on the side of the boat.

    5KSYfRd.jpg NndkpVF.jpg

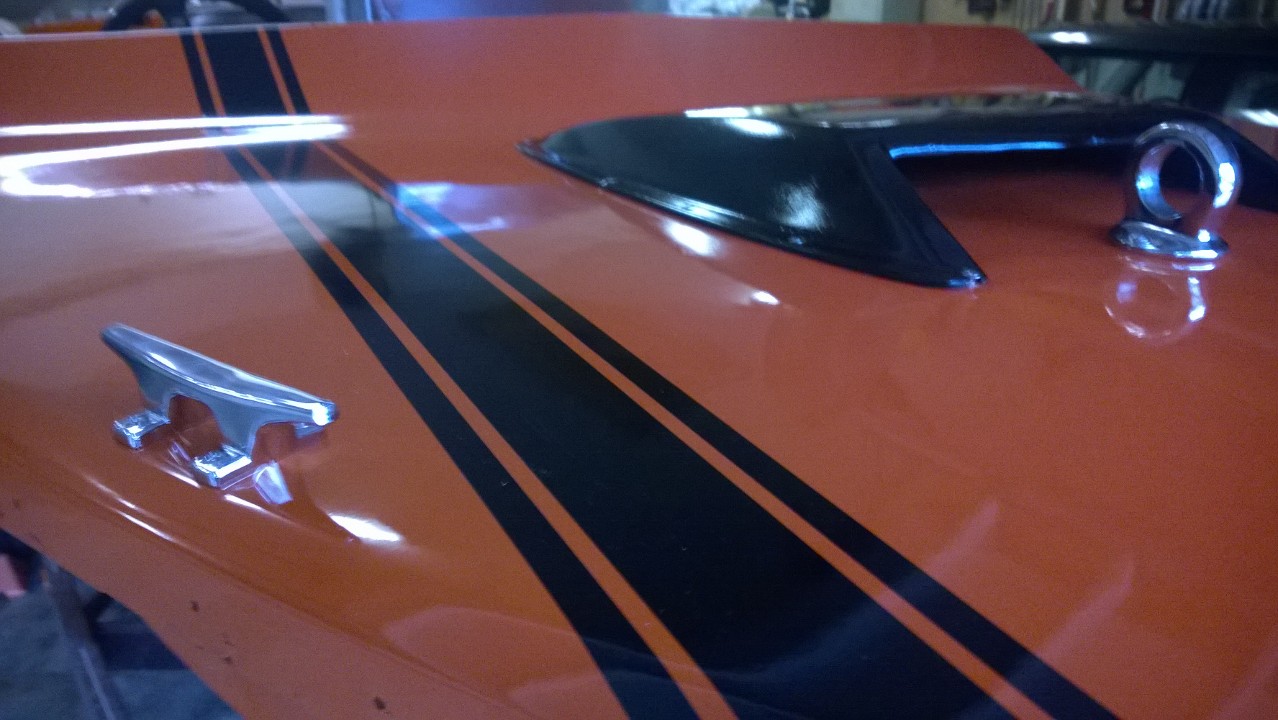

    We also added a racing stripe on the driver side.

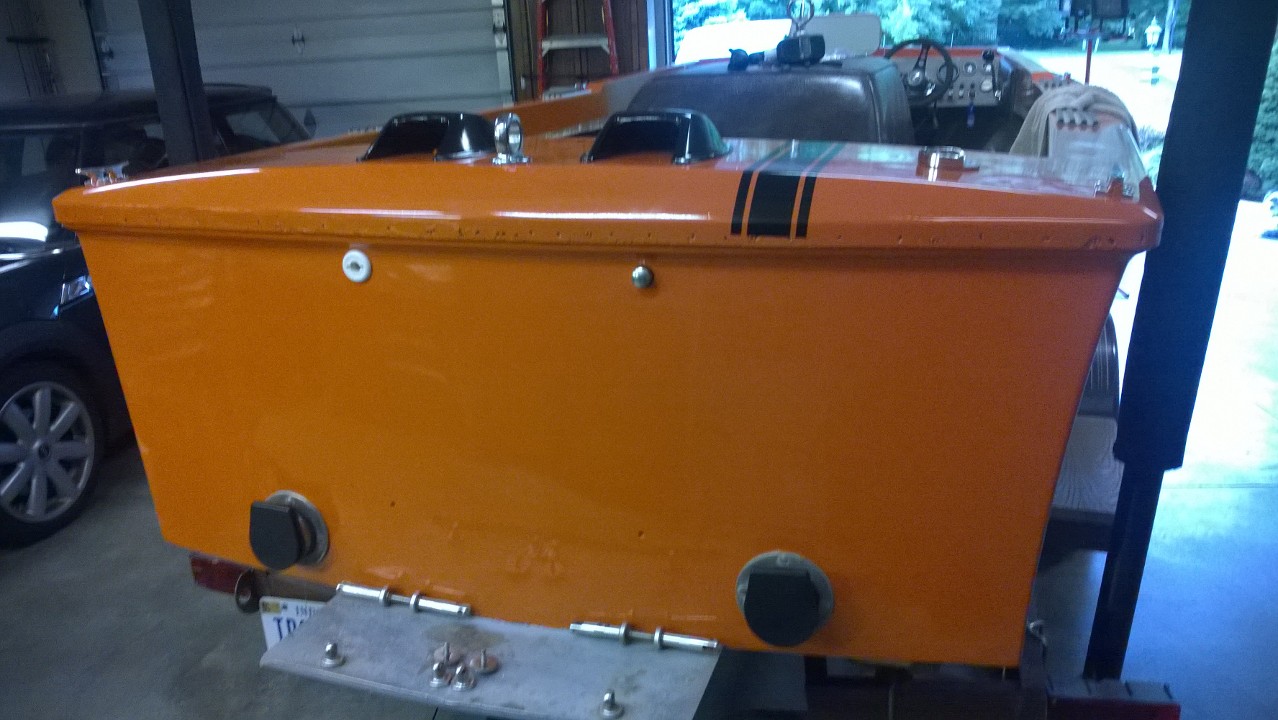

    nZtayXr.jpg jcQwKJ4.jpg dTpe6jz.jpg

    As you can see it also has dual straight pipe exhaust.

    Those two copper pipes are the exhaust pipes. It's a 3" diameter straight pipe (about 5 feet long) from the engine to the rear, giving this era of Correct Crafts a beautiful exhaust note.

    Here is a video of a 67 Mustang for reference exhaust sound.



    And another good reference video. (This is almost the exact same boat as mine)



    This is all we have done so far. We still need to put the teak swim platform back on as well as the outer handrails and seats. We are also at some point going to get the interior re-upholstered to match the new color scheme. We are trying to finish this up in a month so we can take it to our lake for a week. As we get more done, I'll be posting more pics and hopefully a video or two.


    I also found a video I took a little while back of it on startup.


    #1 n0ah1897, Jul 1, 2014
    Last edited by a moderator: Oct 21, 2015
  2. Cwazywazy

    Cwazywazy
    Expand Collapse

    Joined:
    Dec 1, 2012
    Messages:
    1,245
  3. daveywaveyHD

    daveywaveyHD
    Expand Collapse

    Joined:
    Aug 16, 2012
    Messages:
    328
    Nice Ark Noah! (wow).

  4. Autofan

    Autofan
    Expand Collapse

    Joined:
    Jun 26, 2013
    Messages:
    471
    Cool project and nice boat :D

  5. n0ah1897

    n0ah1897
    Expand Collapse

    Joined:
    Jan 31, 2013
    Messages:
    625
    Thanks. It's not perfect, but it will do. Much better than the bronze that it had before.

  6. KiloHotel

    KiloHotel
    Expand Collapse

    Joined:
    Sep 29, 2012
    Messages:
    388
    351 windsor in a small boat like that? yis pls.

  7. n0ah1897

    n0ah1897
    Expand Collapse

    Joined:
    Jan 31, 2013
    Messages:
    625
    The Ski nautique and Martinique are both 18ft boats with 351's. If you bump up to a barefoot nautique, it is one foot longer with a 300hp 454 in it.

  8. n0ah1897

    n0ah1897
    Expand Collapse

    Joined:
    Jan 31, 2013
    Messages:
    625
    So I've got a few updates. We have gotten quite a bit more of the boat put back together. There is only a few more things to put on before it is all done.

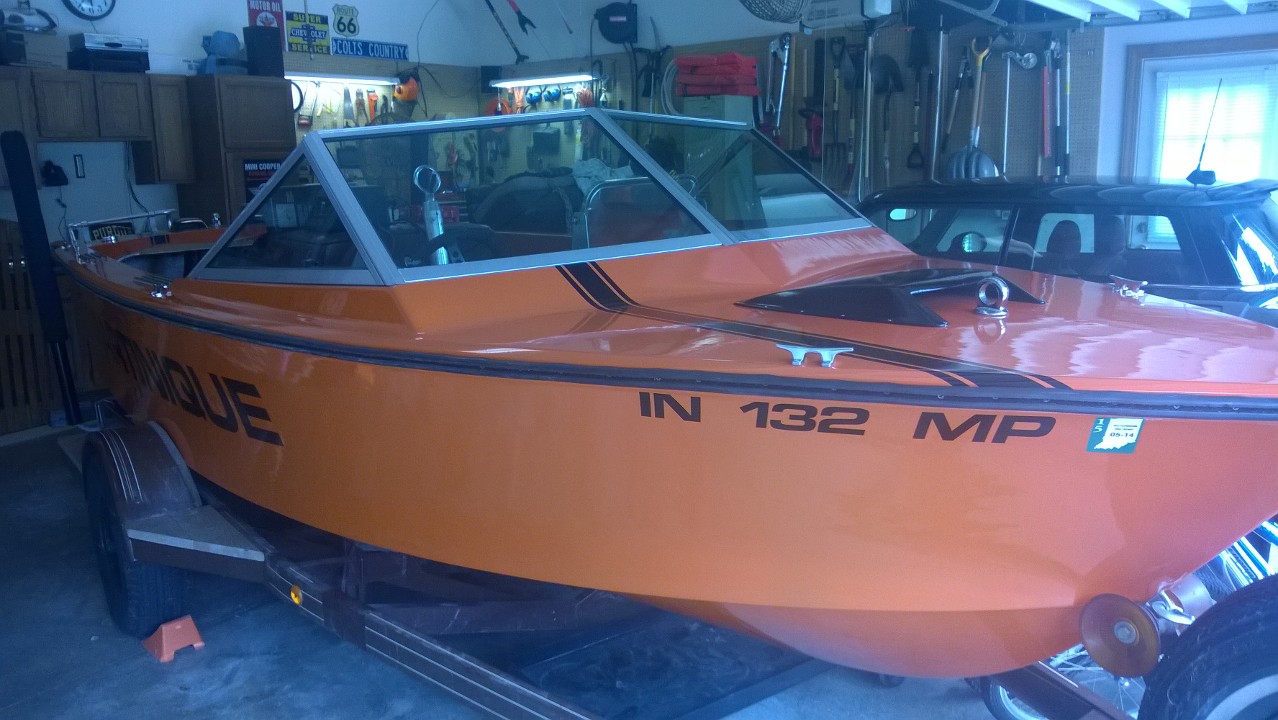

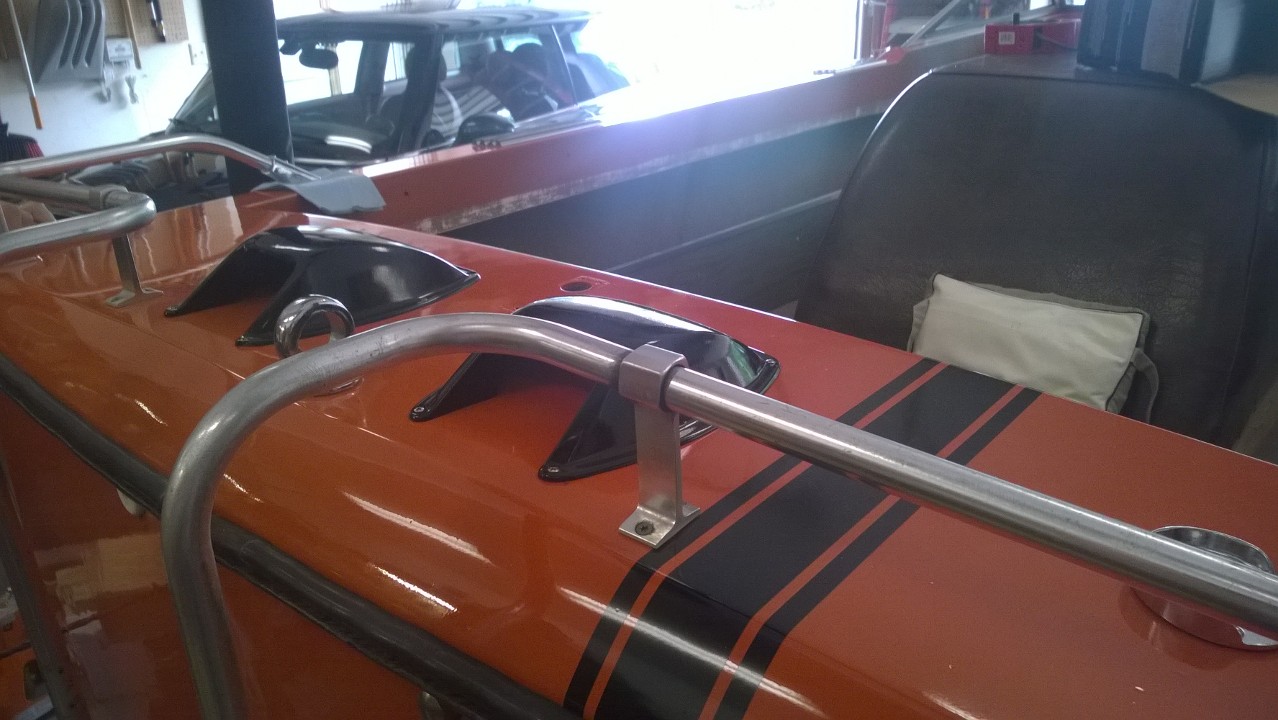

    We have finished re-attaching the decals, windshield, and rub rail. The rub rail still needs to have a rope put in the middle (which my dad is in the progress of doing right now). We also have the rear handrail attached in the back.

    WP_20140719_001.jpg WP_20140719_003.jpg

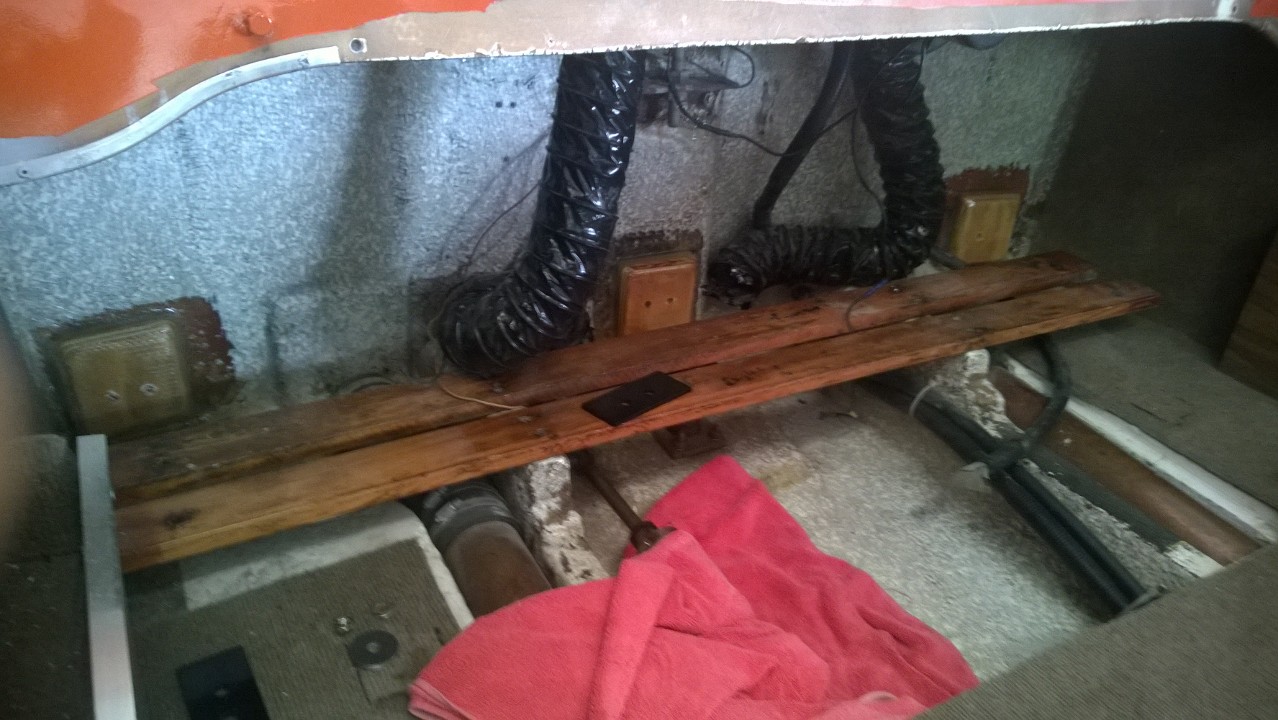

    We are also reinforcing the swim platform because it was a little bit wobbly previously. We used 2 inch thick blocks of wood which we coated in fiberglass mat to prevent rotting.

    WP_20140719_005.jpg WP_20140719_009.jpg

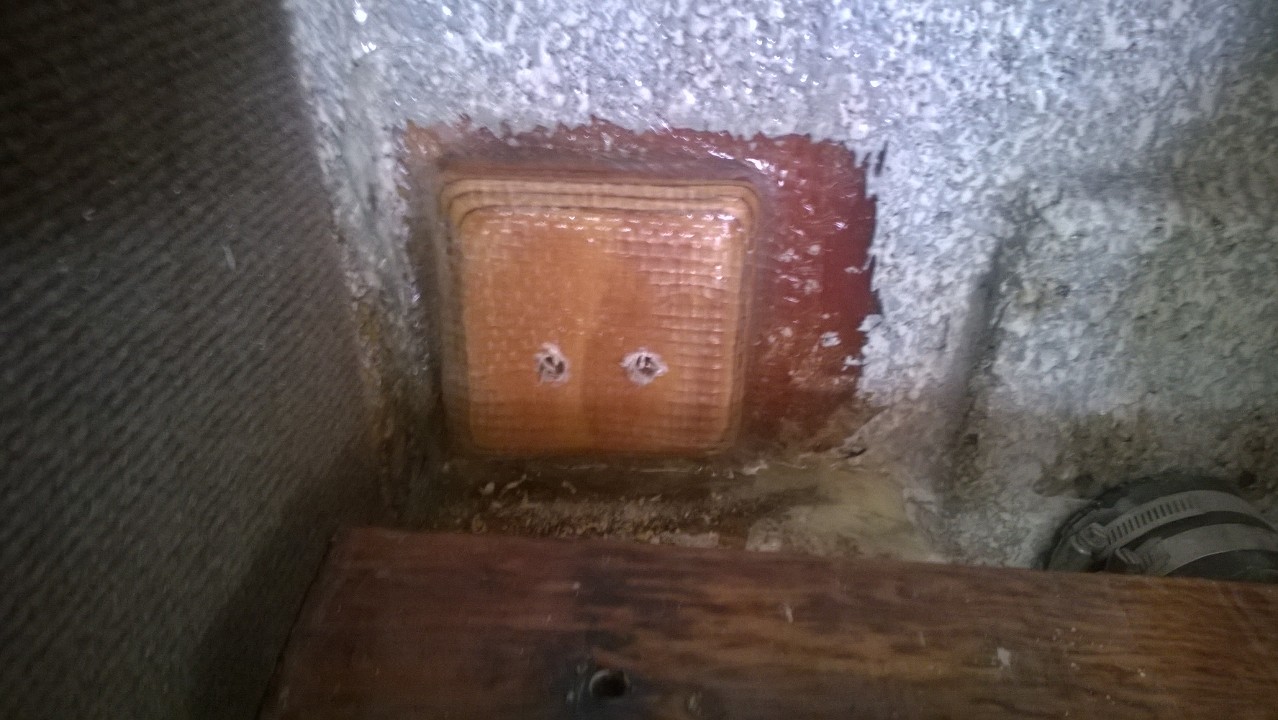

    We are also using steel plates for added reinforcement.

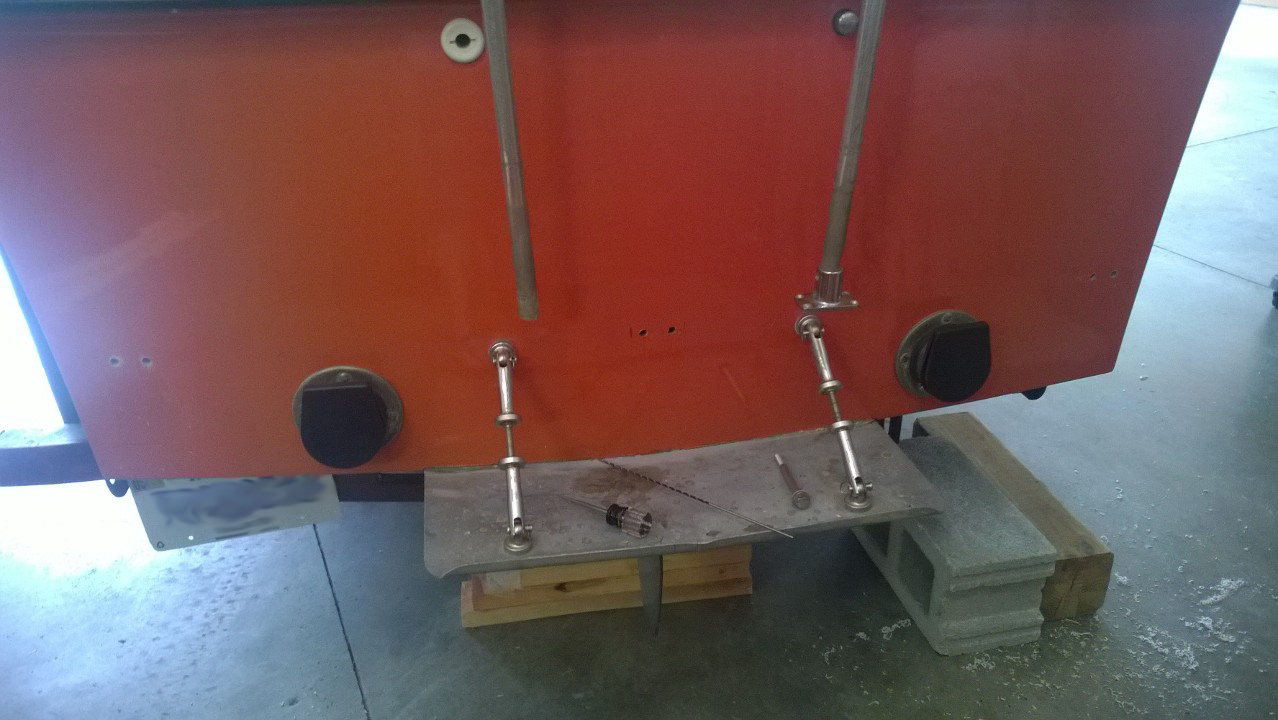

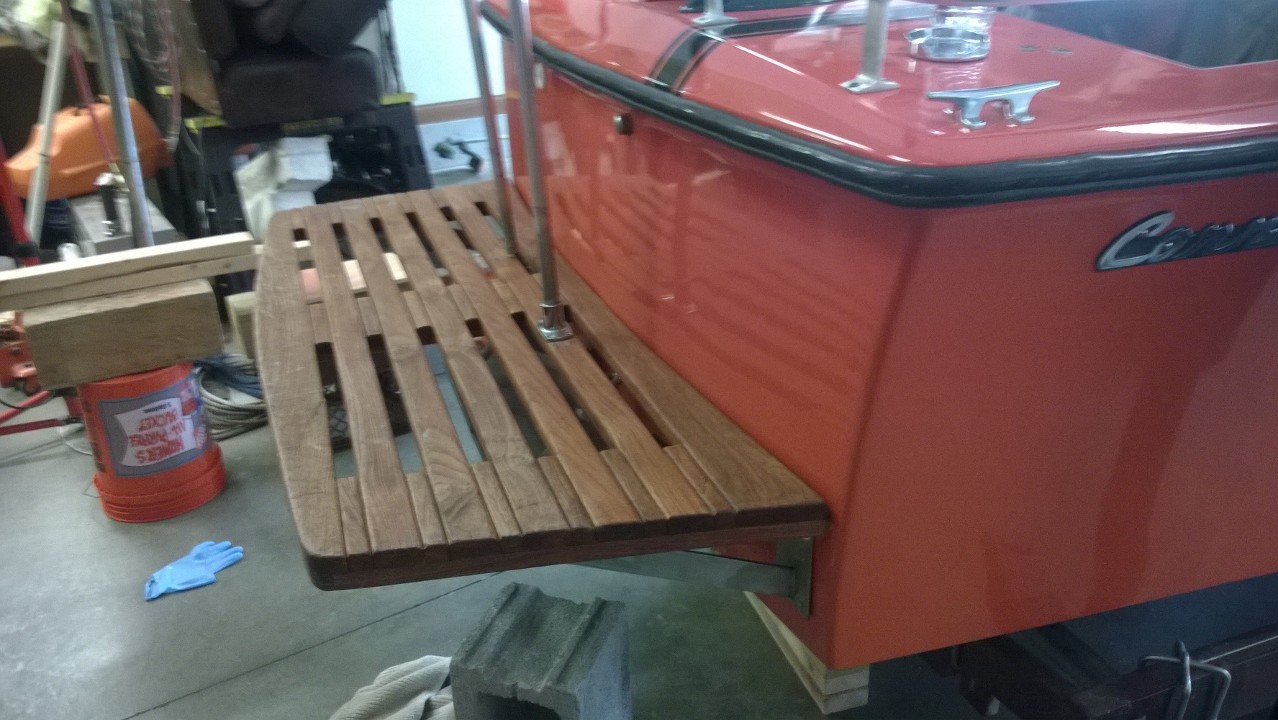

    My dad then drilled the main holes for the mounting brackets on the swim platform and we did a dry fit of the teak platform.

    WP_20140719_011.jpg WP_20140719_012.jpg

    ____________________________________________________________________________

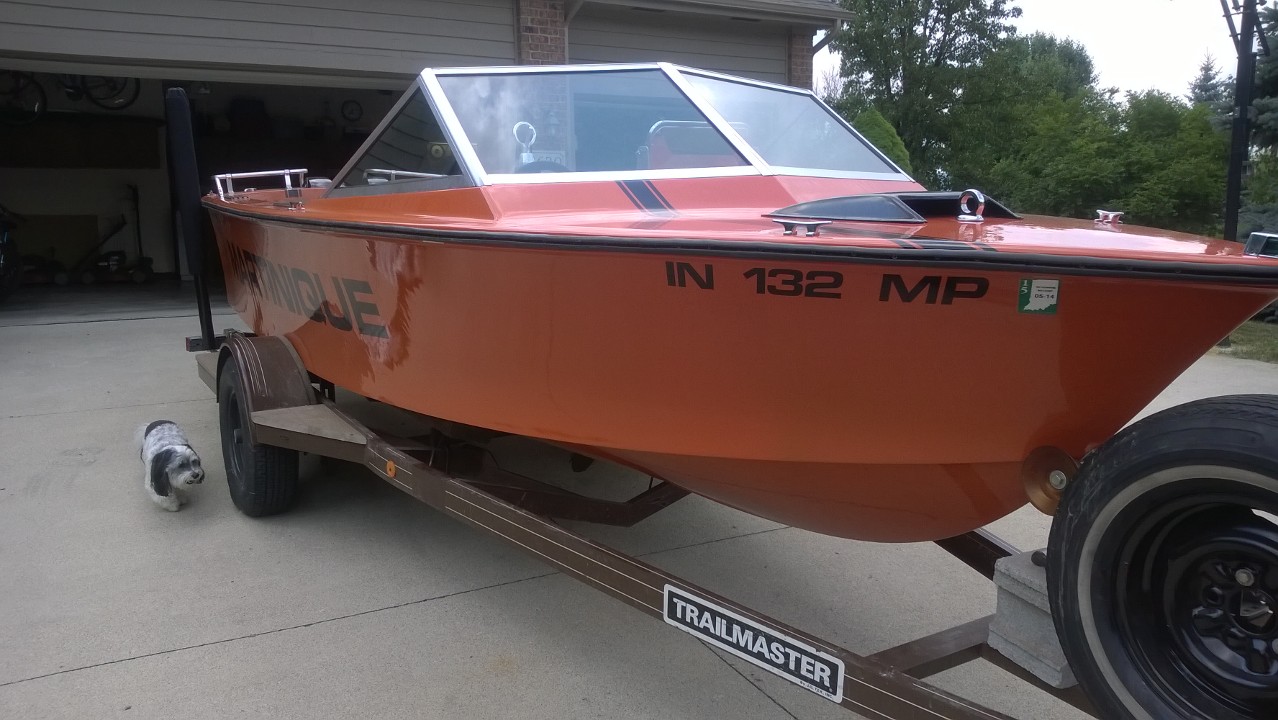

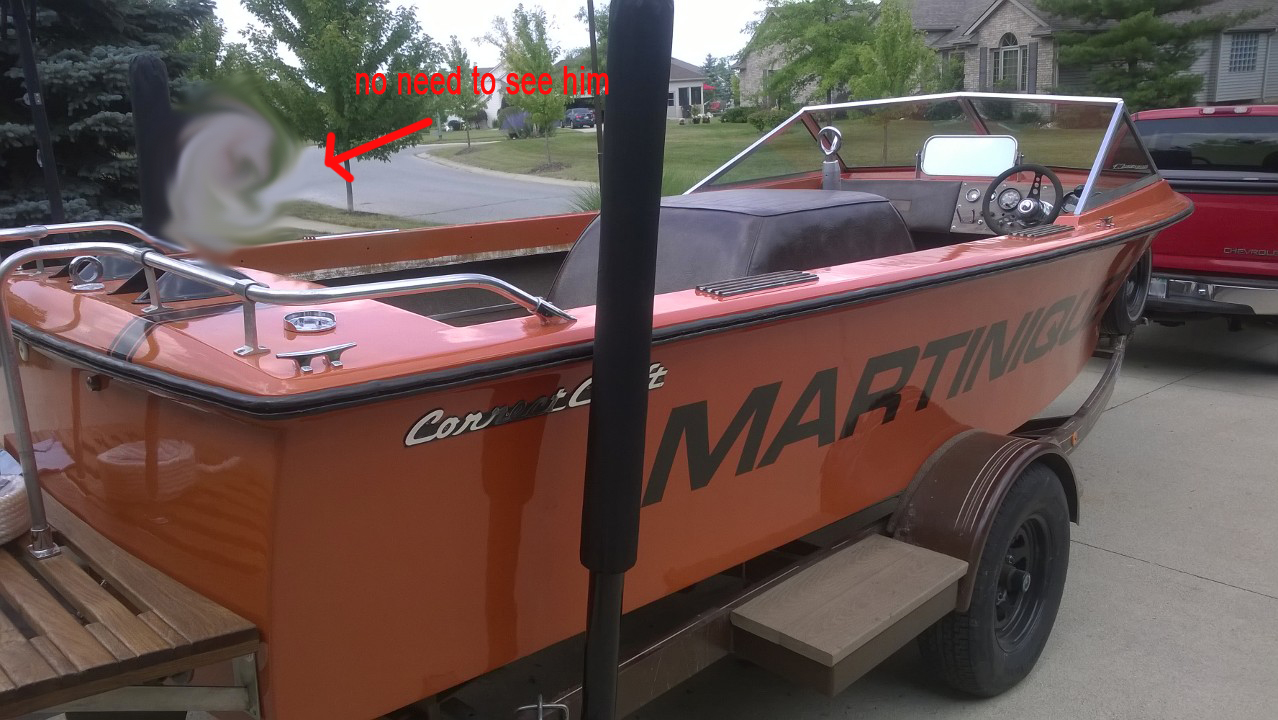

    These pictures are from today. We have it almost completed and the swim platform is now on. We used caulk to seal all the holes that the bolts mount the swim platform through.
    WP_20140720_001.jpg WP_20140720_002.jpg WP_20140720_003.jpg WP_20140720_004.jpg

    All that is left to do is to put the rope in the rub rail, finish mounting the handrail, and eventually the upholstery. The upholstery will have to wait to after we spend a week at our lake for the first time this Friday.
