My Renault Twingo

Discussion in 'Automotive' started by Taza, May 3, 2021.

  1. Taza

    Taza
    Expand Collapse

    Joined:
    Nov 8, 2015
    Messages:
    1,296

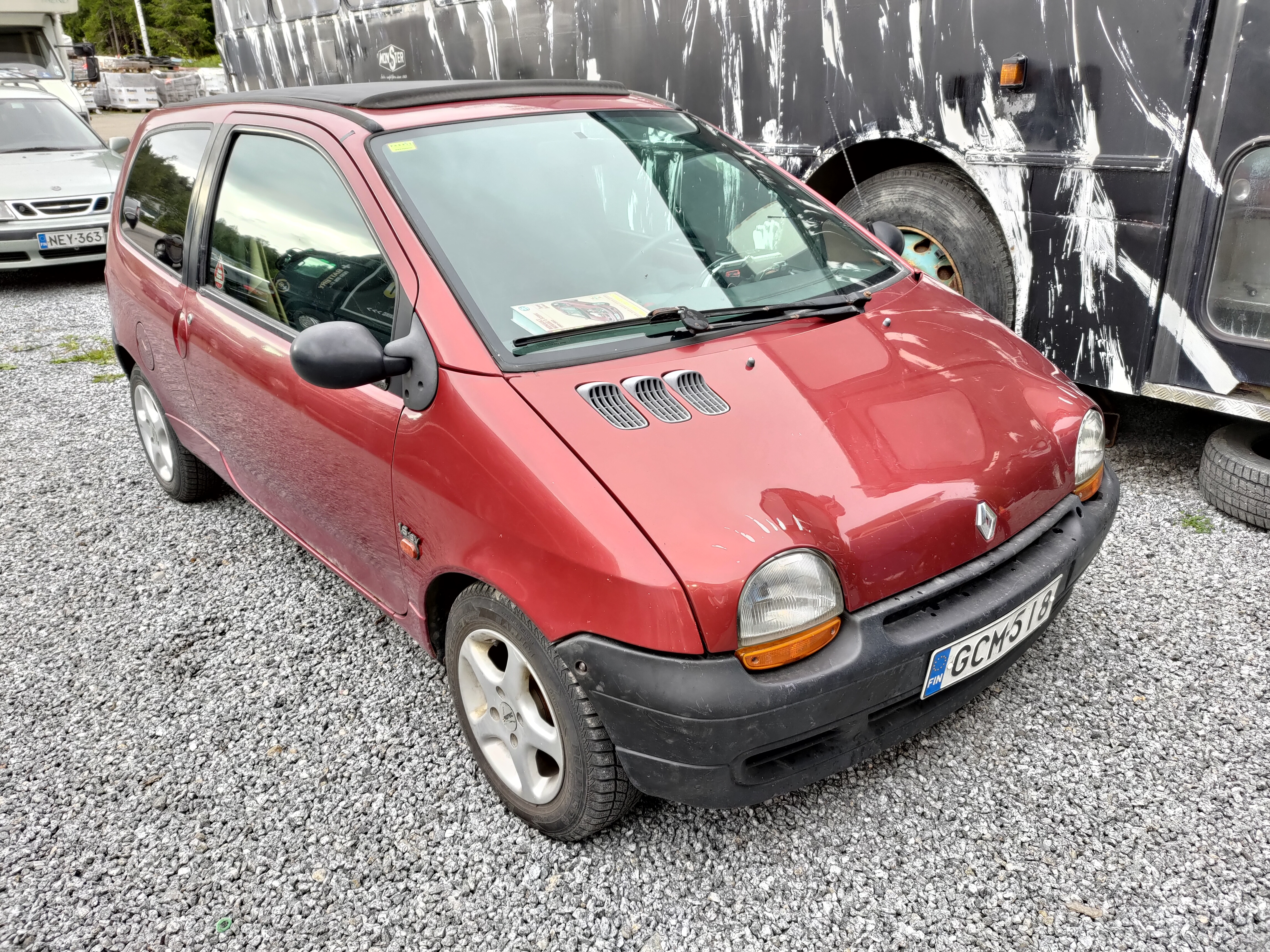

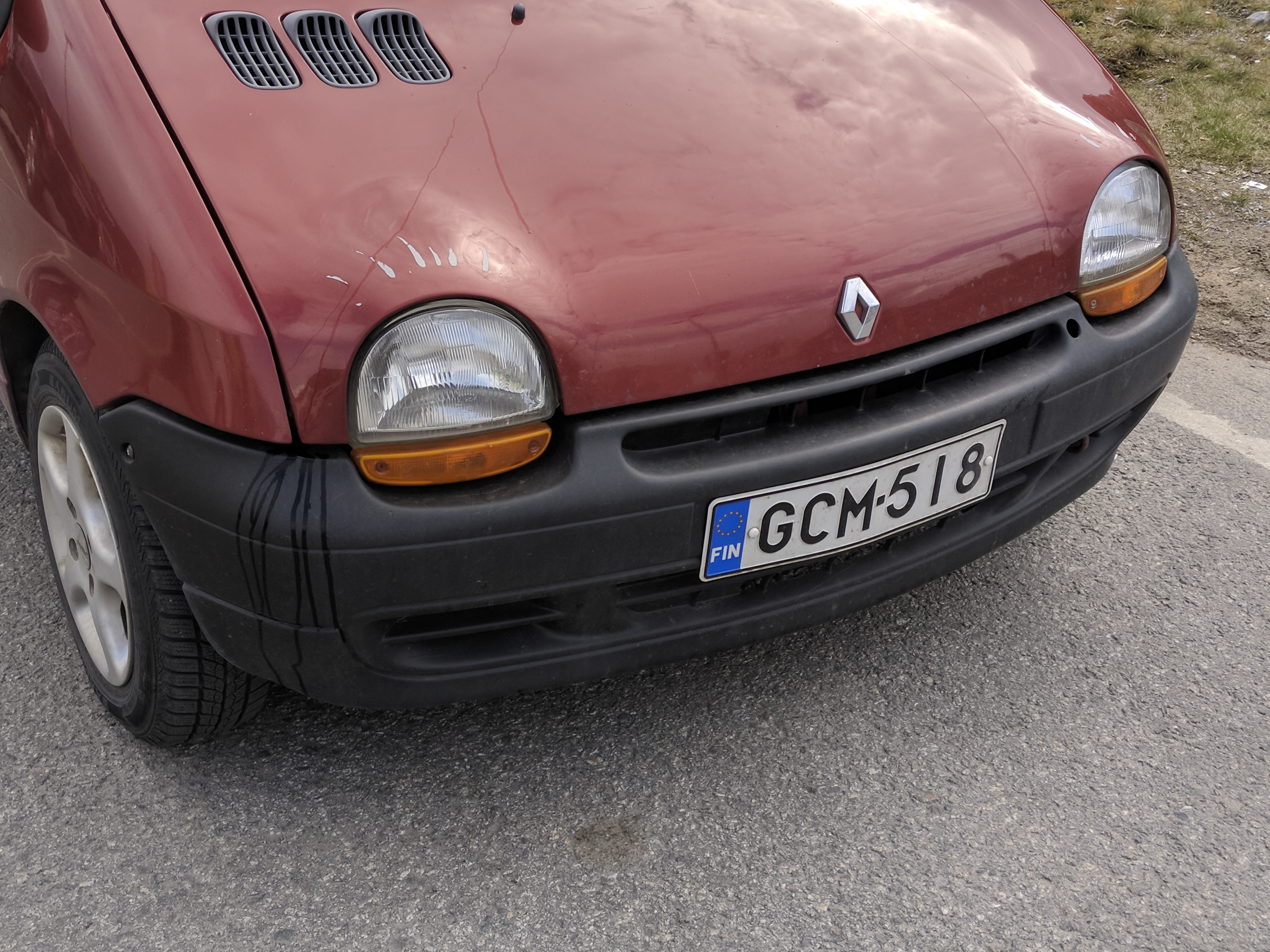

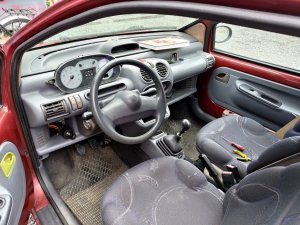

    Why am I making a thread for my car? Well who knows what I'll end up doing with it, and some people might want to follow along. Lets start with a few pictures:

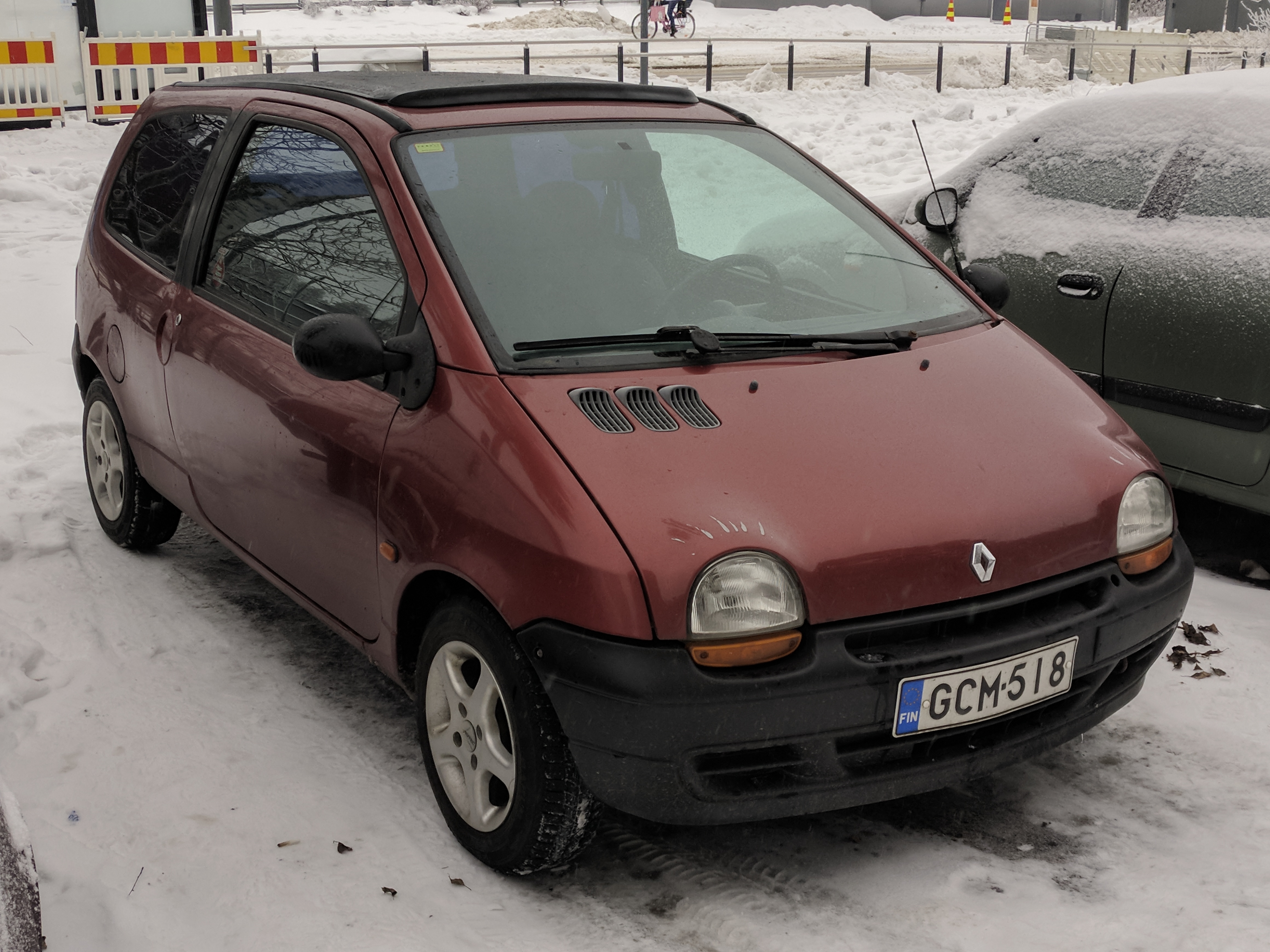

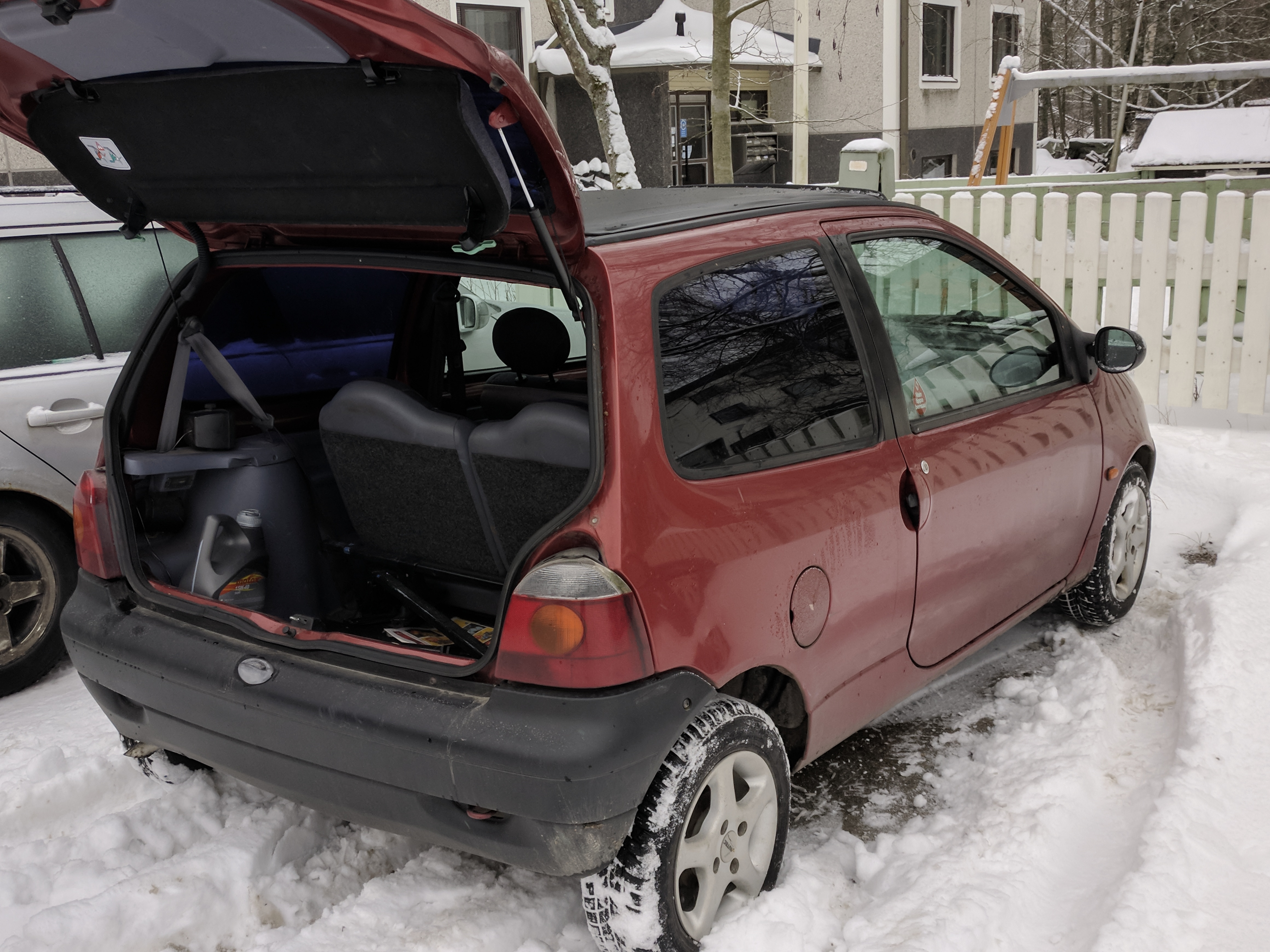

    2021-01-19124943.jpg 2021-01-19121317.jpg
    It's a f****** horrible piece of **** by modern standards, coming in with no ABS, no power steering and a repaired rust hole in the oil pan. But what it lacks in features, is also missing in power. I can hardly keep up with traffic, but that could be related to the blinking oil light. Anyway, it's just good enough for commuting to work. And very epic for cruising with the roof open, as long as the radiator doesn't leak too fast.

    The twingo knows what awaits, as the front left wheel bearing started screaming a few nights ago suffocating the sound of valve tick:

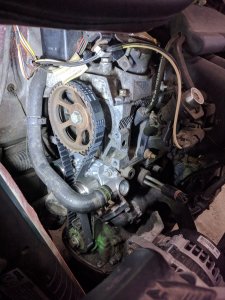

    I haven't done much to the car, just changed the belt and water pump back in January. I already regret doing them. And don't worry, that block heater is unplugged because it doesn't work.

    I guess I should also mention the front brake disks are warped, making the whole car vibrate violently when I glance at the brake pedal. From all this, one could easily say it will face scrapping fairly soon. But all the problems are related to the running gear... and it's an epic car... just too slow.

    • Like Like x 4
  2. direct_UA

    direct_UA
    Expand Collapse

    Joined:
    Jun 20, 2014
    Messages:
    769
    fartlet

    • Agree Agree x 1
  3. Jakux

    Jakux
    Expand Collapse

    Joined:
    Jul 1, 2020
    Messages:
    1,744
    Yeah... This uh... car is a thing.
    When did you get it?

  4. STEVIE_G4M1NG_YT

    STEVIE_G4M1NG_YT
    Expand Collapse

    Joined:
    May 26, 2017
    Messages:
    426
    They're brilliant little cars, even if they're actually crap


    Attached Files:

    • twignoingaragewiththenumberplateremove.jpg
  5. Taza

    Taza
    Expand Collapse

    Joined:
    Nov 8, 2015
    Messages:
    1,296

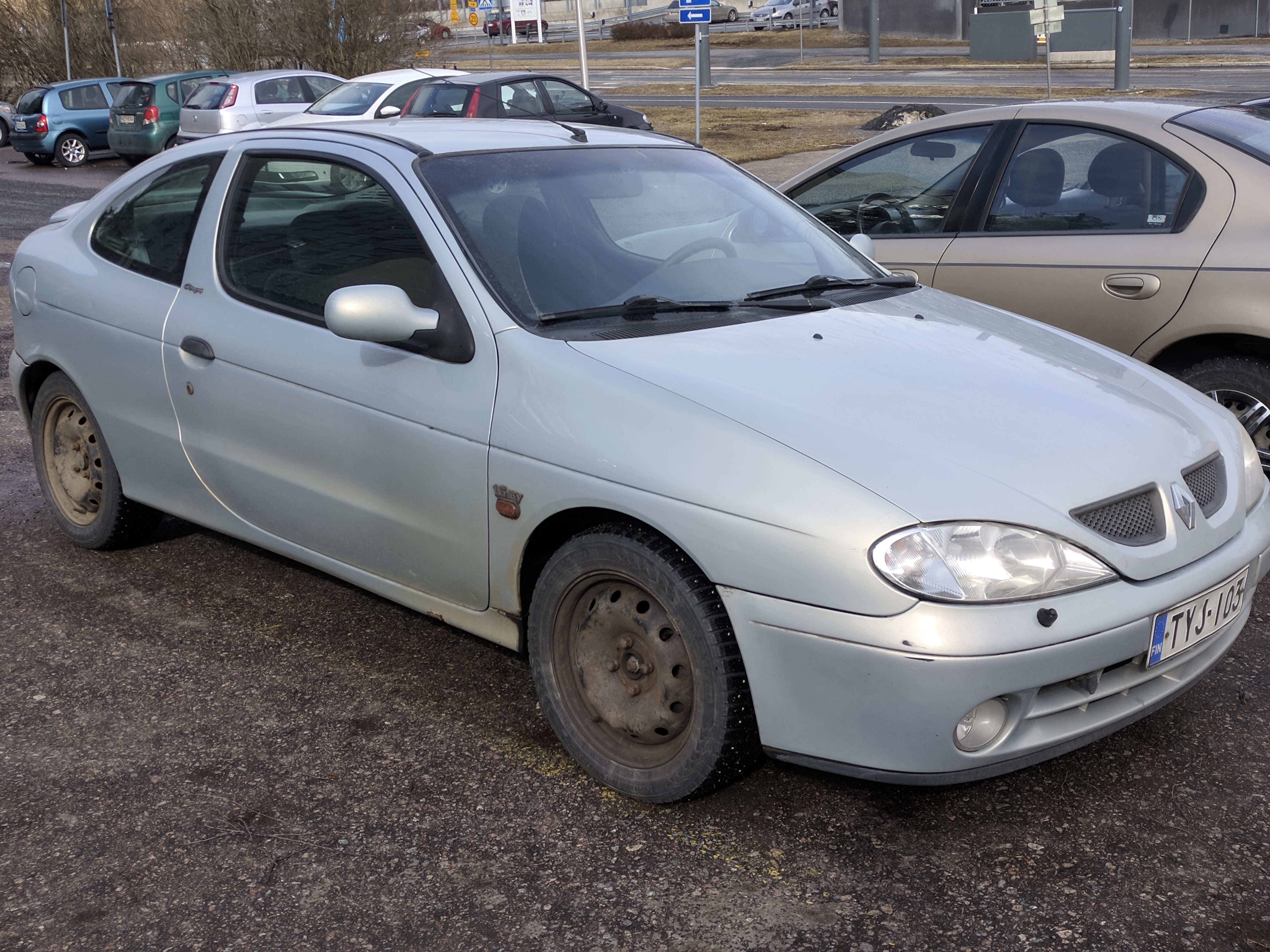

    In January, as my first car. Since then I bought another car too:
    Which is soon to be a daily driver. This one is a bit rusty at places, but only has 137 000km on it and the engine runs good.

  6. Jakux

    Jakux
    Expand Collapse

    Joined:
    Jul 1, 2020
    Messages:
    1,744
    This one is more... exciting

  7. Taza

    Taza
    Expand Collapse

    Joined:
    Nov 8, 2015
    Messages:
    1,296
    We don't seem to share our views. The only exciting part of my Megane as opposed to the Twingo is the engine for me. With an ECU tune it should make about double what my Twingo could manage on a good day.

  8. Taza

    Taza
    Expand Collapse

    Joined:
    Nov 8, 2015
    Messages:
    1,296

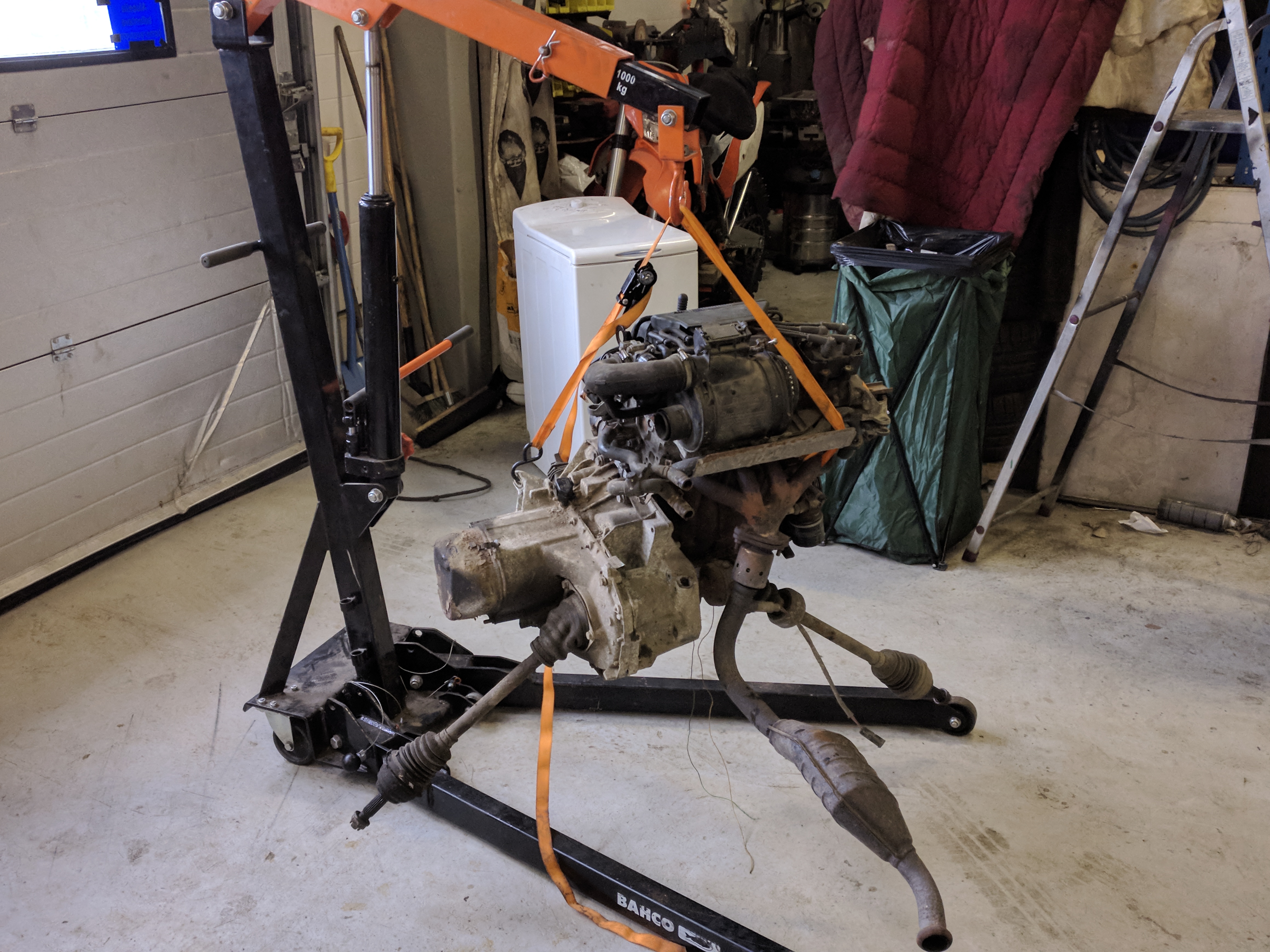

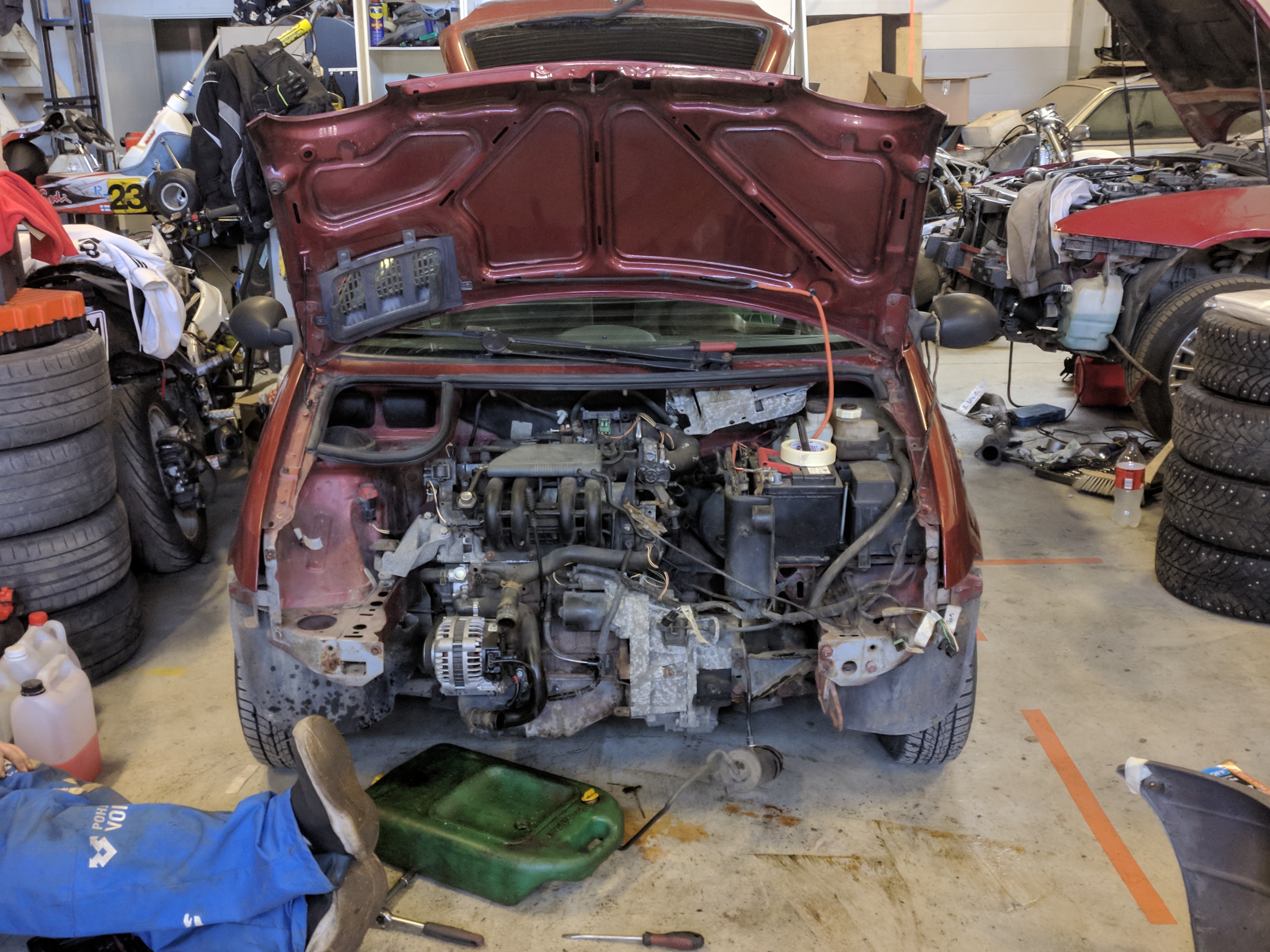

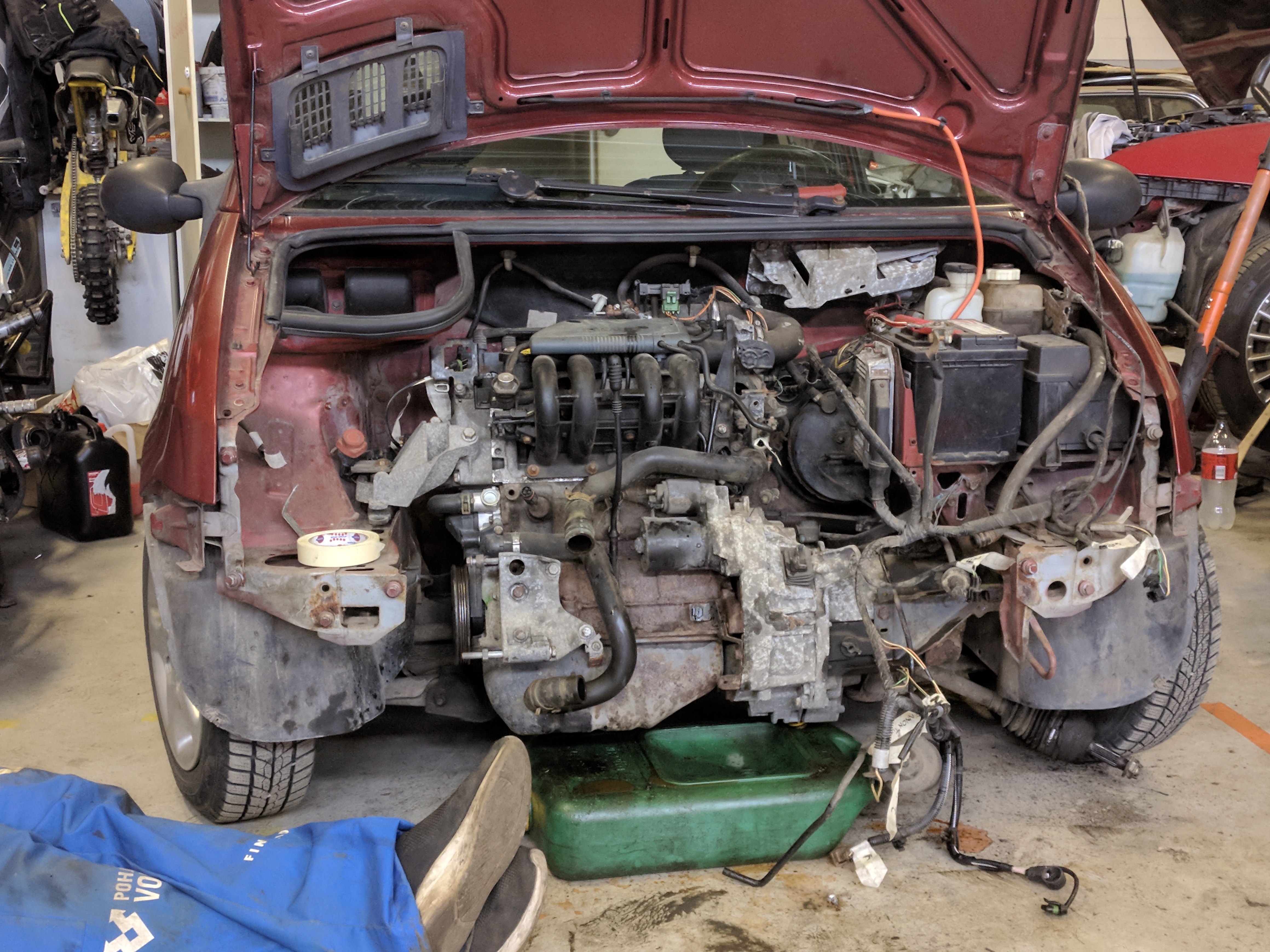

    Pulled out the engine today:
    2021-05-05105903.jpg 2021-05-05130309.jpg 2021-05-05152733.jpg 2021-05-05152742.jpg

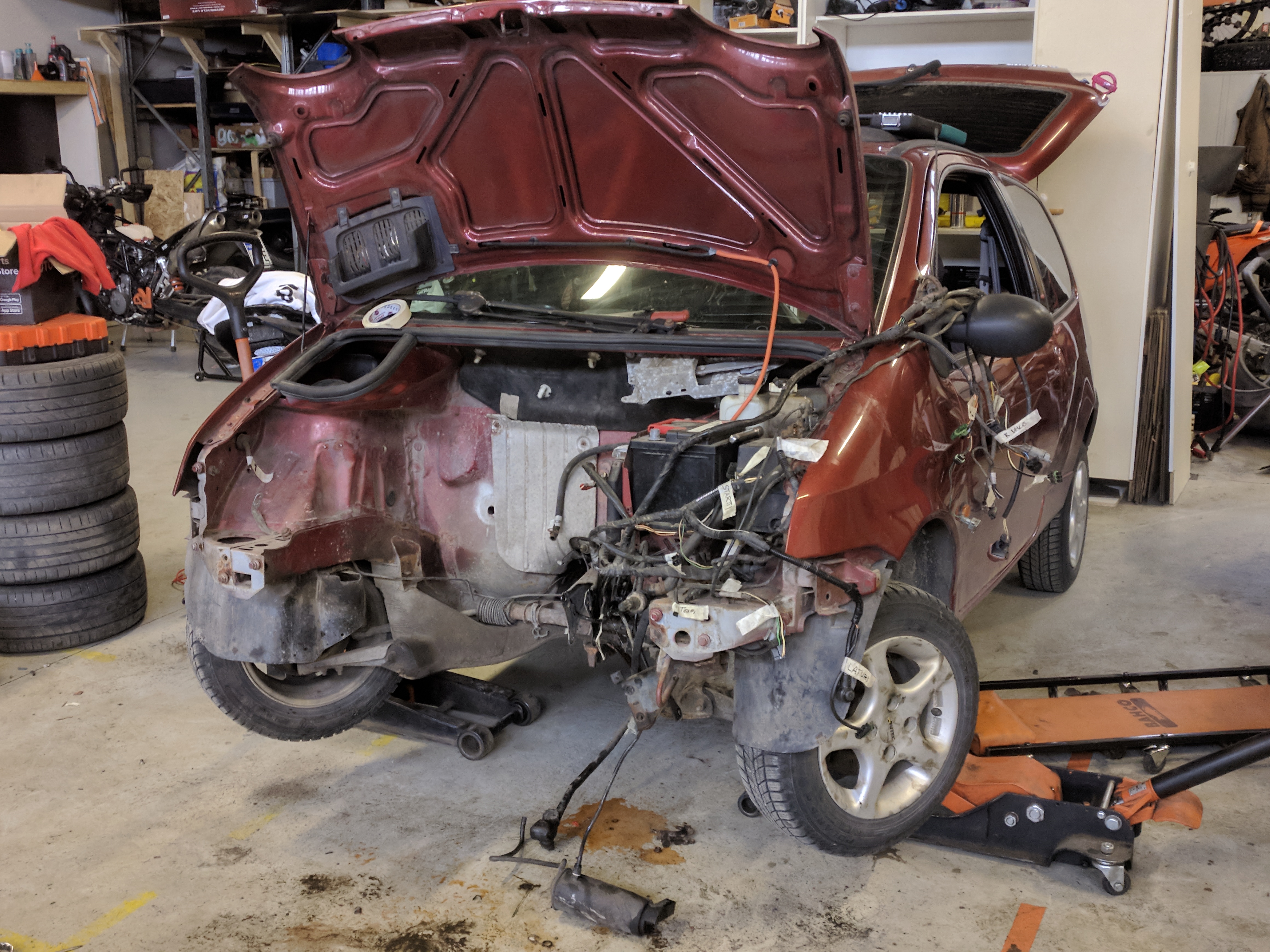

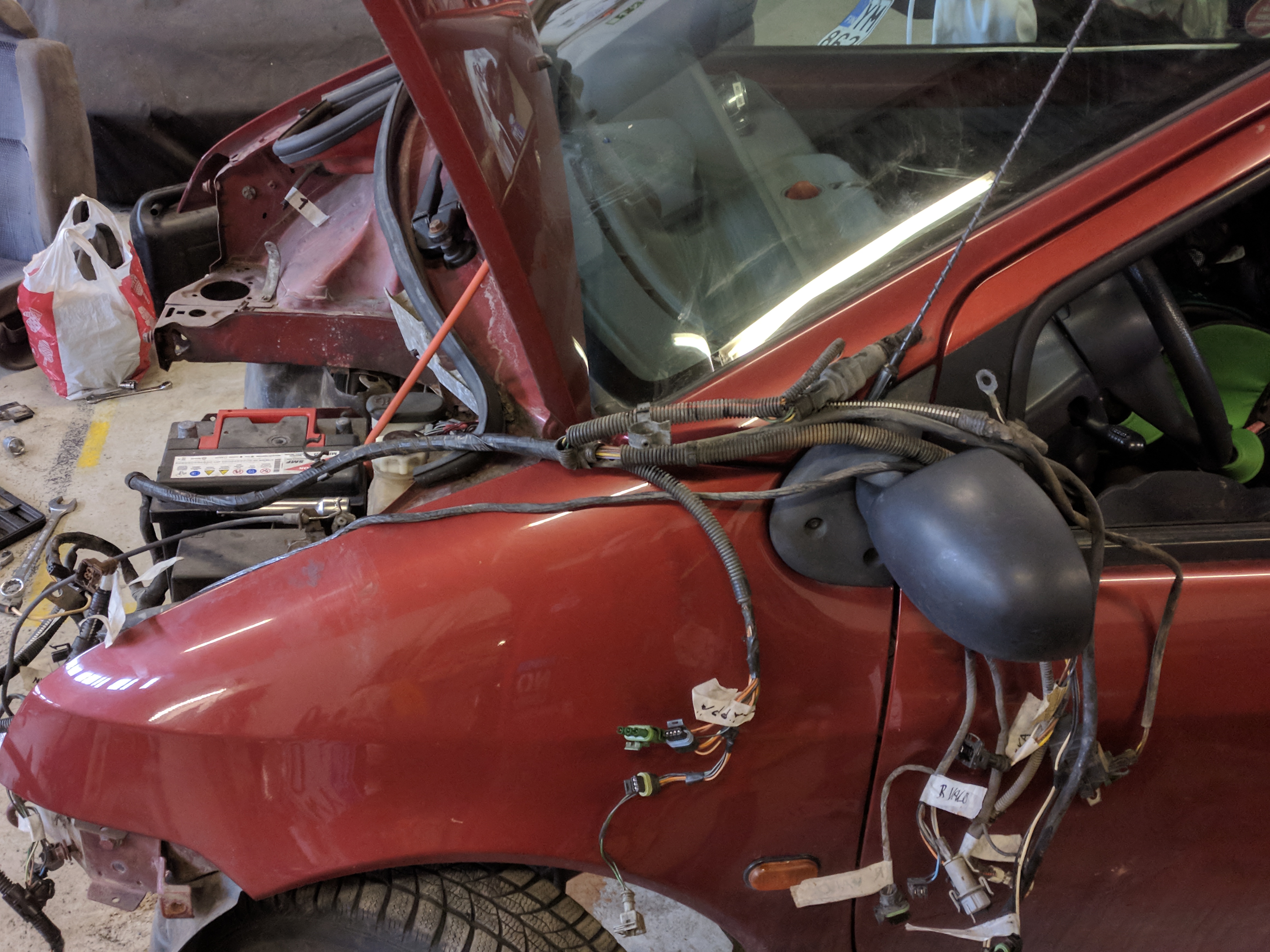

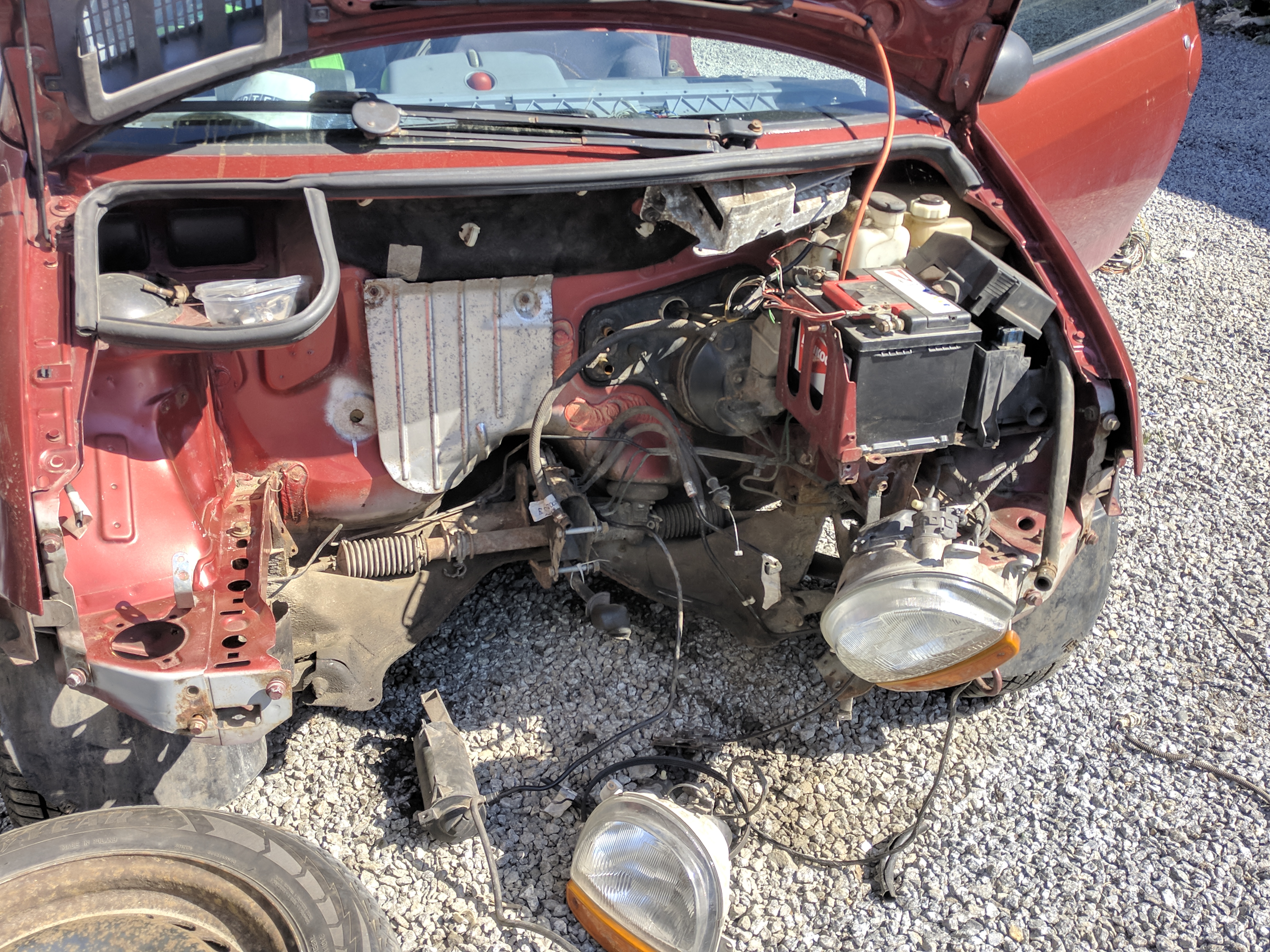

    First the front came off. This meant unplugging and removing the lights, draining the coolant, unplugging a vacuum line (no idea what that was for???) and removing the hood latching thingie (it comes easily out after removing the radiator). There was one bit of wiring I had to cut which I believe was for the right side blinker. Not sure yet, but I labeled it as such. No other wiring was cut. I labeled most of the wires, but gave up when it came to the intake related wiring as I had no idea how there could be so many connectors. All wiring was stripped from the engine, except for the lambda sensor that was left on the exhaust. Next the fuel lines got pulled out from the fuel rail, and I remembered my childhood memories of mowing the lawn with an old mower. It's a nice smell. Throttle and clutch cables were pretty easy to remove too.

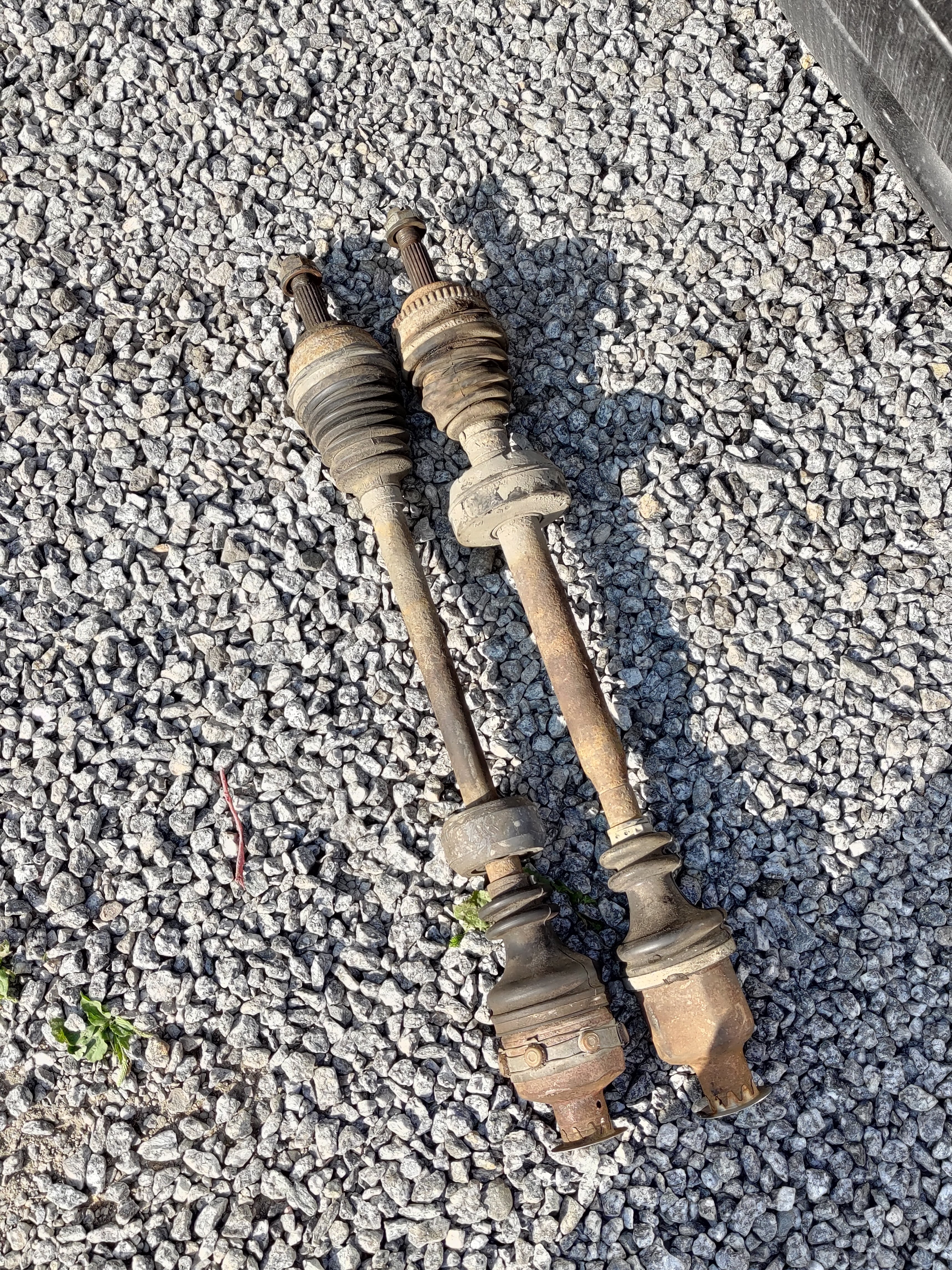

    Then the CV axles came off. I found a tutorial on Youtube for a clio, and it was basically the same for Twingo. I didn't pull them from the gearbox just yet, but that will come one day. After that the exhaust was separated at the easiest-to-reach connection. At this point the engine was hold on by the engine mounts and some interior heater hoses (is that how you call it?). The engine pulled out very easily with that crane thingy. There were no clear lifting points, but the clutch cable holder, an exhaust header and the right side mount worked well enough.

    So what's next? Probably sorting out the wiring, stripping out everything I don't need. I'll remove the dash and see what horrors the french engineers managed to build under it. I already removed the radio some days ago, and found the aftermarket central locking system some previous owner put in.

    • Like Like x 2
  9. STEVIE_G4M1NG_YT

    STEVIE_G4M1NG_YT
    Expand Collapse

    Joined:
    May 26, 2017
    Messages:
    426
    May I ask why you took the engine out?

  10. Taza

    Taza
    Expand Collapse

    Joined:
    Nov 8, 2015
    Messages:
    1,296

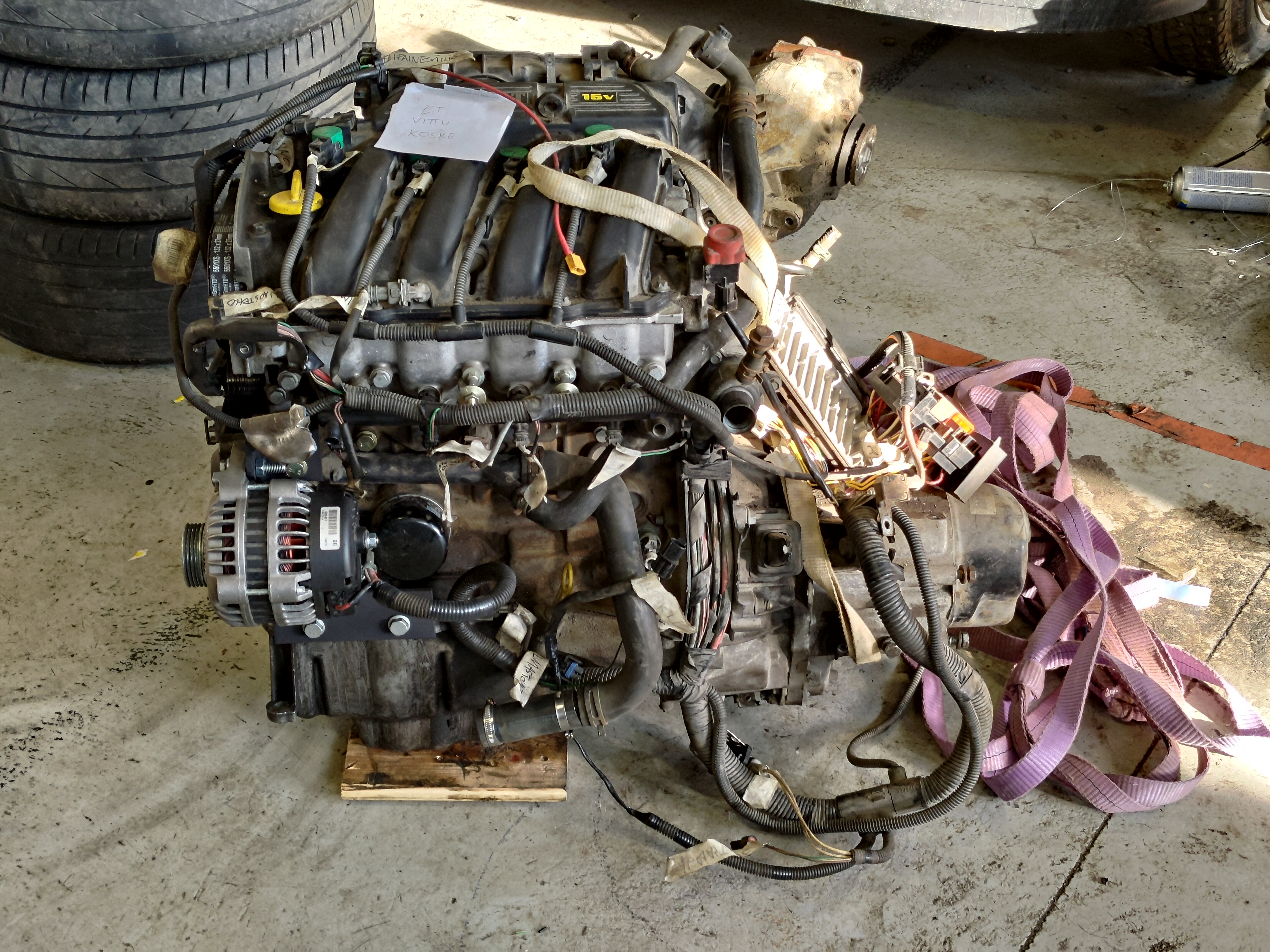

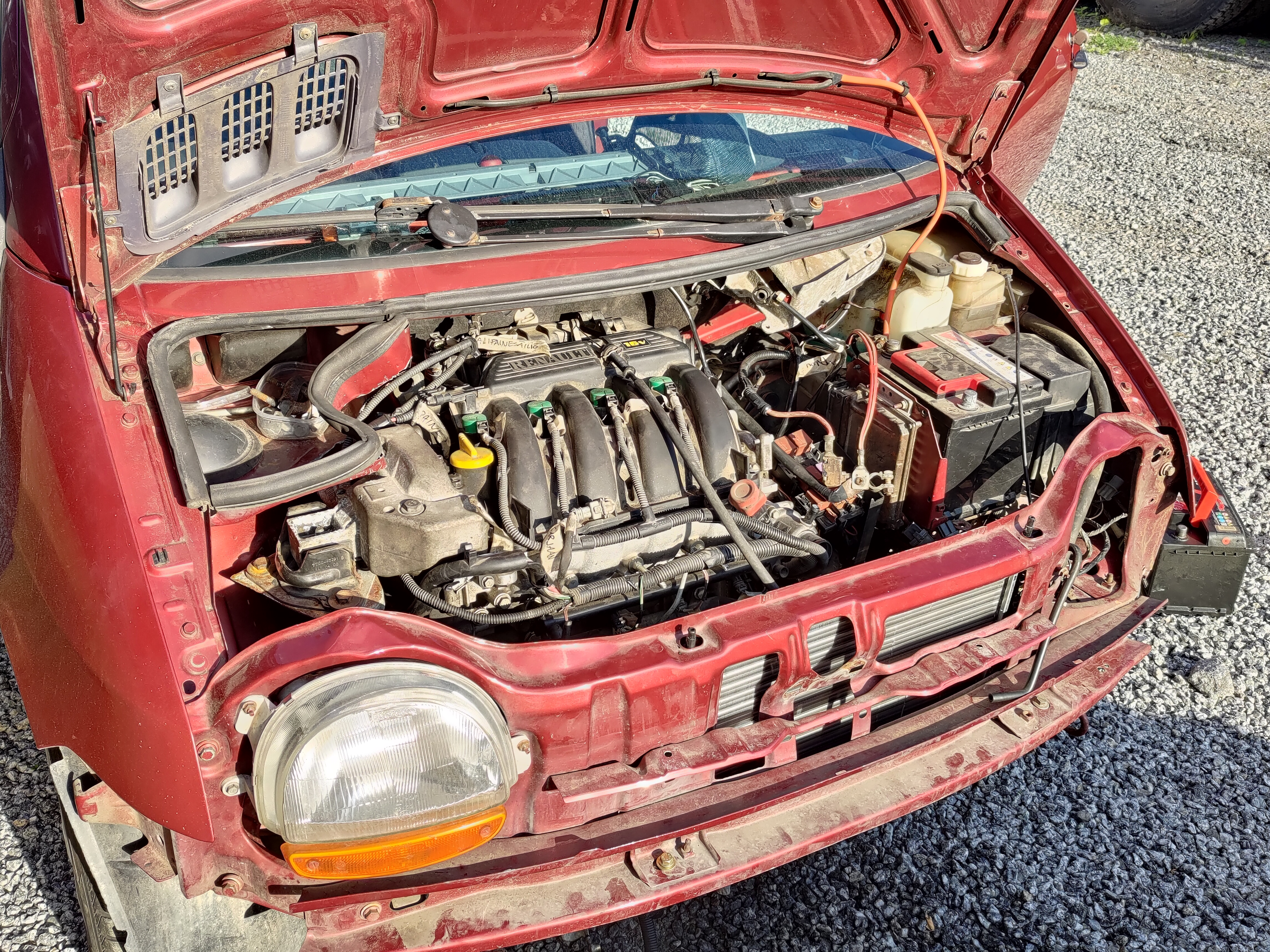

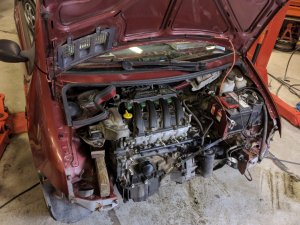

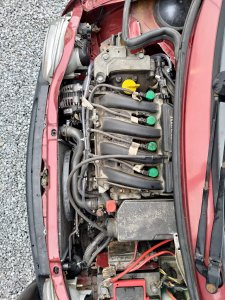

    Ah yes. I'm swapping in the 1.6 16v engine from my megane.

    • Like Like x 1
  11. STEVIE_G4M1NG_YT

    STEVIE_G4M1NG_YT
    Expand Collapse

    Joined:
    May 26, 2017
    Messages:
    426
    Nice!

  12. Taza

    Taza
    Expand Collapse

    Joined:
    Nov 8, 2015
    Messages:
    1,296

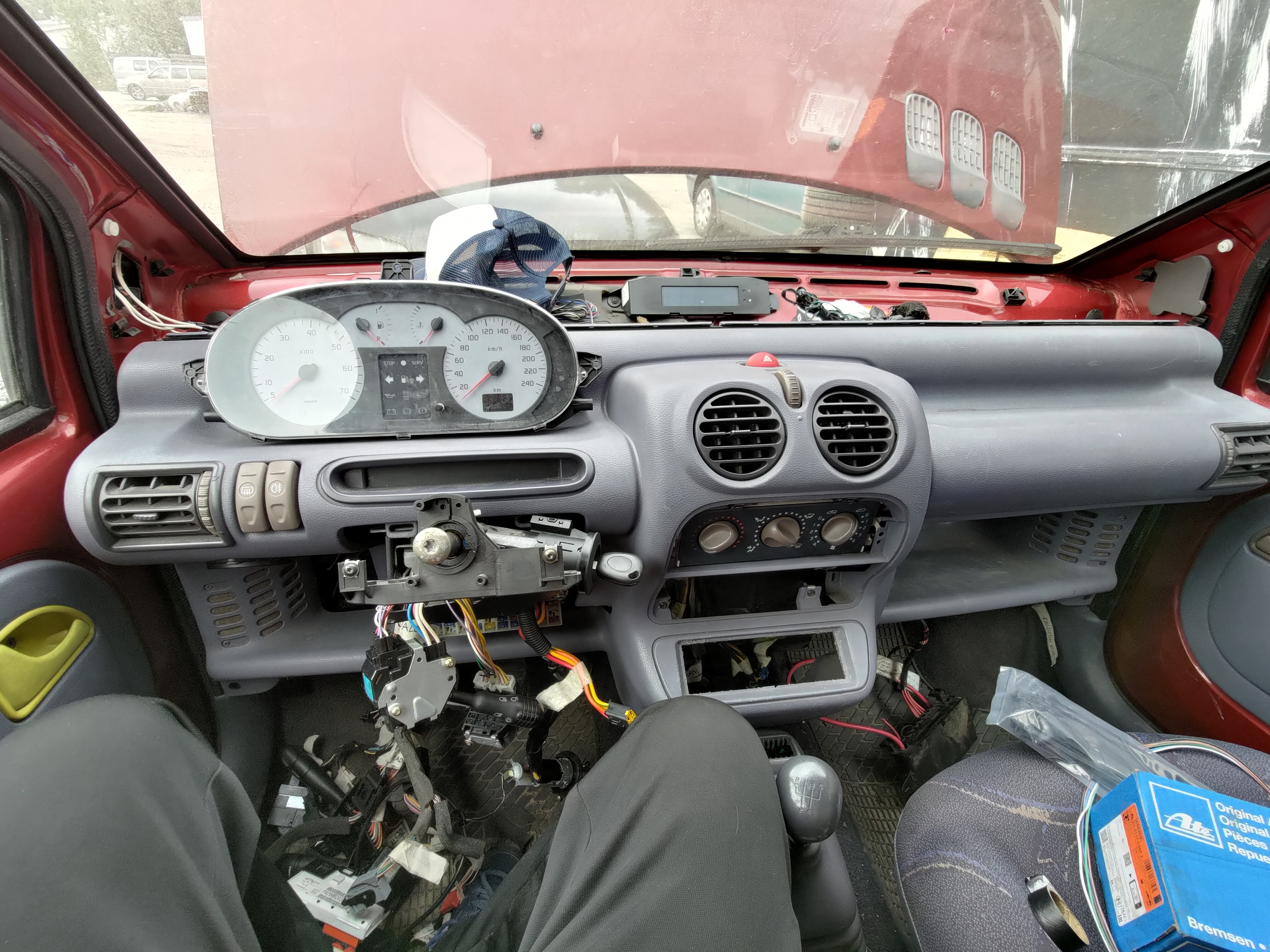

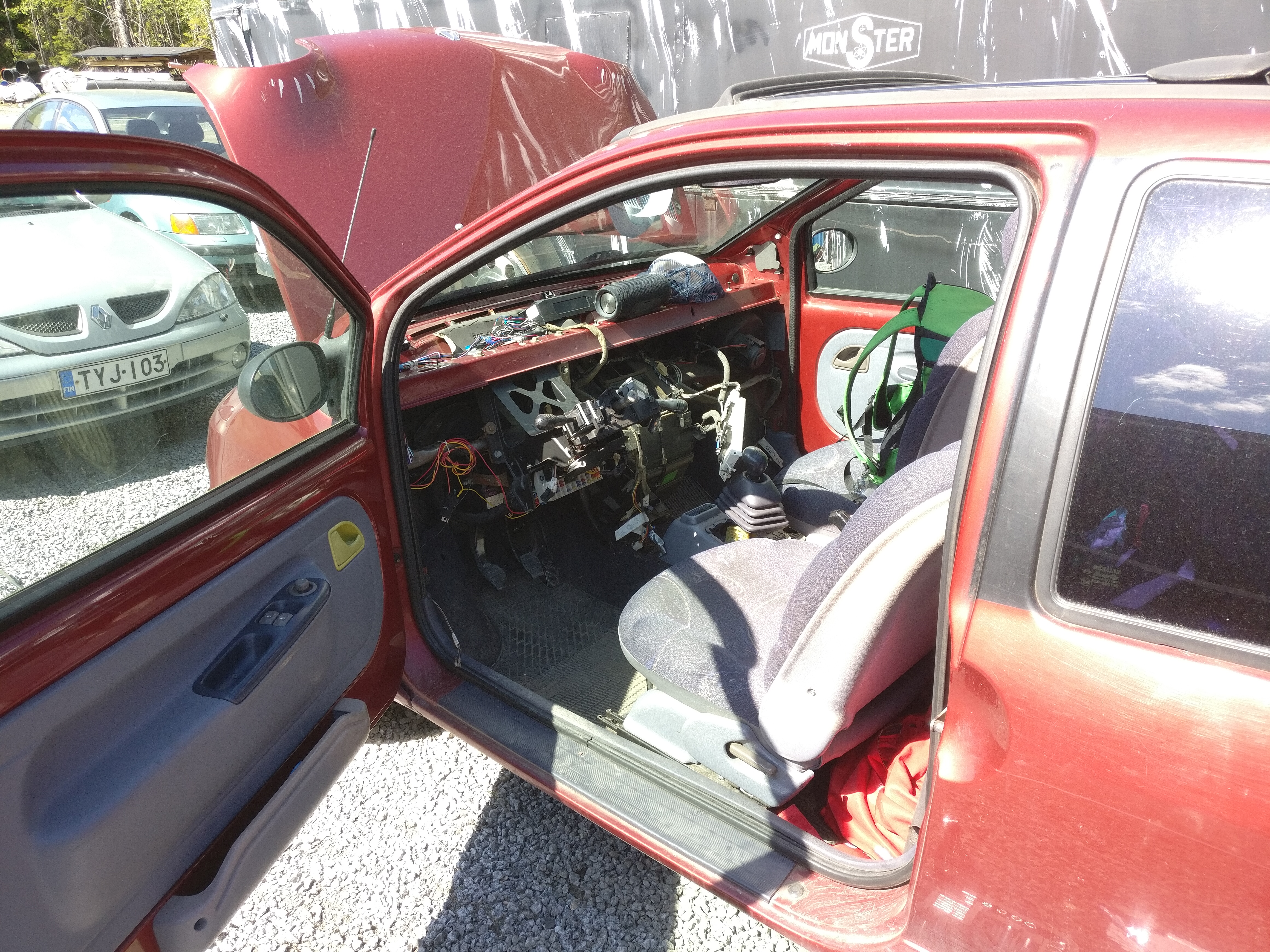

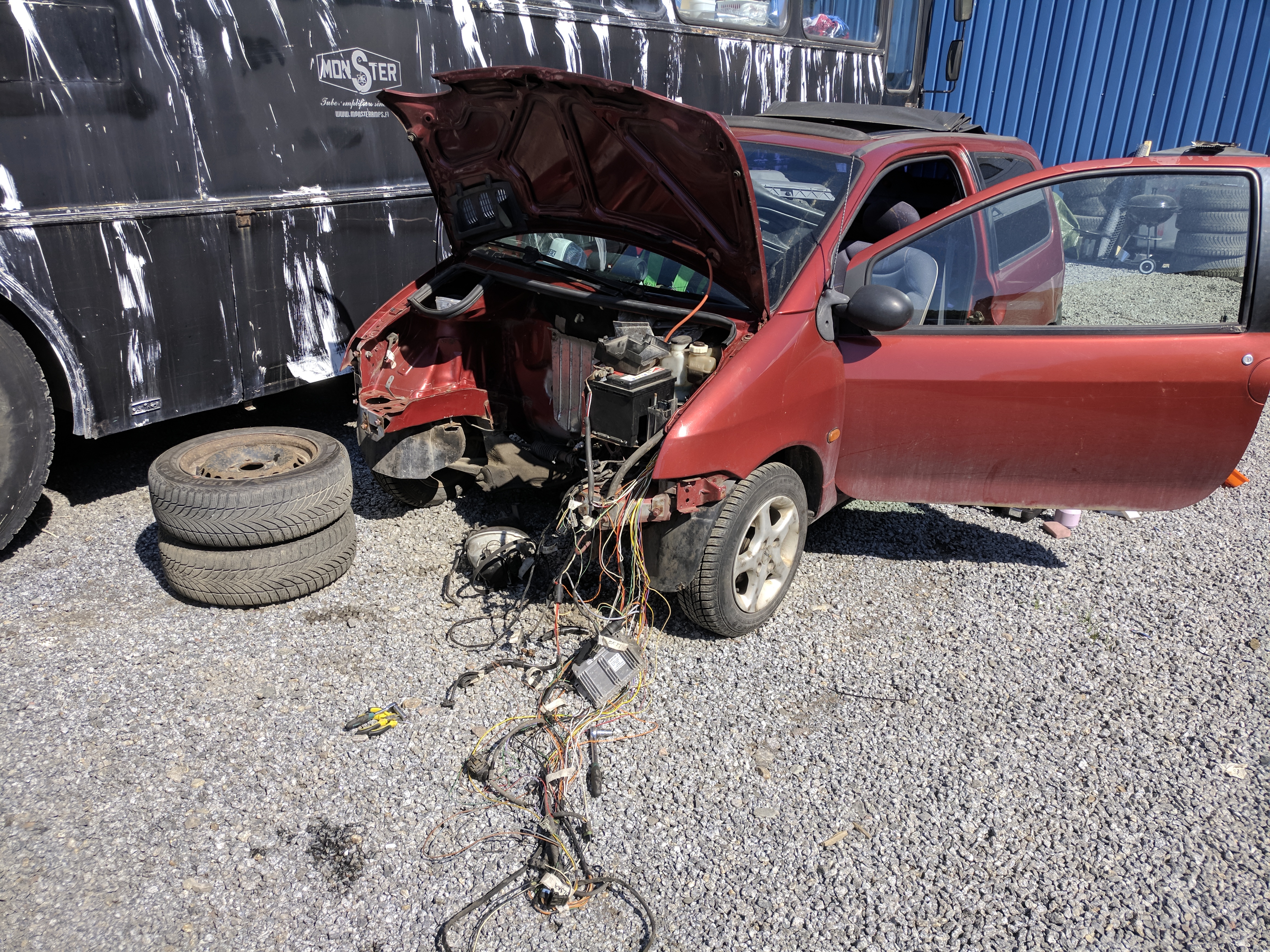

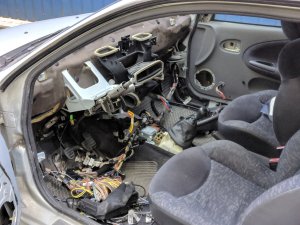

    Visited parents for about a week so no progress... until today. Pulled out the dash and engine wiring:
    2021-05-16143909.jpg 2021-05-16143920.jpg 2021-05-16153513.jpg 2021-05-16153609.jpg

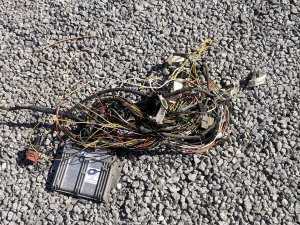

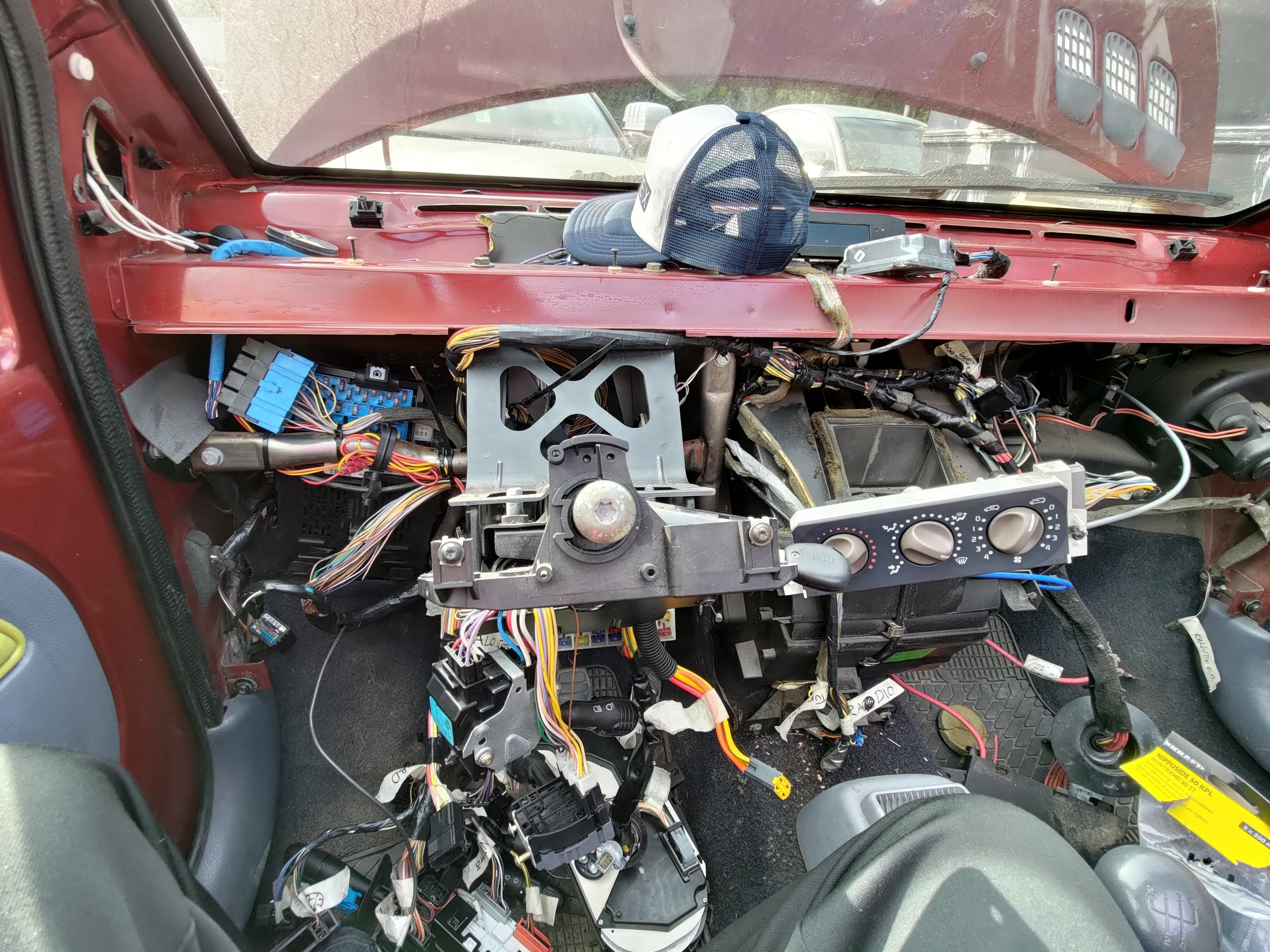

    Interior is basically all torx screws and very easy to figure out. I had some trouble with the steering wheel, it took about an hour to pull out. I was very cautios while removing the wiring, but as it turned out everything that plugged into the engine could just be ripped out no problem. All lights and interior stuff tested and working. Blinkers need the dash to work, as the relay is located in there. What's next? Probably buying some tools and materials... I might drive the megane for a few more weeks, but then it's time to part it out.
