Post your engine-bays

Discussion in 'Automotive' started by DrowsySam, Jun 28, 2014.

  1. SixSixSevenSeven

    SixSixSevenSeven
    Expand Collapse

    Joined:
    Sep 13, 2013
    Messages:
    6,966
    precisely :p Wikipedia states: It has become the primary fuel delivery system used in automotive engines, having replaced carburetors during the 1980s and 1990s. Now to me, 1989 fits in that bracket.

    Diesels had it as standard since the 20's. "Gasoline" injection has been traced back to 1902. Some ww2 petrol engines did use fuel injection, particularly germany who also designed engines for japan and were already using direct injection, late war rolls royce merlins were fitted with what they called a pressure carberuttor which was just an alternate name for fuel injection (single point).
    Electrical injection on petrol cars was done in the 40's too (test cars that is, not production vehicles, had to wait for 1958 for that, officially the rambler rebel had it in 1957 but it was an option part which ultimately only got fitted to pre production vehicles not full production).

    By 89, it was old school brah.

  2. Emizel

    Emizel
    Expand Collapse

    Joined:
    Jul 8, 2014
    Messages:
    0

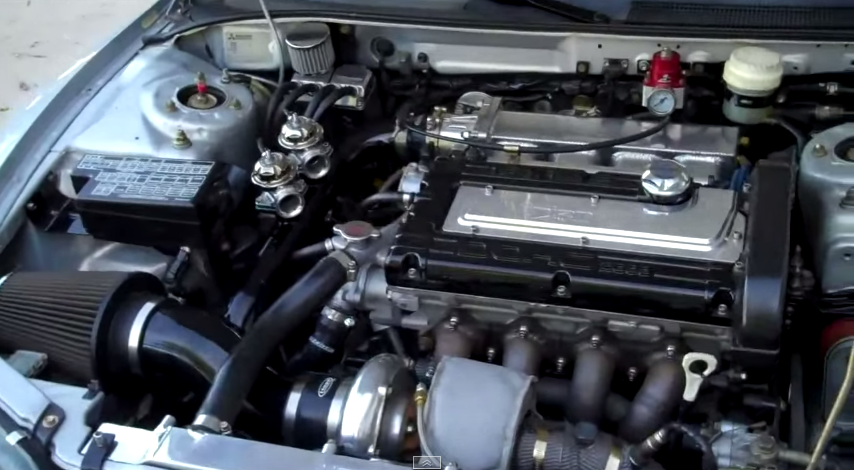

    My lovely engine bay
    Engine bay.png

  3. Minimoke

    Minimoke
    Expand Collapse

    Joined:
    Sep 23, 2013
    Messages:
    8

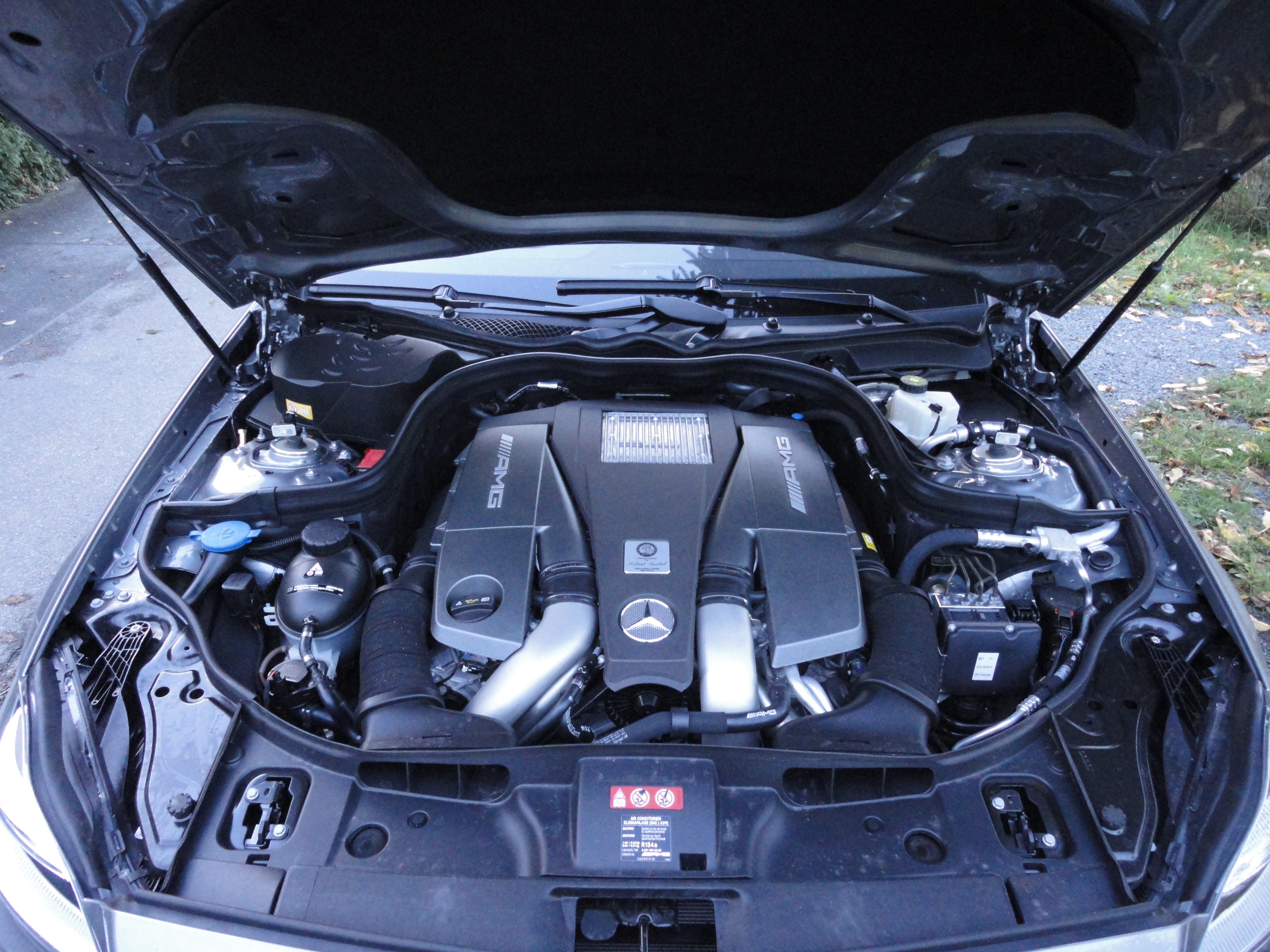

    Well, theres' not much to see thanks to the cover, but you can guess...


    Attached Files:

    • DSC00659.JPG
  4. Thomess_maker

    Thomess_maker
    Expand Collapse

    Joined:
    Aug 20, 2013
    Messages:
    7

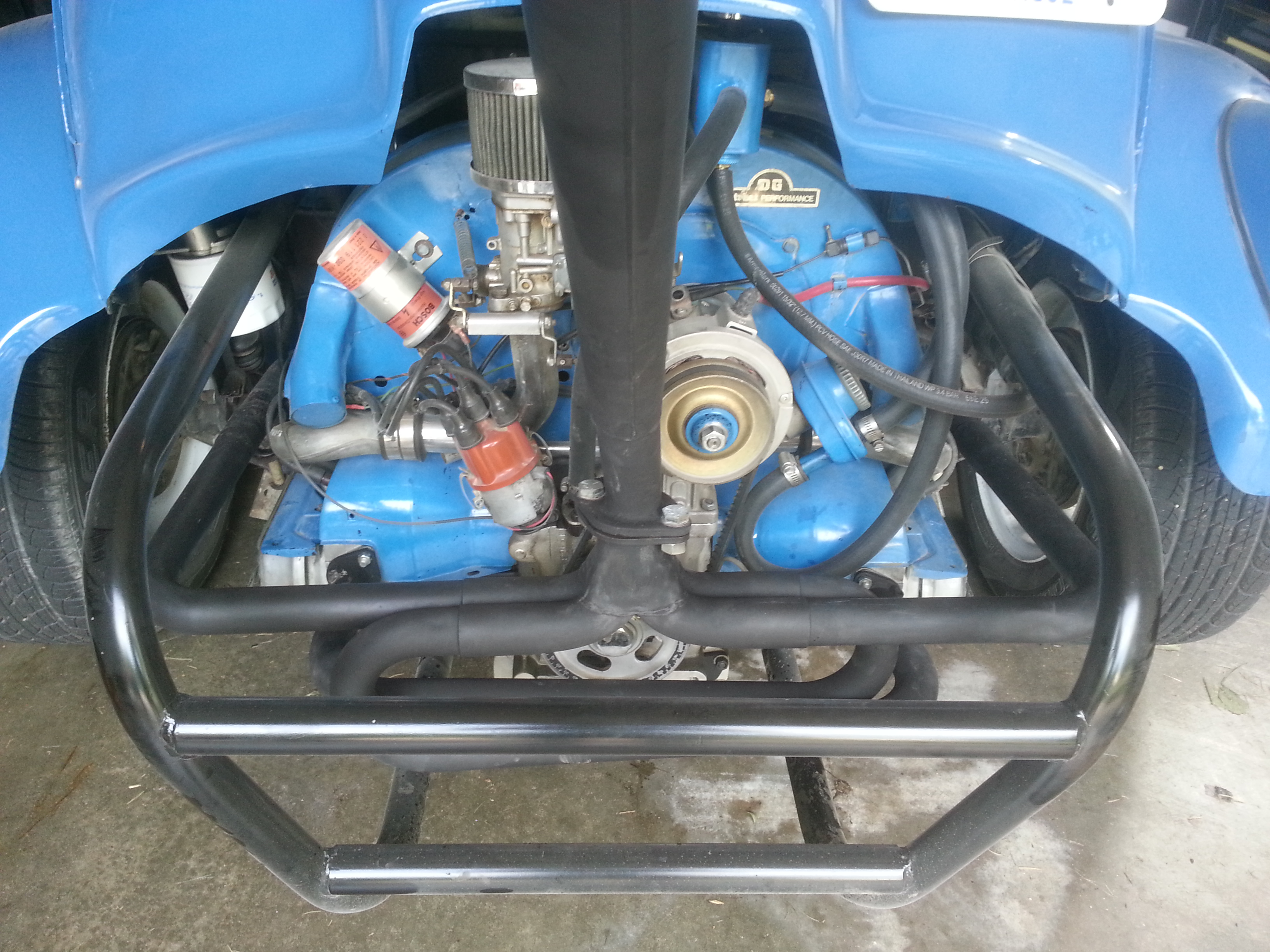

    1968 VW Beetle. It is dirty at the moment, and yes, I know that the distributor is in backwards. Around 120 snappy German horses.


    Attached Files:

    • 20140709_185514.jpg
  5. AX53

    AX53
    Expand Collapse

    Joined:
    Aug 6, 2013
    Messages:
    510

    (imported from here)

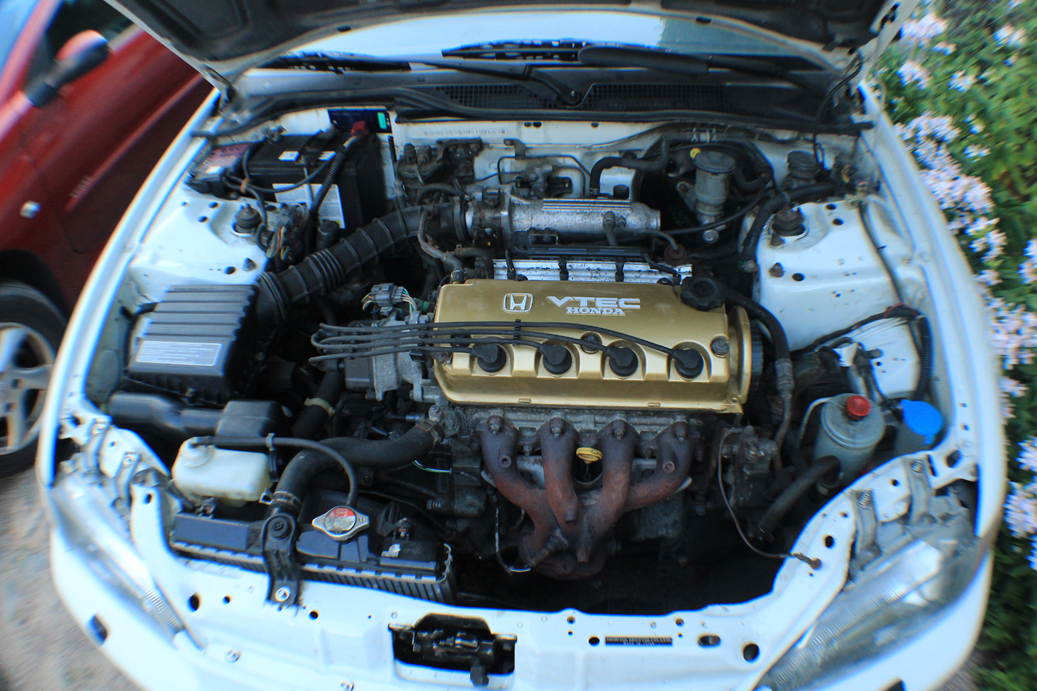

    Painted my valve cover this morning. :) Could have been done better at some spots. Gonna touch it up tomorrow ghetto style without taking anything out of the car.

  6. Autofan

    Autofan
    Expand Collapse

    Joined:
    Jun 26, 2013
    Messages:
    471
    Looks nice, I'm not a huge Honda guy but I've got to admit those little VTEC engines are pretty easy and fun to work on.

  7. AX53

    AX53
    Expand Collapse

    Joined:
    Aug 6, 2013
    Messages:
    510
    Thanks :) Yea, they're somewhat easy. Would still like a B series or K series though. That's when it gets fast :) But a D16Z6 isn't the slowest thing out there. 125hp on 950ish KG


    (imported from here)

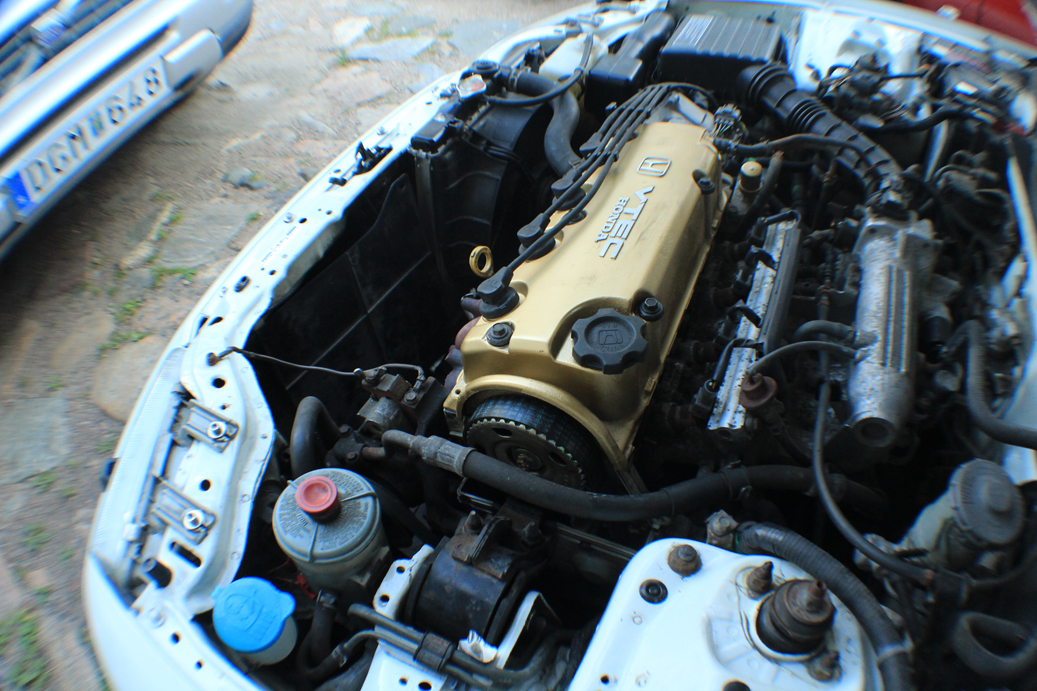

    Here it is from another angle. To be honest, my prep work for this could be better, but I might just redo this at some point, have to put in new gaskets anyways.
    Not sure if you notice the vtec solly, but it's also painted in the same gold color. I plan on painting some different parts such as a few hardlines and maybe the fuel rail in the same color to make it like a signature scheme.

    #47 AX53, Jul 10, 2014
    Last edited: Jul 10, 2014
  8. Zappymouse

    Zappymouse
    Expand Collapse

    Joined:
    Jun 18, 2013
    Messages:
    1,065
    Literally more portraiture done on this car than the Queen and yet, this is the most complete picture I took of the engine bay. /sigh

    This is the bulletproof 2.6L 12v V6 carried over from the Audi 80. Peak power and torque is 148hp and 225Nm, apparently. I reckon those numbers are an order of magnitude off. :D


    (imported from here)

  9. redrobin

    redrobin
    Expand Collapse

    Joined:
    Aug 21, 2012
    Messages:
    552
    They seem to have gotten some engine in your plastic.

  10. Minimoke

    Minimoke
    Expand Collapse

    Joined:
    Sep 23, 2013
    Messages:
    8
    That is normal with the newer cars, unfortunately. Mine doesn't look any better. It's all covered up behind some plastic. Why? No clue.

  11. Zappymouse

    Zappymouse
    Expand Collapse

    Joined:
    Jun 18, 2013
    Messages:
    1,065
    That's a 20 year old Audi ;)

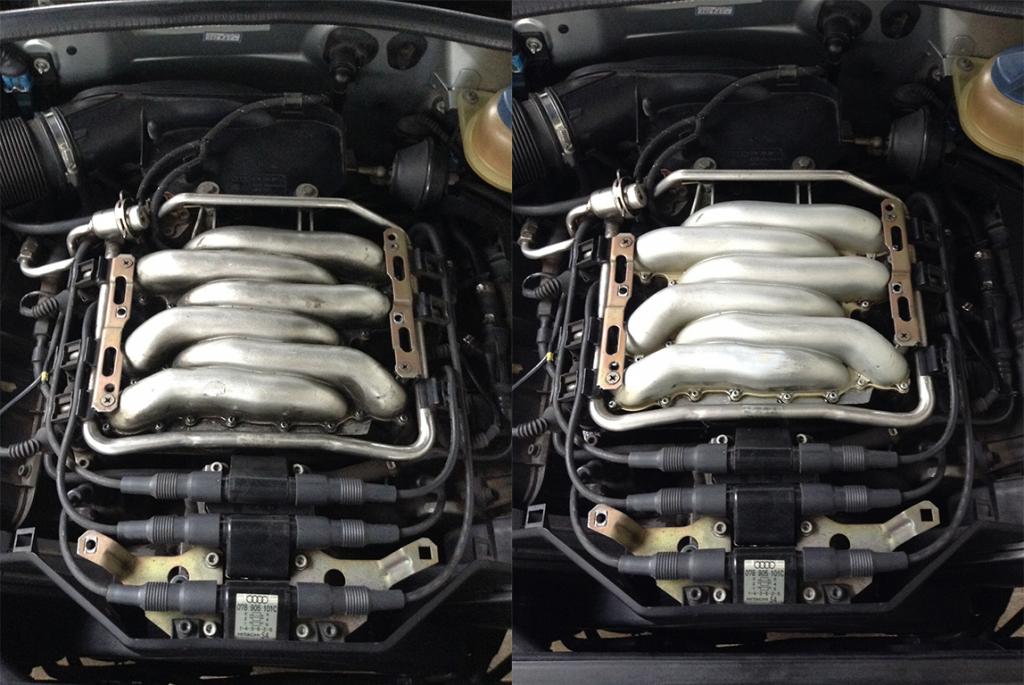

    Carby cleaner works wonders on the stubborn gunk that accumulates on the intake manifold though!

    (imported from here)

  12. redrobin

    redrobin
    Expand Collapse

    Joined:
    Aug 21, 2012
    Messages:
    552
    Now THAT'S an engine.

  13. SixSixSevenSeven

    SixSixSevenSeven
    Expand Collapse

    Joined:
    Sep 13, 2013
    Messages:
    6,966
    Leave it off, looks much better :p

  14. jayster346

    jayster346
    Expand Collapse

    Joined:
    Jul 13, 2013
    Messages:
    31

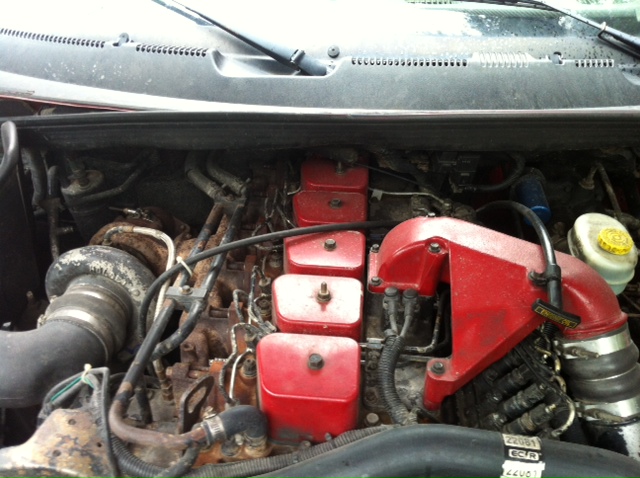

    12v 5.9L cummins all mechanical


    Attached Files:

    • photo.JPG
  15. BBQ

    BBQ
    Expand Collapse

    Joined:
    Aug 27, 2012
    Messages:
    551
    Awesome little engine.


  16. rsb0204

    rsb0204
    Expand Collapse

    Joined:
    Aug 23, 2013
    Messages:
    129
    well, I may as well get in on this.


    (imported from here)

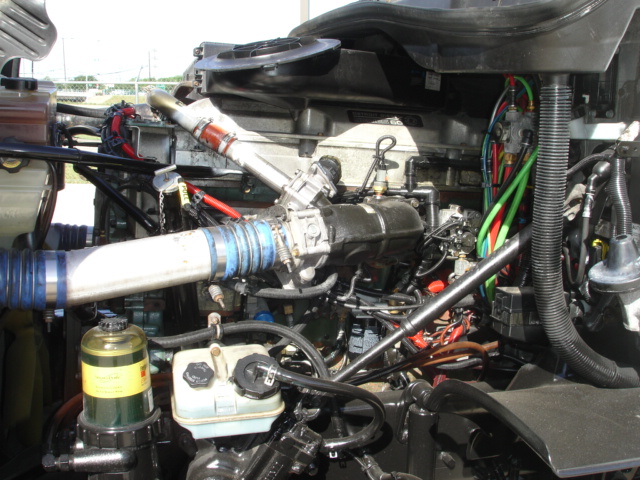

    14.8 litres or Detroit iron, making a whopping 455hp @ 1800rpm lol. but that toqure tho...

  17. KiloHotel

    KiloHotel
    Expand Collapse

    Joined:
    Sep 29, 2012
    Messages:
    388

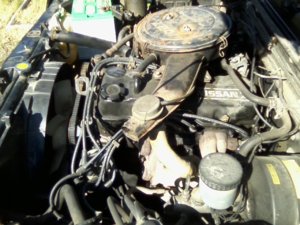

    Bought another Nissan Hardbody with a z24i, runs good.


  18. MrRatBoy2000

    MrRatBoy2000
    Expand Collapse

    Joined:
    Jun 20, 2013
    Messages:
    61

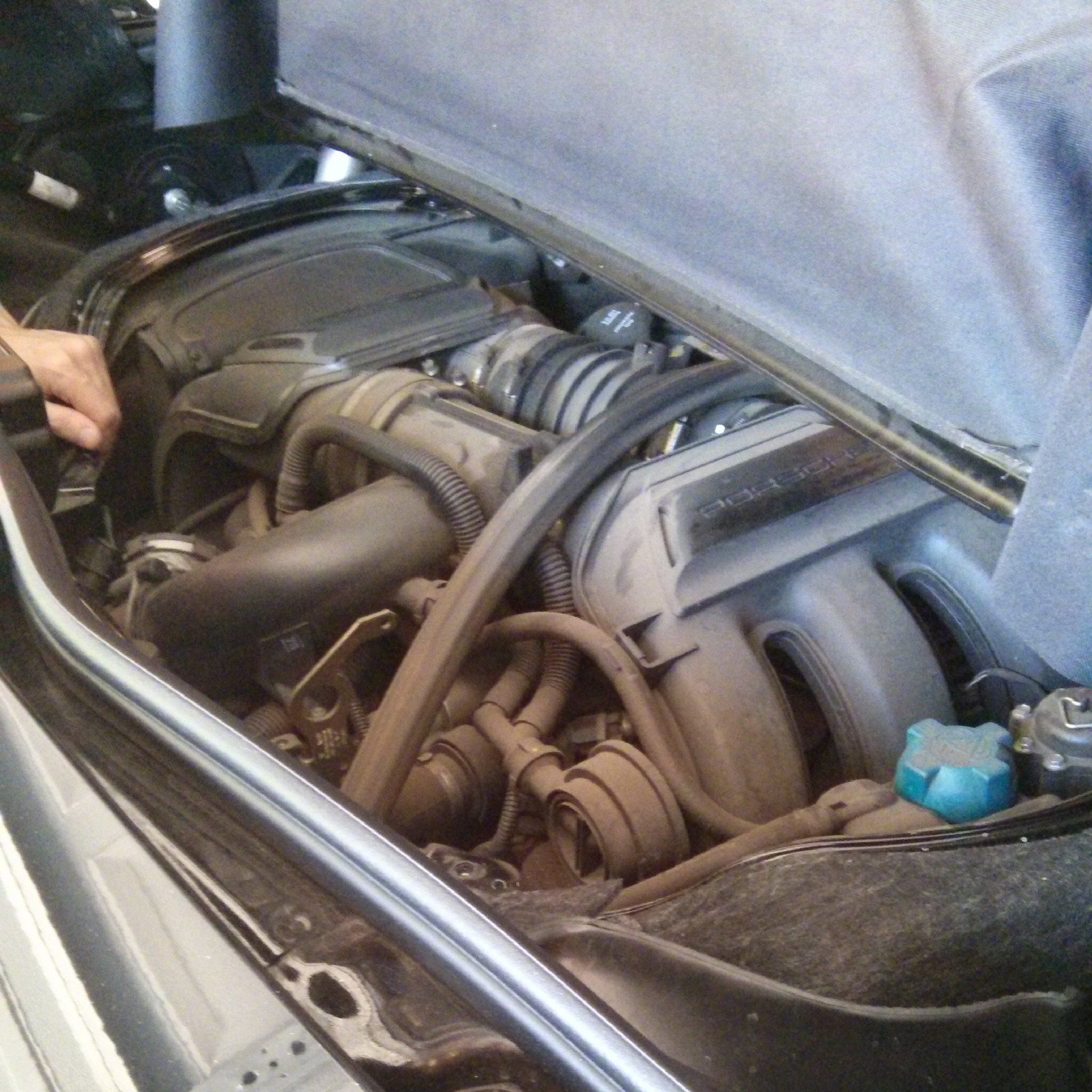

    Don't have a car so here is my dad's IMG_20130914_114850.jpg

  19. thevidmaster

    thevidmaster
    Expand Collapse

    Joined:
    Aug 5, 2013
    Messages:
    202
    Just installed a V8. Much smaller than you see in other pictures, but still makes power without a doubt.

    (imported from here)

  20. Joshua6382

    Joshua6382
    Expand Collapse

    Joined:
    Aug 31, 2013
    Messages:
    0

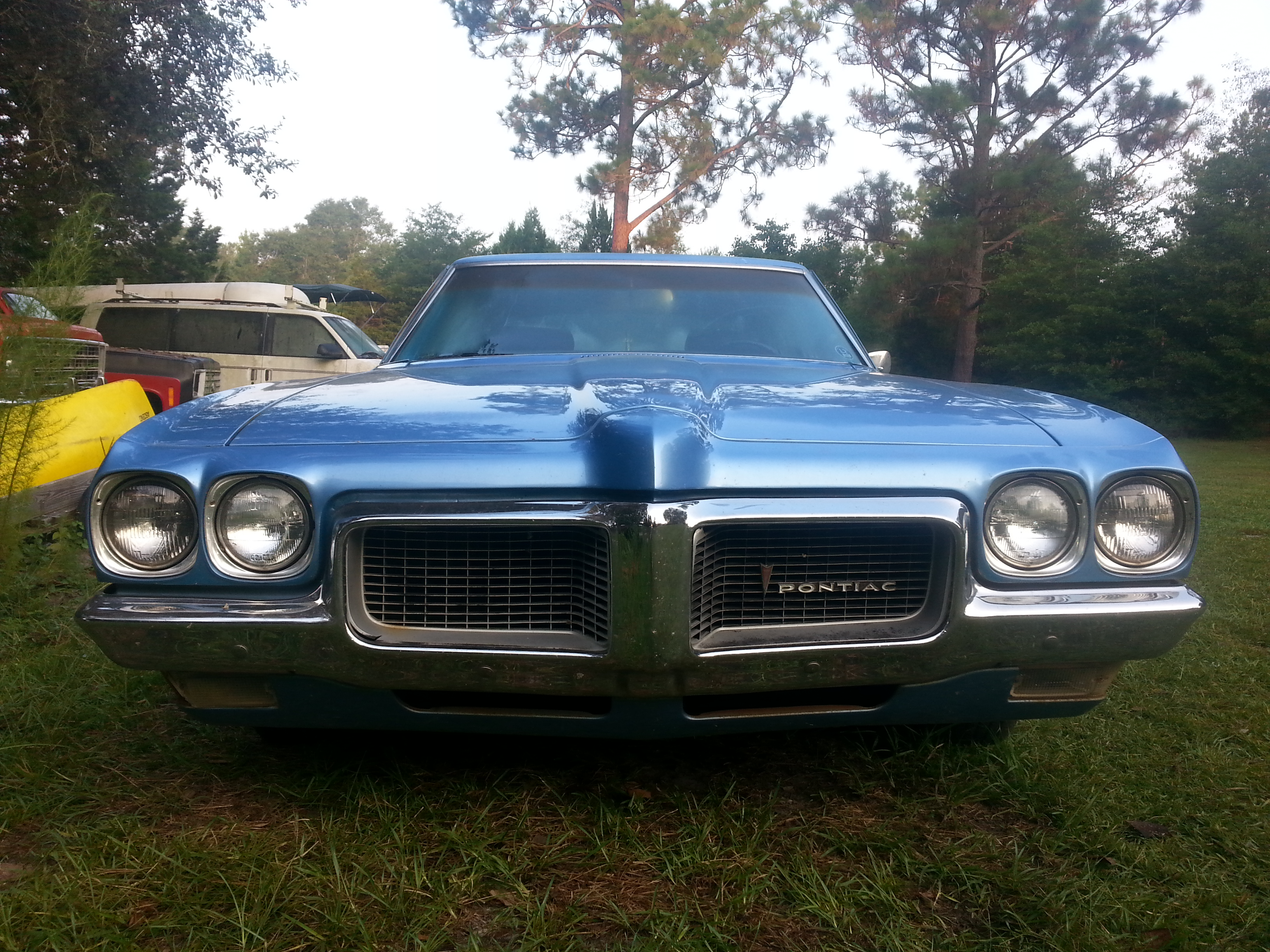

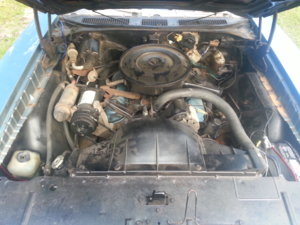

    Here is my dd, an all original 1970 Pontiac Lemans with 58k original miles on the clock

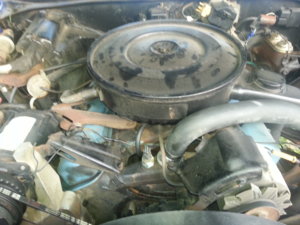

    The stock 350 (5.7L) cranking out 256hp and 350+ ft/lb torque with the original 2bbl carb (soon to be changed to a 4bbl)
    And yes, the A/C still works with no leakage!
    A little dusty, but I might take care of that today :p

    I got his car from a guy off of Craigslist for $3500, practically stole it from him.
