WIP Beta released Throttle-Based Torque Converter Lockup Logic 1.2

Smooth & Efficient Acceleration

  1. default0.0player

    default0.0player
    Expand Collapse

    Joined:
    Nov 30, 2018
    Messages:
    762
    Repository download page
    I made some change to the Automatic gearbox shiftlogic and introduce some more Jbeam variables.
    DOWNLOAD (remove the WIP
    tclockupthrottle_covet_d0p.zip first), Repo version

    It's quite common for automatic gearboxes to delay the TC lockup by throttle value before downshifting.

    Mod feature: Delay the TC lockup RPM by throttle settings with adjustable parameters, NO more 3rd gear bogging down.
    The Covet is already configued for demonstration.
    Vehicles:
    Wentward DT40L
    Gavril Pickup/Roamer/Van
    Ibishu 200BX
    ETK I-Series
    Gavril Grand Marshal
    Ibishu Covet
    Ibishu Hopper
    Bruckell LeGran
    Ibishu Pessima/Midsize
    Gavril T-Series

    Other vehicle shifting is unchanged.

    Choose the mod Converter in the vehicle parts

    Jbeam parameters:
    Code:
            "shiftLogicName":"automaticGearboxmod", //using the modded shiftlogic
            "torqueConverterThrottleLockupRange": 1000, //increase this RPM with throttle application
            "torqueConverterDelayLockupMinThrottle":0.2, //throttle below this does not increase the lockup RPM
            "torqueConverterDelayLockupMaxThrottle":0.7, //throttle at or above this fully increase the lockup RPM

    Lua modifications:
    Code:
    lockupTarget = min(max((gearboxInputAV - torqueConverterHandling.lockupThrottleRange * (M.throttle / (torqueConverterHandling.lockupDelayMaxThrottle - torqueConverterHandling.lockupDelayMinThrottle) + torqueConverterHandling.lockupDelayMinThrottle / (torqueConverterHandling.lockupDelayMinThrottle - torqueConverterHandling.lockupDelayMaxThrottle)) - torqueConverterHandling.lockupAV) / torqueConverterHandling.lockupRange, 0), 1)
    and this:
    Code:
        torqueConverterHandling.lockupThrottleRange = (jbeamData.torqueConverterThrottleLockupRange or 0) * constants.rpmToAV

        --delay torqueConverterLockup with throttle application
        torqueConverterHandling.lockupDelayMinThrottle = jbeamData.torqueConverterDelayLockupMinThrottle or 0
        --no lockup delay below this throttle value
        torqueConverterHandling.lockupDelayMaxThrottle = jbeamData.torqueConverterDelayLockupMaxThrottle or 1
        --max lockup delay above this throttle value
    How to use it

    Put the zip in your mods folder and drive the Covet the above vehicleafter selecting the Throttle-based Locking Torque Converter part.
    For other vehicles, enter the Jbeam code in the converter section, right below the "torqueConverterLockupRPM".
    Parameters value adjustment: important for a good driving experience.
    torqueConverterDelayLockupMinThrottle: Must at or above 0 and below the "torqueConverterDelayLockupMaxThrottle" value, should be set to a bit above cruising throttle.
    torqueConverterDelayLockupMaxThrottle: Must at or below 1 and above the "torqueConverterDelayLockupMinThrottle" value, should be set to just below downshift throttle.
    torqueConverterThrottleLockupRange: Not set or set to 0 to disable the function. Note that above certain engine speeds, the lockup action merely affect the RPM, set to roughly that RPM minus the "torqueConverterLockupRPM" then divided by two. Trial-and-error might needed to fine-tune for the best driving experience.

    Lockup RPM basic calculation example: The throttle setting is 0.4, the "torqueConverterDelayLockupMinThrottle" is 0.2, the "torqueConverterDelayLockupMaxThrottle" is 0.6, the "torqueConverterThrottleLockupRange" is 1000 and the "torqueConverterLockupRPM" is 1300.
    The actual lockup RPM would be 1800.


    Attached Files:

    #1 default0.0player, Oct 5, 2019
    Last edited: Oct 10, 2019
    • Like Like x 7
    • Agree Agree x 1
  2. _Tanco

    _Tanco
    Expand Collapse

    Joined:
    Jan 7, 2017
    Messages:
    216
    Awesome mod ! The automatic gearbox feels way better than before, it resolved the problem where the engine revs raise when the gearbox change speed and significantly increased the gearbox reactivity while driving, i hope the devs while take a look at what you did because actually the automatic gearboxes feels very bad (when you are at max rpm and you need to wait 5 seconds for the gearbox to upshift to reduce to 2000RPM is a bit boring...) it still needs some tweaks (specially for the upshifting rpm values, at 90% of throttle the gearbox shouldn't upshift at 3000RPM, but that's easy to change). Now you should try to do it on a gearbox with more speeds, like the ETK 8-speed who is an absolute pain to use when you're not always at 100% of the throttle.

    #2 _Tanco, Oct 5, 2019
    Last edited: Oct 5, 2019
    • Agree Agree x 2
    • Like Like x 1
  3. Michaelflat

    Michaelflat
    Expand Collapse

    Joined:
    Jul 10, 2014
    Messages:
    1,664
    Amazing, will be interested to try this out next time I'm on BeamNG

    • Like Like x 1
  4. default0.0player

    default0.0player
    Expand Collapse

    Joined:
    Nov 30, 2018
    Messages:
    762
    No lua is needed, just lower the "aggressionHoldOffThrottleDelay" value to zero.
    Older mechanical transmissions don't "sense" throttle position, they only had a kickdown switch that activate via full throttle. In BeamNG, these kinds of transmission always using the highest gear below 80% throttle.
    The ETK 8-speed is actually more efficient than manual transmission becalse the TC lock up early at 2nd gear. To prevent rev bouncing the throttle is reduced to 70% during upshifting. The "pain" is actually caused by the slow shift at low throttle. In the "etk_transmission.jbeam", the "gearChangeTime" is the minimum physically possible shift time, while the "maxGearChangeTime" and the "minGearChangeTime" is for the contoller to smoothen the shift, lowering the "maxGearChangeTime" by half may help.
    --- Post updated ---
    Finished! Repo version is waiting approval.


    Attached Files:

    • Like Like x 2
  5. Capkirk

    Capkirk
    Expand Collapse

    Joined:
    Nov 19, 2017
    Messages:
    741
    This is great! it works really well. If you approve, I would like to try and implement this into some of my mods, it would work a whole lot better than my current solution (2 gears with the same ratios, with lockup enabled in one of them)

    • Agree Agree x 1
  6. default0.0player

    default0.0player
    Expand Collapse

    Joined:
    Nov 30, 2018
    Messages:
    762
    Feel free to implement this in your mod (cuz reuploders and meshslappers don't even understand this mod lol). One purpose of this thread is to provide some pratical ways to improve shiftlogic so we can contribute to the vehicle handling in BeamNG.drive.
    One way is to DIY it, copy the shiftLogic-automaticGearbox.lua to your user folder C:\Users\yourusername\Documents\BeamNG.drive\lua\vehicle\controller\ and edit it, it'll (temporarily)override the original lua. You can do this ingame, just press Ctrl+L then Ctrl+R to refresh after each edit).
    Another way is to create other drivetrain mod with those Jbeam parameters, keeping this mod enabled.
    Another way is to take the lua folder and rename it (eg.shiftLogic-automaticGearboxmodmod.lua) then edit the file to implement your custom shiftlogic, then in the vehicle Jbeam vehiclecontroller (eg.
    "shiftLogicName":"automaticGearboxmodmod").

    Also you may want to check out this mod. Note that I don't know how to rename the file and specify them in the Jbeam file, so it changes the shift globally, thus it's not allowed in the repo(You must not overwrite any default game data.).

    Good luck with your modding

    #6 default0.0player, Oct 6, 2019
    Last edited: Oct 6, 2019
    • Like Like x 2
  7. Capkirk

    Capkirk
    Expand Collapse

    Joined:
    Nov 19, 2017
    Messages:
    741
    Thanks. I'll use it to improve my automatic transmissions for my Wentward mod. The CVT and DCT fix looks interesting too, I might have a use for those as well in the future.

    • Like Like x 1
  8. Michaelflat

    Michaelflat
    Expand Collapse

    Joined:
    Jul 10, 2014
    Messages:
    1,664
    Haha we both have the same idea..

    Gearbox optimisation, what vehicle do we fit this technology to... A bus! :p

    • Agree Agree x 2
  9. default0.0player

    default0.0player
    Expand Collapse

    Joined:
    Nov 30, 2018
    Messages:
    762
    The CVT still needs some work completed. In the original tuning the CVT low RPM(600 in the Sunburst) is lower than the TC lockup RPM(1800 in the Sunburst), making low throttle cruising inefficient. And the TC Always lock up at the specified RPM regardless of vehicle speed, making launching sluggish. I'm trying to make the CVT shift map an adjustable exponential curve and do the same throttle based TC locking. Another problem is, unlike automatics, the TC always lockup in an instant. The "torqueConverterLockupRate" only works in automatics.

    #9 default0.0player, Oct 6, 2019
    Last edited: Oct 10, 2019
    • Like Like x 2
  10. Capkirk

    Capkirk
    Expand Collapse

    Joined:
    Nov 19, 2017
    Messages:
    741
    I know IRL Subaru CVTs lock up at 11 mph. Could you use electrics.wheelspeed or something to trigger lockup, instead of an RPM value?

  11. Michaelflat

    Michaelflat
    Expand Collapse

    Joined:
    Jul 10, 2014
    Messages:
    1,664
    It's a little clunky, based purely on throttle value.. could it be based upon agression value? or make your own version of agression value?

    The problem is that its a little quick to lockup once you let off gas, maybe a simple delay could help.

    • Agree Agree x 1
  12. default0.0player

    default0.0player
    Expand Collapse

    Joined:
    Nov 30, 2018
    Messages:
    762
    The "aggression" value is in the "vehiclecontroller.lua" and I (currently)don't know how to mod it.
    Note: the non-aggressive shiftmap is way different than the aggressive shiftmap, the former is throttle^3, the latter is throttle * 1.333 or 0.75 when stopped, this is a bit confusing.

    EDIT: The aggression calculation in the "vehiclecontroller.lua" is a little bit clunky. First the aggression is calculated according to the throttle increase speed (dt) add up to the throttle position X 1.333, thus, even you move the throttle very slowly, the aggression is always higher than the throttle. Then the "aggressionCoef" is introduced, which is basically squared aggression value. Finally the shiftRPM is a function of low/highShiftUp/DownRPM and the aggressionCoef.
    For older transmission, the aggression is throttle cubic (throttle^3) and the aggressionCoef is (throttle^6), this is a very low RPM shifter, you may apply more than 90% throttle in order to downshift.
    As shown, with 70% throttle the non-aggression is about 0.1 and the aggreession is about 0.9, that's why older mechanical transmission is described as slushbox.
    I'm planning to do a custom shiftmap without modding the "vehiclecontroller.lua".

    A simple delay is about setting these value just below "torqueConverterLockupRPM"
    Code:
    "torqueConverterLockupInRate":5,
    "torqueConverterLockupOutRate":0.15,

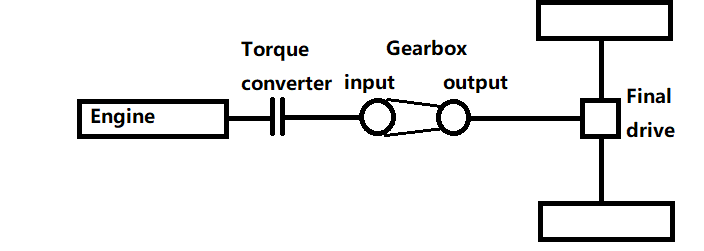

    Good idea, do you know you don't even need to implement wheelspeed sensors in the lua because of this
    As shown, the wheelspeed is tied to the gearbox output RPM, just set the TC lockup according to the gearbox output RPM and adjust the RPM to where the wheelspeed is 11mph.

    #12 default0.0player, Oct 8, 2019
    Last edited: Oct 8, 2019
    • Like Like x 1
  13. on3cherryshake

    on3cherryshake
    Expand Collapse

    Joined:
    May 12, 2015
    Messages:
    436
    Am I free to implement this in my engines mod?

  14. default0.0player

    default0.0player
    Expand Collapse

    Joined:
    Nov 30, 2018
    Messages:
    762
    Yes, just don't forget to rename to avoid mod conflict. Also note the "torqueConverterLockupInRate" is TC unlock speed and"torqueConverterLockupOutRate" is TC lockup speed

  15. default0.0player

    default0.0player
    Expand Collapse

    Joined:
    Nov 30, 2018
    Messages:
    762
    • Like Like x 1
  16. default0.0player

    default0.0player
    Expand Collapse

    Joined:
    Nov 30, 2018
    Messages:
    762
    • Like Like x 1
