I am having issues with the materials mostly surrounding chrominess. Code: singleton Material(Raven_R60_Body) { mapTo = "body"; diffuseMap[2] = "vehicles/sunburst/sunburst_c.dds"; specularMap[2] = "vehicles/sunburst/sunburst_s.dds"; normalMap[2] = "vehicles/sunburst/sunburst_n.dds"; diffuseMap[1] = "vehicles/sunburst/sunburst_d.dds"; specularMap[1] = "vehicles/sunburst/sunburst_s.dds"; normalMap[1] = "vehicles/sunburst/sunburst_n.dds"; diffuseMap[0] = "vehicles/common/null.dds"; specularMap[0] = "vehicles/common/null.dds"; normalMap[0] = "vehicles/sunburst/sunburst_n.dds"; specular[0] = "0.5 0.5 0.5 0.1"; specular[1] = "0.5 0.5 0.5 0.1"; specular[2] = "0.5 0.5 0.5 0.1"; specularPower[0] = "128"; pixelSpecular[0] = "1"; specularPower[1] = "32"; pixelSpecular[1] = "1"; specularPower[2] = "128"; pixelSpecular[2] = "1"; diffuseColor[0] = "0 0 0 0"; diffuseColor[1] = "0 0 0 0"; diffuseColor[2] = "0 0 0 0"; useAnisotropic[0] = "1"; useAnisotropic[1] = "1"; useAnisotropic[2] = "1"; castShadows = "1"; translucent = "1"; translucentBlendOp = "None"; alphaTest = "0"; alphaRef = "0"; dynamicCubemap = true; beamngDiffuseColorSlot = 2; materialTag0 = "beamng"; materialTag1 = "vehicle"; };
Your diffuseColors look odd. They're all black with 0 alpha. Try setting diffuseColor[0] and diffuseColor[1] to "1 1 1 1". You can leave diffuseColor[2] because it's controlled by the colour picker.
Still no change. I should also add that if you try to load the vehicle with a custom colour the game will refuse to load the vehicle. Meaning the only way to change colour is to using the tuning menu.
Hey, I had a look at the mesh you sent me. In the first instance it seems that your material.cs file is linking to the wrong material. The material of the body of your mesh (and other meshes) is called 'Leather' and not 'body'. Furthermore it seems that you haven't created a UV map for your mesh yet.
As you may can see, I haven't put much effort in creating a proper uv map now. But at least there is one and I gave the mesh a 'body' material.
On the blender file the interior material is called 'Leather' and the exterior is called 'body'. Do the material names assigned within blender not directly correlate with what is being exported?
Oh, damn, sorry... everything's fine with the materials in the dae file. My bad, sorry about that. But have you tried to add an uv map?
No I haven't, I was gonna wait until the model is finished before I start trying to texture it (im not sure if that is the best way to do it though, I can't say I have experience with them). Is it possible to apply a blank UV map to it?
Actually there should already be a blank map. But since it's blank, it's not able to link the mesh to the 2d representation/texture. I just added a planar projection for testing purposes in the pictures (that's why it looks so crappy).

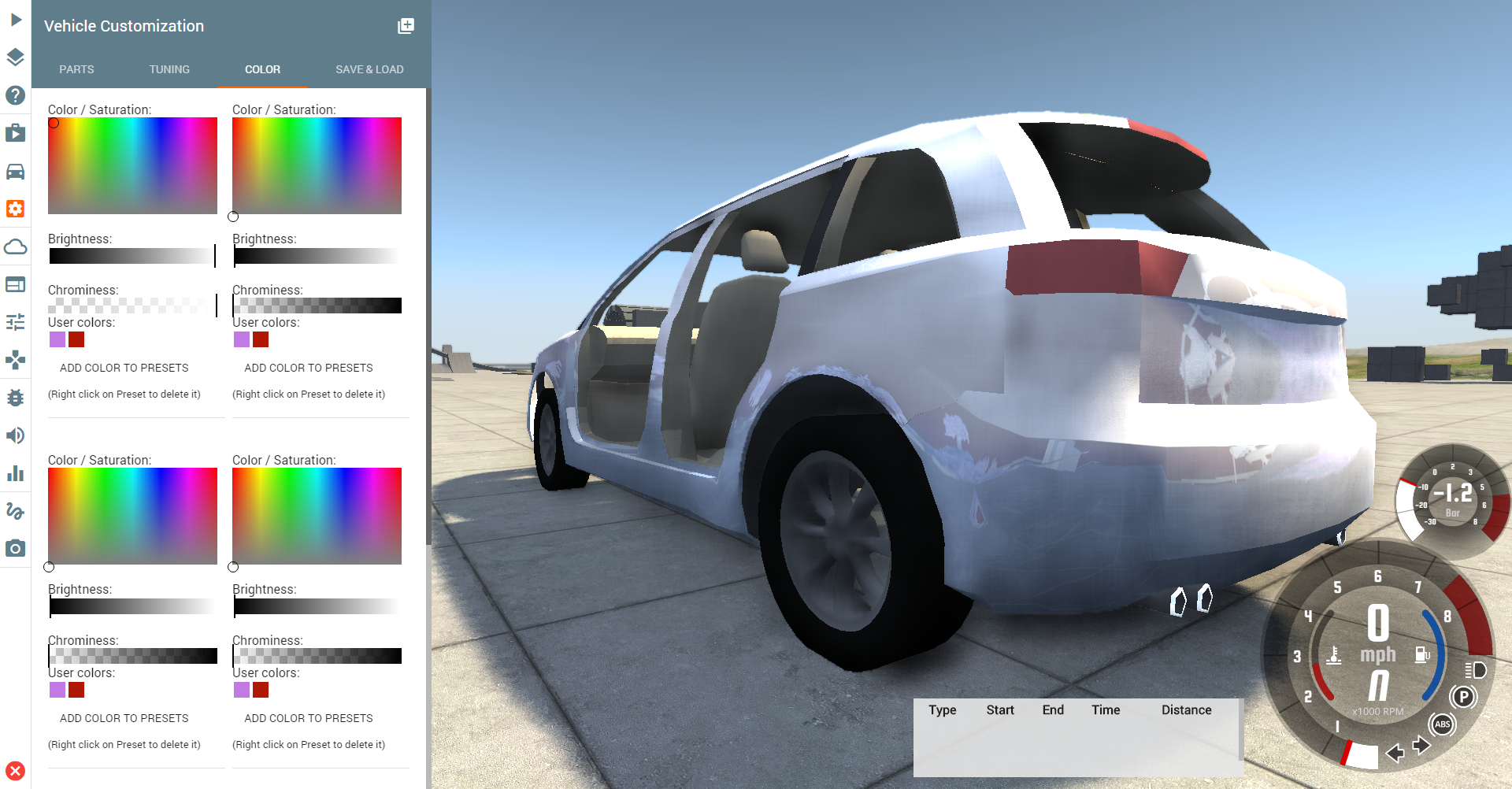

Now that I have added a texture within blender it is (crappily) functioning. Just fiddling with files to get it looking not awful. Thanks However the vehicle still does not load with a custom colour selected. Also how do you limit the chrominess to prevent it going into the negative range?

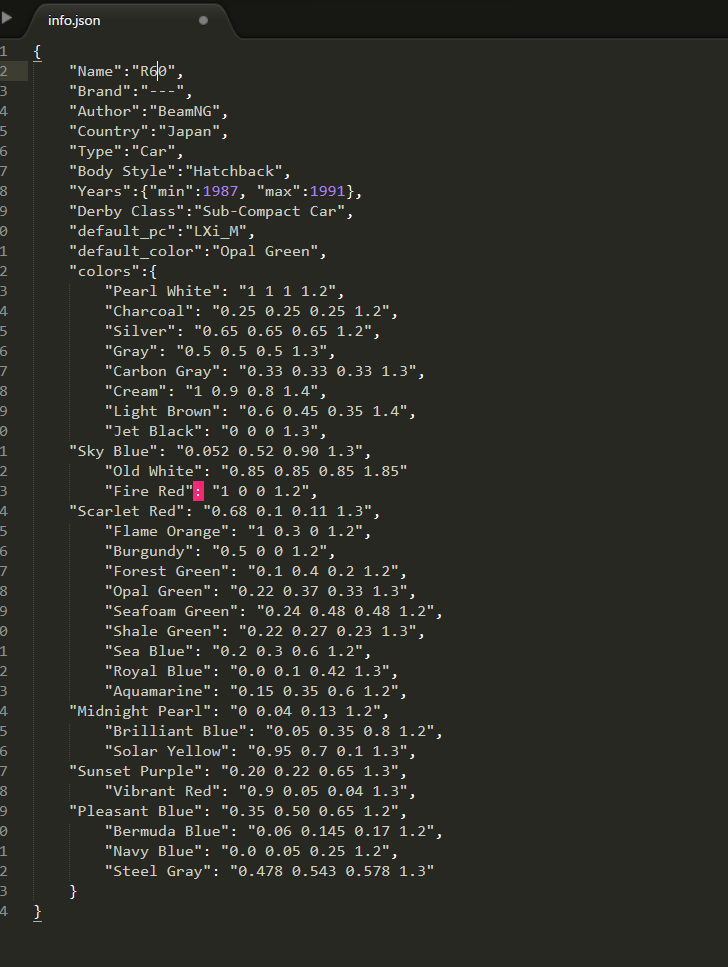

You have to create an info.json file, in this file you can define the default colors of your vehicle.
When I copy the info.json from another vehicle and fill it in the car no longer appears in the vehicle selector though.
I like to set the diffuse texture's alpha (The actual texture, not the diffuseColor) to 128 (HEX: 80).
How would you suggest is the best way of doing that? I am currently trying to set the textures alpha to half using PSE with the nvidia plugin. But it doesn't seem to be making a difference in game so I am not sure I am doing it right. I used the colour picker to get the same colour. Created a new layer filled that layer with the colour at 50% opacity deleted the original layer Exported to dds (using: DXT3 ARGB 8 bpp | explicit alpha) the resulting file is attached. When I reload the file into photoshop there is no longer any transparency in the file. (If I save as png the transparency is in the saved file but still makes no difference in game if I set the png as the texture). --- Post updated --- That is what I have done. I have attached the info.json file I also created the other json file just in case that was needed too which I have attached,
