WIP Volvo 240

Discussion in 'Land' started by BeamCar, Jun 29, 2019.

?

Sedan and Wagon?

  1. Yes

    98.3%
  2. No

    3.2%
Multiple votes are allowed.
  1. BeamCar

    BeamCar
    Expand Collapse

    Joined:
    Feb 26, 2019
    Messages:
    314
    Thank you but I need help with the model. Someone else is helping with the jbeam.

  2. fufsgfen

    fufsgfen
    Expand Collapse

    Joined:
    Jan 10, 2017
    Messages:
    7,050
    Can you post a image of what issue you have with model?

  3. BeamCar

    BeamCar
    Expand Collapse

    Joined:
    Feb 26, 2019
    Messages:
    314
    I need the doors and trunk separated. Also a few fixes to the body to make it smooth.


    Attached Files:

    • 1988-93Volvo240.png
  4. Dayz Me Rollin'

    Dayz Me Rollin'
    Expand Collapse

    Joined:
    Dec 8, 2016
    Messages:
    499

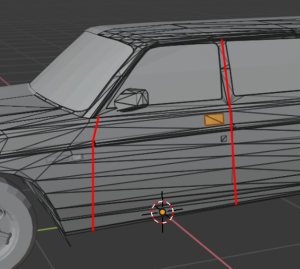

    You need extra vertices so you can actually separate the correct faces from them. If you separate them now, you'll end up with a door that has part of the fender attached.
    (I'm not good at 3D modelling myself,so excuse the horrible explanation)

    • Informative Informative x 1
  5. BeamCar

    BeamCar
    Expand Collapse

    Joined:
    Feb 26, 2019
    Messages:
    314
    Ok. Hmmm... I tried that but it did not work so well.

  6. georgy 1991

    georgy 1991
    Expand Collapse

    Joined:
    Nov 30, 2014
    Messages:
    101
    Remember that you will need door sills and bottom side of the door.I think it would be better to find a model which already have doors separated. I can send you one from HUM3d, but it needs to be remade to have underbonnet part an less polys. I can do it, so just pm.

  7. Dayz Me Rollin'

    Dayz Me Rollin'
    Expand Collapse

    Joined:
    Dec 8, 2016
    Messages:
    499
    Or use a good model source instead.


    lol wtf

    • Agree Agree x 3
  8. fufsgfen

    fufsgfen
    Expand Collapse

    Joined:
    Jan 10, 2017
    Messages:
    7,050

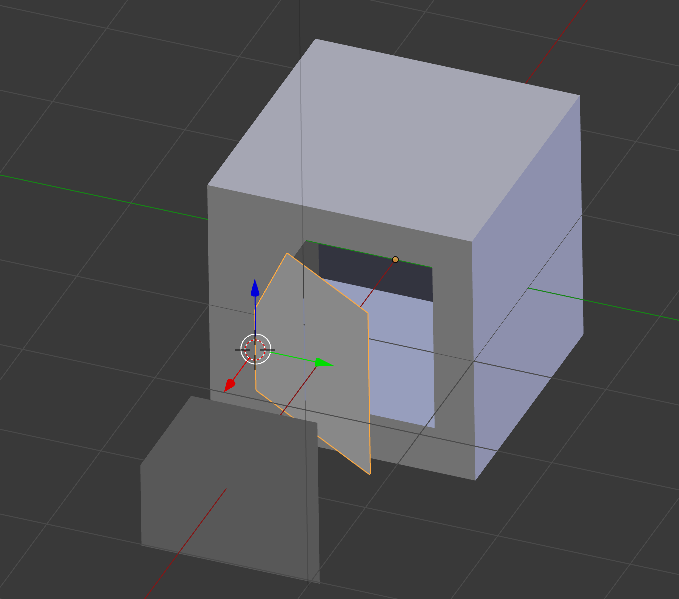

    Easiest way, make plane shape of the door:

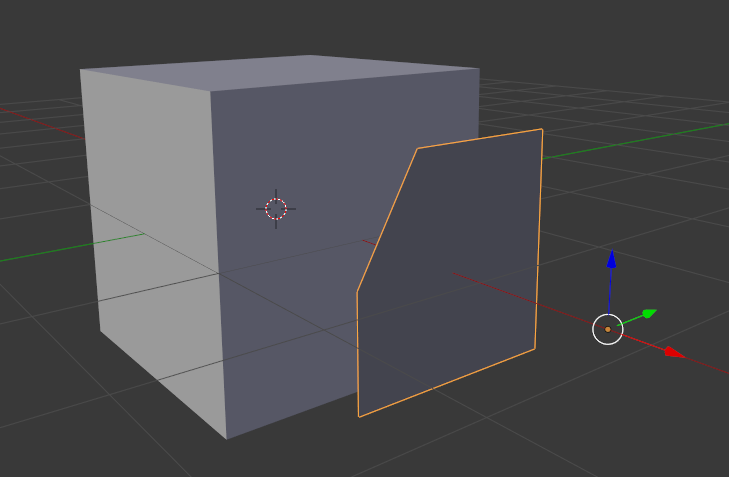

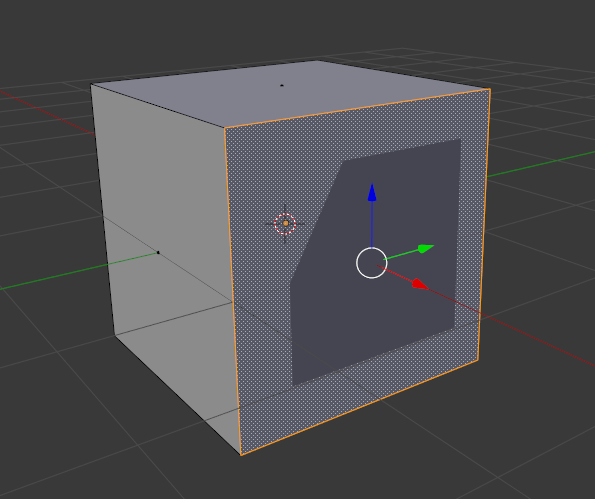

    Place door shape plane close to car, then select car, edit mode, select faces that need to be cut for a door:

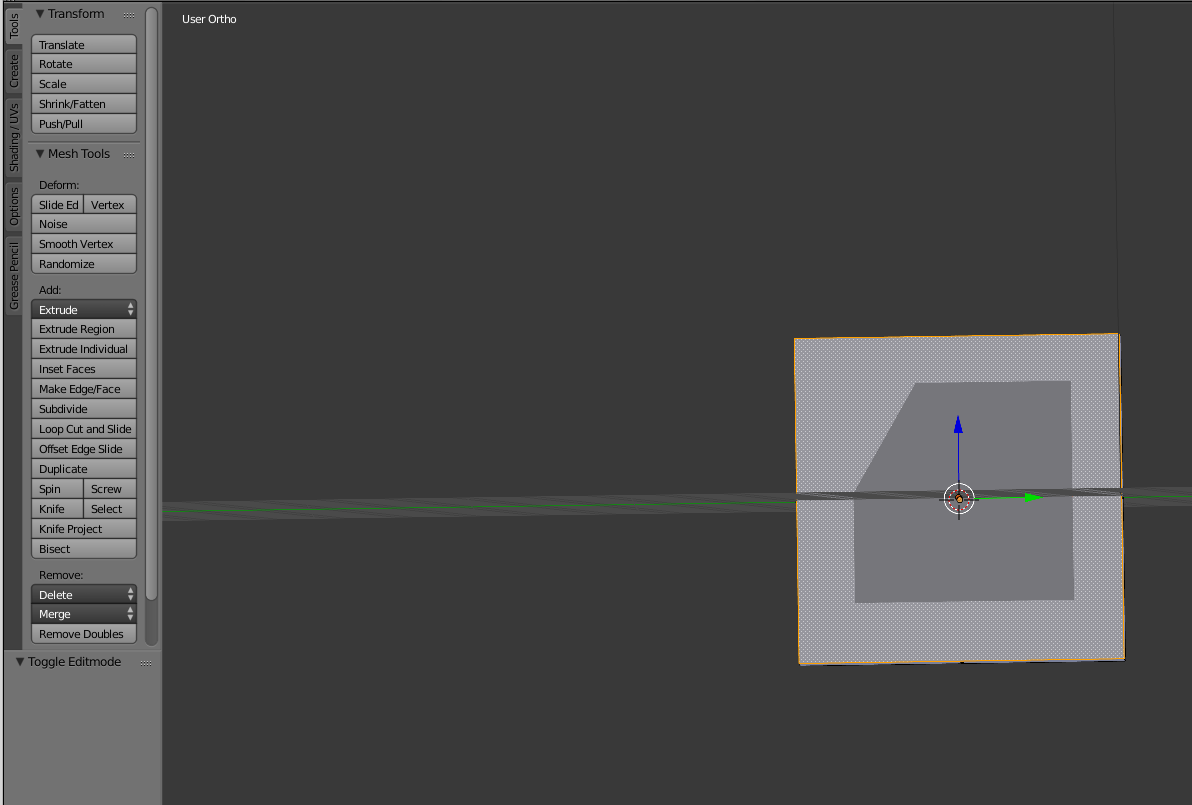

    Tab to object mode, then select shape of door and shift right click car, hit tab key again, hit 5 from they keypad, rotate view so that it is straight from the side and select knife project from left:

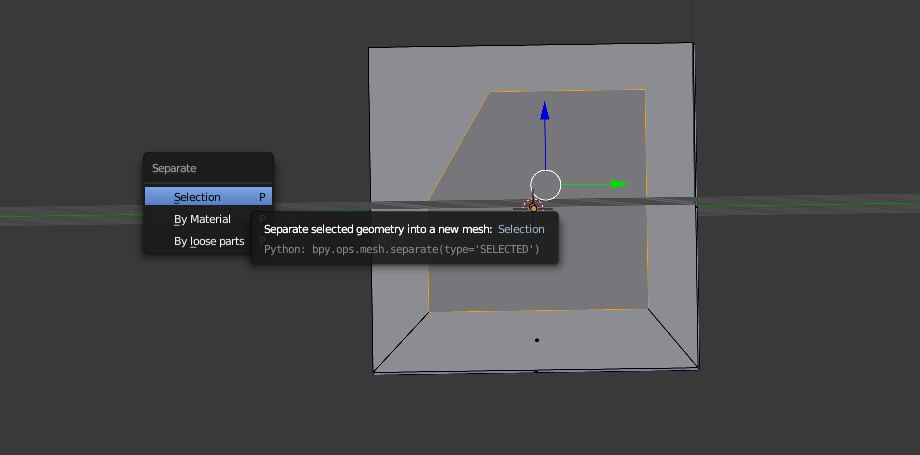

    Hit P choose selection from popup:

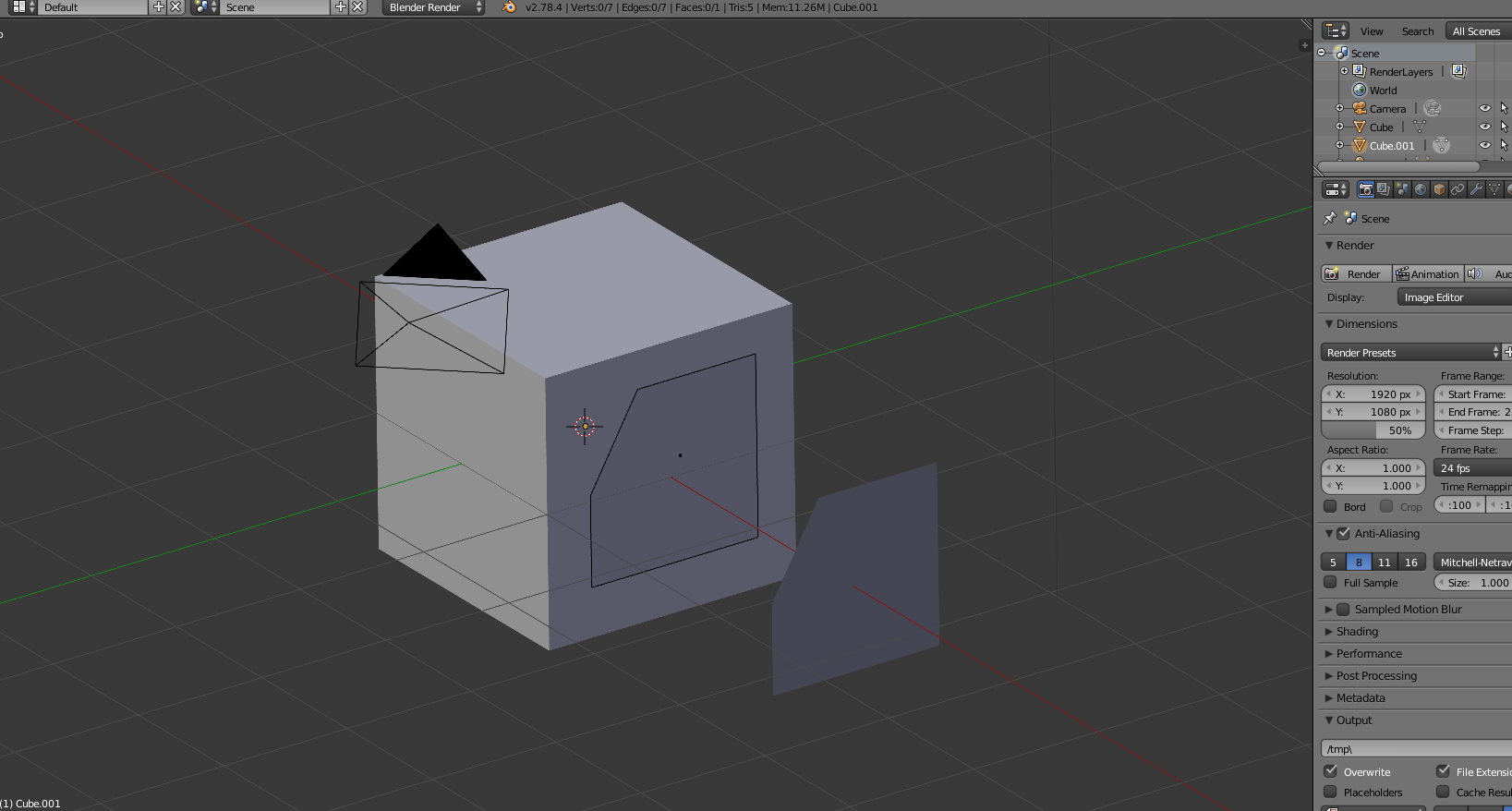

    And there you have your door cut out and separated as new object:
    upload_2019-12-1_18-5-49.png upload_2019-12-1_18-13-41.png

    But do note, you need to clean up edge flow after this, also I don't know if they changed something between 2.8 and 2.78a, I'm using latter. Also probably works best on quads and you have Triangles.

    To convert Triangles to quads, select Triangle faces you wish to convert, then hit Ctrl+F and select Tris to Quads from popup menu.

    Overall it is best to work with Quads as much as possible, I use even Ngons a lot and just convert them to quads after done as it is easier than trying to maintain perfect edgeflow before seeing the shape. Ngons are faces that are formed from more than 4 vertices.


    Now there are other ways to make a cut, you can even do just select edge hit W and choose subdivide, but that takes ages and you need to do a lot of deleting and connecting, way I show is not proper, but it is quick hack to get things done, sometimes it bugs out a bit and you need to try again, but works for me.

    #88 fufsgfen, Dec 1, 2019
    Last edited: Dec 4, 2019
    • Like Like x 2
    • Agree Agree x 2
  9. georgy 1991

    georgy 1991
    Expand Collapse

    Joined:
    Nov 30, 2014
    Messages:
    101
    LMAO WTF? Models that I had were normal... This thing loocks strange

  10. dvigatel

    dvigatel
    Expand Collapse

    Joined:
    Nov 13, 2014
    Messages:
    111
    Volvo very good car!

    • Like Like x 1
  11. zionbraveguy16

    zionbraveguy16
    Expand Collapse

    Joined:
    Jan 4, 2019
    Messages:
    1
    I think you mean Volvo very good tank. Also that is an 850 not a 240.

    • Like Like x 2
  12. dvigatel

    dvigatel
    Expand Collapse

    Joined:
    Nov 13, 2014
    Messages:
    111

    • Like Like x 1
  13. BeamCar

    BeamCar
    Expand Collapse

    Joined:
    Feb 26, 2019
    Messages:
    314
    A hum3d model of the 240 wagon and sedan? If so that would pretty much finish this mod. Thnaks!
    --- Post updated ---
    Thanks. I will try this.
    --- Post updated ---
    Thank you all for the great tips! Also I saw something awesome on the volvo. Goblin works garage S02 E05.
    --- Post updated ---
    Thank you all for the gre
    What year is it?

    • Like Like x 1
  14. georgy 1991

    georgy 1991
    Expand Collapse

    Joined:
    Nov 30, 2014
    Messages:
    101
    Hmmm geometry looks strange. I'll search for another model. For now, try to model it yourslf using references. I'll PM you a model if/when I'll find it.

    • Like Like x 2
  15. BeamCar

    BeamCar
    Expand Collapse

    Joined:
    Feb 26, 2019
    Messages:
    314
    Alright. 1988-1993 would be ideal for the mod. Thanks.

  16. fufsgfen

    fufsgfen
    Expand Collapse

    Joined:
    Jan 10, 2017
    Messages:
    7,050
    Difference is just some trim and lights, hood and trunk lid from 1982/3-1993. Pre 1982 is still same, except front fenders are also different.

    Even 144 is very close, but has again different fenders and door handles, small changes to doors, hood, indicators, bumpers, grille, but essentially it is same than 244 and 240 just adds tiny changes to parts bolted on that body :

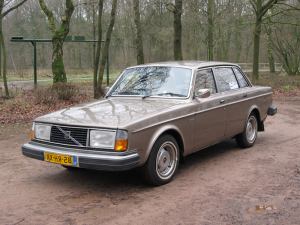

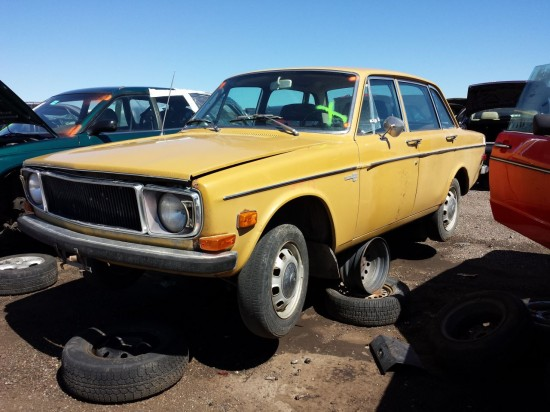

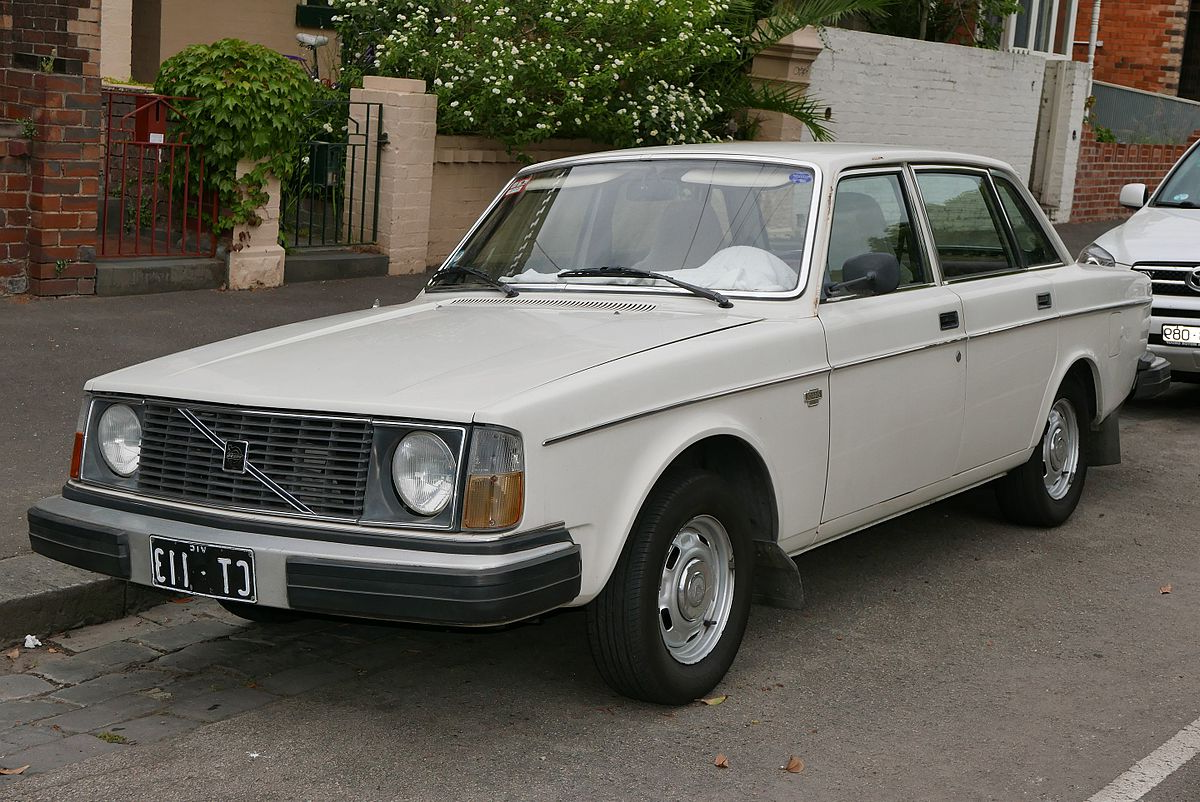

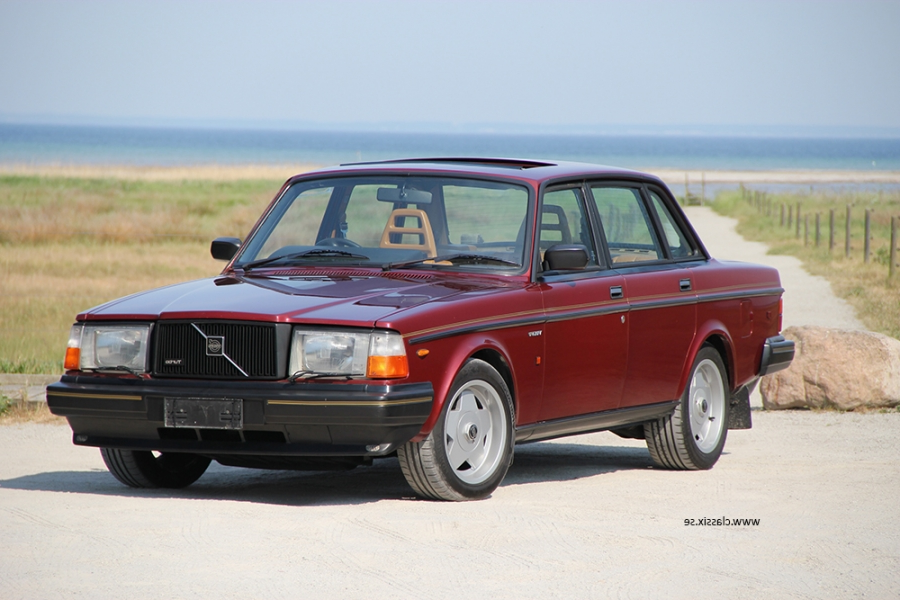

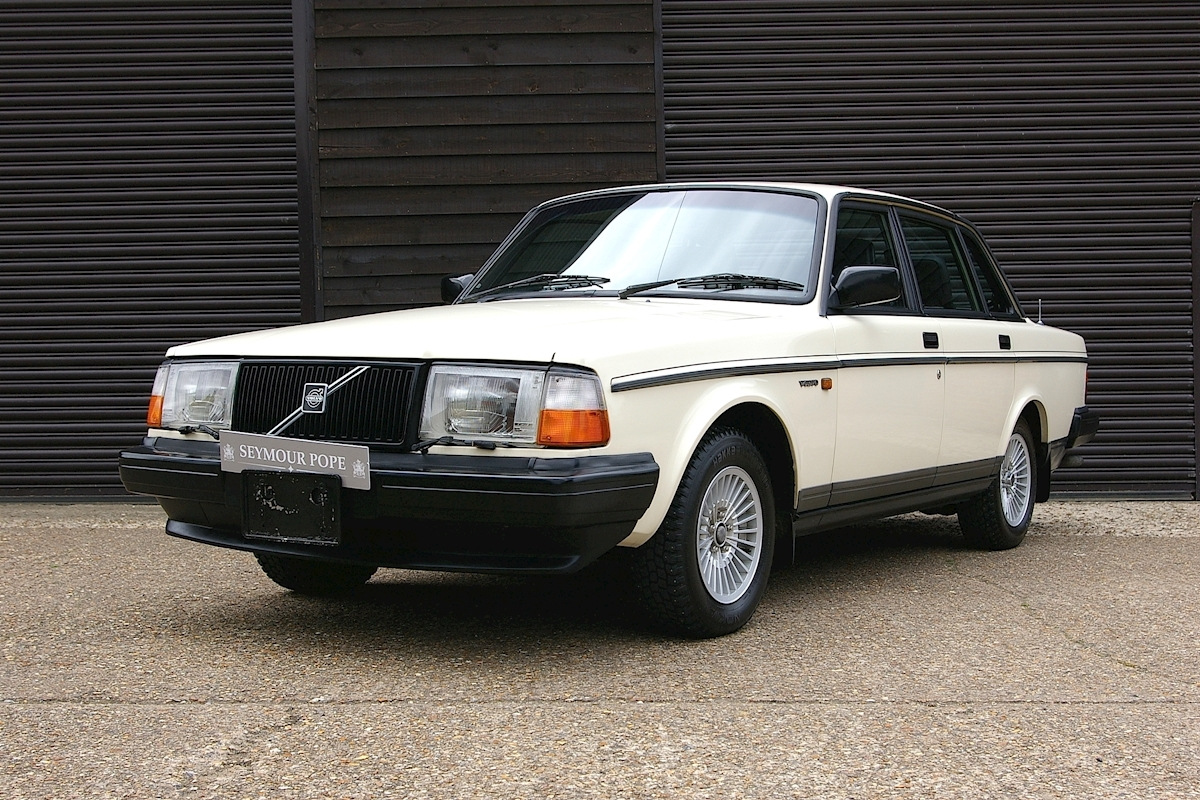

    upload_2019-12-6_19-41-8.png upload_2019-12-6_19-42-16.png upload_2019-12-6_19-44-43.png upload_2019-12-6_19-45-28.png upload_2019-12-6_19-48-21.png

    Mostly model needs to be made from photos anyway, blueprints will not show any shapes of details, just rough guide to keep outer dimensions correct, to place windows and doors correctly etc.

    Swedes made car so that when you model a body to it, you can make anything from 144 onwards by changing body panels, doors and such things bolted on to body.

    Of course interior has changed a lot and engines + running gear too, but you have essentially one size fits for all car body here.

    • Like Like x 2
  17. BeamCar

    BeamCar
    Expand Collapse

    Joined:
    Feb 26, 2019
    Messages:
    314

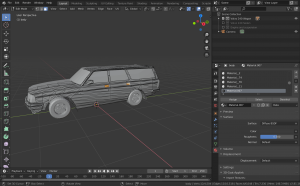

    I just got the hood separated. I also have a video of the status of the model.


    Attached Files:

    • Like Like x 4
  18. BeamCar

    BeamCar
    Expand Collapse

    Joined:
    Feb 26, 2019
    Messages:
    314
    I have made progress with the model. Could someone separate the doors and trunk for me? I just can not get it right. Just pm me. After that it should be ready for a beta release.

  19. fivedollarlamp

    fivedollarlamp
    Expand Collapse

    Joined:
    Sep 18, 2016
    Messages:
    2,611
    Do you have all of the Jbeam, textures, baking and stuff like that done?

  20. BeamCar

    BeamCar
    Expand Collapse

    Joined:
    Feb 26, 2019
    Messages:
    314
    Almost. I need the model completed to finish that though. Currently the doors are fused to the body.
